Plat'Fix TP 105

Plat'Fix TP 105

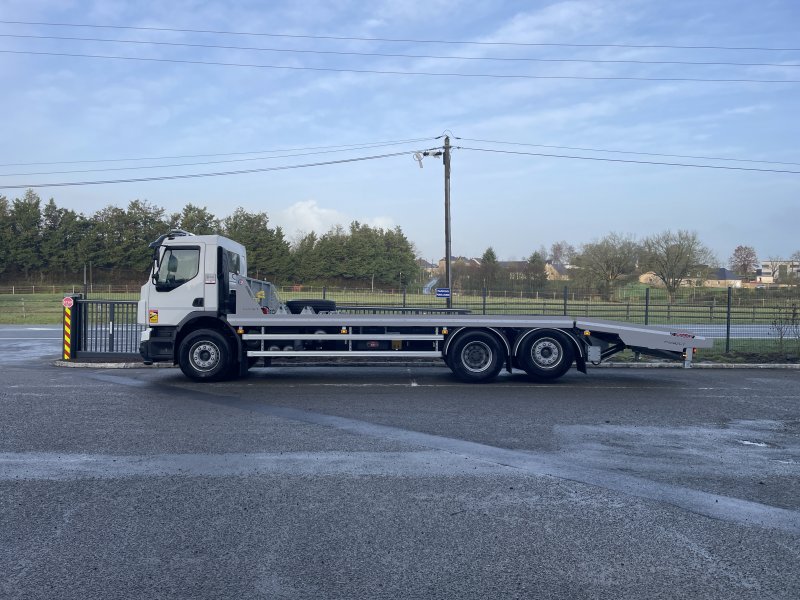

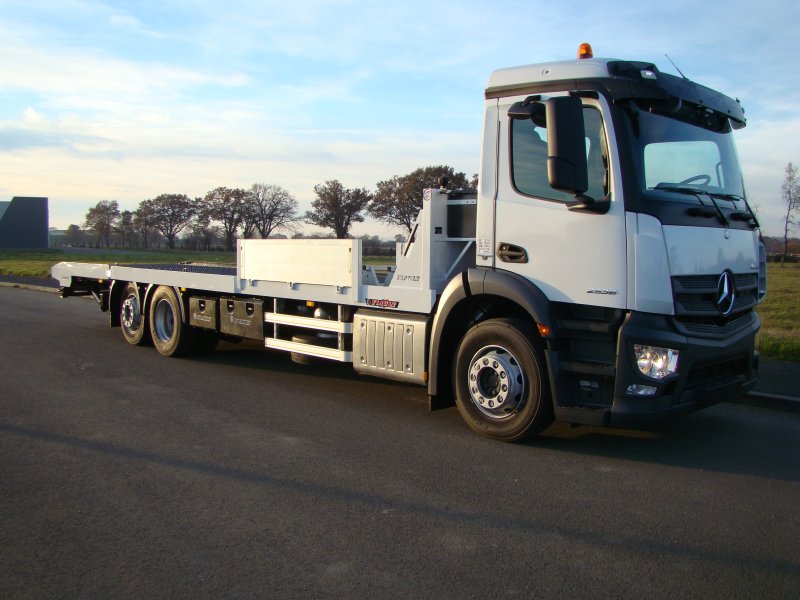

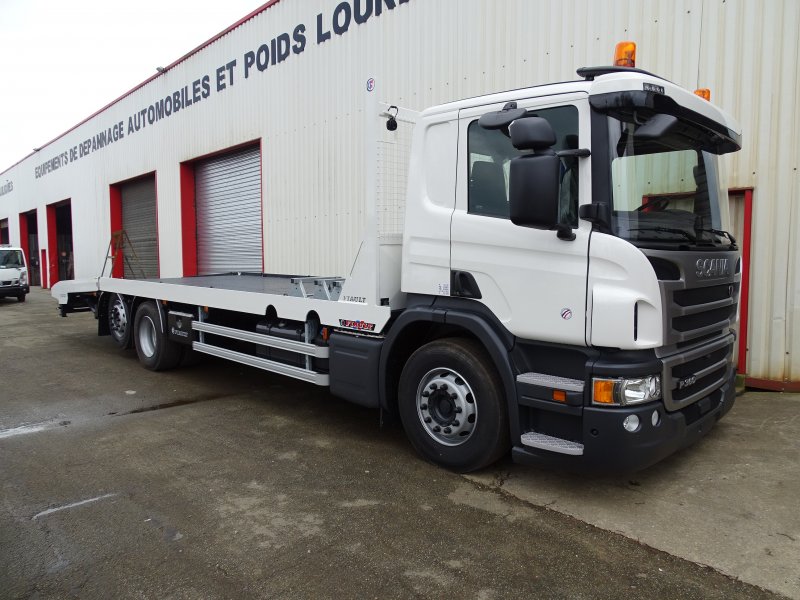

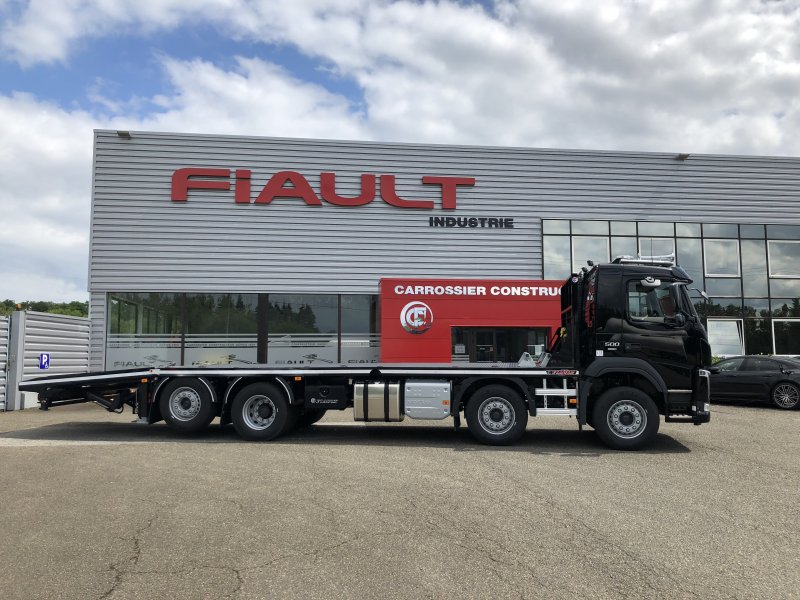

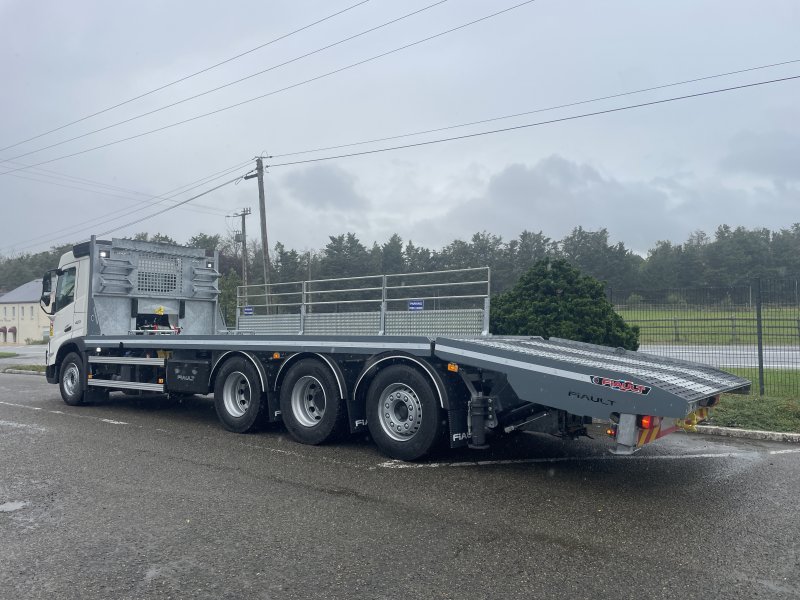

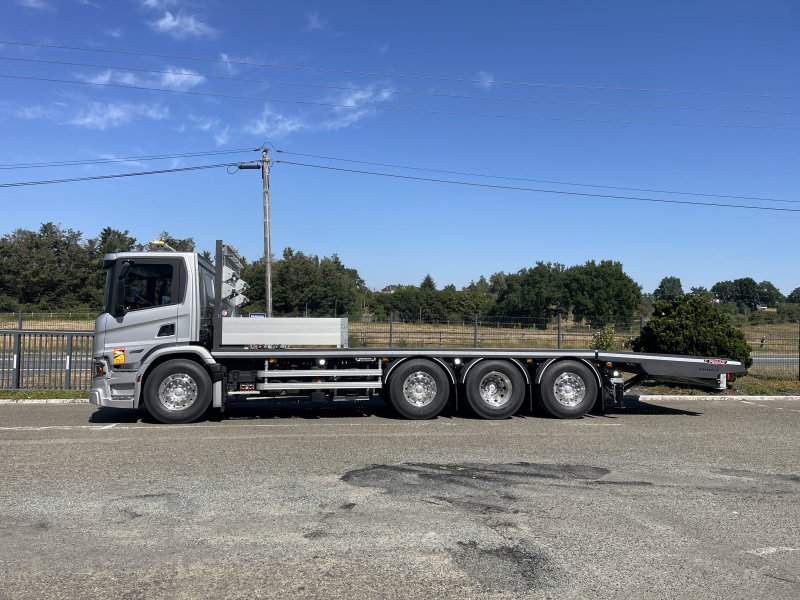

PLAT'FIX TP105



On chassis cab : PTAC 19T à 32T

(Fitted on a PTO on gearbox, a rear pneumatic suspension and an electric towing socket on the rear of the chassis)

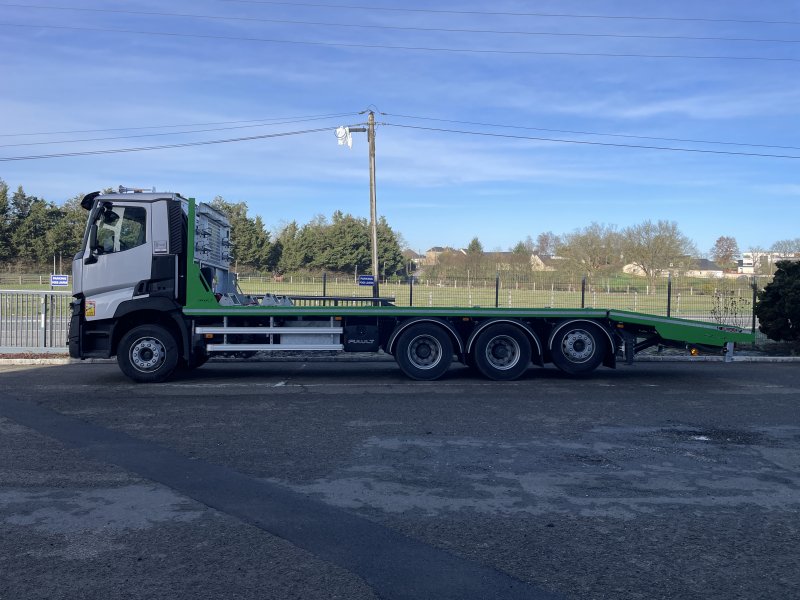

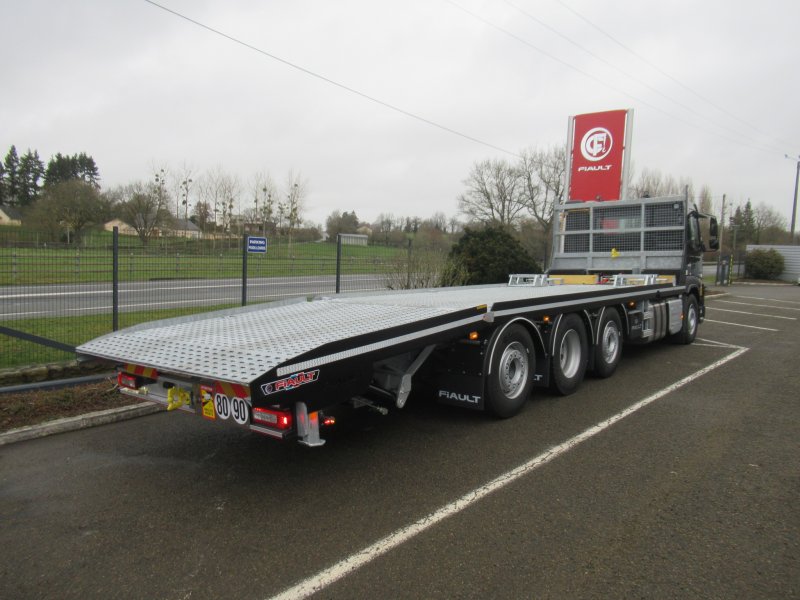

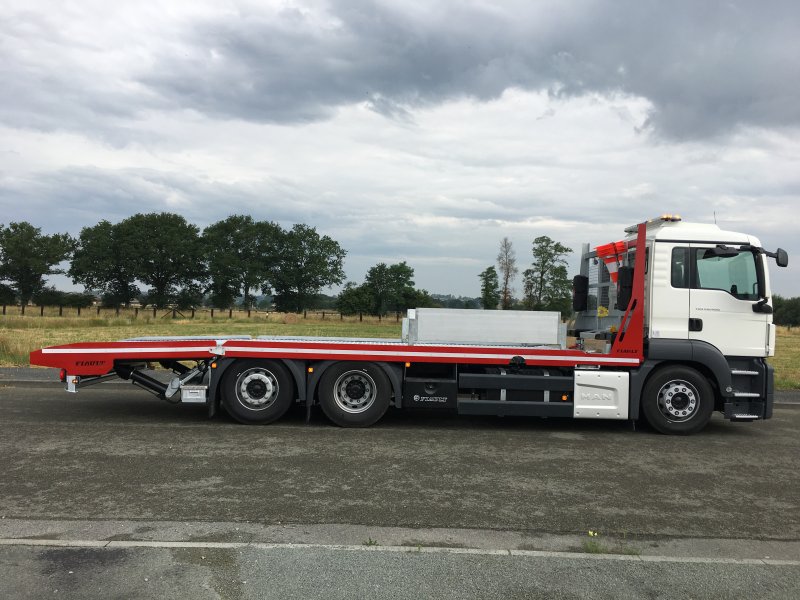

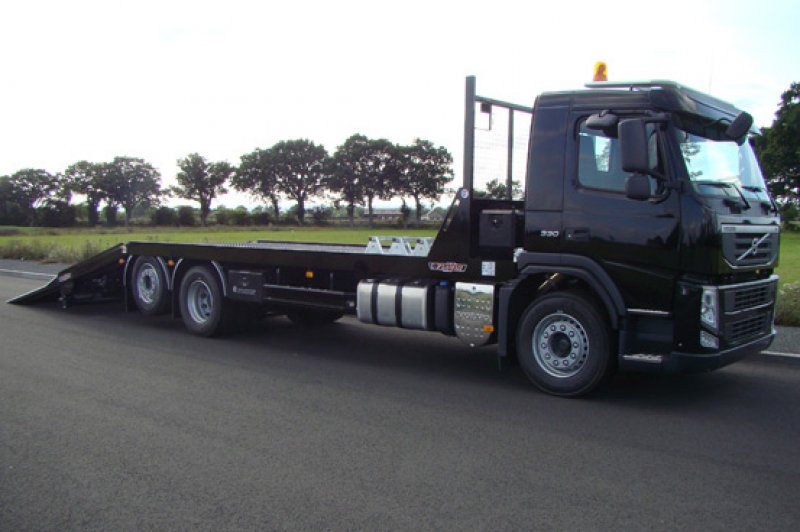

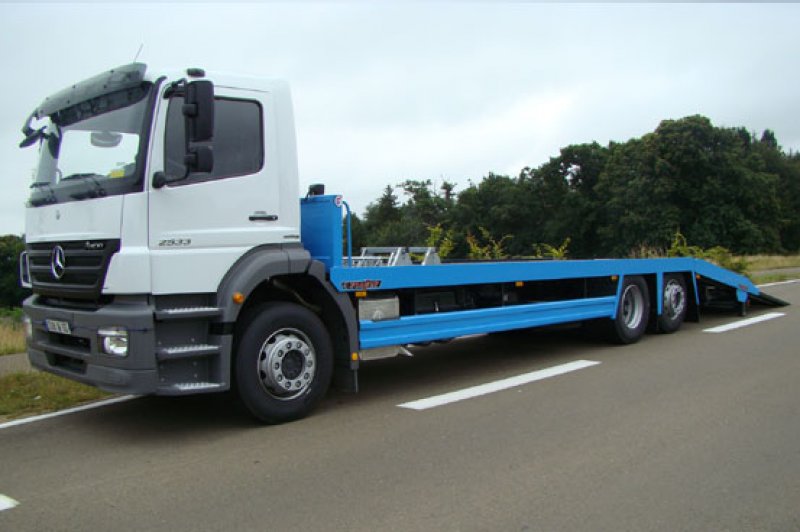

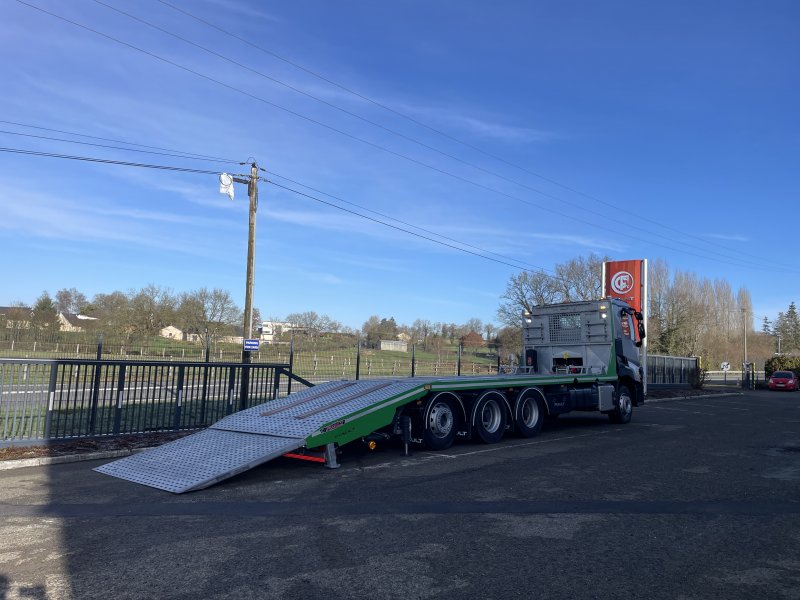

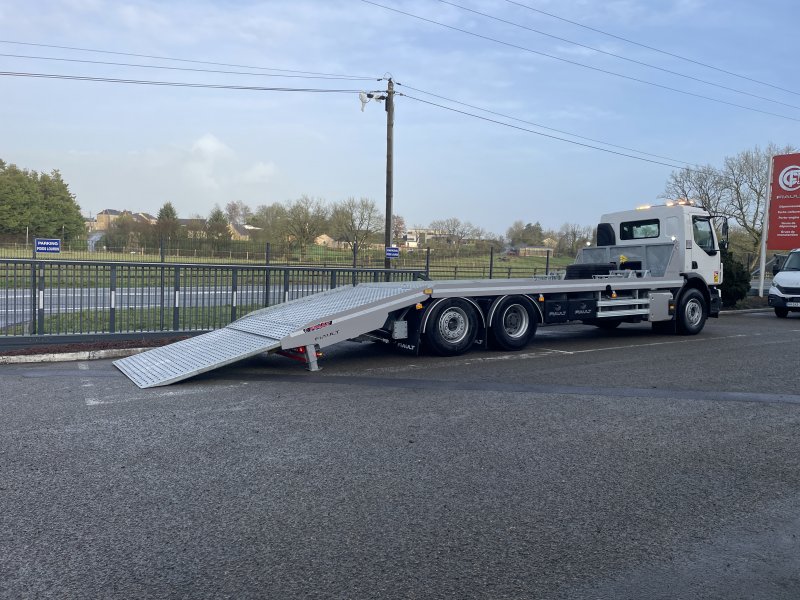

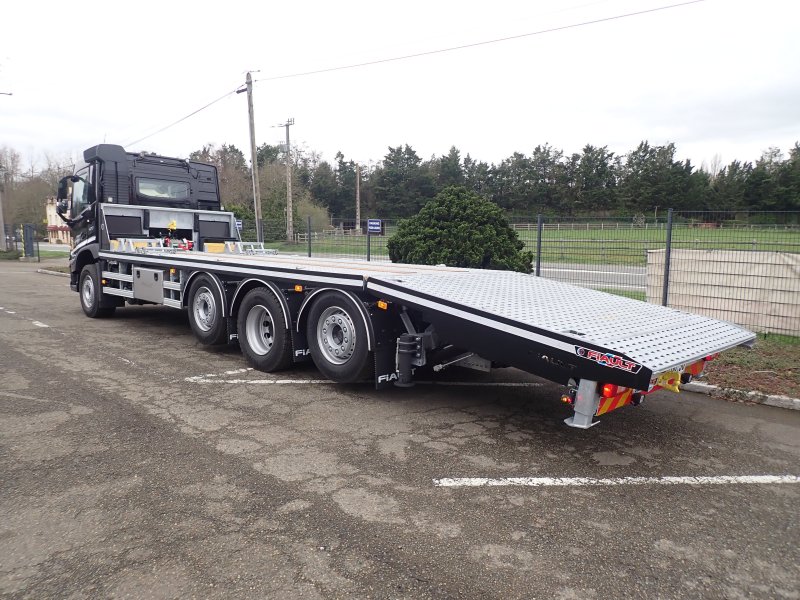

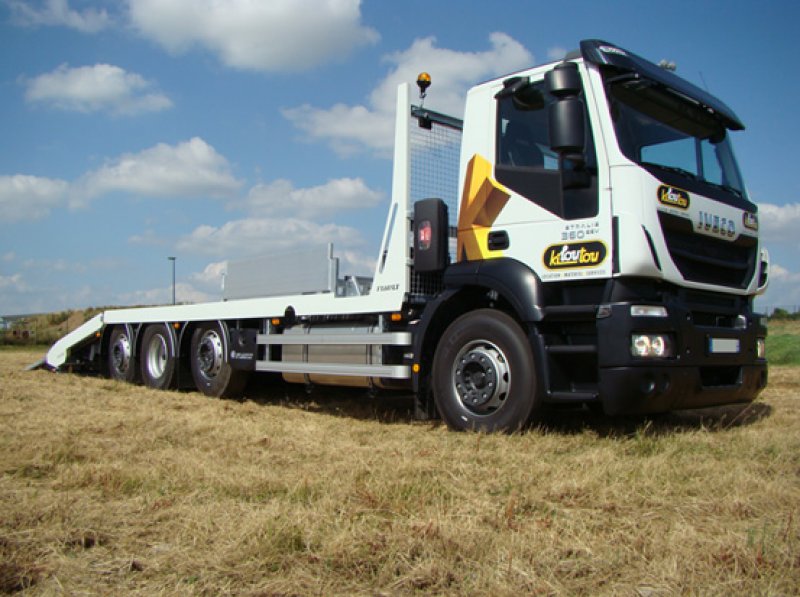

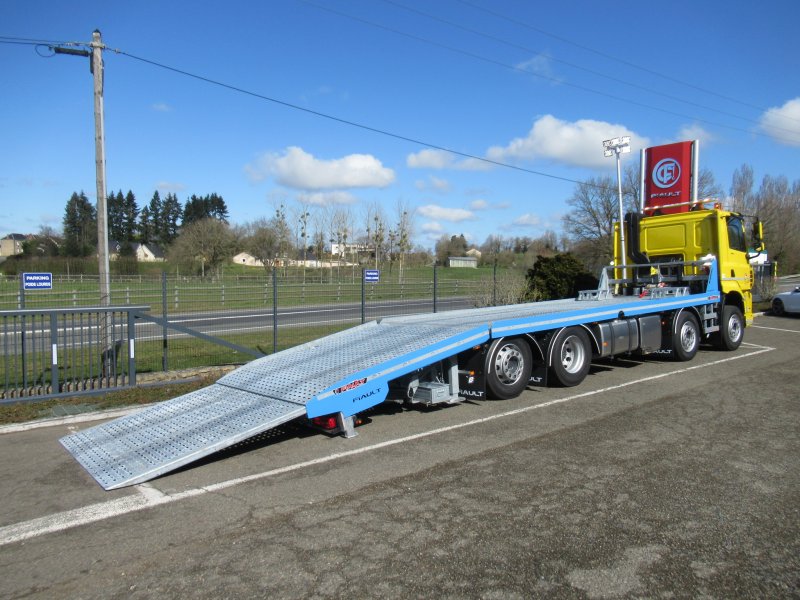

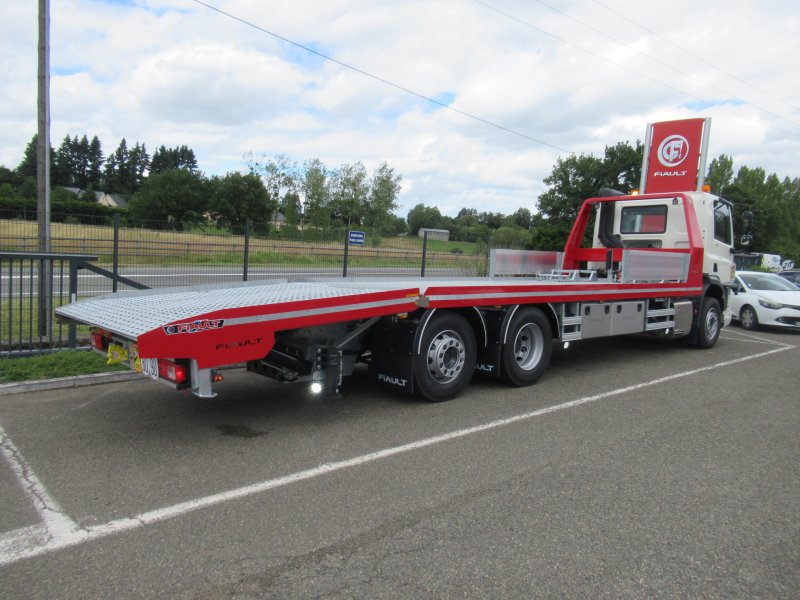

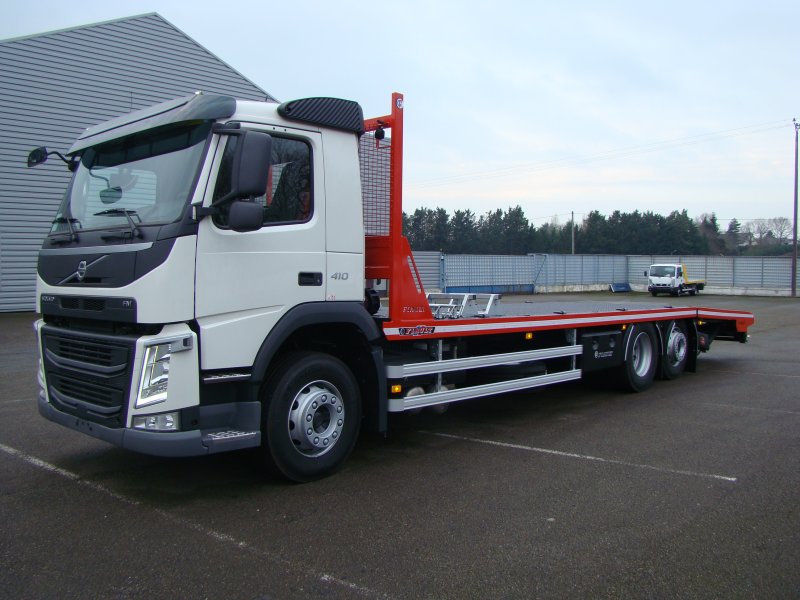

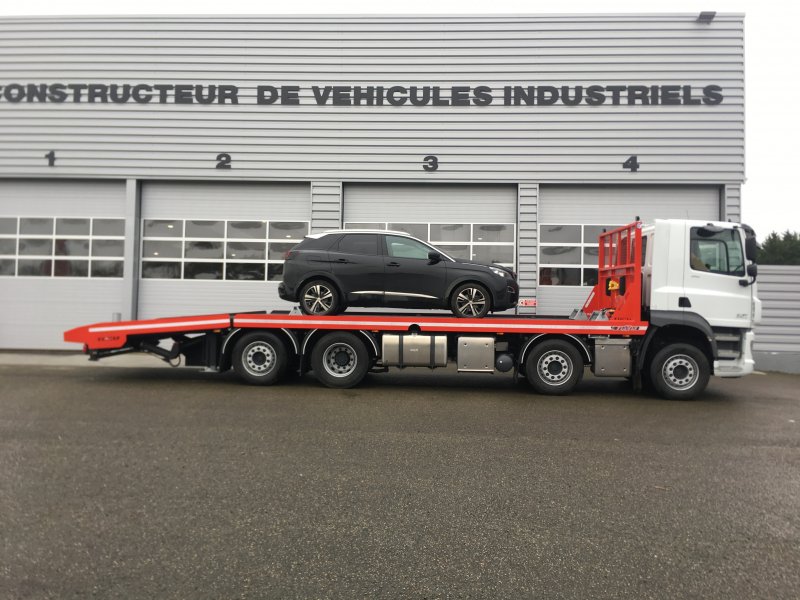

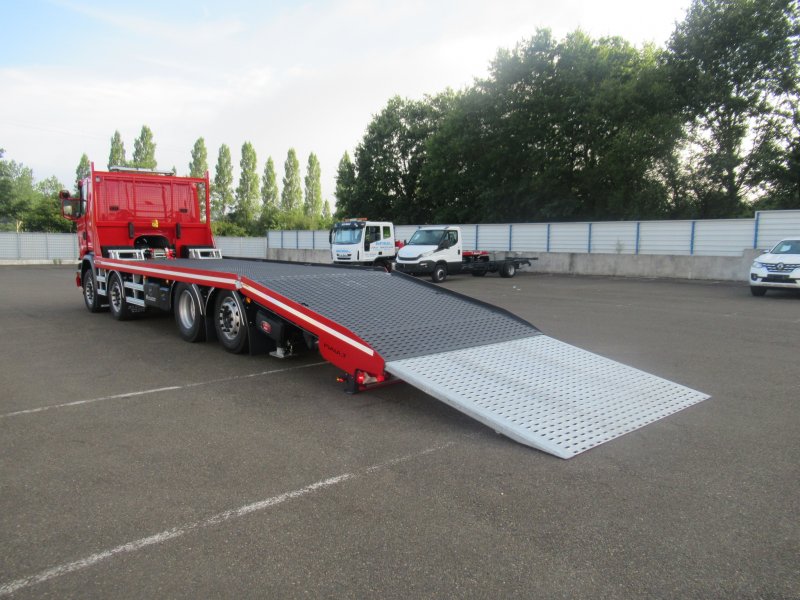

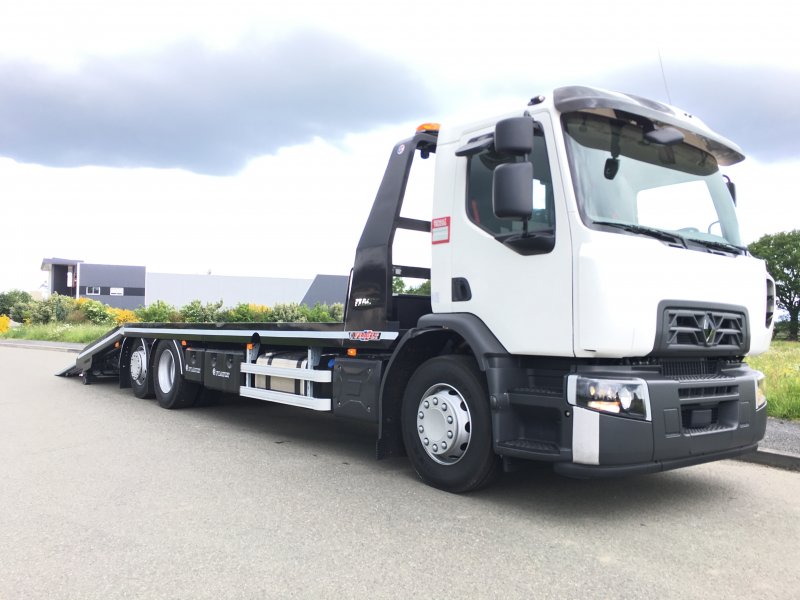

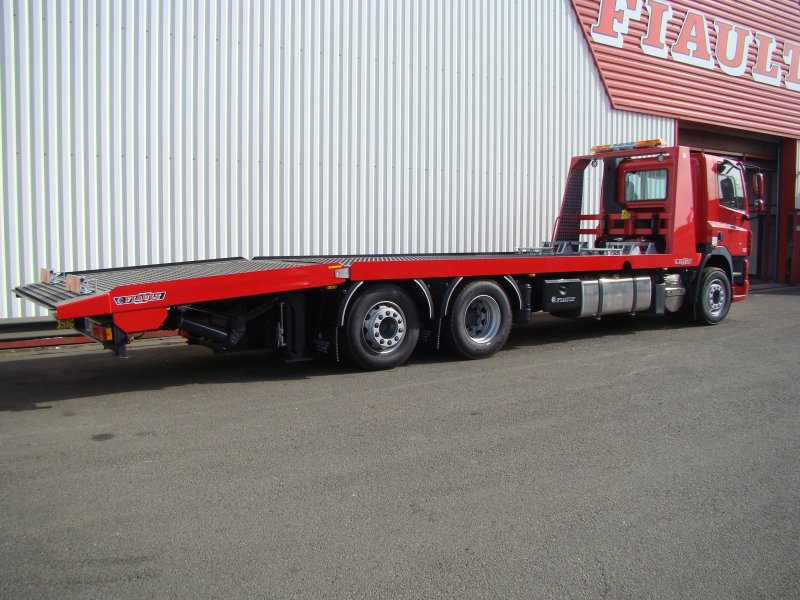

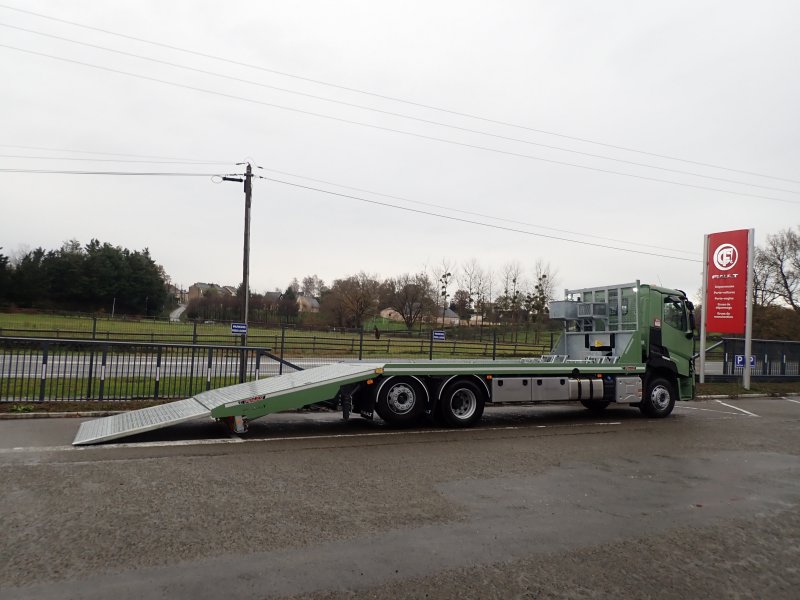

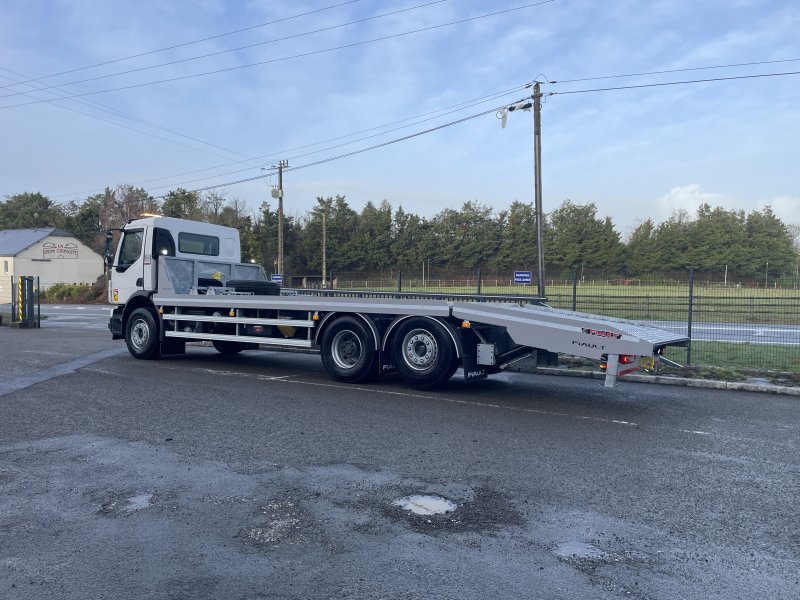

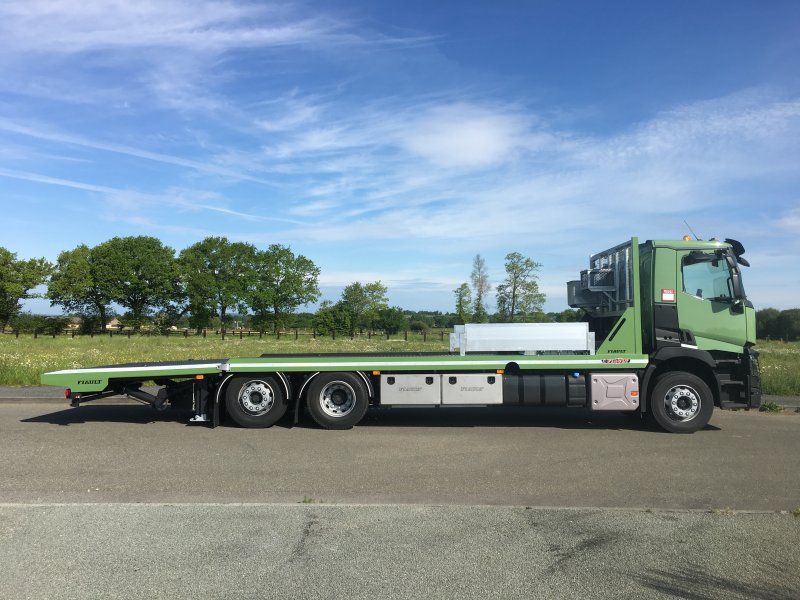

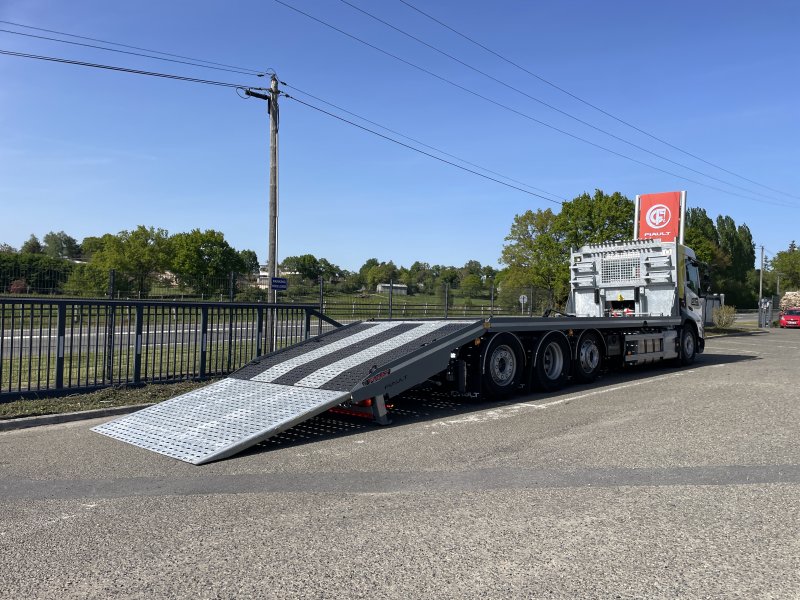

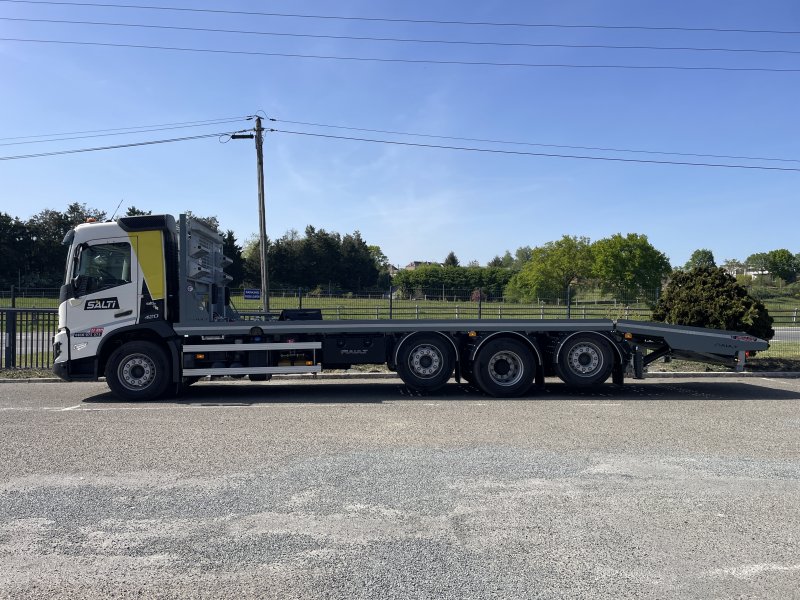

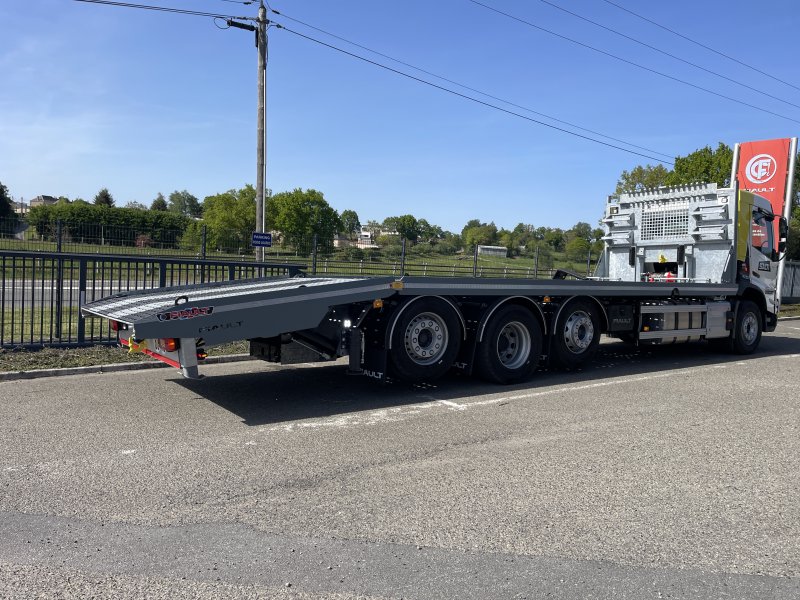

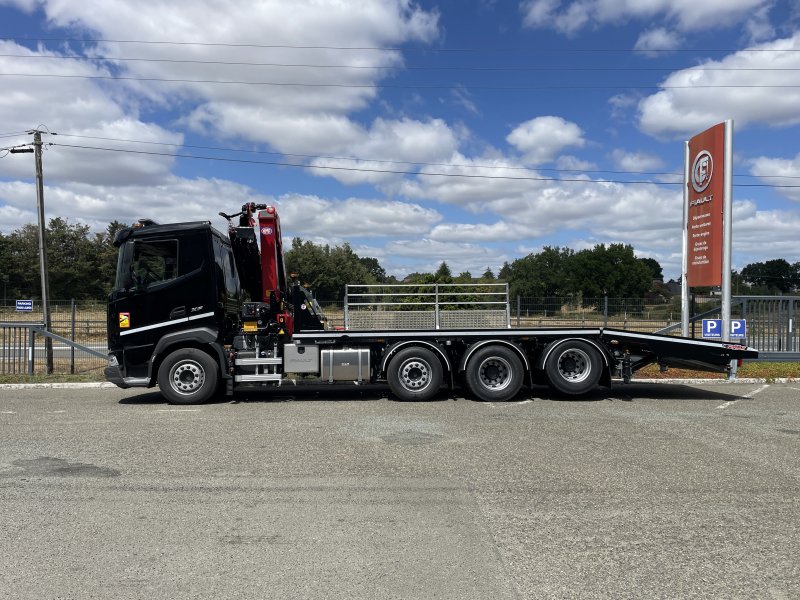

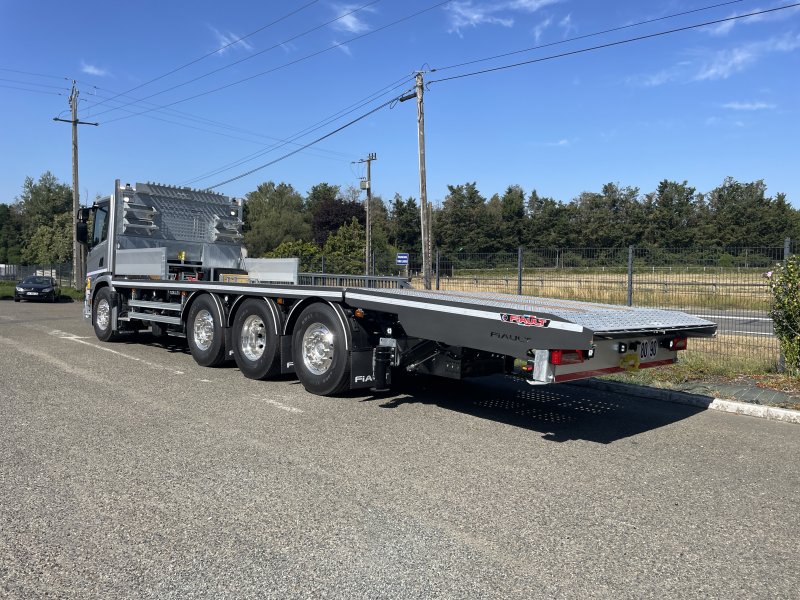

PLAT'FIX TP105 : TILT AND SLIDE PLANT TRANSPORTER WITH ARTICULATED REAR RAMP

-Hydraulic circuit with high pressure pump, filtered oil reservoir

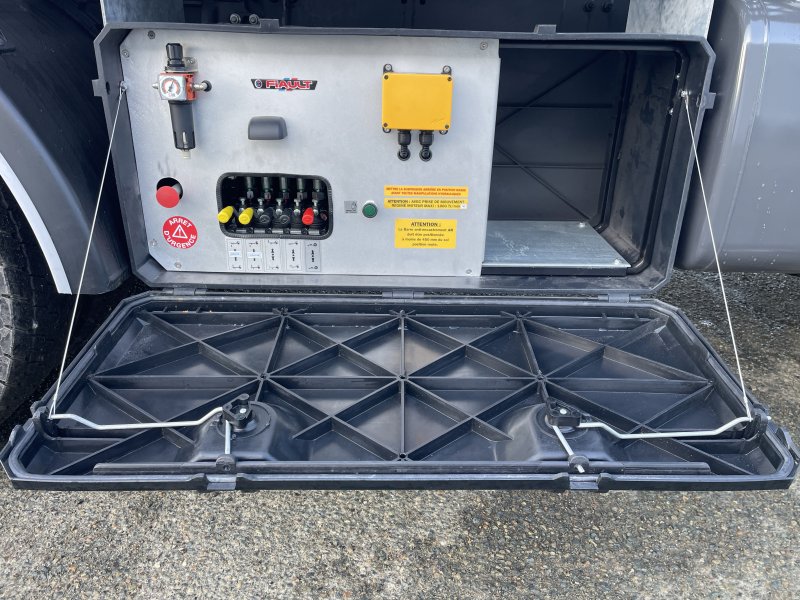

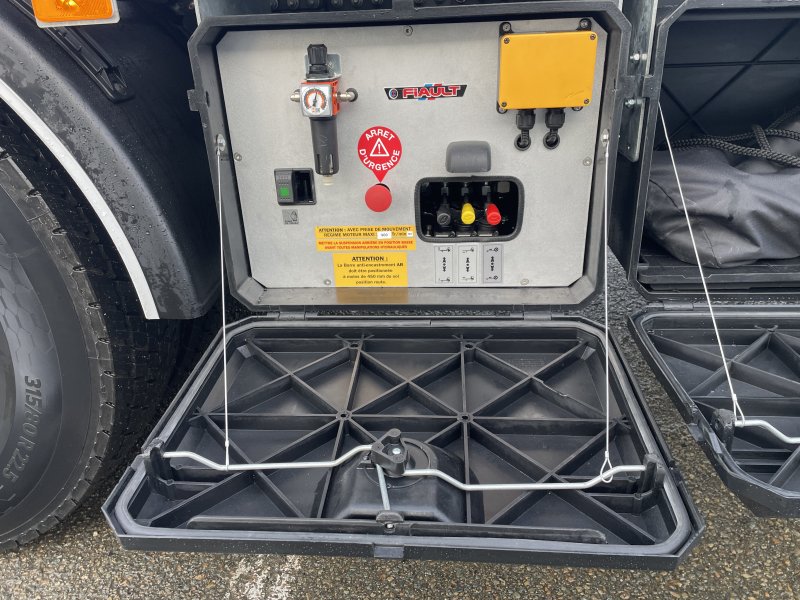

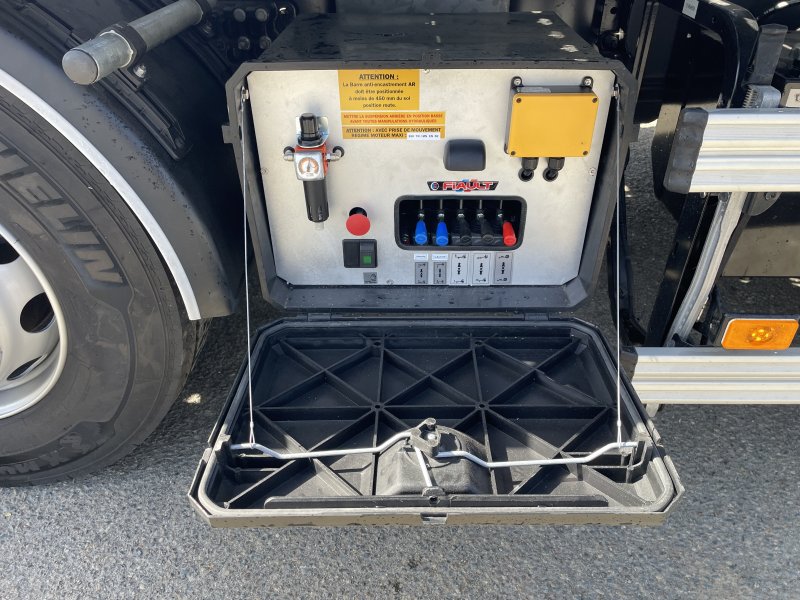

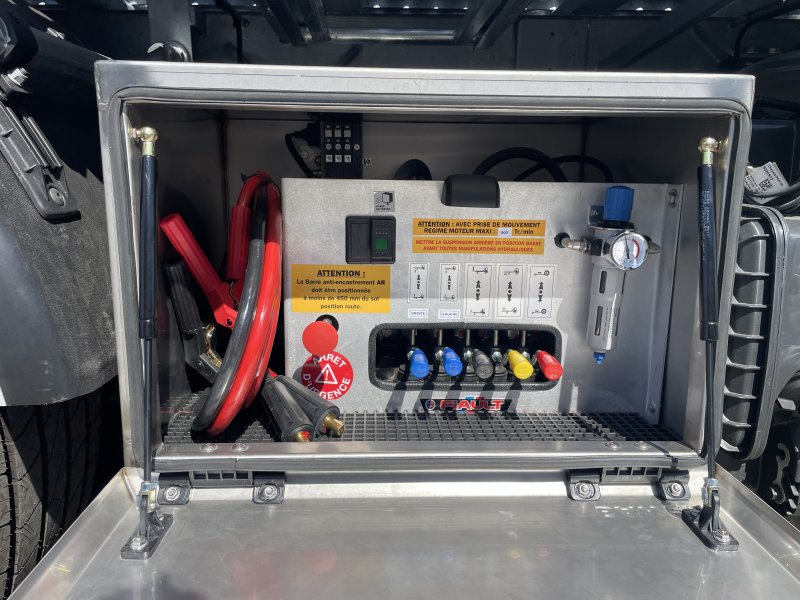

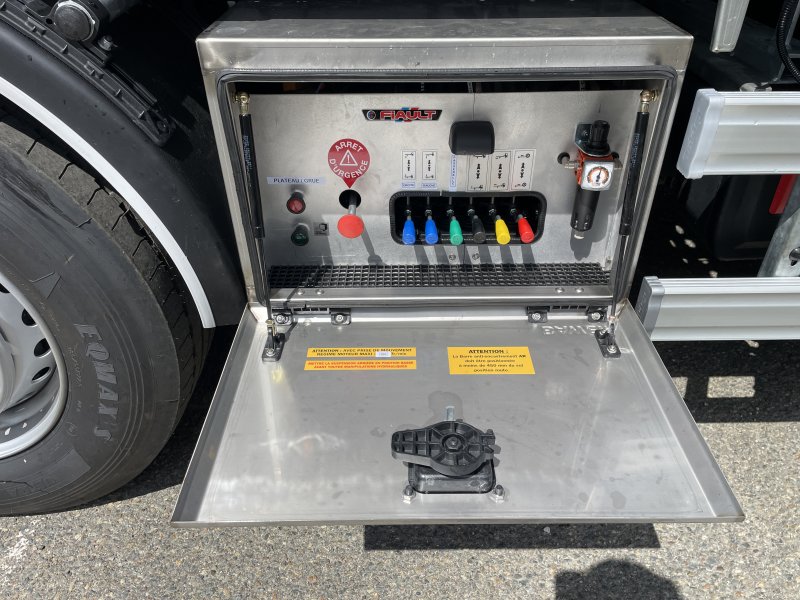

-Hydraulic distribution in secure illuminated cabinet

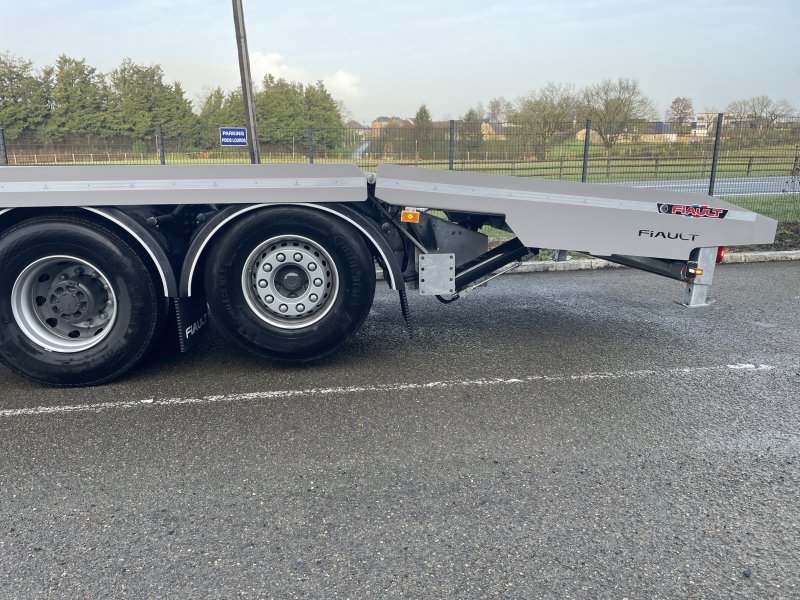

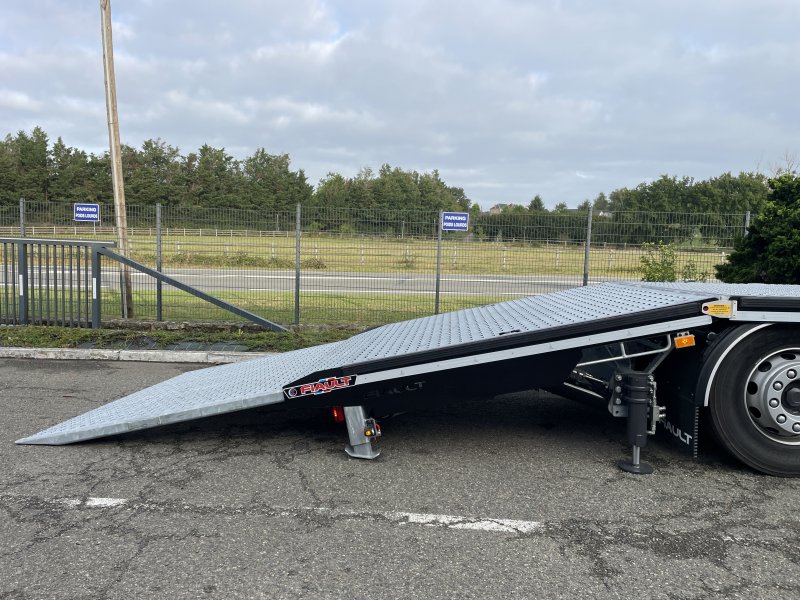

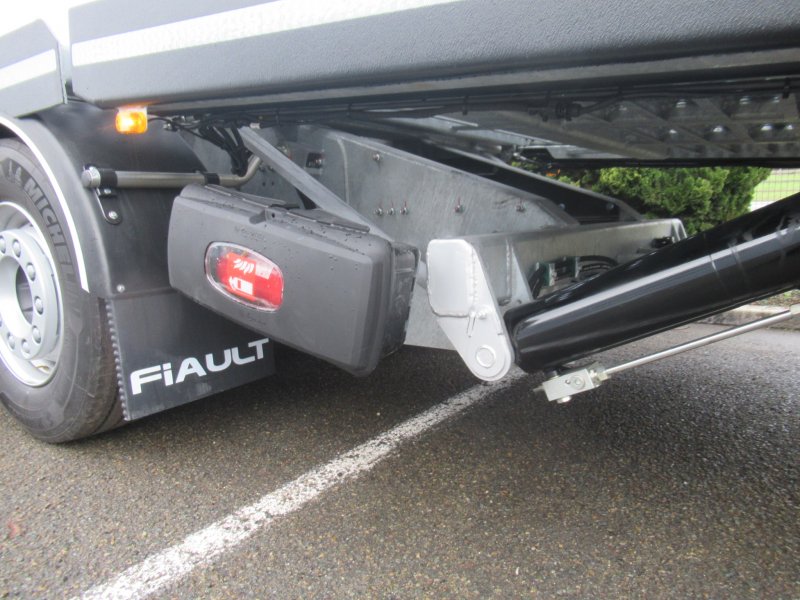

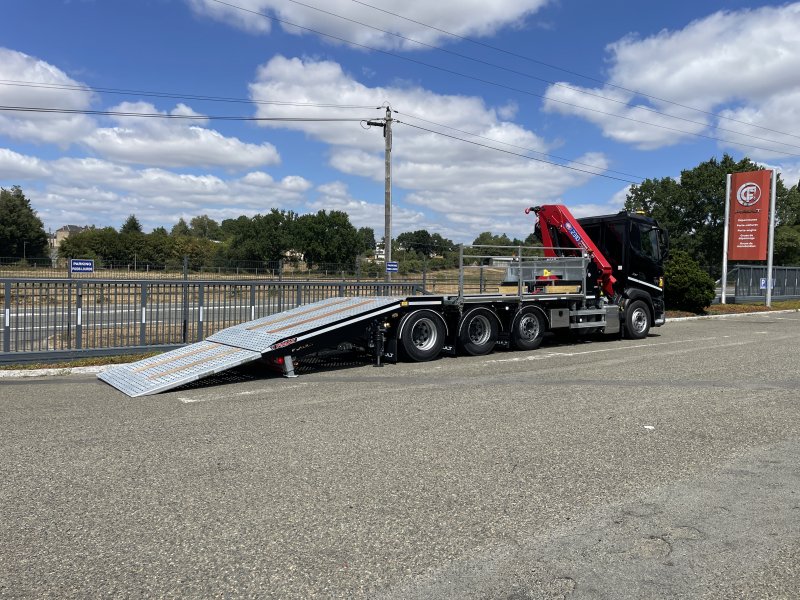

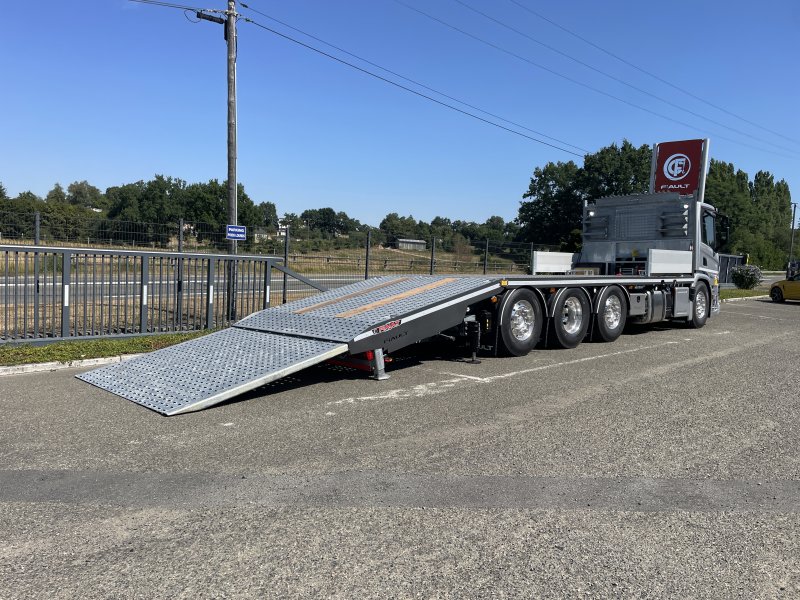

-Rear ramp with adjustable height, via two hydraulic pistons and inclination (approx 20° off horizontal) to reach ground level

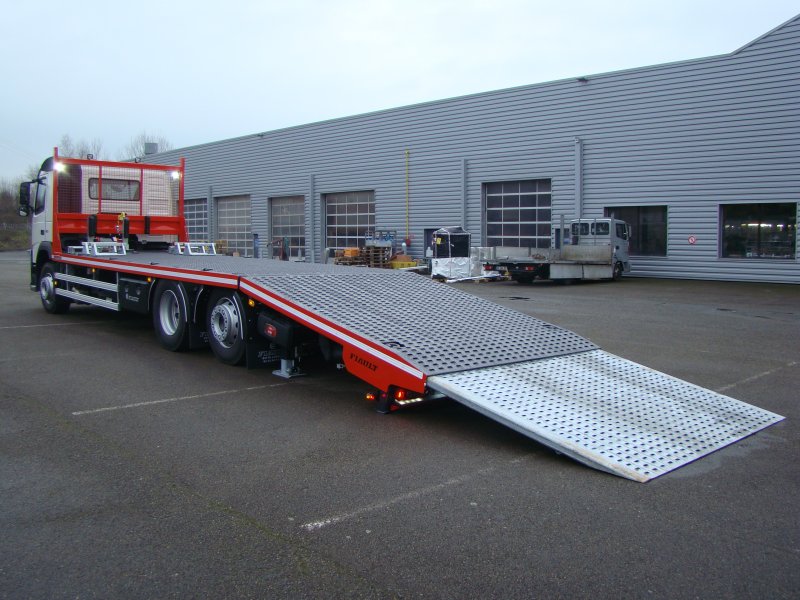

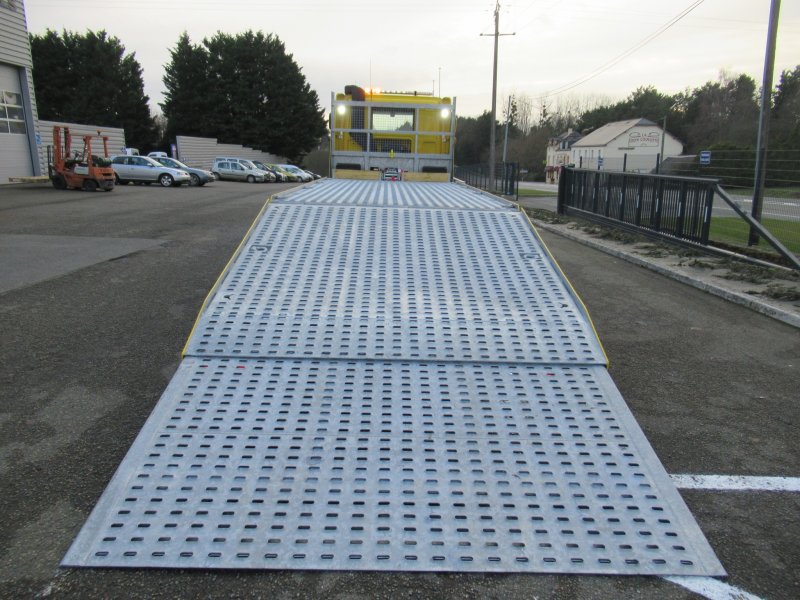

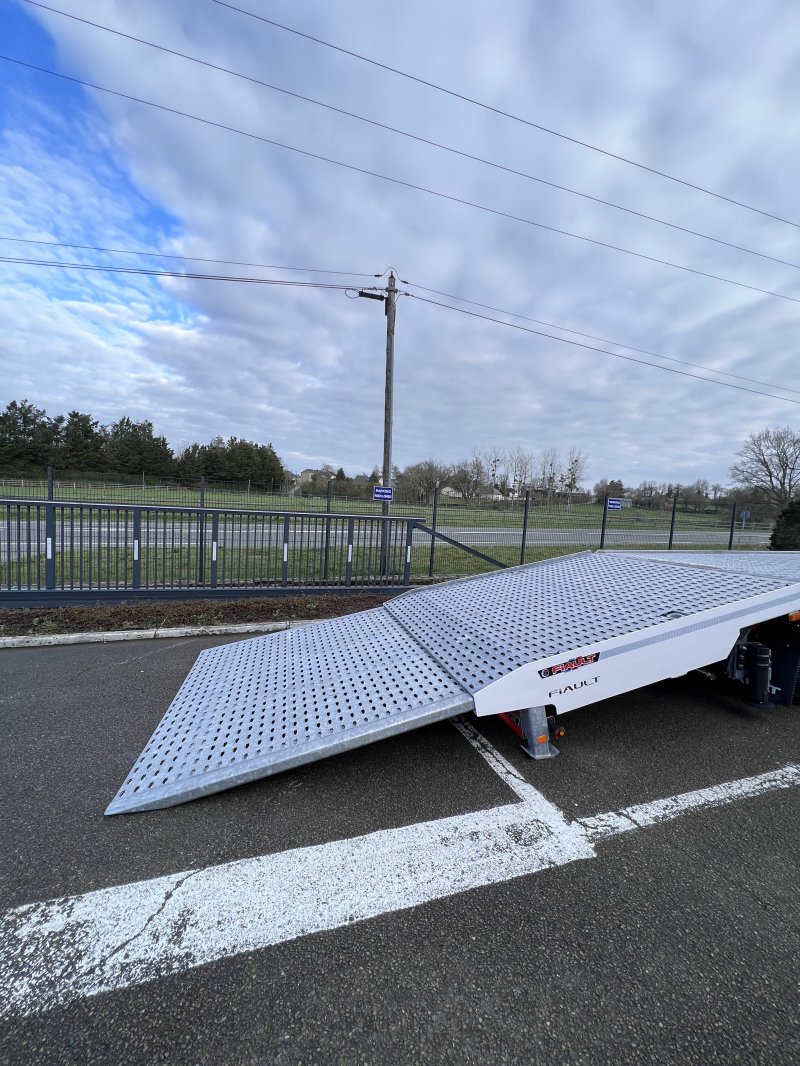

-Integrated full width sliding load ramp stored under the rear ramp and extended with two hydraulic pistons

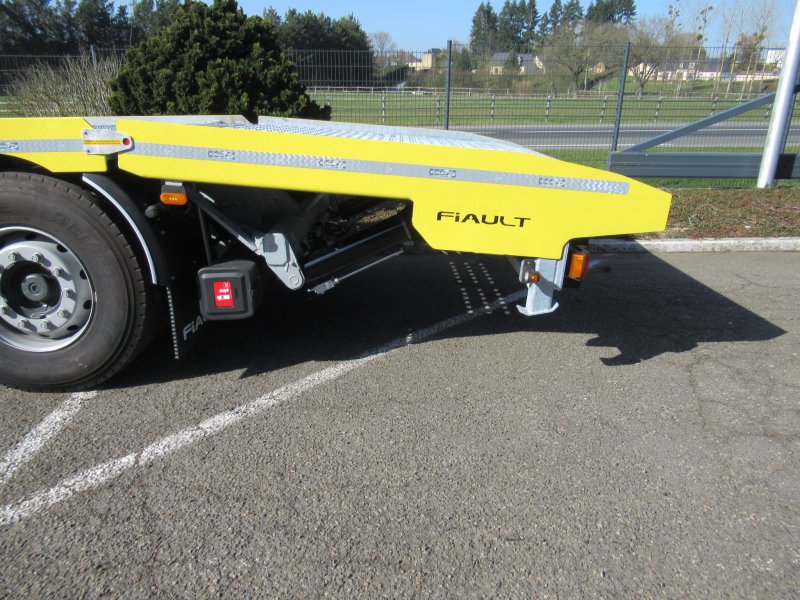

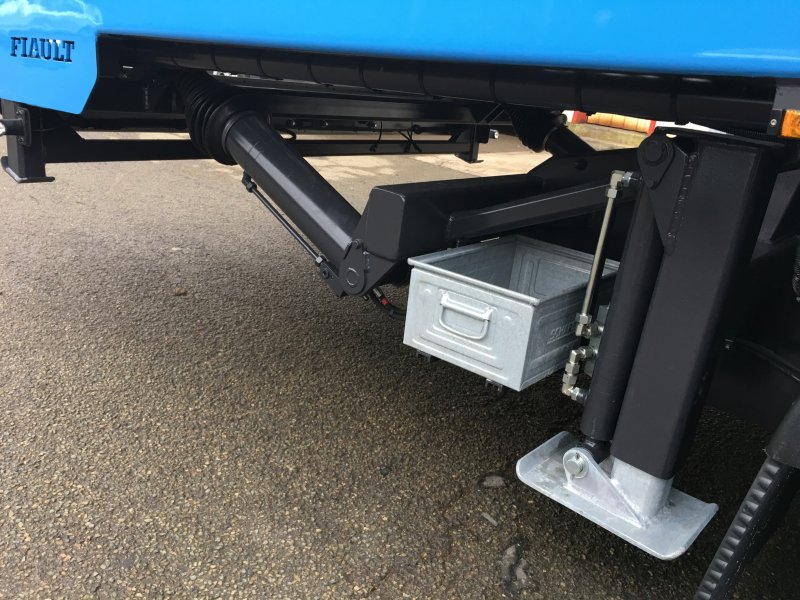

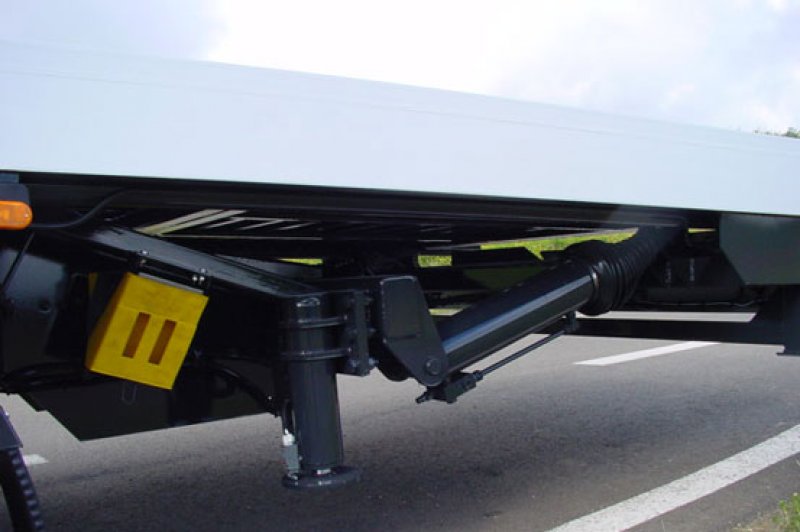

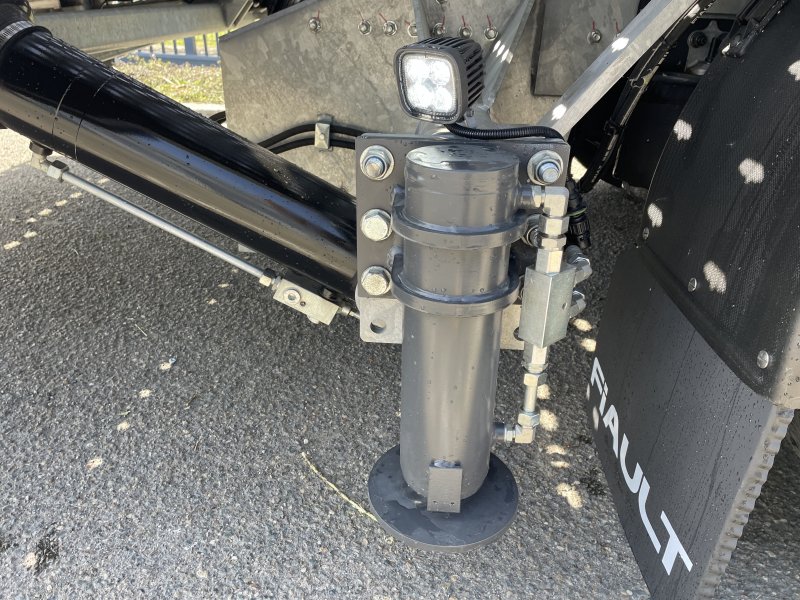

-Two rear roller type stabilisers at the end of the deck

-Integrated bumper with signals and additional protection

-Integrated polyurethane shock proof wheel arches with mud guards

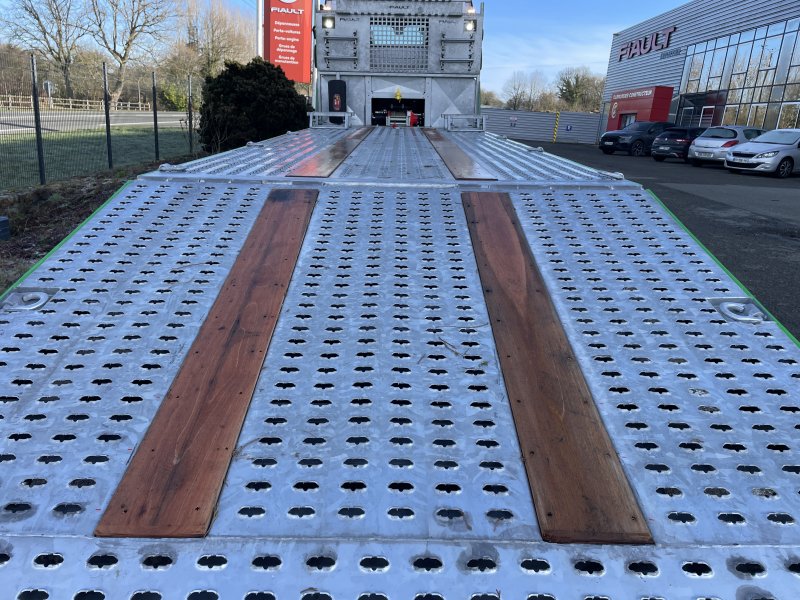

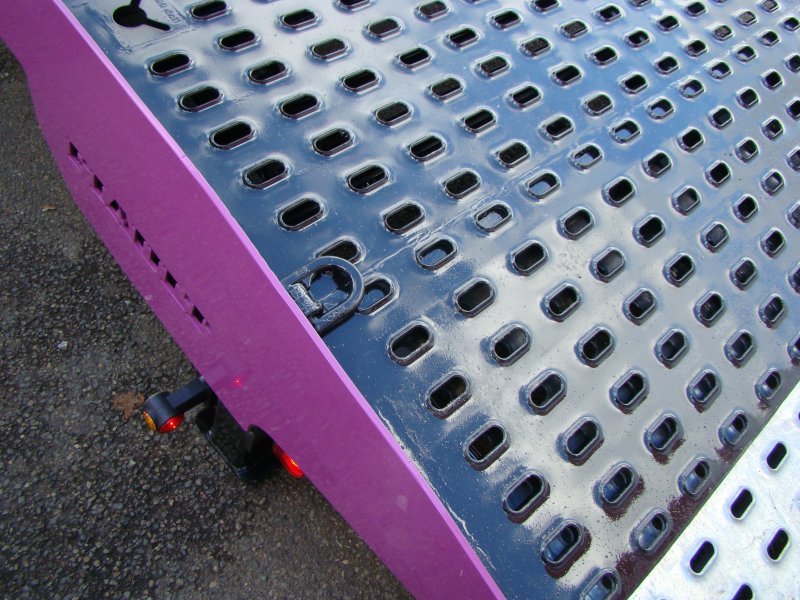

-Sheet steel anti-slip load bed with perforations for fixing blocks, braces etc.

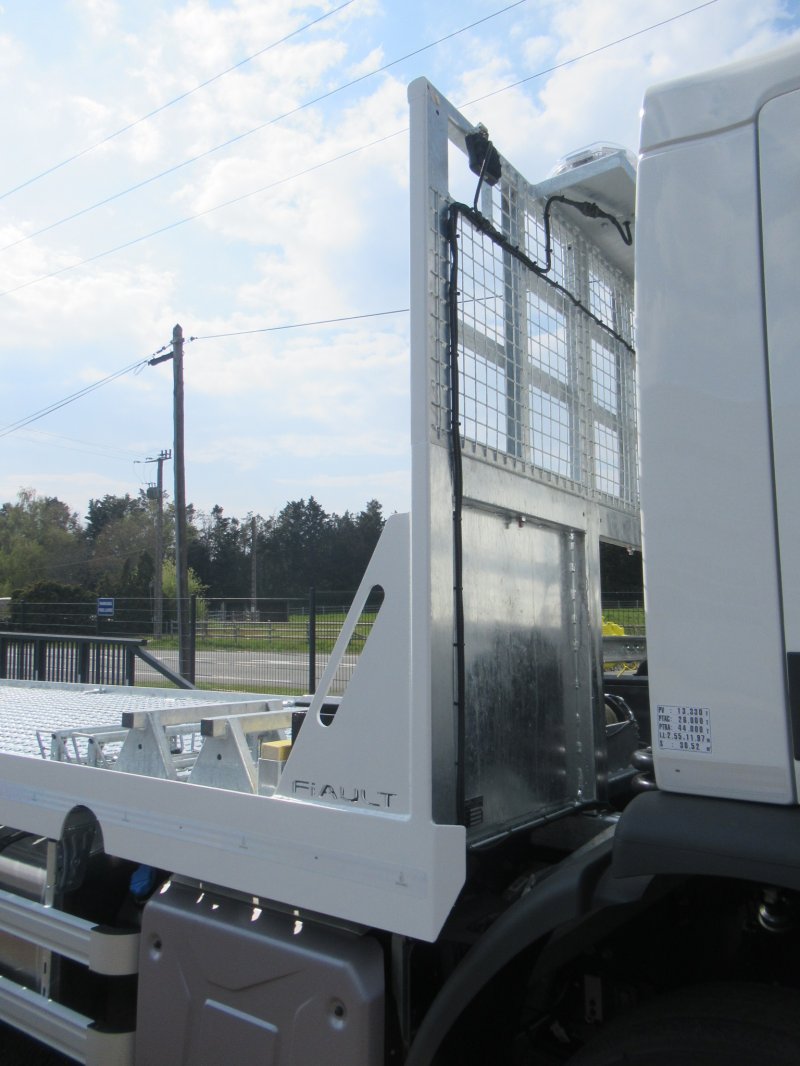

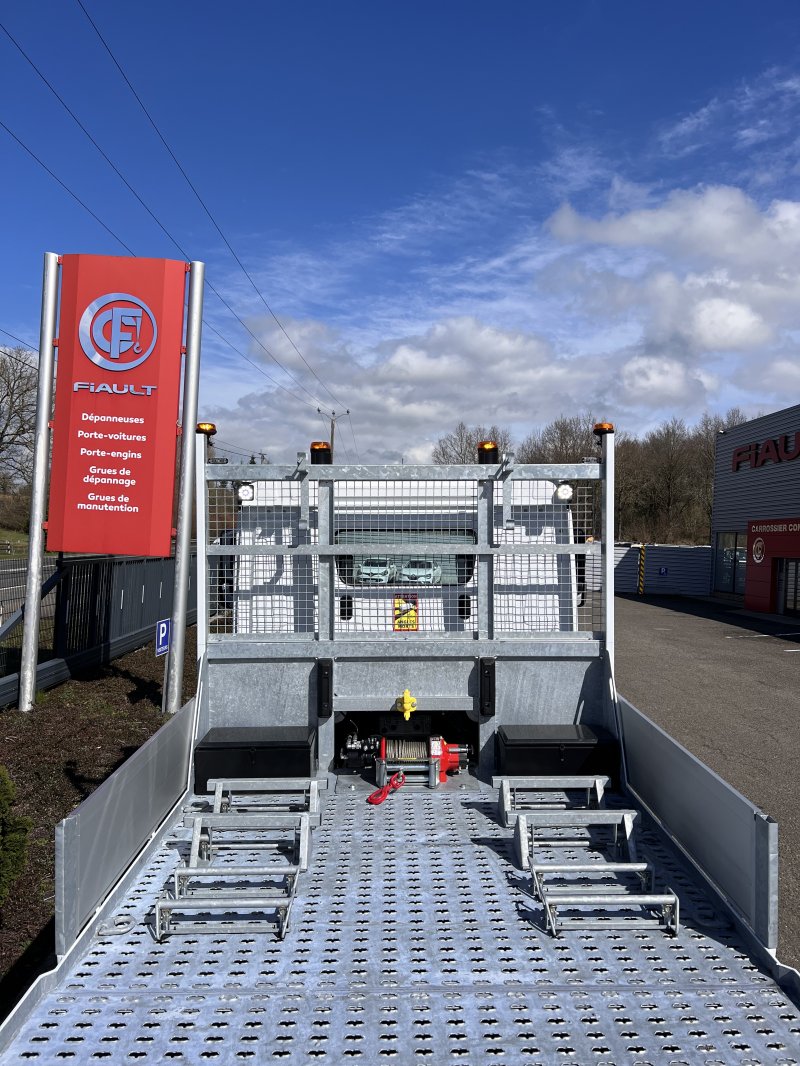

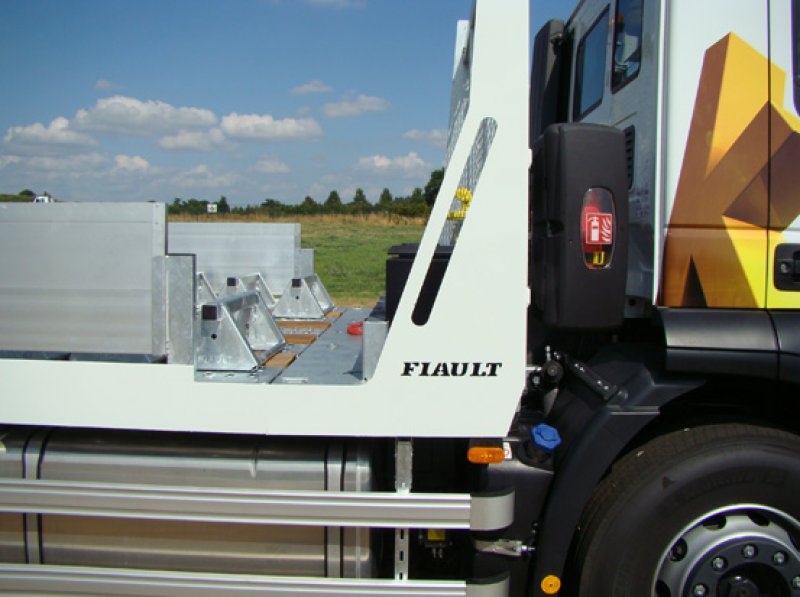

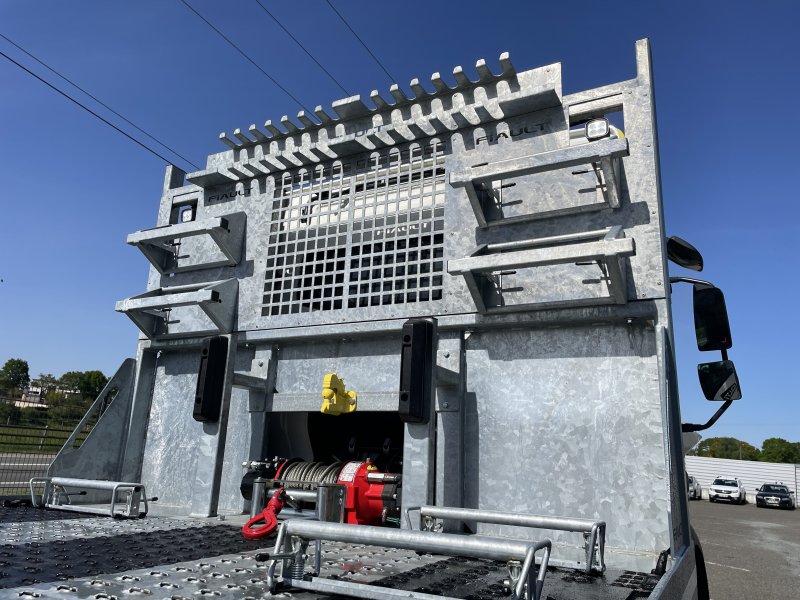

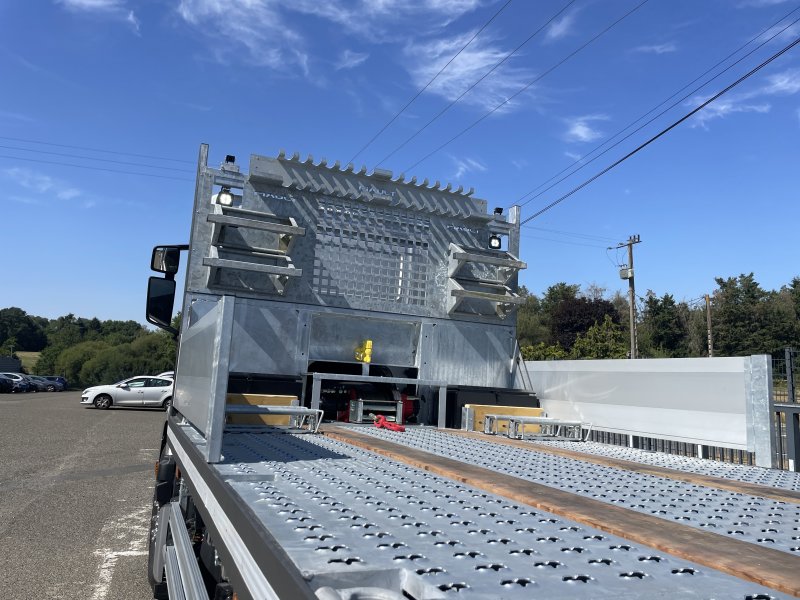

-Bar to protect the cabin with two rubber stops

-A hook-mixed screed diam. 50 + ball hitch at the front of the equipment

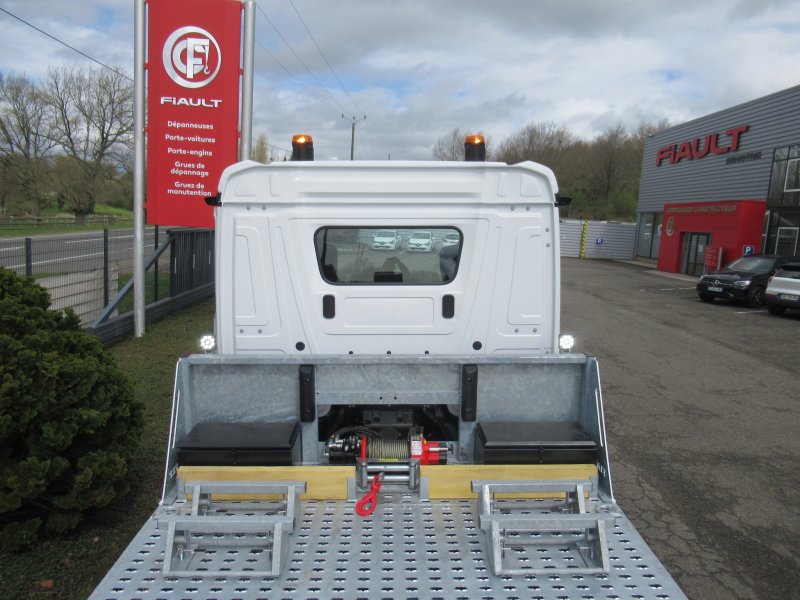

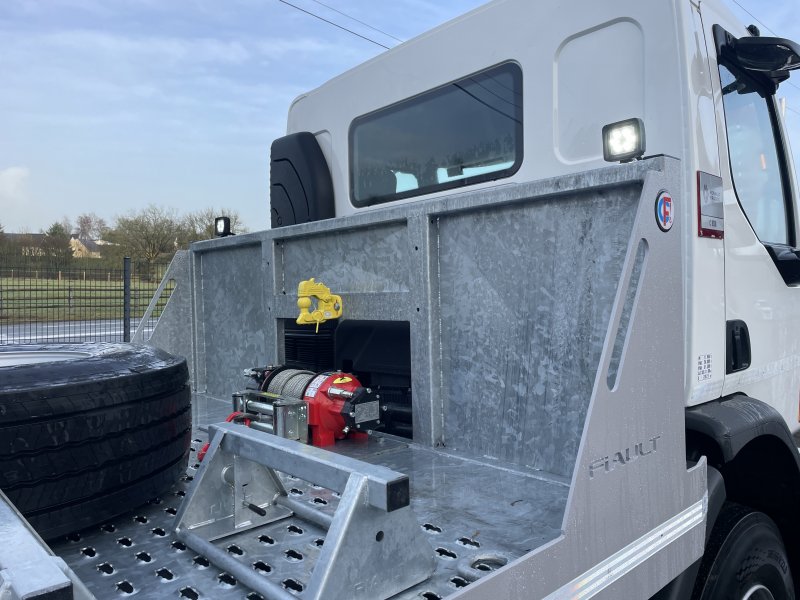

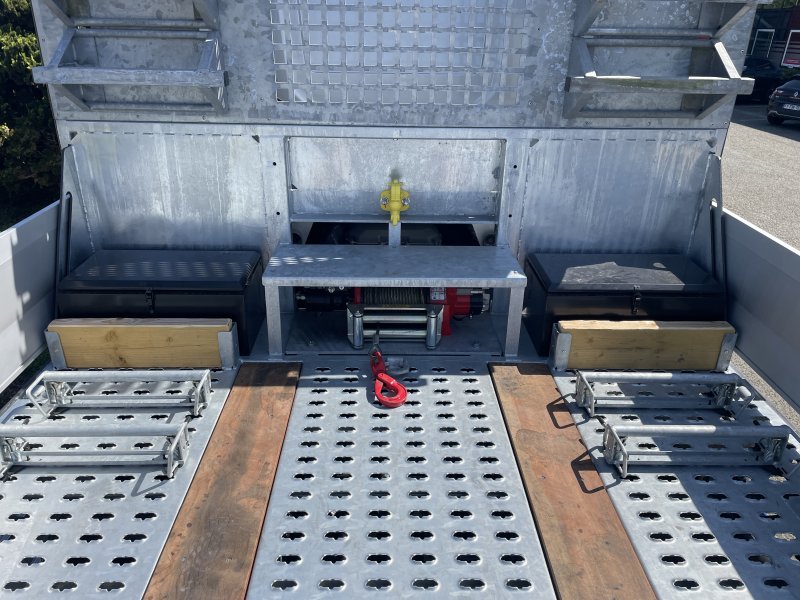

-7.1 tonne hydraulic winch. 30m cable with guide

-Radio control for the winch, tilt and slide of the hydraulic rear ramp and work lights

-Eight adjustable wheel blocks on bed (4x public works & 4x light vehicle)

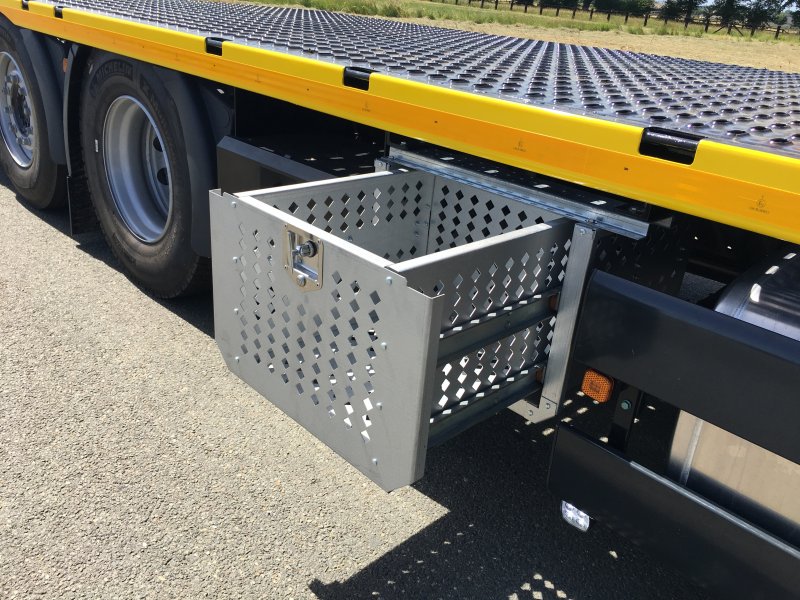

-A polyurethane shock proof toolbox 1000 mm

-A winched spare wheel storage under the chassis

-Hanging systems straps welded under the top of the two sides for securing with straps

-Ten-heads stowage embedded in the floor for your chains (5 per side)

-Eight hitch hooks 7T welded on the floor of platform (4 per side)

-Two adjustable, shock proof work light at the head of the platform

-A 6kg fire extinguisher mounted in a secure locker

-A hook-mixed screed diam. 50 + ball hitch at the rear of the equipment

-Undercoat and standard colour paint

-Deck finished in a single standard RAL colour =

-Reflective WHITE stickers on the sides of the equipment (conform to French regulation)

-VEHICLE CONFORMS TO EU REGULATIONS



Dimensions :

-Exterior bed length : 8500 mm à 9500 mm (to define)

-Exterior bed width : 2550 mm

-Technical capacity: 14000 Kg

-Payload : to calculate according to chassis and options



Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.

PLAT'FIX TP105

00-TP105

[ Open for more informations ] [ Fold up ]

PLAT'FIX TP105 : TILT AND SLIDE PLANT TRANSPORTER WITH ARTICULATED REAR RAMP
-Hydraulic circuit with high pressure pump, filtered oil reservoir
-Hydraulic distribution in secure illuminated cabinet
-Two rear roller type stabilisers at the end of the deck
-Integrated bumper with signals and additional protection
-Integrated polyurethane shock proof wheel arches with mud guards
-Undercoat and standard colour paint
-Deck finished in a single standard RAL colour =
-VEHICLE CONFORMS TO EU REGULATIONS

Dimensions :
-Exterior bed length : 8500 mm à 9500 mm (to define)
-Exterior bed width : 2550 mm
-Technical capacity: 14000 Kg
-Payload : to calculate according to chassis and options

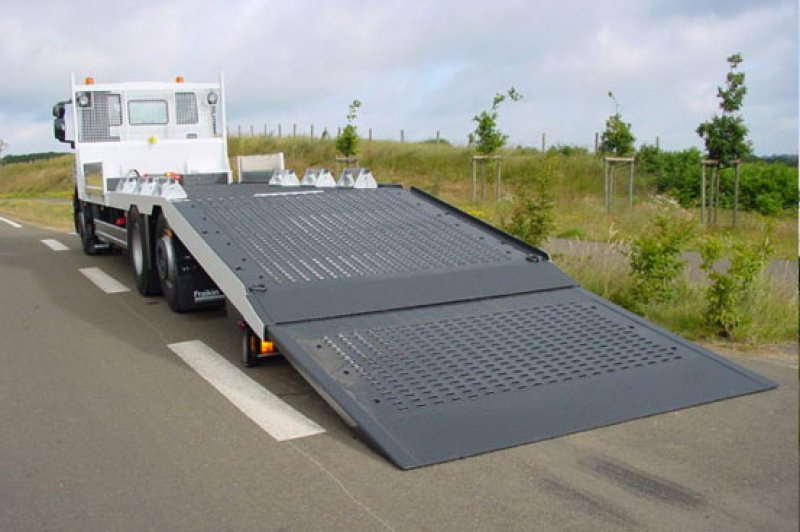

Hydraulically and articulated rear overhang platform with a hydraulic loading ramp

0506M100

[ Open for more informations ] [ Fold up ]

Hydraulically and articulated rear overhang platform and adjustable in height from the ground up to 20 ° above the horizontal level with a fully hydraulic loading ramp

Sheet steel anti-slip load bed with perforations for fixing blocks, braces

0309M120

[ Open for more informations ] [ Fold up ]

Sheet steel anti-slip load bed with perforations for fixing blocks, braces etc.

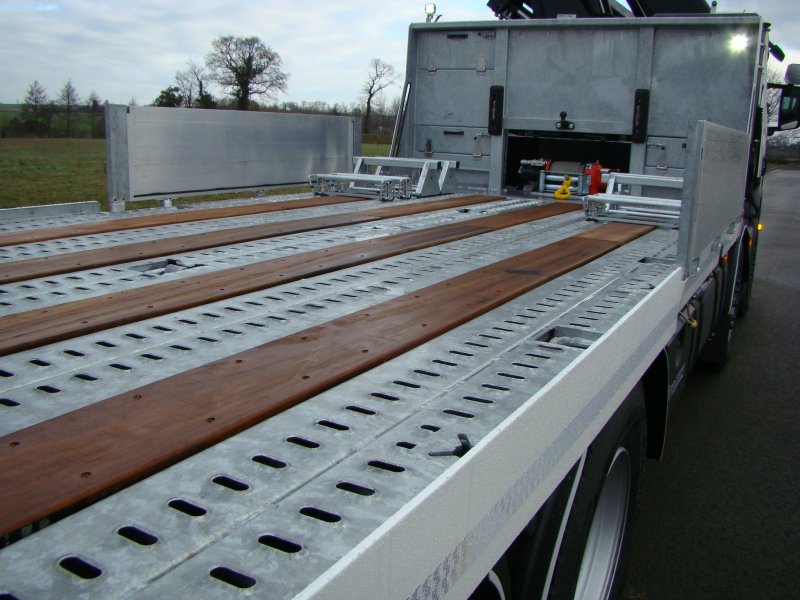

Deck in sheets metal reinforced LARME 5/7 mm PAINTED, without sides

0309M125

[ Open for more informations ] [ Fold up ]

Deck in sheets metal reinforced LARME 5/7 mm PAINTED, without sides and wedging holes over the entire length replacing the sheet steel anti-slip load bed with perforations for fixing blocks and braces (TP105-TP120-PLAT'SOL TP100)

Replacing the sheet steel anti-slip load bed with perforations for fixing blocks by a mixed 5 steel strips + 4 wood floor strips of 215x35 with the possibility of stretching over the entire length and over the entire width

0309M135

[ Open for more informations ] [ Fold up ]

Replacing the sheet steel anti-slip load bed with perforations for fixing blocks by a mixed 3 steel strips + 2 wood floor strips of 215x35 with the possibility of stretching over the entire length and over the entire width

Hot dip galvanizing of all the PLAT'FIX TP105 equipment

0312M060

[ Open for more informations ] [ Fold up ]

Hot dip galvanizing of all the PLAT'FIX TP105 equipment (subframe, floor, front panel, accessories)

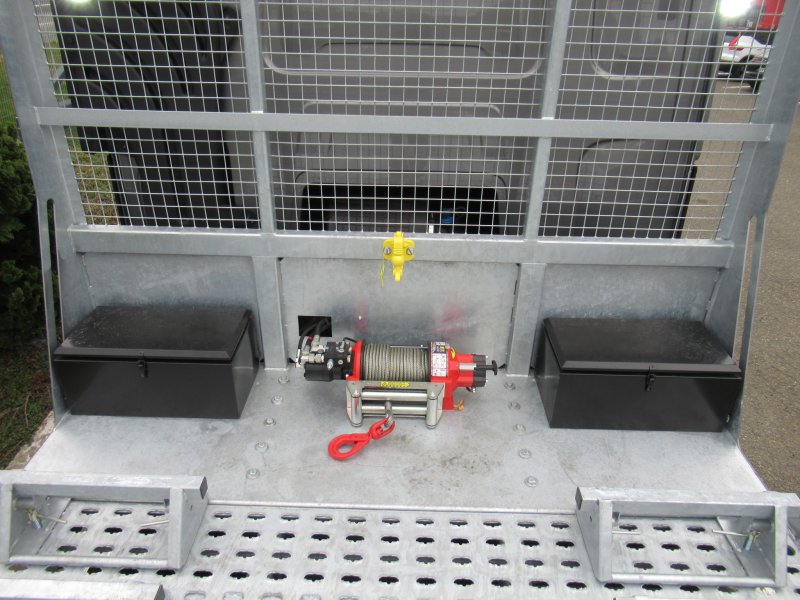

A 7T1 hydraulic winch with 30 m cable and cable guide

1103M012

[ Open for more informations ] [ Fold up ]

A 7T1 hydraulic winch with 30 m cable and cable guide

Replacing the fixed winch cable hook with a rotating hook

1104M040

[ Open for more informations ] [ Fold up ]

Replacing the fixed winch cable hook with a rotating hook

A rubber end stop for winch cable

1104M050

[ Open for more informations ] [ Fold up ]

A rubber end stop for winch cable

Rope tensioner for 4T5 - 5T2 - 7T1 hydraulic winch

1106M020

[ Open for more informations ] [ Fold up ]

Rope tensioner for 4T5 - 5T2 - 7T1 hydraulic winch

Pneumatic remote clutch for 4T5 - 7T2 hydraulic winch in hydraulic control box

1110M040

[ Open for more informations ] [ Fold up ]

Pneumatic remote clutch for 4T5 - 7T2 hydraulic winch in hydraulic control box

A hook type 2 with shackle on winch cable

1109M010

[ Open for more informations ] [ Fold up ]

A hook type 2 with shackle on winch cable

Hydraulic system allowing for lateral displacement of the winch with radio control

1110M020

[ Open for more informations ] [ Fold up ]

Hydraulic system allowing for lateral displacement of the winch with radio control

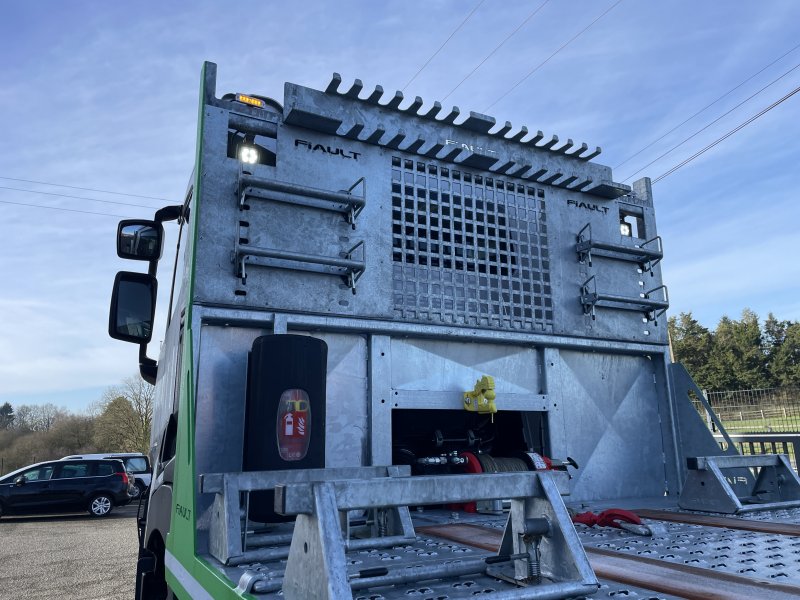

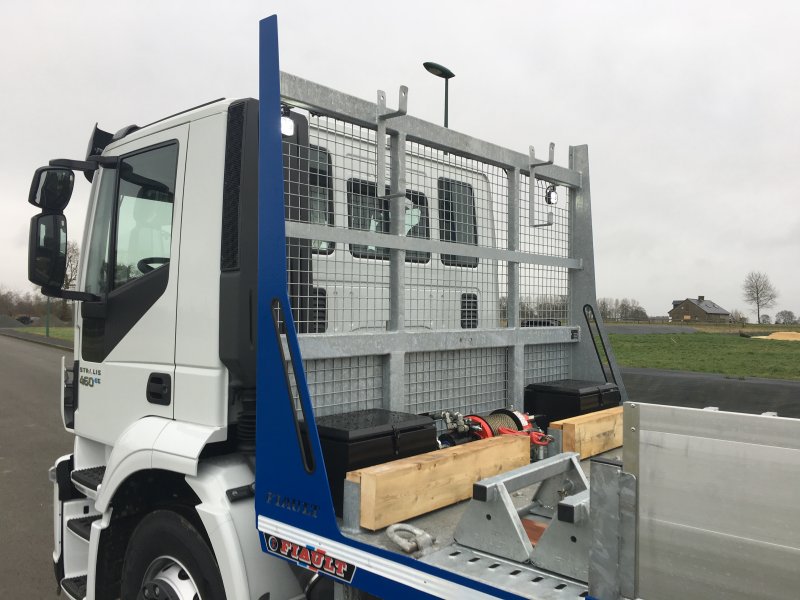

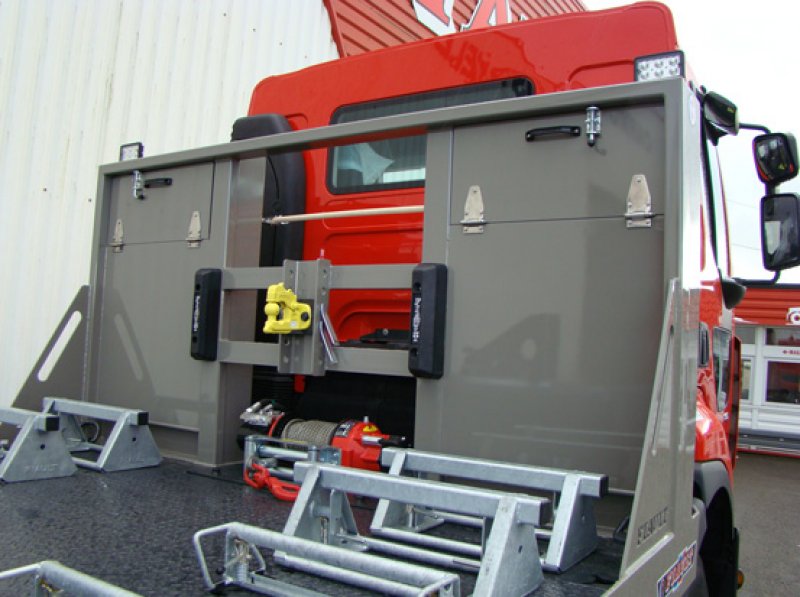

Bar to protect the cabin with two rubber stops

0303M015

[ Open for more informations ] [ Fold up ]

Bar to protect the cabin with two rubber stops

Roll-bar raised to protect the cabine type FLY and stainless steel handles

0303M030

[ Open for more informations ] [ Fold up ]

Roll-bar raised to protect the cabine type FLY and stainless steel handles

Stylized interior lining of the FLY with sheets of aluminum checkered

0303M035

[ Open for more informations ] [ Fold up ]

Stylized interior lining of the FLY with sheets of aluminum checkered

High front bar special Public Works with steel plate in lower part

0303M055

[ Open for more informations ] [ Fold up ]

High front bar special Public Works with steel plate in lower part and protective grating of cabin in high part, 2 tool boxes on each side of the winch and 2 protective wooden board

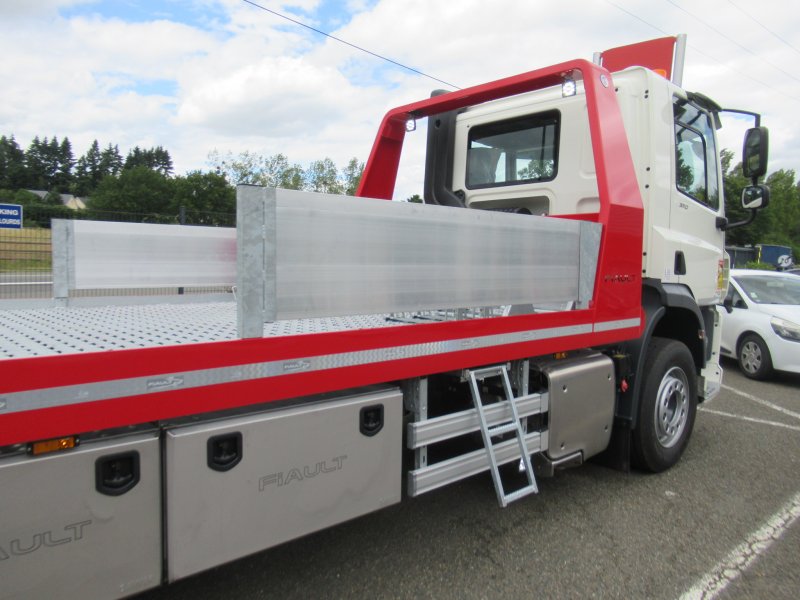

Supply of an aluminum ladder with supports on the equipment

0607M110

[ Open for more informations ] [ Fold up ]

Supply of an aluminum ladder with supports on the equipment

Eight red LED lights on the perimeter of the FLY

0207M010

[ Open for more informations ] [ Fold up ]

Eight red LED lights on the perimeter of the FLY

Ten red LED lights on the perimeter of the FLY

0207M015

[ Open for more informations ] [ Fold up ]

Ten red LED lights on the perimeter of the FLY

Four adjustable wheel clamps on bed

0501M010

[ Open for more informations ] [ Fold up ]

Four adjustable wheel clamps on bed

Eight adjustable wheel blocks on bed (4x public works & 4x light vehicle)

0501M020

[ Open for more informations ] [ Fold up ]

Eight adjustable wheel blocks on bed (4x public works & 4x light vehicle)

A remote control for winch, articulation-extension of the loading ramp and working light (optional)

0902M040

[ Open for more informations ] [ Fold up ]

A remote control for winch, articulation-extension of the loading ramp and working light (optional)

One beacon fitted on the top of the cabin

0203M010

[ Open for more informations ] [ Fold up ]

One beacon fitted on the top of the cabin

Two beacons fitted on the top of the cabin

0203M020

[ Open for more informations ] [ Fold up ]

Two beacons fitted on the top of the cabin

Two LED beacons fitted on dismountable gallows at the front of the platform

0203M040

[ Open for more informations ] [ Fold up ]

Two LED beacons fitted on dismountable gallows at the front of the platform

Two LED beacons installed on swinging stems at the rear of the equipment

0203M070

[ Open for more informations ] [ Fold up ]

Two LED beacons installed on swinging stems at the rear of the equipment

A LED beacon extensible by pneumatic cylinder fitted in the rear overhang of the equipment

0203M080

[ Open for more informations ] [ Fold up ]

A LED beacon extensible by pneumatic cylinder fitted in the rear overhang of the equipment

Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER

0201M020

[ Open for more informations ] [ Fold up ]

Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER

Lightbar 1750mm type XPERT with 4 beacons, a central light and sign WRECKER

0201M030

[ Open for more informations ] [ Fold up ]

Lightbar 1750mm type XPERT with 4 beacons, a central light and sign WRECKER

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

0201M040

[ Open for more informations ] [ Fold up ]

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

Delux SKY AIR 1780 flasher bar with 22 LEDS and BREAKDOWN sign

0201M050

[ Open for more informations ] [ Fold up ]

Delux SKY AIR 1780 flasher bar with 22 LEDS and BREAKDOWN sign

Reminder of traffic lights in the XPERT lightbar

0201M080

[ Open for more informations ] [ Fold up ]

Reminder of traffic lights in the XPERT lightbar

A work light fitted to the front of the equipment

0101M010

[ Open for more informations ] [ Fold up ]

A work light fitted to the front of the equipment

Two integrated work lights at the head of the platform

0101M020

[ Open for more informations ] [ Fold up ]

Two integrated work lights at the head of the platform

Four work lights fitted to the front of the equipment

0101M030

[ Open for more informations ] [ Fold up ]

Four work lights fitted to the front of the equipment

A work light fitted at the rear of the equipment

0101M040

[ Open for more informations ] [ Fold up ]

A work light fitted at the rear of the equipment

Two work lights fitted at the rear of the equipment

0101M050

[ Open for more informations ] [ Fold up ]

Two work lights fitted at the rear of the equipment

Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)

0106M010

[ Open for more informations ] [ Fold up ]

Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)

Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)

0106M020

[ Open for more informations ] [ Fold up ]

Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)

Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)

0106M050

[ Open for more informations ] [ Fold up ]

Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)

A telescopic lighting tower 12V / 24V height 1,58m to 3,65m with 5 LED projectors

0101M060

[ Open for more informations ] [ Fold up ]

A telescopic lighting tower 12V / 24V height 1,58m to 3,65m with 5 LED projectors and a pneumatic height controller

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

0204M010

[ Open for more informations ] [ Fold up ]

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

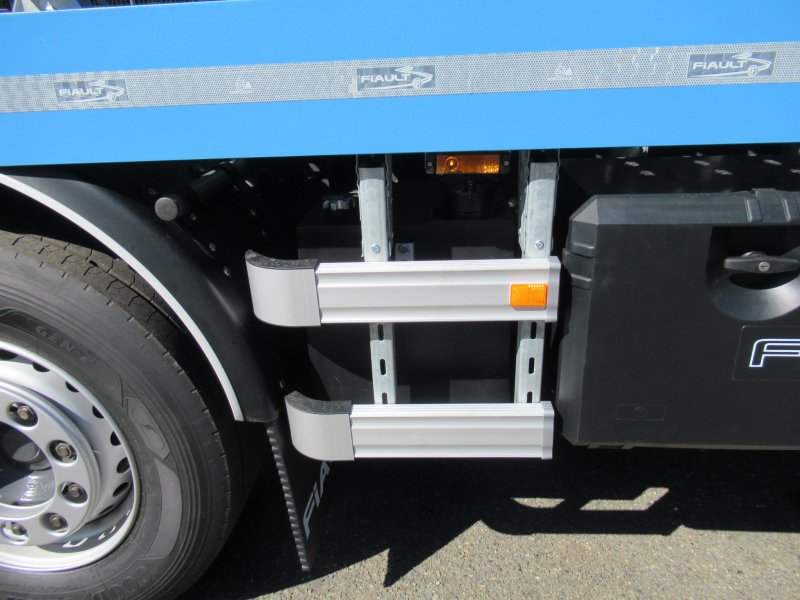

A sliding side step foot fixed under right side equipment

0308M140

[ Open for more informations ] [ Fold up ]

A sliding side step foot fixed under right side equipment to facilitate accessibility

Three vests, three cones, shovel and broom with mounts

0706M010

[ Open for more informations ] [ Fold up ]

Three vests, three cones, shovel and broom with mounts

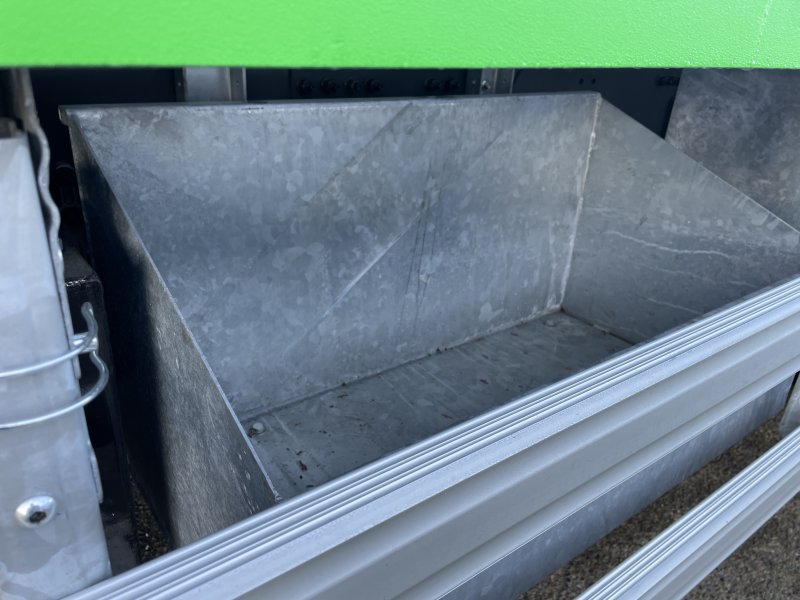

A sandbox for absorbent product with support

0704M010

[ Open for more informations ] [ Fold up ]

A sandbox for absorbent product with support

Two sandbox for absorbent product with support

0704M020

[ Open for more informations ] [ Fold up ]

Two sandbox for absorbent product with support

Two fire extinguishers mounted in a secure locker

0705M010

[ Open for more informations ] [ Fold up ]

Two fire extinguishers mounted in a secure locker

A 6 Kg fire extinguisher mounted in a secure locker

0705M020

[ Open for more informations ] [ Fold up ]

A 6 Kg fire extinguisher mounted in a secure locker

Two 6 Kg fire extinguisher mounted in a secure locker

0705M030

[ Open for more informations ] [ Fold up ]

Two 6 Kg fire extinguisher mounted in a secure locker

A plastic toolbox 600mm

0401M010

[ Open for more informations ] [ Fold up ]

A plastic toolbox 600mm

A plastic toolbox 750mm

0401M020

[ Open for more informations ] [ Fold up ]

A plastic toolbox 750mm

A plastic toolbox 1000mm

0401M030

[ Open for more informations ] [ Fold up ]

A plastic toolbox 1000mm

An inox toolbox 600mm

0402M020

[ Open for more informations ] [ Fold up ]

An inox toolbox 600mm

An inox toolbox 800mm

0402M030

[ Open for more informations ] [ Fold up ]

An inox toolbox 800mm

An inox toolbox 1000mm

0402M040

[ Open for more informations ] [ Fold up ]

An inox toolbox 1000mm

A stainless steel toolbox with top opening over the entire width fitted on the front of equipment

0402M120

[ Open for more informations ] [ Fold up ]

A stainless steel toolbox with top opening over the entire width fitted on the front of equipment

LED ceiling lighting in a toolbox

0107M010

[ Open for more informations ] [ Fold up ]

LED ceiling lighting in a toolbox

An open box with 3 plastic 10 liter jerricans with support

0404M010

[ Open for more informations ] [ Fold up ]

An open box with 3 plastic 10 liter jerricans with support

An open box with 3 steel 10 liter jerricans with support

0404M020

[ Open for more informations ] [ Fold up ]

An open box with 3 steel 10 liter jerricans with support

A closed box with 3 steel 10 liter jerricans with support

0404M030

[ Open for more informations ] [ Fold up ]

A closed box with 3 steel 10 liter jerricans with support

A washstand tank with faucet on a support

0404M060

[ Open for more informations ] [ Fold up ]

A washstand tank with faucet on a support

A 100 liter tank for polluted fuel recovery

0404M040

[ Open for more informations ] [ Fold up ]

A 100 liter tank for polluted fuel recovery with a pneumatic pump and a suction hose

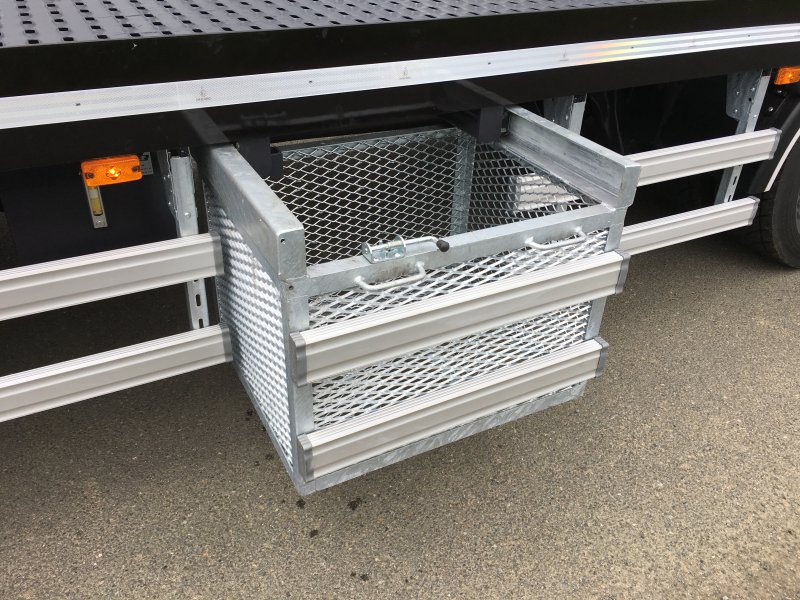

An open galvanized mesh tray for chains with support

0405M010

[ Open for more informations ] [ Fold up ]

An open galvanized mesh tray for chains with support

An open mesh tray for chains with sliding support

0405M020

[ Open for more informations ] [ Fold up ]

An open mesh tray for chains with sliding support

Two tool boxes on each side of the winch

0405M060

[ Open for more informations ] [ Fold up ]

Two tool boxes on each side of the winch

Two wheel dollies type "GO-JACK 5211" (without support) (maximum speed: 10 Km/h)

0502M011

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "GO-JACK 5211" (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 5211" (without dollies)

0502M021

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 5211" (without dollies)

An open support on the equipment for two wheel dollies type "GO-JACK 5211" (without dollies)

0502M031

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "GO-JACK 5211" (without dollies)

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 5211" (without dollies)

0502M041

[ Open for more informations ] [ Fold up ]

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 5211" (without dollies)

Two wheel dollies type "CHARIOTTE " (without support)

0502M060

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "CHARIOTTE " (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)

0502M070

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

0502M080

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "CHARIOTTE" (without dollies)

0502M090

[ Open for more informations ] [ Fold up ]

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "CHARIOTTE" (without dollies)

Two wheel dollies type "GO-JACK 6313" (without support)

0502M100

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "GO-JACK 6313" (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 6313" (without dollies)

0502M110

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 6313" (without dollies)

An open support on the equipment for two wheel dollies type "GO-JACK 6313" (without dollies)

0502M120

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "GO-JACK 6313" (without dollies)

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

0502M140

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

0502M150

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

A closed steel storage box with a fixed shelf for two wheel dollies type "FOURRIERE" (without dollies)

0502M160

[ Open for more informations ] [ Fold up ]

A closed steel storage box with a fixed shelf for two wheel dollies type "FOURRIERE" (without dollies)

Two jumper cables with two 12V and 24V plugs on the front right of the equipment

1202M020

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs on the front right of the equipment

Two jumper cables with two 12V and 24V plugs in the right rear overhang of the equipment

1202M040

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs in the right rear overhang of the equipment

Two jumper cables with two 12V and 24V plugs on the front left and right of the equipment (on each side)

1202M050

[ Open for more informations ] [ Fold up ]

Two jumper cables with two 12V and 24V plugs on the front left and right of the equipment (on each side)

A special motorcycle wedge with an articulated and adjustable shoe

0503M010

[ Open for more informations ] [ Fold up ]

A special motorcycle wedge with an articulated and adjustable shoe for fitting the wheel, 2 ratchet straps, 1 short traction sling, 1 special motorcycle handlebar strap and a storage rack on the equipment

A return pulley type DIABOLO with 4 sockets in the floor and support

1108M015

[ Open for more informations ] [ Fold up ]

A return pulley type DIABOLO with 4 sockets in the floor and support

A return pulley type DIABOLO with 6 sockets in the floor and support

1108M020

[ Open for more informations ] [ Fold up ]

A return pulley type DIABOLO with 6 sockets in the floor and support

Eight angled roller cable guides fixed to bed

1108M030

[ Open for more informations ] [ Fold up ]

Eight angled roller cable guides fixed to bed

Stainless steel protections on the side of the platform with flat 10mm border

0301M111

[ Open for more informations ] [ Fold up ]

Stainless steel protections on the side of the platform with flat 10mm border

Rear, side mounted two hydraulic stabilisers with separate controls and manual distribution in the rear overhang of the vehicle

0308M035

[ Open for more informations ] [ Fold up ]

Rear, side mounted two hydraulic stabilisers with separate controls and manual distribution in the rear overhang of the vehicle

A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm

0601M055

[ Open for more informations ] [ Fold up ]

A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm

A 3 points lashing strap for light vehicle

0601M050

[ Open for more informations ] [ Fold up ]

A 3 points lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 3000x50mm

A 6T ring of hauling welded front of the winch

0604M070

[ Open for more informations ] [ Fold up ]

A 6T ring of hauling welded front of the winch

Two 3T lashing rings articulated and welded on the floor (1 per side)

0604M080

[ Open for more informations ] [ Fold up ]

Two 3T lashing rings articulated and welded on the floor (1 per side)

Two 3T lashing rings articulated and integrated on the floor (1 per side)

0604M085

[ Open for more informations ] [ Fold up ]

Two 3T lashing rings articulated and integrated on the floor (1 per side)

Four 3T lashing rings articulated and welded on the floor (2 per side)

0604M090

[ Open for more informations ] [ Fold up ]

Four 3T lashing rings articulated and welded on the floor (2 per side)

Four 3T lashing rings articulated and integrated on the floor (2 per side)

0604M095

[ Open for more informations ] [ Fold up ]

Four 3T lashing rings articulated and integrated on the floor (2 per side)

Six 3T lashing rings articulated and welded on the floor (3 per side)

0604M100

[ Open for more informations ] [ Fold up ]

Six 3T lashing rings articulated and welded on the floor (3 per side)

Six 3T lashing rings articulated and integrated on the floor (3 per side)

0604M105

[ Open for more informations ] [ Fold up ]

Six 3T lashing rings articulated and integrated on the floor (3 per side)

Six 7T lashing rings articulated and welded on the floor (3 per side)

0604M106

[ Open for more informations ] [ Fold up ]

Six 7T lashing rings articulated and welded on the floor (3 per side)

Eight 3T lashing rings articulated and welded on the floor (4 per side)

0604M110

[ Open for more informations ] [ Fold up ]

Eight 3T lashing rings articulated and welded on the floor (4 per side)

Eight hitch hooks 7T welded on the floor of platform (4 per side)

0604M116

[ Open for more informations ] [ Fold up ]

Eight hitch hooks 7T welded on the floor of platform (4 per side)

Ten 7T lashing rings articulated and welded on the floor (5 per side)

0604M126

[ Open for more informations ] [ Fold up ]

Ten 7T lashing rings articulated and welded on the floor (5 per side)

Hanging systems straps welded under the top of the two sides for securing with straps

0604M140

[ Open for more informations ] [ Fold up ]

Hanging systems straps welded under the top of the two sides for securing with straps

Ten-heads stowage embedded in the floor for your chains (5 per side)

0604M050

[ Open for more informations ] [ Fold up ]

Ten-heads stowage embedded in the floor for your chains (5 per side)

Rear view camera in color with flat screen in the cabin

0803M010

[ Open for more informations ] [ Fold up ]

Rear view camera in color with flat screen in the cabin

Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin

0803M030

[ Open for more informations ] [ Fold up ]

Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin

Installation of an air intake in the hydraulic controls toolbox

1205M020

[ Open for more informations ] [ Fold up ]

Installation of an air intake in the hydraulic controls toolbox

Pneumatic reel (connected to the circuit) with 10m hose

1204M010

[ Open for more informations ] [ Fold up ]

Pneumatic reel (connected to the circuit) with 10m hose, pressure gauge in a toolbox already provided on the equipment

A winch spare wheel

0308M010

[ Open for more informations ] [ Fold up ]

A winch spare wheel holder secured to the side of the chassis

Stylized polyester body in the wheelbase (for chassis cab from 10T to 19T)

0301M020

[ Open for more informations ] [ Fold up ]

Stylized polyester body in the wheelbase (for chassis cab from 10T to 19T) painted in a RAL color standard : (toolbox not included)

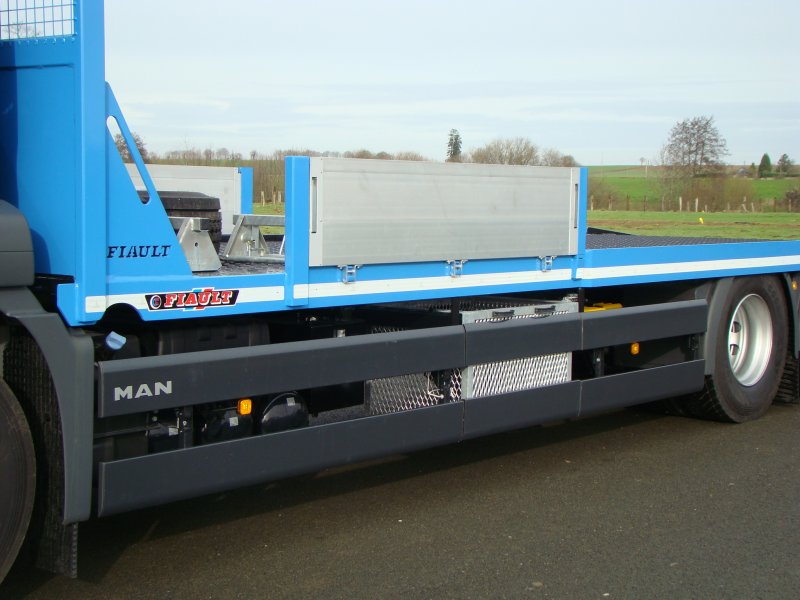

Stylized aluminum body in the wheelbase (for chassis cab from 10T to 19T)

0301M030

[ Open for more informations ] [ Fold up ]

Stylized aluminum body in the wheelbase (for chassis cab from 10T to 19T) painted in a standard RAL color: (toolbox not included)

A fixed ball hook diam. 50 on the front of the platform

0508M010

[ Open for more informations ] [ Fold up ]

A fixed ball hook diam. 50 on the front of the platform

A hook-mixed screed diam. 50 + ball hitch at the front of the equipment

0508M020

[ Open for more informations ] [ Fold up ]

A hook-mixed screed diam. 50 + ball hitch at the front of the equipment

A fixed ball hook diam. 50 on the rear of the equipment

0508M040

[ Open for more informations ] [ Fold up ]

A fixed ball hook diam. 50 on the rear of the equipment

A hook-mixed screed diam. 50 + ball hitch at the rear of the equipment

0508M050

[ Open for more informations ] [ Fold up ]

A hook-mixed screed diam. 50 + ball hitch at the rear of the equipment

A Rockinger tow hook for a trailer with a Ø 50 ring installed on a fixed crosstie at the rear of the equipment

0508M080

[ Open for more informations ] [ Fold up ]

A Rockinger tow hook for a trailer with a Ø 50 ring installed on a fixed crosstie at the rear of the equipment

Two PUSH-PULL hydraulic power outlets located at the rear of the chassis with an additional hydraulic distributor and 2 flexible hoses for a trailer power supply

0509M010

[ Open for more informations ] [ Fold up ]

Two PUSH-PULL hydraulic power outlets located at the rear of the chassis with an additional hydraulic distributor and 2 flexible hoses for a trailer power supply

Two lateral aluminum side panels (1 per side

0310M090

[ Open for more informations ] [ Fold up ]

Two lateral aluminum side removable panels (1 per side) can be fitted between the front of the platform and 1 removable post on the equipment

Four lateral aluminum side removable panels (2 per side)

0310M110

[ Open for more informations ] [ Fold up ]

Four lateral aluminum side removable panels (2 per side) can be fitted between the front of the platform and 1 removable post on the equipment

Two lateral aluminum side panels (1 per side) articulated and pivoting between the front face of the platform and 1 removable post on the side of the equipment

0310M100

[ Open for more informations ] [ Fold up ]

Two lateral aluminum side panels (1 per side) articulated and pivoting between the front face of the platform and 1 removable post on the side of the equipment

Four lateral aluminum side panels (2 per side) articulated and pivoting

0310M120

[ Open for more informations ] [ Fold up ]

Four lateral aluminum side panels (2 per side) articulated and pivoting between the front face of the platform and 2 removable post on the side of the equipment

PTO for heavy vehicle not original fitted

1003M030

[ Open for more informations ] [ Fold up ]

PTO for heavy vehicle not original fitted

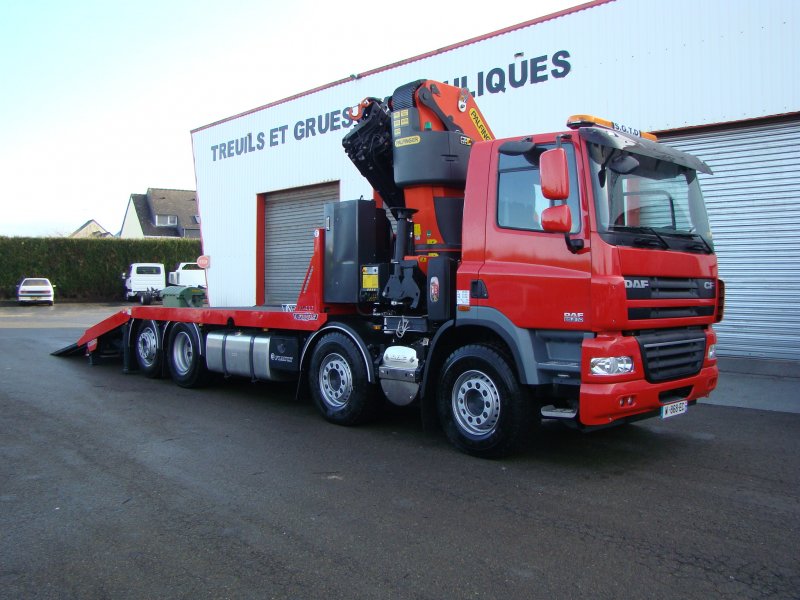

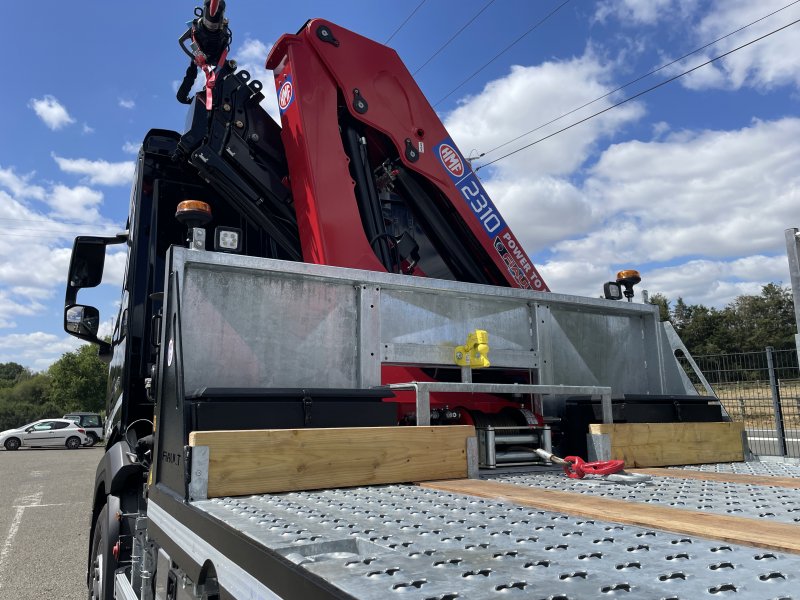

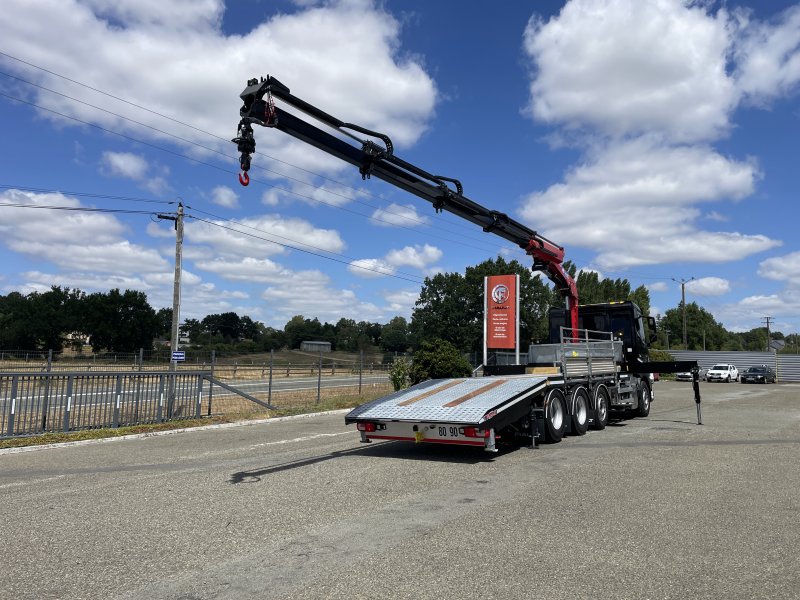

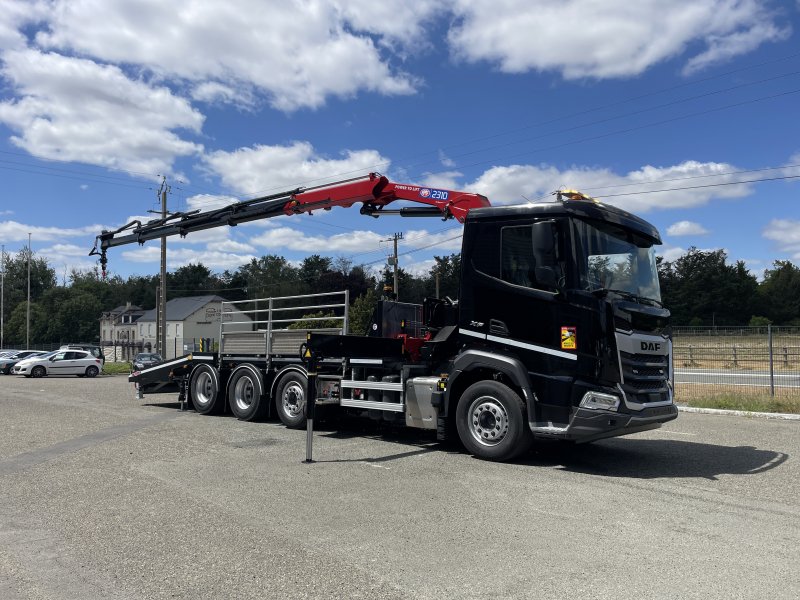

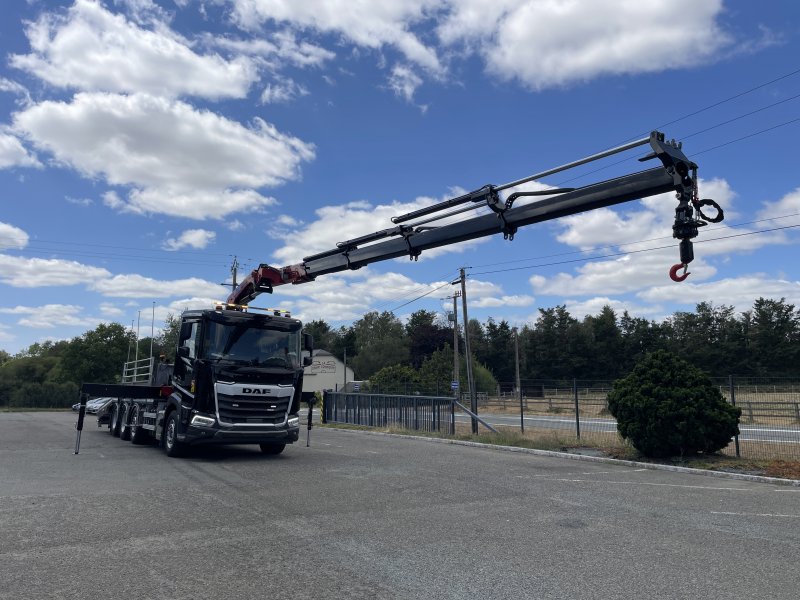

Supply and installation of a hydraulic crane behind the cabin

0607M130

[ Open for more informations ] [ Fold up ]

Supply and installation of a hydraulic crane behind the cabin (capacity of the crane to define) with manufacture of a special subframe with side fixing plates and connection to the hydraulic circuit of the equipment without valve using a special variable hydraulic distributor, electrical connections, set-up, adjustments and acceptance of conformity by us

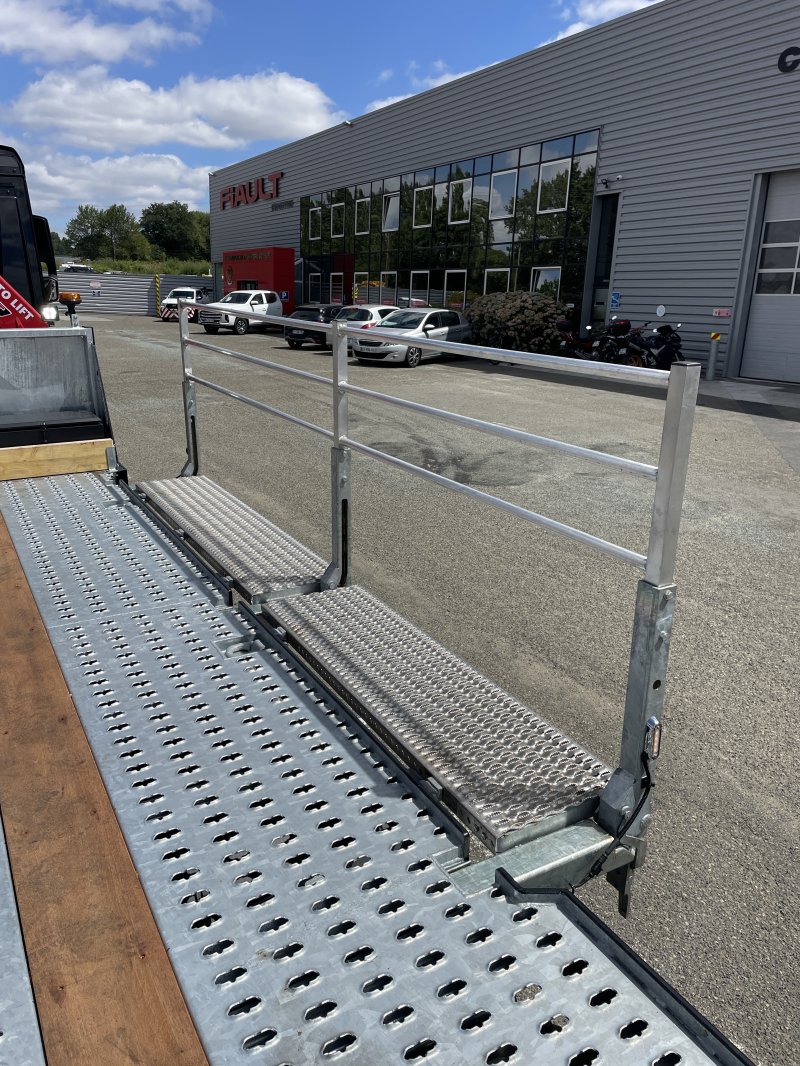

Non-slip expanded metal welded and articulated to the rear overhang deck and sliding ramp

0309M210

[ Open for more informations ] [ Fold up ]

Non-slip expanded metal welded and articulated to the rear overhang deck and sliding ramp

Adaptation of two wheel pits in the wheelbase with aluminum closing plates for interlocking floor leveling

0309M136

[ Open for more informations ] [ Fold up ]

Adaptation of two wheel pits in the wheelbase with aluminum closing plates for interlocking floor leveling

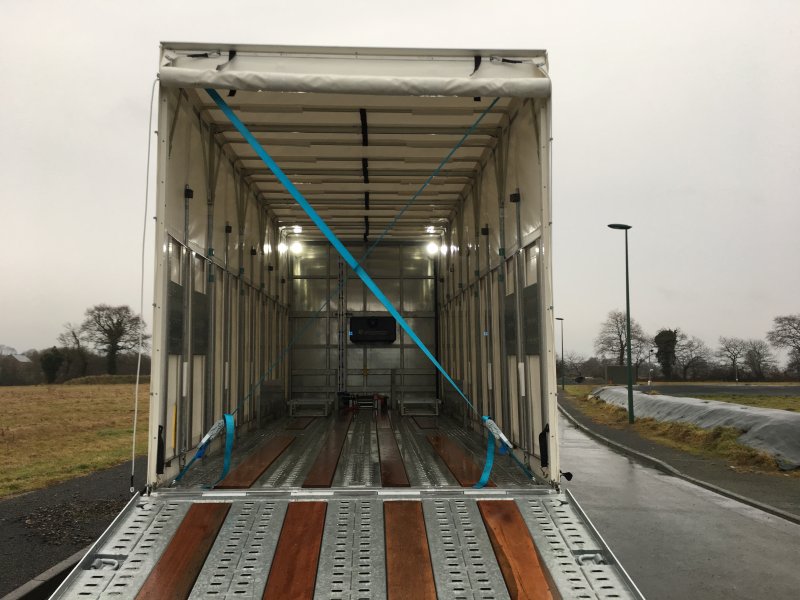

Body with sliding full sliding tarpaulin type LIB, a closed front face of the platform over the entire height

0301M185

[ Open for more informations ] [ Fold up ]

Body with sliding full sliding tarpaulin type LIB, a closed front face of the platform over the entire height, steel arch type tarpaulin hooves sliding on carrier rollers in a rail fixed side of the lateral banks. Standard color nylon tarpaulin with integrated webbing and tensioner system. Sliding of the roof and accordion type with stacking on the front and manual deployment.
Useful height = 2750 mm (to be specified)
Effective width = 2450 mm (for outdoor use 2550 mm)
Effective length = 6000 to 7500 mm (according to chassis)

White reflective tape on the edge of the platform

0801M010

[ Open for more informations ] [ Fold up ]

White reflective tape on the edge of the platform

Orange reflective tape on the edge of the platform

0801M020

[ Open for more informations ] [ Fold up ]

Orange reflective tape on the edge of the platform

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

0707M010

[ Open for more informations ] [ Fold up ]

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

Configurator
[ Open ]
PLAT'FIX TP105

PLAT'FIX TP105

00-TP105

Generate the summary sheet

Fiche récapitulative

In order to generate your summary sheet, please fill in this contact form. We will contact you as soon as possible.
