Plat'Trans PF 22 Alu

Plat'Trans PF 22 Alu

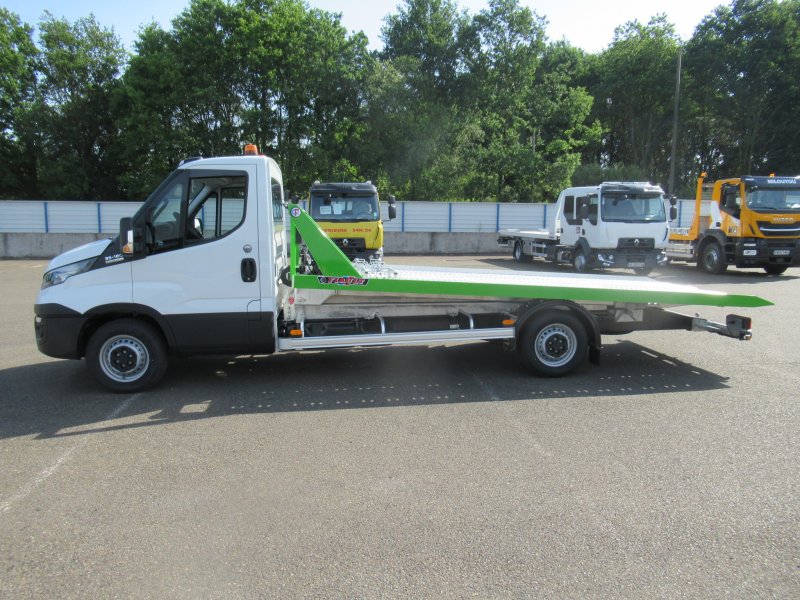

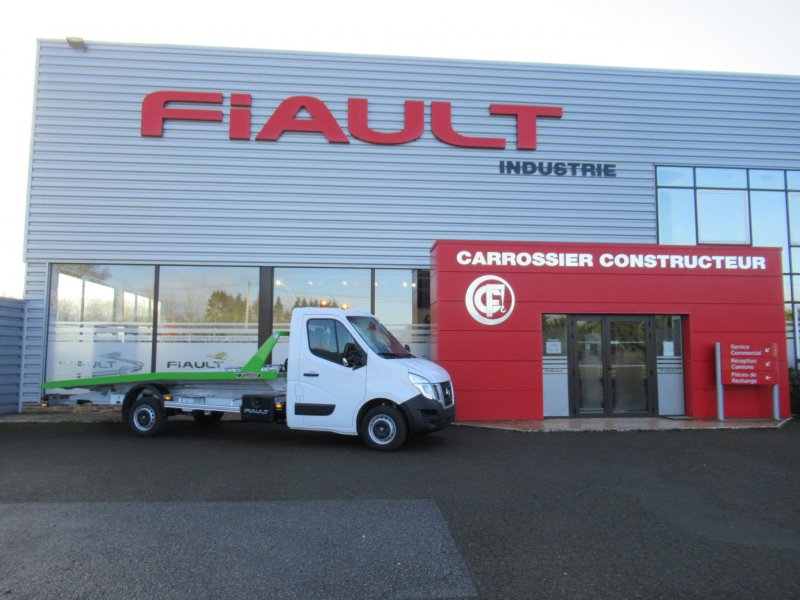

PLAT'TRANS PF 22 ALU



On chassis cab : 3T5 to 5T

(Fitted on a 13 pin tow plug and reinforced suspensions)



PLAT'TRANS PF22 ALU : SLIDING ALU DECK CAR TRANSPORTER (Electric version)

-Slide welded aluminium load deck

-Fully welded ALUMINUM frame

-Hydraulic system with electro hydraulic group

-A hydraulic cylinder with security locks for the slide

-Integrated wheel arches with mud guards

-Reinforced aluminium sheet bed with nonslip finish (RIB/NERVURE) and full length holes (working width 2000mm)

-Bar to protect the cabin with two rubber stops

-Four ton electric (12v) winch with wired remote control and twenty metres of cable

-Manual translation of the winch

-Four adjustable wheel clamps on bed

-A remote control for winch, slide of the platform and working light (if option)

-Fixed ball coupling hook diam. 50 at the rear of the equipment

-Deck entirely aluminium, no paint

-VEHICLE CONFORMS TO FRENCH REGULATIONS



Dimensions :

Exterior bed length = 4900 mm

Exterior bed width = 2100 mm

Technical capacity = 2000 Kg

Payload = to calculate according to the chassis cab



Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.

Reinforced aluminium sheet bed with nonslip finish (RIB/NERVURE)

0309M090

[ Open for more informations ] [ Fold up ]

Reinforced aluminium sheet bed with nonslip finish (RIB/NERVURE) and full length holes (working width 2000mm)

Extruded aluminium floor type AUTOPORTANT

0309M095

[ Open for more informations ] [ Fold up ]

Extruded aluminium floor type AUTOPORTANT (edges with a flat, useful width 2080mm instead of 2000mm) replacing the floor with aluminium tear plates with rib

White reflective tape on the edge of the platform

0801M010

[ Open for more informations ] [ Fold up ]

White reflective tape on the edge of the platform

Orange reflective tape on the edge of the platform

0801M020

[ Open for more informations ] [ Fold up ]

Orange reflective tape on the edge of the platform

Four ton electric (12v) winch

1102M010

[ Open for more informations ] [ Fold up ]

Four ton electric (12v) winch with wired remote control and twenty metres of cable

Replacing the fixed winch cable hook with a rotating hook

1104M040

[ Open for more informations ] [ Fold up ]

Replacing the fixed winch cable hook with a rotating hook

A rubber end stop for winch cable

1104M050

[ Open for more informations ] [ Fold up ]

A rubber end stop for winch cable

A hook type 2 with shackle on winch cable

1109M010

[ Open for more informations ] [ Fold up ]

A hook type 2 with shackle on winch cable

Manual translation of the winch

1110M010

[ Open for more informations ] [ Fold up ]

Manual translation of the winch

Bar to protect the cabin with two rubber stops

0303M015

[ Open for more informations ] [ Fold up ]

Bar to protect the cabin with two rubber stops

High bar to protect the cabin type FLY with two rubber stops

0303M025

[ Open for more informations ] [ Fold up ]

-High bar to protect the cabin type FLY with two rubber stops

A fixed ball hook diam. 50 on the front of the platform

0508M010

[ Open for more informations ] [ Fold up ]

A fixed ball hook diam. 50 on the front of the platform

Eight red LED lights on the perimeter of the FLY

0207M010

[ Open for more informations ] [ Fold up ]

Eight red LED lights on the perimeter of the FLY

Ten red LED lights on the perimeter of the FLY

0207M015

[ Open for more informations ] [ Fold up ]

Ten red LED lights on the perimeter of the FLY

Four adjustable wheel clamps on bed

0501M010

[ Open for more informations ] [ Fold up ]

Four adjustable wheel clamps on bed

A remote control for winch, tilt and slide of the platform and working light (optional)

0902M045

[ Open for more informations ] [ Fold up ]

A remote control for winch, tilt and slide of the platform and working light (optional)

One beacon fitted on the top of the cabin

0203M010

[ Open for more informations ] [ Fold up ]

One beacon fitted on the top of the cabin

Two beacons fitted on the top of the cabin

0203M020

[ Open for more informations ] [ Fold up ]

Two beacons fitted on the top of the cabin

Lightbar 1200mm type XPERT with 2 beacons, a central light and sign WRECKER

0201M010

[ Open for more informations ] [ Fold up ]

Lightbar 1200mm type XPERT with 2 beacons, a central light and sign WRECKER

Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER

0201M020

[ Open for more informations ] [ Fold up ]

Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

0201M040

[ Open for more informations ] [ Fold up ]

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

Reminder of traffic lights in the XPERT lightbar

0201M080

[ Open for more informations ] [ Fold up ]

Reminder of traffic lights in the XPERT lightbar

A work light fitted to the front of the equipment

0101M010

[ Open for more informations ] [ Fold up ]

A work light fitted to the front of the equipment

Two integrated work lights at the head of the platform

0101M020

[ Open for more informations ] [ Fold up ]

Two integrated work lights at the head of the platform

Four work lights fitted to the front of the equipment

0101M030

[ Open for more informations ] [ Fold up ]

Four work lights fitted to the front of the equipment

A work light fitted at the rear of the equipment

0101M040

[ Open for more informations ] [ Fold up ]

A work light fitted at the rear of the equipment

Two work lights fitted at the rear of the equipment

0101M050

[ Open for more informations ] [ Fold up ]

Two work lights fitted at the rear of the equipment

Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)

0106M010

[ Open for more informations ] [ Fold up ]

Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)

Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)

0106M020

[ Open for more informations ] [ Fold up ]

Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)

Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)

0106M050

[ Open for more informations ] [ Fold up ]

Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

0204M010

[ Open for more informations ] [ Fold up ]

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

Three vests, three cones, shovel and broom with mounts

0706M010

[ Open for more informations ] [ Fold up ]

Three vests, three cones, shovel and broom with mounts

A sandbox for absorbent product with support

0704M010

[ Open for more informations ] [ Fold up ]

A sandbox for absorbent product with support

Two fire extinguishers mounted in a secure locker

0705M010

[ Open for more informations ] [ Fold up ]

Two fire extinguishers mounted in a secure locker

A plastic toolbox 600mm

0401M010

[ Open for more informations ] [ Fold up ]

A plastic toolbox 600mm

An open box with 3 plastic 10 liter jerricans with support

0404M010

[ Open for more informations ] [ Fold up ]

An open box with 3 plastic 10 liter jerricans with support

An open box with 3 steel 10 liter jerricans with support

0404M020

[ Open for more informations ] [ Fold up ]

An open box with 3 steel 10 liter jerricans with support

A washstand tank with faucet on a support

0404M060

[ Open for more informations ] [ Fold up ]

A washstand tank with faucet on a support

Two wheel dollies type "CHARIOTTE " (without support)

0502M060

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "CHARIOTTE " (without support) (maximum speed: 10 Km/h)

Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)

0502M070

[ Open for more informations ] [ Fold up ]

Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

0502M080

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

Two jumper cables with a 12V plug on the front right of the equipment

1202M010

[ Open for more informations ] [ Fold up ]

Two jumper cables with a 12V plug on the front right of the equipment

Two jumper cables with a 12V plug in the right rear overhang of the equipment

1202M030

[ Open for more informations ] [ Fold up ]

Two jumper cables with a 12V plug in the right rear overhang of the equipment

A special motorcycle wedge with an articulated and adjustable shoe

0503M010

[ Open for more informations ] [ Fold up ]

A special motorcycle wedge with an articulated and adjustable shoe for fitting the wheel, 2 ratchet straps, 1 short traction sling, 1 special motorcycle handlebar strap and a storage rack on the equipment

A return pulley type DIABOLO with 4 sockets in the floor and support

1108M015

[ Open for more informations ] [ Fold up ]

A return pulley type DIABOLO with 4 sockets in the floor and support

Two small aluminium ramps 700x250 mm with support on equipment for loading vehicles on the platform with trolleys

0506M010

[ Open for more informations ] [ Fold up ]

Two small aluminium ramps 700x250 mm with support on equipment for loading vehicles on the platform with trolleys

Two aluminum ramps 1000x270 mm to improve the loading angle

0506M020

[ Open for more informations ] [ Fold up ]

Two aluminum ramps 1000x270 mm to improve the loading angle with a storage tray under the equipment

Stainless steel protections on the side of the platform with flat 10mm border

0301M111

[ Open for more informations ] [ Fold up ]

Stainless steel protections on the side of the platform with flat 10mm border

Anti-slip aluminium protectors on top of the two sides of the platform

0301M110

[ Open for more informations ] [ Fold up ]

Anti-slip aluminium protectors on top of the two sides of the platform

A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm

0601M055

[ Open for more informations ] [ Fold up ]

A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm

A 3 points lashing strap for light vehicle

0601M050

[ Open for more informations ] [ Fold up ]

A 3 points lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 3000x50mm

A winch spare wheel

0308M010

[ Open for more informations ] [ Fold up ]

A winch spare wheel holder secured to the side of the chassis

Rear view camera in color with flat screen in the cabin

0803M010

[ Open for more informations ] [ Fold up ]

Rear view camera in color with flat screen in the cabin

Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane

0301M015

[ Open for more informations ] [ Fold up ]

Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane

Painting of the stylized aluminum profiles in the wheelbase in a standard color

0313M220

[ Open for more informations ] [ Fold up ]

Painting of the stylized aluminum profiles in the wheelbase (painting of toolbox doors not included) in a standard color RAL=

Painting of a tool box door or the control box (unit price)

0313M230

[ Open for more informations ] [ Fold up ]

Painting of a tool box door or the control box (unit price) (multiply by the number of boxes to be painted) in a standard color same as the body

Painting of platform side

0313M015

[ Open for more informations ] [ Fold up ]

Painting of platform side in standard colour finish RAL

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

0707M010

[ Open for more informations ] [ Fold up ]

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)

Configurator
[ Open ]

You did not add any option.

Fiche récapitulative

In order to generate your summary sheet, please fill in this contact form. We will contact you as soon as possible.
