VOLKSWAGEN AMAROK SHORT CAB (MANUAL OR AUTOMATIC GEARBOX)
00-AMAROK
VOLKSWAGEN AMAROK SHORT CAB (MANUAL OR AUTOMATIC GEARBOX)
-Engine : 4 cylinders 2.0 L Diesel Turbocharging
-Power : 180 HP to 4000 trs/mn
-Engine couple : 420 N/m to 1750 trs/mn
-Gearbox : automatic 8 or manual 6 speed transmission
-Brake : front ventilated discs and rear drum
-Driving aids : A.B.S + ASR + EDS + ESP
-White cabin - 2 seats - electric windows - air conditioning - radio CD
-Tyres 245/70X16 on original wheels aluminum
-Wheelbase: 3095mm - Length: 4800mm - Width: 1950mm - Height: 1850mm
-2 YEARS WITH UNLIMITED MILEAGE
-FREE VOLKSWAGEN ASSISTANCE FOR LIFE IN THE CASE OF FAILURE AND FOR 8 YEARS IN CASE OF ACCIDENT (UNDER MAINTENANCE CONDITIONS AT VOLKSWAGEN, PERIODICITY REVISION 2 YEARS OR 40,000 KMS)

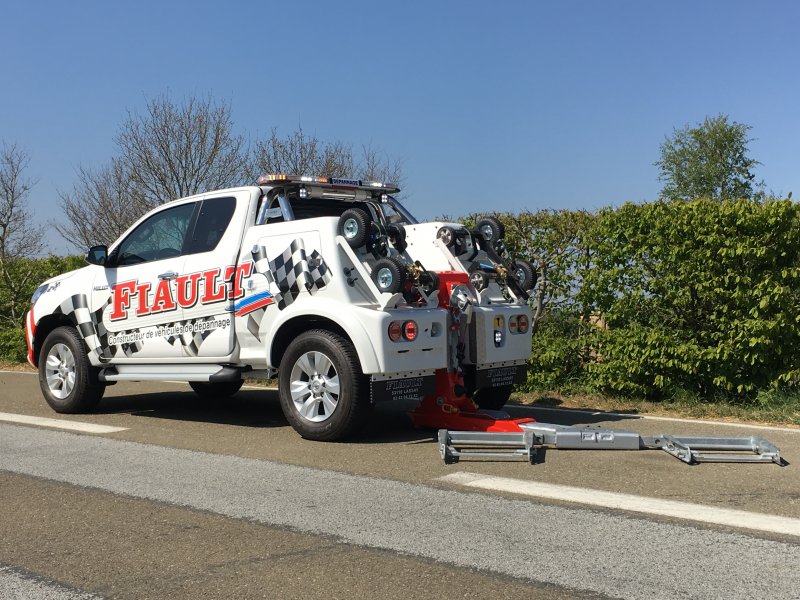

TOYOTA HILUX NG 2.4D 4X4 SPACE CAB XTRA MODEL EURO 6 MANUAL GEARBOX
00-HILUX
TOYOTA HILUX NG 2.4D 4X4 SPACE CAB XTRA LEGEND MODEL EURO 6
-Engine : 4 cylinders 2.4 L Turbo
-Gearbox : manual transmission 6 speed with shift indicator
-Power : 150 CH - engine couple : 400 N/m from 1600 to 2000 tr/mn
-Rear differential lock by push button
-Brakes : front discs and rear drums + anti-lock braking (ABS)
-Systems : Hill Start Assist (HAC) - Sway Control (TSC) - Traction Control (TRC) - Stability Control (VSC)
-White cabin - 2 seats - Power windows - Steering angle: 12,8m / 13,4m
-CD Radio - MP3 - Bluetooth - USB - 6 Speakers - steering wheel audio control
-Manual air conditioning - 7 driver & passengers airbags
-Tires 265 / 65R17 X17 inches on original aluminum rims
-Wheelbase : 3085mm - Length : 4900mm - Width : 1900mm - Height : 1850mm
-Original aluminum footboard
TOYOTA HILUX 2.8D 4X4 SPACE CAB XTRA LEGEND MODEL EURO 6 AUTOMATIC GEARBOX
00-HILUXBVA
TOYOTA HILUX NG 2.8D 4X4 SPACE CAB XTRA MODEL EURO 6
-Engine : 4 cylinders 2.8 L Turbo
-Gearbox : automatic transmission 6 speed
-Power : 204 CH - engine couple : 500 N/m from 1600 to 2800 tr/mn
-Rear differential lock by push button
-Brakes : front discs and rear drums + anti-lock braking (ABS)
-Systems : Hill Start Assist (HAC) - Sway Control (TSC) - Traction Control (TRC) - Stability Control (VSC)
-White cabin - 2 seats - Power windows - Steering angle: 12,8m / 13,4m
-Radio - MP3 - Bluetooth - USB - 6 Speakers - steering wheel audio control
-Manual air conditioning - 7 driver & passengers airbags
-Tires 265 / 65R17 X17 inches on original aluminum rims
-Wheelbase : 3085mm - Length : 4900mm - Width : 1900mm - Height : 1850mm
-Original aluminum footboard
ISUZU D-MAX 4X4 SINGLE CAB 2 DOORS EURO 6
00-ISUZU
ISUZU D-MAX 4X4 SINGLE CAB 2 DOORS EURO 6
-Engine : 4 cylinders 1.9 L Diesel Turbocharging
-Gearbox : manual transmission 6 speed
-Power : 164 HP to 3600 trs/mn
-Engine couple : 360 N/m to 2000 trs/mn
-Brake : front ventilated discs and rear drum + A.B.S + ESC
-White cabin - 2 seats - electric windows - turning radius : 6100mm
-Air conditioning - Radio CD
-Tyres 245/70X16 on original wheels steel
-Wheelbase: 3095mm - Length: 4800mm - Width: 1860mm - Height: 1850mm
ISUZU D-MAX 4X4 SPACE CAB SOLAR PLUS EURO 6
00-ISUZUDK
ISUZU D-MAX 4X4 SPACE CAB SOLAR PLUS EURO 6
-Engine : 4 cylinders 1.9 L Diesel Turbocharging
-Gearbox : automatic transmission 6 speed
-Power : 164 HP to 3600 trs/mn
-Engine couple : 360 N/m to 2000 trs/mn
-Brake : front ventilated discs and rear drum + A.B.S + ESC
-White cabin - 2 seats - electric windows - turning radius : 6100mm
-Radio CD - Bluetooth - MP3 - USB - 6 Loudspeakers - regulator
-Air conditioning - Chrome grille and shell mirrors - Fog headlights
-Tyres 255/65X18 on original wheels aluminum
-Wheelbase: 3095mm - Length: 4800mm - Width: 1860mm - Height: 1850mm

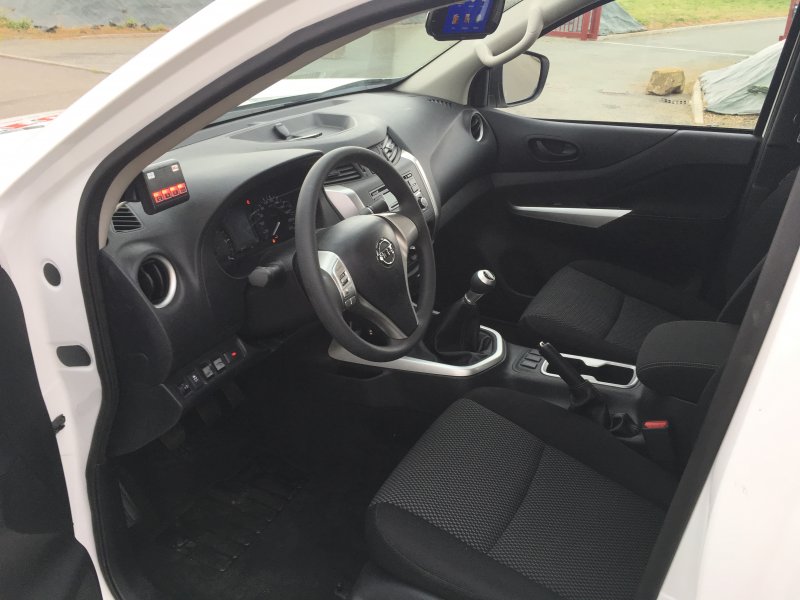

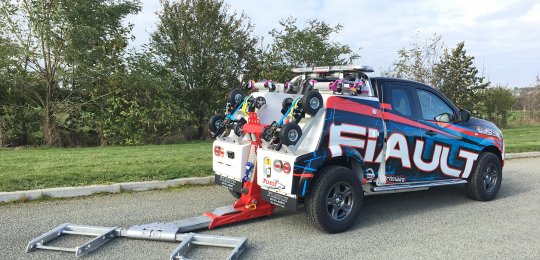

NISSAN NAVARA NP300 4x4 KING CAB VISIA FINITION
00-NAVARA
NISSAN NAVARA NP300 4x4 KING CAB VISIA FINITION
-Engine : 4 cylinders 2.3 L Diesel
-Gearbox : manual transmission 6 speed
-Power : 160 HP
-Engine couple : 403 N/m
-Rear differential lock
-Brake : front ventilated discs and rear drum + A.B.S + EBD + NBAS + ESP
-White cabin - 2 seats - electric windows - turning radius : 13,3m
-Radio CD - Bluetooth - MP3 - USB - 4 Loudspeakers
-Manual Air conditioning - 7 driver and passenger airbags - hill start aid
-Tyres 205R16CX16 on original wheels steel
-Wheelbase: 3150mm - Length: 4900mm - Width: 1900mm - Height: 1850mm
PLAT'FIX PF 18 STEEL
00-PF18ACIER
PLAT'FIX PF 18 STEEL : FIXED BED CAR TRANSPORTER
-Welded steel construction throughout
-Galvanised steel sheet bed with nonslip finish
-Two sliding aluminium load ramps stored under the bed
-Integrated wheel arches with mud guards
-Rear bumper with builtin signals
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 4900 mm
Exterior bed width = 2100 mm
PLAT'FIX PF 18 ALUMINIUM
00-PF18ALU
PLAT'FIX PF 18 ALUMINIUM : FIXED BED CAR TRANSPORTER
-Welded aluminium construction throughout
-Two sliding aluminium load ramps stored under the bed
-Integrated wheel arches with mud guards
-Rear bumper with builtin signals
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 4900 mm
Exterior bed width = 2100 mm

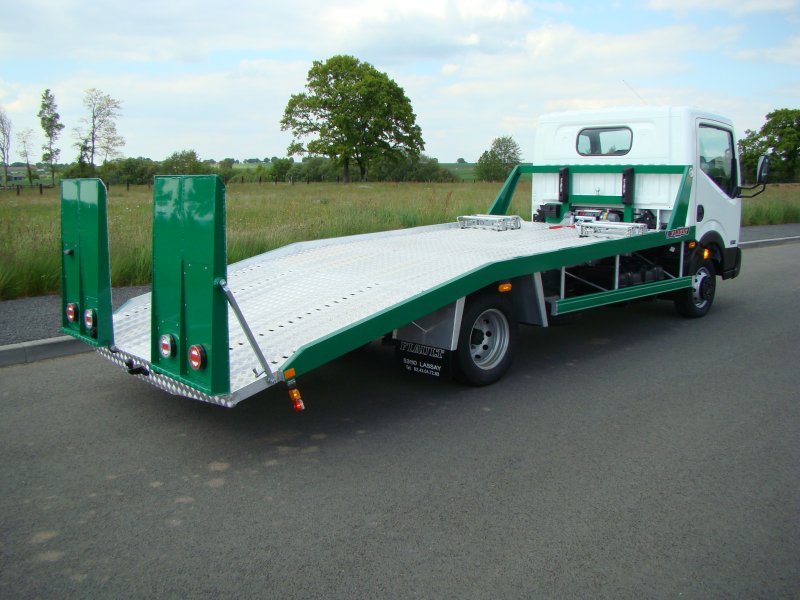

PLAT'FIX PF19 ALU
00-PF19
PLAT'FIX PF 19 ALU : Aluminium fixed bed, car transporter with adjustable air suspension
-Modified rear suspension with two adjustable air cushions controlled via a compressor
-Control of pneumatic suspension with a controller in the cab
-Welded aluminium construction throughout
-Two aluminum loading ramps, manually pivoting at the rear of the equipment
-Rear bumper with built in signals
-Integrated wheel arches with mud guards
-Bed constructed entirely in aluminium, no paint
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
-Exterior bed length = 4900 mm
-Exterior bed width = 2100 mm
PLAT'FIX 2+2
00-PF2+2
PLAT'FIX 2+2 CAR TRANSPORTER (DAMAGED VEHICLES, HYDRAULIC RAMP, SWIVELLING REAR RAMP)
-Hydraulic circuit with high pressure pump, filtered reservoir with indication of level
-Multi-function hydraulic distribution housed in a lit security cabinet
-Lower deck in welded, re-inforced and galvanised 4mm steel with channeled finish
-Lowerable rear ramp via two hydraulic pistons with saftey locks and protected by rubber gators
-Integrated full width loading ramp with hydraulic extension via twin pistons permitting direct loading from ground level
-Upper deck with integrated rise and fall via hydraulic post lifts at the front and rear swing arms with adjustment to various heights with locking pins
-Upper deck in welded, re-inforced and galvanised 4mm steel with channeled finish
-Upper deck, full width hydraulic (two pistons) flush mounted, 2800 mm extension
COMPLEMENTARY ACCESSORIES :
-A 4.5T ton hydraulic winch mounted on the lower platform with manual clutch
-A 4.5T ton hydraulic winch mounted on the upper platform with manual clutch
-Radio control for the two winches
-16 adjustable wheel clamps on the platform (8 + 8)
-Hydraulic controls mounted in a secure cabinet with light
-A work light mounted between the platforms
-Six angled roller cable guides fixed to bed
-Removeable saftey rail on upper deck and over cab
-Rubber protections on the two side of the platform of both levels
-6kg fire extinguisher in a weather proof cabinet
SURFACE TREATMENT :
-Hot phosphate treatment of all equipment
-Double undercoat with two coats of polyurethane laquer finish
-Cadmium treated locking pins, galvanised chocks and galvanised saftey rails
-Rubber gators on pistons
-Front face and sides of platform of both levels painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
EXTERIOR DIMENSIONS :
-Lower platform length : between 8500 mm to 9000 mm (to specification depends on chassis cab)
-Upper platform length : between 8500 mm to 9000 mm (approx) + 2800 mm extension
-Loading capacity : 2 vehicles on top deck and 2 vehicles on lower deck

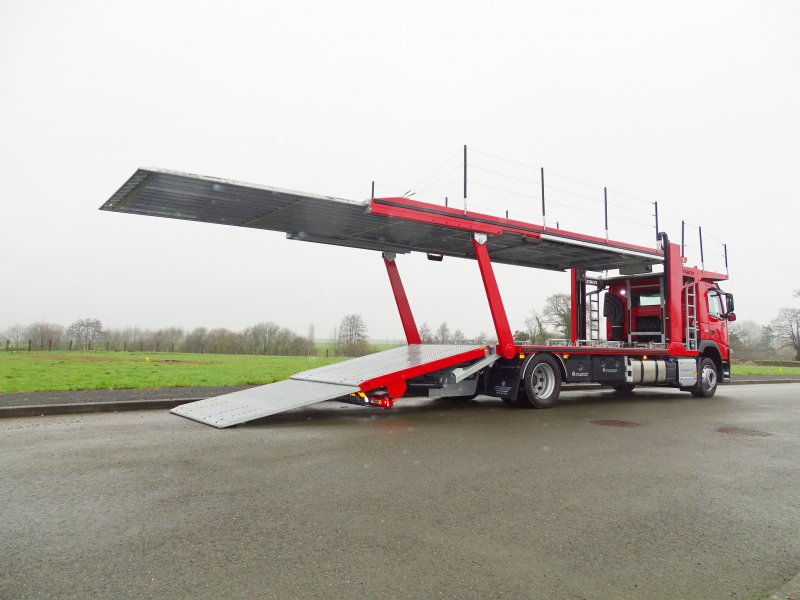

PLAT'FIX 2+3
00-PF2+3
PLAT'FIX 2+3 CAR TRANSPORTER (DAMAGED VEHICLES, HYDRAULIC RAMP, SWIVELLING REAR RAMP
-Hydraulic circuit with high pressure pump, filtered reservoir with indication of level
-Multi-function hydraulic distribution housed in a lit security cabinet
-Lowerable rear ramp via two hydraulic pistons with saftey locks and protected by rubber gators
-Integrated full width loading ramp with hydraulic extension via twin pistons permitting direct loading from ground level
-Upper deck with integrated rise and fall via hydraulic post lifts at the front and rear swing arms with adjustment to various heights with locking pins
-Upper deck in welded, re-inforced and galvanised 4mm steel with channeled finish
-Upper deck, full width hydraulic (two pistons) flush mounted, 2800 mm extension
-Over cab articulated platform adjustable via hand pump situated behind the cabin on the right hand side
COMPLEMENTARY ACCESSORIES :
-A 4.5T ton hydraulic winch mounted on the lower platform with manual clutch
-A 4.5T ton hydraulic winch mounted on the upper platform with manual clutch
-Radio control for the two winches
-16 adjustable wheel clamps on the platform (8 + 8)
-Hydraulic controls mounted in a secure cabinet with light
-A work light mounted between the platforms
-Six angled roller cable guides fixed to bed
-Removeable saftey rail on upper deck and over cab
-Rubber protections on the two side of the platform of both levels
-6kg fire extinguisher in a weather proof cabinet
SURFACE TREATMENT :
-Hot phosphate treatment of all equipment
-Double undercoat with two coats of polyurethane laquer finish
-Cadmium treated locking pins, galvanised chocks and galvanised saftey rails
-Rubber gators on pistons
-A white reflective strips on the two side of the platform of both levels
-Front face and sides o fplatform of both levels painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
EXTERIOR DIMENSIONS :
-Lower platform length : between 8500 mm to 9000 mm (to specification depends on chassis cab)
-Upper platform length : 10500 mm (approx) + 2800 mm extension
-Loading capacity : 3 vehicles on top deck and 2 vehicles on lower deck
PLAT'TRANS PF20 ALU (electric or hydraulic version following the winch)
00-PF20ALU
PLAT'TRANS PF20 ALU : SLIDING AND TILTING ALU DECK CAR TRANSPORTER (Electric or Hydraulic version optional)
-Slide and tilt welded aluminium load deck
-Deck slides on reinforced aluminium rails with nylon slides
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide
-Hydraulic system with electro hydraulic group
-Integrated wheel arches with mud guards
-Two rear stabilisers
-Deck entirely aluminium, no paint
-VEHICLE CONFORMS TO FRENCH REGULATIONS
Dimensions :
Exterior bed length = 4900 mm
Exterior bed width = 2100 mm
Technical capacity = 2000 Kg
Payload = to calculate according to the chassis cab
PLAT'FIX PF21 ALU
00-PF21
PLAT'FIX PF21 ALU, fixed bed, pneumatic, car transporter
-U profile galvanised bed bolted to the back of the cabin
-Independent air cushion suspension permiting lowering to ground from cabin
-Electric compressor with reservoir with valve
-Four wheels 195x50x13, spare wheel
-Hot galvanisation of chassis and all metal components
-Fixed load bed with two different inclinations
-Structure entirely soldered aluminium
-Two aluminum loading ramps, manually pivoting at the rear of the equipment
-Integrated wheel arches with mud guards
-Bed constructed entirely in aluminium, no paint
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
-Exterior bed length = 5100 mm
-Exterior bed width = 2100 mm
MAXILIFT PF3000 4x4 ON VOLKSWAGEN AMAROK SHORT CAB
00-PF3000-AMAR
MAXILIFT PF3000 4x4 ON VOLKSWAGEN AMAROK SHORT CAB
SPECIAL MODIFICATION ON THE VEHICLE
-Rear suspension converted to pneumatic with pump and reservoir
-Two pneumatic cushions with automatic levelling system
-Adaptation of a ballast anti-squat under the front bumper
SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :
-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock
-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks
-Bodywork entirely in polyester with roller cabinets on either side
-Roll-bar FLY design in stainless steel with lightbar
-Three florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4
-Stylized aluminum protective plates on the back of the polyester body
-All the equipment is galvanized
-Rear lighting with 4 LED lights embedded in the body
-Bodywork painted in a single colour to define RAL=
-VEHICLE CONFORMS TO EU REGULATION
MAXILIFT PF3000 WITH ASSISTANCE BODY
00-PF3000-ASS
MAXILIFT PF3000 WITH ASSISTANCE BODY WITH 4 ALUMINUM CURTAINS
-Hydraulic spec lift type PF3000 with ground level operation
-Steel overbody with bolted panels and chassis reinforcement
-Articulated spec lift with brass rings and auto lubrification
-Two lift pistons
-A piston to control lift angle
-A piston to control arm extension
-Electric hydraulic pump with built-in reservoir
-Hydraulic control levers + remote control for the winch and the hydraulic arm
-Demountable lift forks also with adjustable width (thickness 75 mm)
-Adjustable and demountable wheel locks
-Two ratchet straps for fixing wheels to lift
-Lift articulated via connecting arm, axles on brass rings and auto lubrification
-Remote control for arm and winch functions
-Assistance style bodywork entirely in aluminium with standard size roller shutter cabinets on either side. 4 shutters also in aluminium (2 per side)
-Gantry type FLY above the body
-Two adjustable work lights at the front of the bed under the “fly” bar
-A work light fixed to the lower rear to provide illumination to the lift
-A ballast load fixed under the bumper
-Full galvanization of subframe and spec lift (without paint)
-Bodywork painted in a single colour RAL to define =
-VEHICLE CONFORMS TO EU REGULATIONS
MAXILIFT PF3000 BREAKDOWN BODY
00-PF3000-DEP
MAXILIFT PF3000 WITH BREAKDOWN BODY
-Hydraulic spec lift type PF3000 with ground level operation
-Steel overbody with bolted panels and chassis reinforcement
-Articulated spec lift with brass rings and auto lubrification
-Two lift pistons
-A piston to control lift angle
-A piston to control arm extension
-Electric hydraulic pump with built-in reservoir
-Hydraulic control levers + remote control for the winch and the hydraulic arm
-Demountable lift forks also with adjustable width (thickness 75 mm)
-Adjustable and demountable wheel locks
-Two ratchet straps for fixing wheels to lift
-Lift articulated via connecting arm, axles on brass rings and auto lubrification
-Remote control for arm and winch functions
-Breakdown style bodywork entirely in aluminium with standard size roller shutter cabinets on either side. Shutters also in aluminium
-Gantry type FLY above the body
-Two adjustable work lights at the front of the bed under the “fly” bar
-A work light fixed to the lower rear to provide illumination to the lift
-A ballast load fixed under the bumper
-Full galvanization of subframe and spec lift (without paint)
-Bodywork painted in a single colour RAL to define =
-VEHICLE CONFORMS TO EU REGULATIONS
MAXILIFT PF3000 4x4 ON TOYOTA HILUX SPACE CAB
00-PF3000-HILUX
MAXILIFT PF3000 4x4 ON TOYOTA HILUX SPACE CAB
SPECIAL MODIFICATION ON THE VEHICLE
-Rear suspension converted to pneumatic with pump and reservoir
-Two pneumatic cushions with automatic levelling system
-Adaptation of a ballast anti-squat under the front bumper
SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :
-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock
-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks
-Bodywork entirely in polyester with roller cabinets on either side
-Roll-bar FLY design in stainless steel with lightbar
-Three florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4
-Stylized aluminum protective plates on the back of the polyester body
-All the equipment is galvanized
-Rear lighting with 4 LED lights embedded in the body
-Bodywork painted in a single colour to define RAL=
-VEHICLE CONFORMS TO EU REGULATION
MAXILIFT PF3000 4x4 ON ISUZU D-MAX SINGLE CAB
00-PF3000-ISU
MAXILIFT PF3000 4x4 ON ISUZU D-MAX SINGLE CAB
SPECIAL MODIFICATION ON THE VEHICLE
-Rear suspension converted to pneumatic with pump and reservoir
-Two pneumatic cushions with automatic levelling system
-Adaptation of a ballast anti-squat under the front bumper
SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :
-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock
-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks
-Bodywork entirely in polyester with roller cabinets on either side
-Roll-bar FLY design in stainless steel with lightbar
-Three florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4
-Stylized aluminum protective plates on the back of the polyester body
-All the equipment is galvanized
-Rear lighting with 4 LED lights embedded in the body
-Bodywork painted in a single colour to define RAL=
-VEHICLE CONFORMS TO EU REGULATION
MAXILIFT PF3000 4x4 ON ISUZU D-MAX SPACE CAB
00-PF3000-ISUDK
MAXILIFT PF3000 4x4 ON ISUZU D-MAX SPACE CAB
SPECIAL MODIFICATION ON THE VEHICLE
-Rear suspension converted to pneumatic with pump and reservoir
-Two pneumatic cushions with automatic levelling system
-Adaptation of a ballast anti-squat under the front bumper
SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :
-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock
-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks

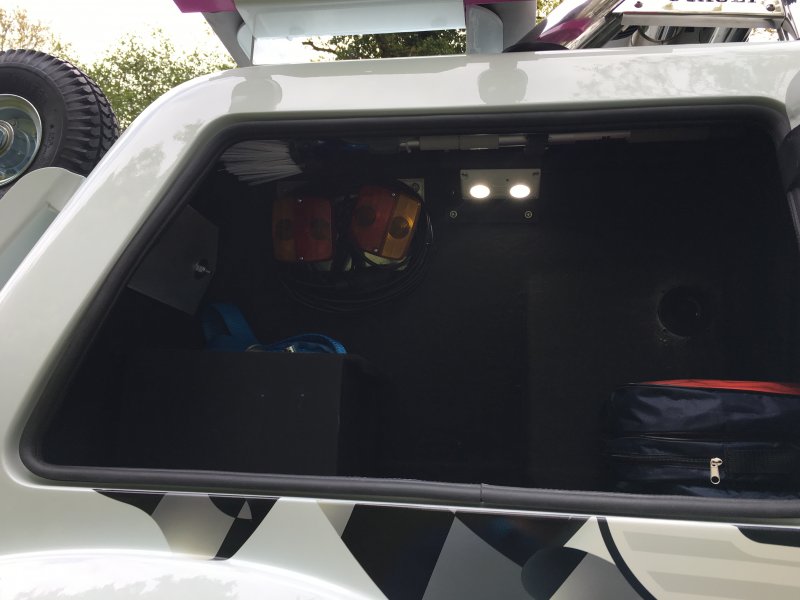

-Bodywork entirely in polyester with roller cabinets on either side
-Roll-bar FLY design in stainless steel with lightbar
-Three florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4
-All the equipment is galvanized
-Stylized aluminum protective plates on the back of the polyester body

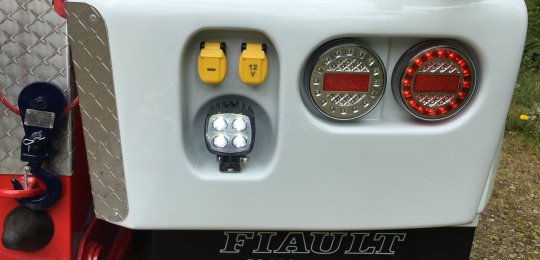

-Rear lighting with 4 LED lights embedded in the body
-Bodywork painted in a single colour to define RAL=
-VEHICLE CONFORMS TO EU REGULATION
MAXILIFT PF3000 ON NISSAN NAVARA NP300 KING CAB
00-PF3000-NAVAR
MAXILIFT PF3000 ON NISSAN NAVARA NP300 KING CAB
SPECIAL MODIFICATION ON THE VEHICLE :
-Rear suspension converted to pneumatic with pump
-Two pneumatic cushions by electric compressor in addition to the original spring blades
-Adaptation of a ballast anti-squat under the front bumper
SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :
-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock
-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks
-Bodywork entirely in polyester with roller cabinets on either side
-Roll-bar FLY design in stainless steel with lightbar
-Three florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4
-Stylized aluminum protective plates on the back of the polyester body
-All the equipment is galvanized
-Bodywork painted in a single colour to define
-Rear lighting with 4 LED lights embedded in the body
-VEHICLE CONFORMS TO EU REGULATION
MAXILIFT PF3000 ON TOYOTA GRJ 79
00-PF3000-TOY
MAXILIFT PF3000 4x4 ON TOYOTA HILUX XTRA CAB SPECIAL MODIFICATION ON THE VEHICLE
-Adaptation of an integral pneumatic rear suspension with an air compressor and an up and down valve fixed in the cabin to replace the original springs (UTAC approved suspension)
SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :
-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock
-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks
-Bodywork entirely in polyester with roller cabinets on either side
-Roll-bar FLY design in stainless steel for lightbar
-Two florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4
-Stylized aluminum protective plates on the back of the polyester body
-All the equipment is galvanized
-Rear lighting with 4 LED lights embedded in the body
-Bodywork painted in a single colour to define RAL=
PLAT'TRANS PF30 STEEL
00-PF30ACIER
PLAT'TRANS PF30 STEEL : SLIDING AND TILTING STEEL DECK CAR TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Hot galvanization of the subframe and the tilting part
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide
-Hydraulic controls in security cabinet
-Integrated wheel arches with mud guards
-Two rear stabilisers
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 5000 mm to 5500 mm
Exterior bed width = 2200 mm
Technical capacity = 3000 Kg
Payload = to calculate according to the chassis cab
PLAT'TRANS PF30 ALUMINIUM
00-PF30ALU
PLAT'TRANS PF30 ALU : SLIDING AND TILTING ALUMINIUM DECK CAR TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Hot galvanization of the subframe and the tilting part
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide
-Hydraulic controls in security cabinet
-Integrated wheel arches with mud guards
-Two rear stabilisers
-Deck in ALUMINIUM reinforced sheets, 50mm tubular sides and wedging holes over the entire length
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 5000 mm to 5500 mm
Exterior bed width = 2200 mm
Technical capacity = 3000 Kg
Payload = to calculate according to the chassis cab
PLAT'SOL CF35
00-PF35
PLAT'SOL CF35 : SLIDING DECK CAR TRANSPORTER WITH DOUBLE HYDRAULIC CYLINDERS
-Tilt and slide load platform with centre chain and low loading angle approximately 5°
-Deck slides on reinforced galvanised steel rails
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with anti return security locks for raising or lowering deck
-Sliding of the platform with two hydraulic cylinders
-Hydraulic distribution in secure illuminated cabinet installed on the rear right hand side (or left)
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers
-Deck in ALUMINIUM reinforced sheets, tubular sides , without holes
-Two adjustable wheel clamps on bed bolted on the platform
-Ten hitch hooks 3T welded on the floor of platform (5 per side)
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
Exterior bed length = 6000 mm (to define)
Exterior bed width = 2200 mm
Technical capacity = 3000 Kg
Loading angle = 5° (approx)
Payload = 2500 Kg (to confirm following the options)
PLAT'FIX PF 40 STEEL
00-PF40
PLAT'FIX PF 40 galvanised steel, fixed bed, car transporter
-Welded steel construction throughout
-Two sliding aluminium load ramps stored under the bed
-Rear bumper with built in signals
-Integrated shock proof wheel arches with mud guards
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 5000 mm to 6500 mm (to define)
Exterior bed width = 2400 mm
PLAT’TRANS PF 60 : SLIDING DECK CAR TRANSPORTER
00-PF60
PLAT’TRANS PF 60 : SLIDING DECK CAR TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Hot galvanizing of the subframe and the tilting part
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide
-Hydraulic controls in a stainless steel box on the right rear with lighting (or left to define)
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 5500 mm to 6500 mm
Exterior bed width = 2400 mm
Technical capacity = 6500 Kg
Payload = to calculate according to the chassis cab
PLAT'SOL PF65
00-PF65
PLAT'SOL PF65 : SLIDING DECK CAR TRANSPORTER WITH CENTRE CHAIN
-Tilt and slide load platform with centre chain and low loading angle approximately 5°
-Deck slides on reinforced galvanised steel rails
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two pistons with anti return security locks for raising or lowering deck
-Sliding of deck with chain via hydraulic actuator
-Hydraulic distribution in secure illuminated cabinet installed on the rear right hand side (or left)
-Integrated shock proof wheel arches with mud guards
-Two adjustable rear roller type stabilisers
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 5500 mm to 6500 mm
Exterior bed width = 2400 mm
Technical capacity = 6500 Kg
Loading angle = 5° (approx)
Payload = to calculate according to the chassis cab
PLAT'SOL TP100
00-PF65-TP100
PLAT'SOL TP100 : SLIDING DECK CAR TRANSPORTER WITH CENTRE CHAIN
-Tilt and slide load platform with centre chain and low loading angle approximately 5°
-Deck slides on reinforced galvanised steel rails
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two pistons with anti return security locks for raising or lowering deck
-Sliding of deck with chain via hydraulic actuator
-Hydraulic distribution in secure illuminated cabinet installed on the rear right hand side (or left)
-Integrated shock proof wheel arches with mud guards
-Two adjustable rear roller type stabilisers
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
Exterior bed length = 7500 mm to 8500 mm
Exterior bed width = 2550 mm
Technical capacity = 10000 Kg
Loading angle = 5° (approx)
Payload = to calculate according to the chassis cab
TOYOTA LAND CRUISER GRJ 79 SHORT CAB
00-TOYLAND
TOYOTA LAND CRUISER GRJ 79 SHORT CAB
-Engine : V6 petrol - 6 V cylinder - 4.0 L - electronic injection
-Standards : EURO 6 - 20hp tax - 335g/km
-Transmission : 5 speed manual - 4x4 engageable
-Power : 230 HP - Engine torque: 36.7 mkg at 5200 rpm
-Brakes : front discs and rear drums + anti-lock braking (ABS)
-Systems : ESP - EBD (brakeforce)
-Cabin (color to be defined) - two seats - Electric windows - Centralized locking
-Air conditioning - airbag - 90 liter tank
-Front axle with coil spring
-Original teardrop rear axle (rear air suspension modification)
-Tires : 7.50R16 X16 inch tires on original steel rims
-Wheelbase : 3180mm - Length: 5020mm - Width: 1850mm - Height: 1950mm (without roof cutout) - GVW= 3500 Kg
PLAT'FIX TP105
00-TP105
PLAT'FIX TP105 : TILT AND SLIDE PLANT TRANSPORTER WITH ARTICULATED REAR RAMP
-Hydraulic circuit with high pressure pump, filtered oil reservoir
-Hydraulic distribution in secure illuminated cabinet
-Two rear roller type stabilisers at the end of the deck
-Integrated bumper with signals and additional protection
-Integrated polyurethane shock proof wheel arches with mud guards
-Undercoat and standard colour paint
-Deck finished in a single standard RAL colour =
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
-Exterior bed length : 8500 mm à 9500 mm (to define)
-Exterior bed width : 2550 mm
-Technical capacity: 14000 Kg
-Payload : to calculate according to chassis and options
PLAT’TRANS TP 120
00-TP120
PLAT’TRANS TP 120 : TILT AND SLIDE PLANT TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift (chassis interior mounting)
-Two hydraulic cylinders for the sliding bed
-Hydraulic controls in a stainless steel box on the right rear with lighting (or left to define)
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers
-Integrated bumper with signals and additional protection
-Undercoat and standard colour paint
-Deck finished in a single standard RAL colour =
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
-Exterior bed length = 7000 mm à 9000 mm (to define)
-Exterior bed width = 2550 mm
-Technical capacity = 12000 Kg
-Payload = to calculate according to chassis and options
PLAT'FIX TP125
00-TP125
PLAT'FIX TP125 : PLANT TRANSPORTER WITH ARTICULATED REAR RAMPS
-Hydraulic circuit with high pressure pump, filtered oil reservoir
-Hydraulic distribution in secure illuminated cabinet
-Fixed and inclined rear overhang with steel sheet coating thickness 4 mm perforated and anti-slip
-Integral full width loading ramp in 2 articulated parts with 2 hydraulic cylinders for vertical storage and deployment on the ground in loading position by cables and pulleys
-Integrated bumper with signals and additional protection
-Integrated polyurethane shock proof wheel arches with mud guards
-Undercoat and standard colour paint
-Deck finished in a single standard RAL colour =
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
-Exterior bed length : 8500 mm à 9500 mm (to define)
-Exterior bed width : 2550 mm
-Technical capacity: 14000 Kg
-Payload : to calculate according to chassis and options
PLAT’TRANS TP 150
00-TP150
PLAT’TRANS TP 150 : TILT AND SLIDE PLANT TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift (chassis exterior mounting)
-Two hydraulic cylinders for the sliding bed
-Hydraulic controls in a stainless steel box on the right rear with lighting (or left to define)
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers
-Integrated bumper with signals and additional protection
-Undercoat and standard colour paint
-Deck finished in a single standard RAL colour =
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
-Exterior bed length = 7000 mm à 9000 mm (to define)
-Exterior bed width = 2550 mm
-Technical capacity = 15000 Kg
-Payload = to calculate according to chassis and options
PLAT'FIX TP70
00-TP70
PLAT'FIX TP70 : TILT AND SLIDE PLANT TRANSPORTER WITH ARTICULATED REAR RAMP
-Hydraulic circuit with high pressure pump, filtered reservoir with indication of level
-Multi-function hydraulic distribution housed in a lit security cabinet
-Hydraulic distribution in secure illuminated cabinet installed on the rear right hand side
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers
-Integrated bumper with signals and additional protection
-Undercoat and standard colour paint
-Deck finished in a single standard RAL colour =
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
Exterior bed length : 5500 mm à 7000 mm (to define)
Exterior bed width : 2400 mm
PLAT'TRANS TP80
00-TP80
PLAT’TRANS TP 80 : TILT AND SLIDE PLANT TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide
-Hydraulic controls in a stainless steel box on the right rear with lighting (or left to define)
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers
-Integrated bumper with signals and additional protection
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
-Exterior bed length = 7000 mm à 8500 mm (to define)
-Exterior bed width = 2550 mm
-Technical capacity = 8000 Kg
-Payload = to calculate according to chassis and options
