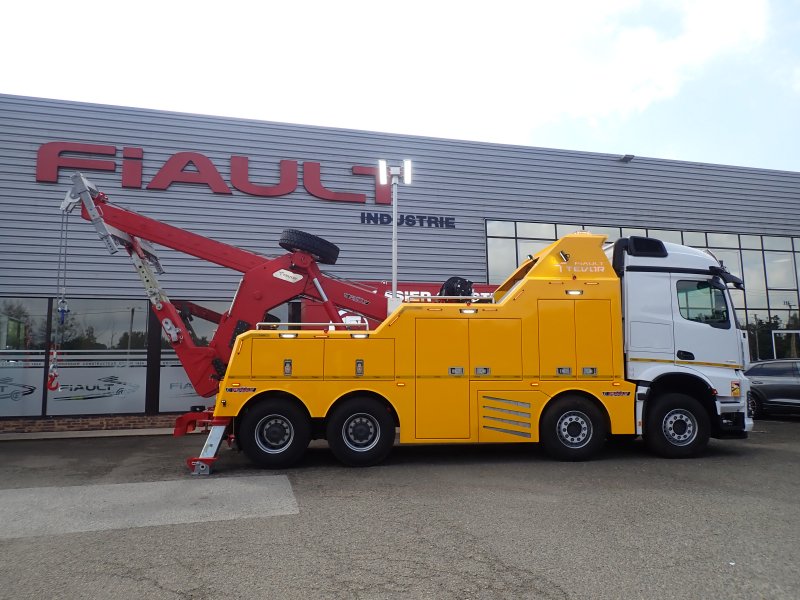

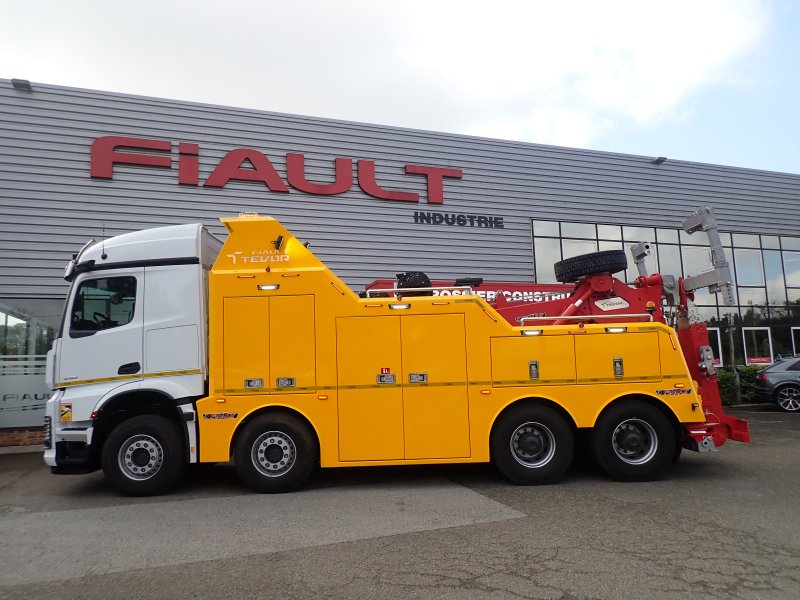

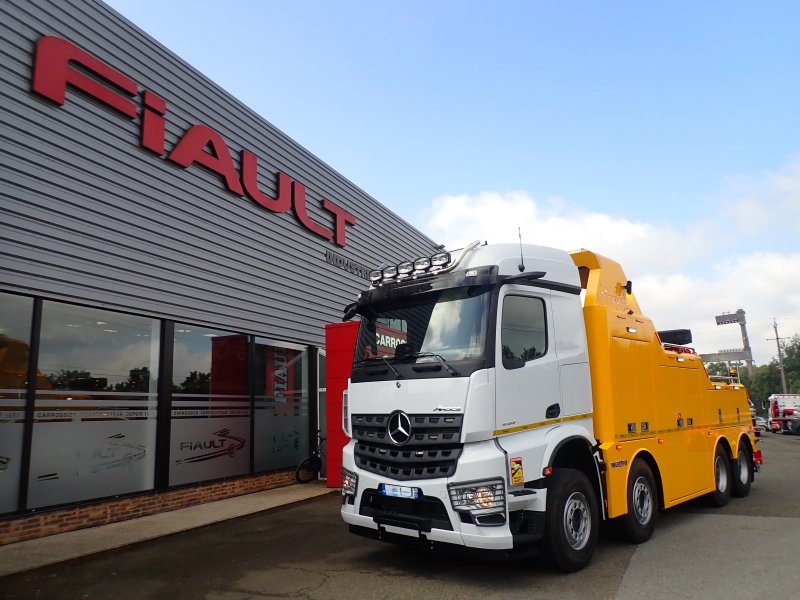

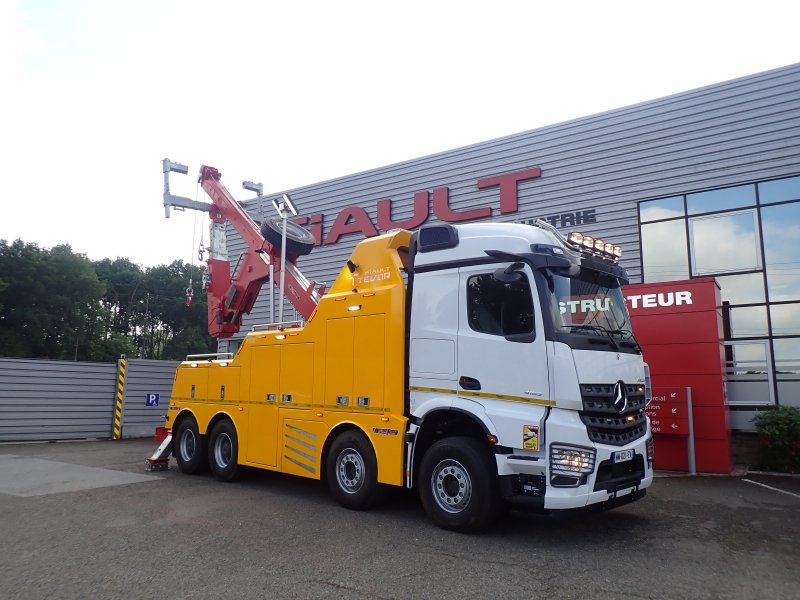

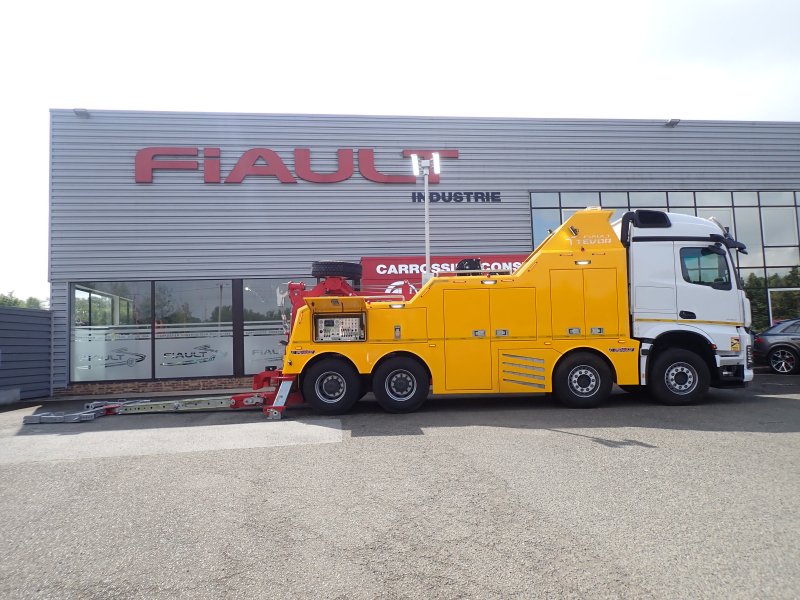

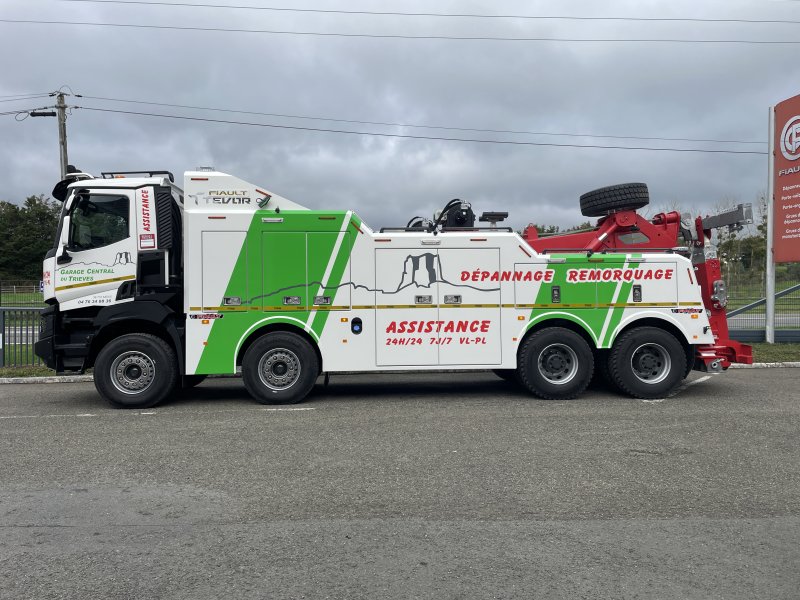

HYPERLIFT HDRV40 (TEVOR BRAND EQUIPMENT DISTRIBUTED BY FIAULT)

BASIC EQUIPMENT FEATURES

- Specially designed towing arm with boom for road rescue, towing of working and damaged trucks, tractors, multi-axle vehicles, buses, semi-trailers, trailers, etc. Fully hydraulic system.
- Galvanised intermediate frame with front ballast location
- Main arm with 40° lifting angle
- Panels for main and auxiliary winch
- 2 x 15000 kg shackles, left and right at rear of arm
- Spare wheel mounting on top of arm
- Towing jib: position in relation to horizontal axis -5° / + 10
- Lifting capacity in entry position 20,000 kg, lifting capacity in extended position 10,000 kg, extension 3,800 mm
- Axle reach of towed vehicle behind wheels 4400 mm. Adjustable multifunctional crossbar

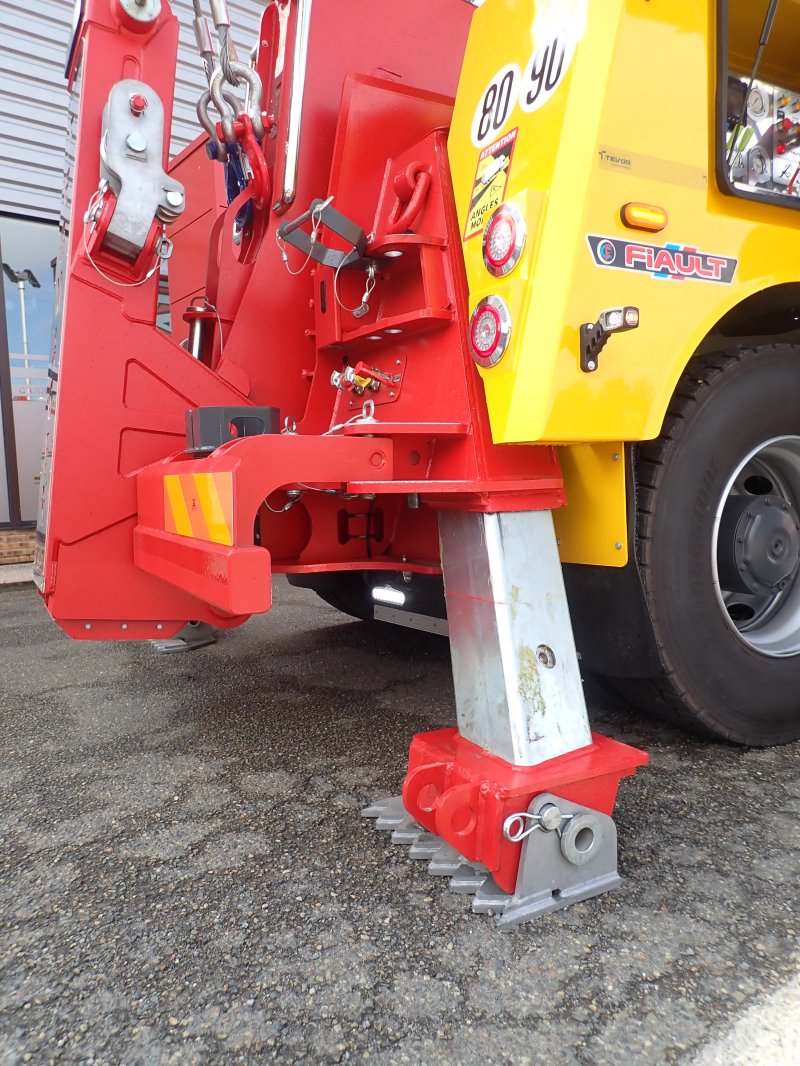

- Rear hydraulic support legs: independently controlled - maximum width 3000 mm
- Rotating supports for working on asphalt and soil
- Hydraulically extendable boom: extension capacity 0 to 3000 mm, maximum lift capacity 20,000 kg to 9,000 kg
- Fuel tank can be moved behind the cab
- Air tank relocation behind cab
- Moving the batteries behind the cab
- Moving the Ad Blue

- An anti-jamming ballast behind the cab on the front frame (concerns the 100 kg weight)
- A COME UP Bison 50 hydraulic winch installed on the towing arm, with a towing capacity of 22.6T
- A second COME UP Bison 50 hydraulic winch installed on the towing arm, with a towing capacity of 22.6T
- Hydraulic system: hydraulic oil tank - hydraulic oil - oil filter - shut-off valve - pressure gauge(s) - hydraulic component safety valves
- 2-jet hydraulic pump
- Hydraulic distributor on right
- Connections to trailer braking system power supply transferred from chassis
- Service quick-release coupling with 20 m cable with reel on the left in the bodywork
- Electrical socket for trailer coupling moved to rear
- 12 and 24V starter sockets with cables - right-hand mounting
- 12 and 24V starter sockets with cables - left-hand installation
- Reversing camera at rear of vehicle + LCD screen in cab
- Camera via winches + LCD screen in control box
- NOT-AUS safety valve control

- 1-function wireless control

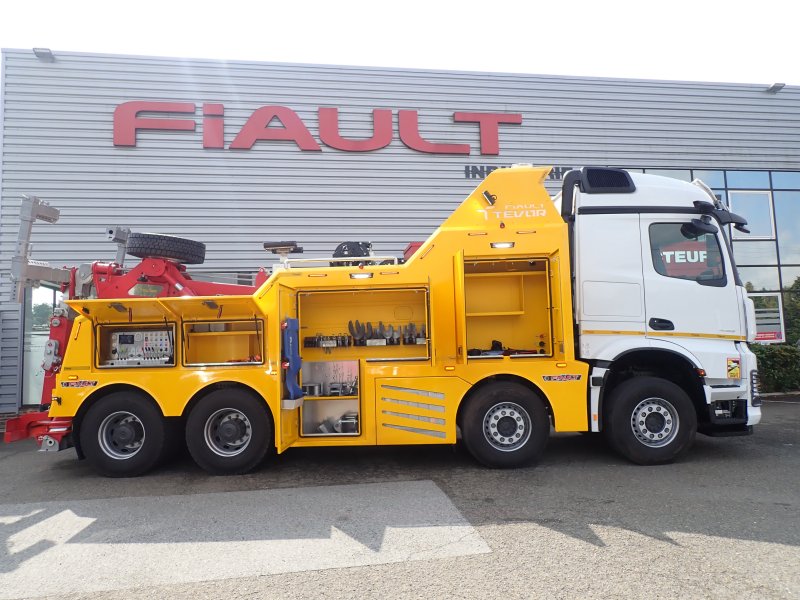

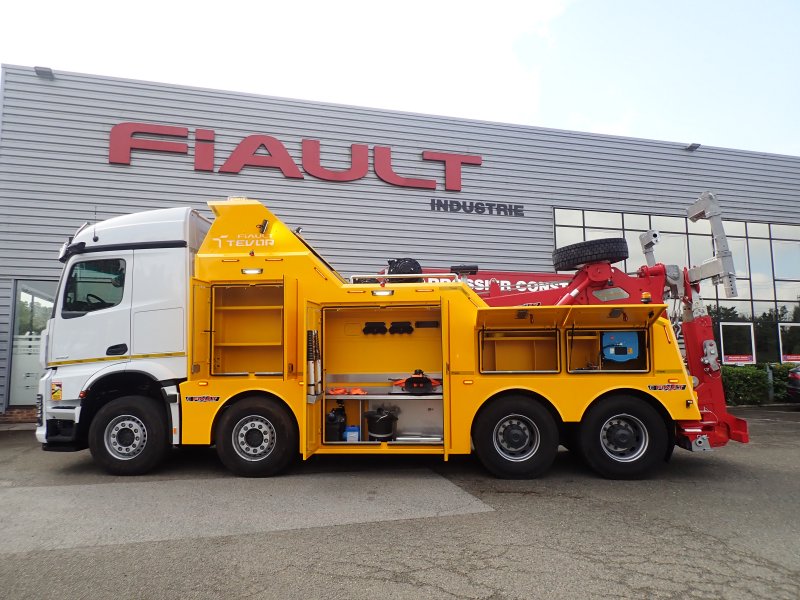

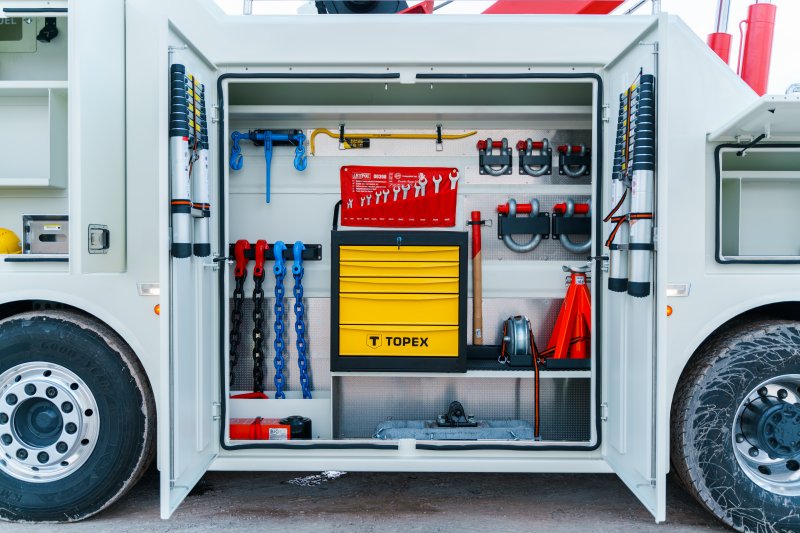

- Aluminium body with tool and accessory holders, rubber floor mats in the luggage compartments, interior walls protected by protective mastic, adjustable auxiliary ladder, auxiliary ladder inside the layout
- Aluminium body with doors and locks
- Auxiliary / protective barrier - stainless steel
- Perforated aluminium platform mounted on top of cabinets
- Stainless steel support in large storage box behind driver's cab for forks, hooks, open box
- All body edges finished with stainless steel profile
- Highway code compliant lighting package with side marker lights - rear marker lights - vehicle rear lights - upper part of fittings
- LED interior lighting in the storage compartments, with switch in the control console
- LED exterior lighting around the body
- GAMET DE LUX LED light strip
- Mounting of the light strip on the upper part of the bodywork
- ORANGE BLTZ warning light, 2 pieces - front mounting
- ORANGE BLTZ warning light, 2 pieces - rear mounting
- ORANGE BLTZ warning light, 2-piece - mounted on the edge of the last storage compartment doors
- Separate light switches
- Driver's cab-mounted wiring harness (tube and + 5 work lights)

- L-type towing basket
- Towing accessories :
   Set of towing forks (5 pairs of forks)
   Crossbar for towing semi-trailers
   Towing bar (diameter 40mm/50mm, L-2500, towing force 32T, with support in intermediate frame)
   Bolts for towing trailers, 3 pieces, diameter 40mm, 50mm, 55mm with trailer coupling
   2-piece fork supports
   2 pieces of fork risers
   Crossbar for trailer coupling (Rockinger)

- Pneumatic connection mounted in storage box next to 12V and 24V starter system (right-hand side)
- LED work lights 4x body, 4x Flyer
- LED work lights x7
- Additional work lights left and right x8
- RED ZONE Lamps, lighting for a safe working area
- Support for towing vehicle cardan shaft mounted on lifting bracket
- Support for chains mounted in storage boxes
- Radio-controlled pneumatic mast
- Body painted in standard RAL solid colour (please specify) :
- Main arm and towing arm painted in a standard RAL solid colour (please specify) :
- Paintwork on the rear landing gear in a standard solid RAL colour.

- VEHICLE COMPLIANT WITH THE HIGHWAY CODE
- RECEPTION AT THE RTI TO OBTAIN THE WHITE CARD
