00-HILUX

[ Open for more informations ] [ Fold up ]

TOYOTA HILUX NG 2.4D 4X4 SPACE CAB XTRA LEGEND MODEL EURO 6
-Engine : 4 cylinders 2.4 L Turbo
-Gearbox : manual transmission 6 speed with shift indicator
-Power : 150 CH - engine couple : 400 N/m from 1600 to 2000 tr/mn
-Rear differential lock by push button
-Brakes : front discs and rear drums + anti-lock braking (ABS)
-Systems : Hill Start Assist (HAC) - Sway Control (TSC) - Traction Control (TRC) - Stability Control (VSC)
-White cabin - 2 seats - Power windows - Steering angle: 12,8m / 13,4m
-CD Radio - MP3 - Bluetooth - USB - 6 Speakers - steering wheel audio control
-Manual air conditioning - 7 driver & passengers airbags
-Tires 265 / 65R17 X17 inches on original aluminum rims
-Wheelbase : 3085mm - Length : 4900mm - Width : 1900mm - Height : 1850mm

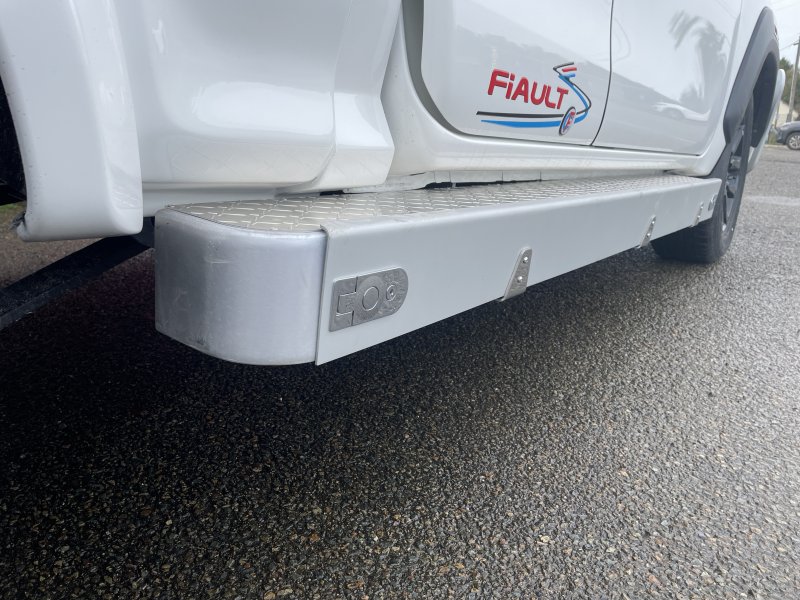

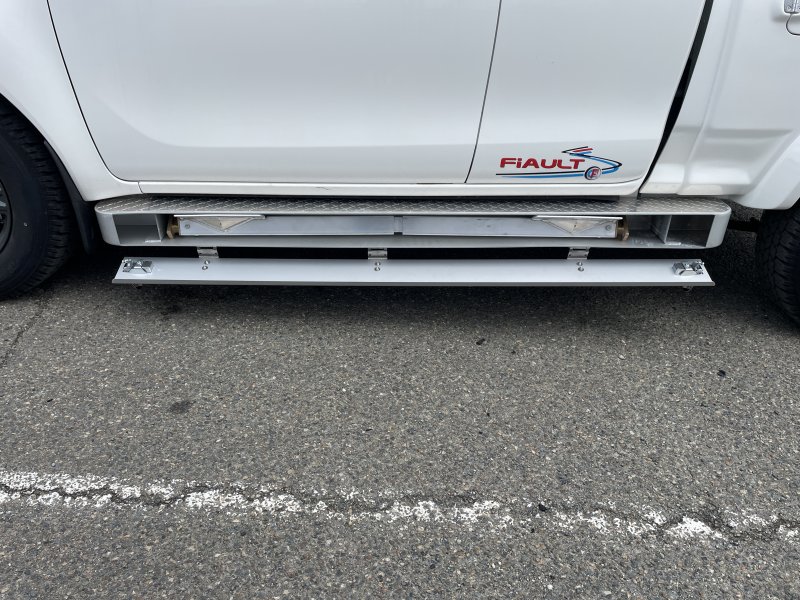

-Original aluminum footboard

00-HILUXBVA

[ Open for more informations ] [ Fold up ]

TOYOTA HILUX NG 2.8D 4X4 SPACE CAB XTRA MODEL EURO 6
-Engine : 4 cylinders 2.8 L Turbo
-Gearbox : automatic transmission 6 speed
-Power : 204 CH - engine couple : 500 N/m from 1600 to 2800 tr/mn
-Rear differential lock by push button
-Brakes : front discs and rear drums + anti-lock braking (ABS)
-Systems : Hill Start Assist (HAC) - Sway Control (TSC) - Traction Control (TRC) - Stability Control (VSC)
-White cabin - 2 seats - Power windows - Steering angle: 12,8m / 13,4m
-Radio - MP3 - Bluetooth - USB - 6 Speakers - steering wheel audio control
-Manual air conditioning - 7 driver & passengers airbags
-Tires 265 / 65R17 X17 inches on original aluminum rims
-Wheelbase : 3085mm - Length : 4900mm - Width : 1900mm - Height : 1850mm
-Original aluminum footboard

00-PF3000-HILUX

[ Open for more informations ] [ Fold up ]

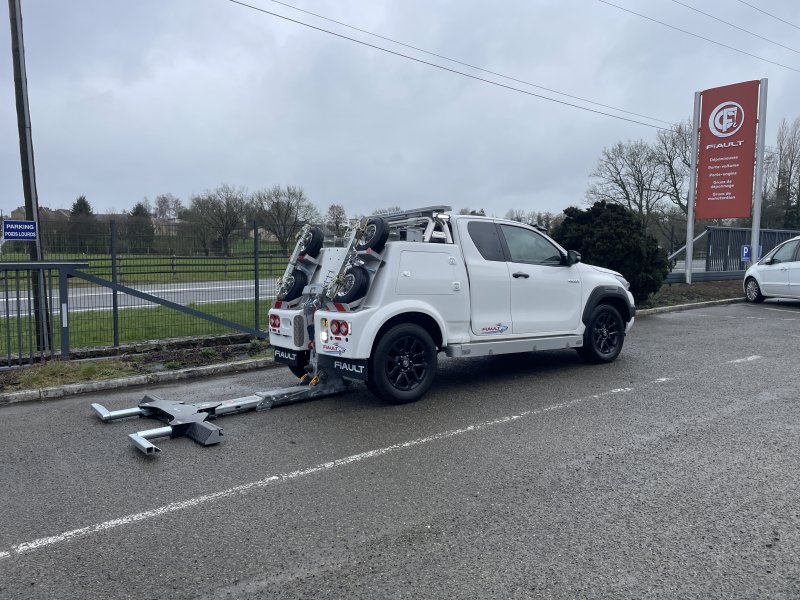

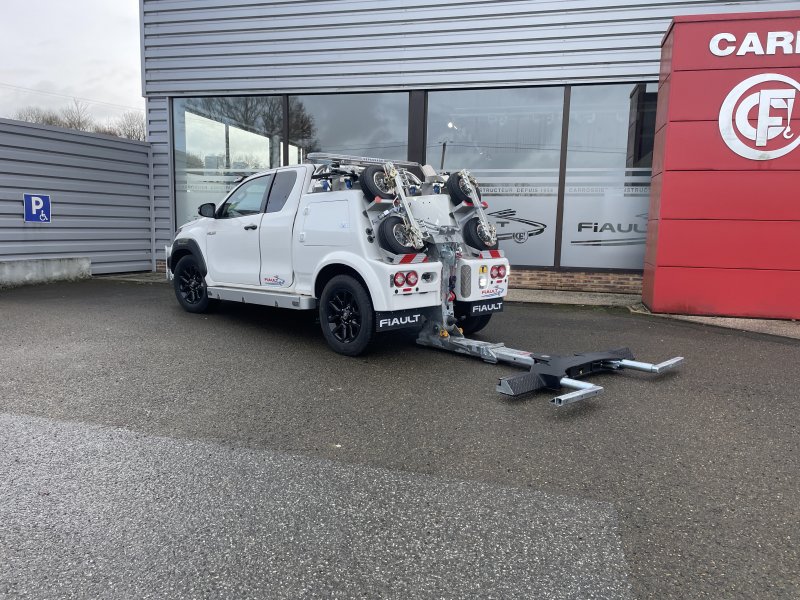

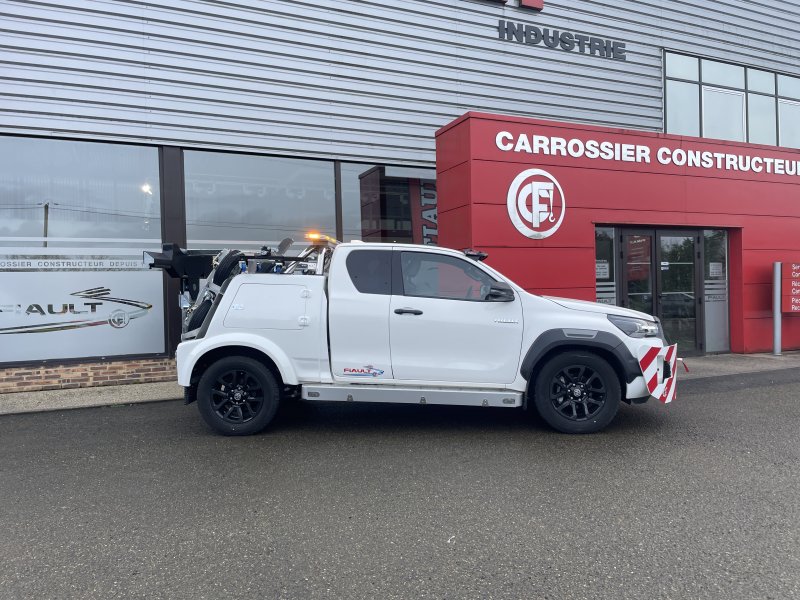

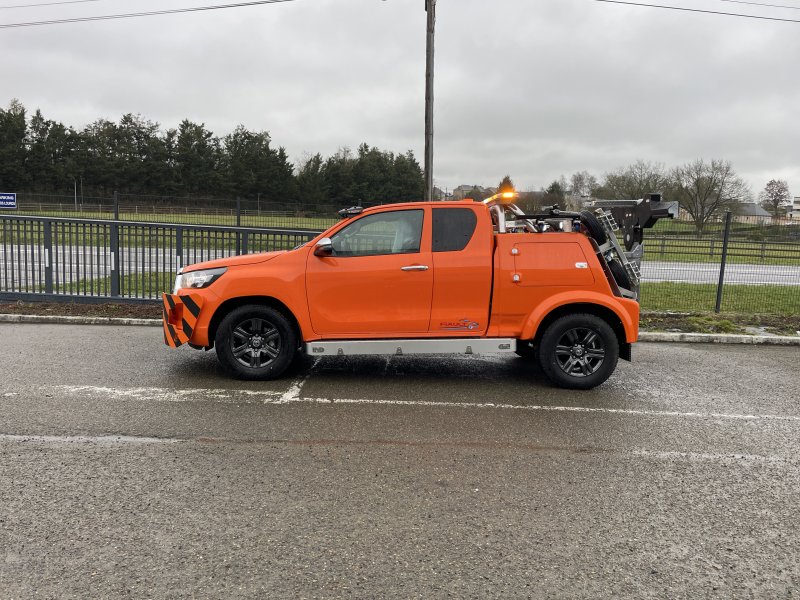

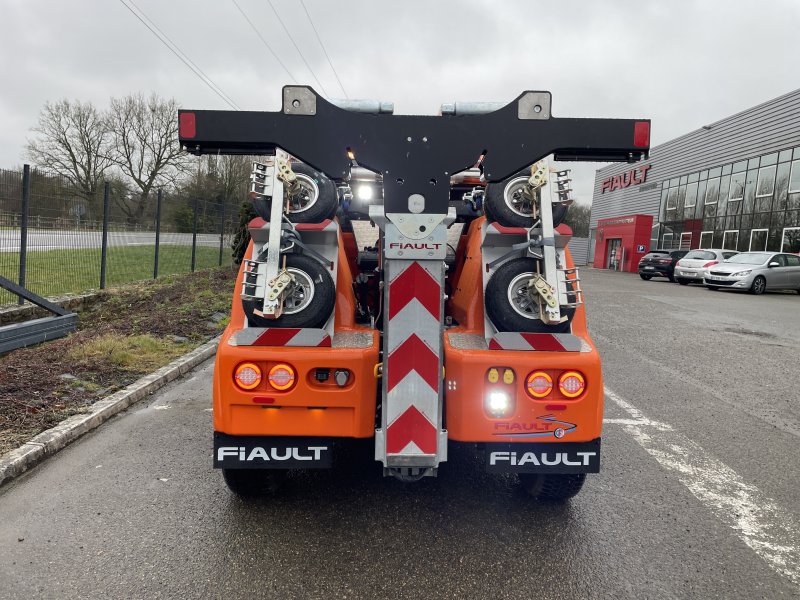

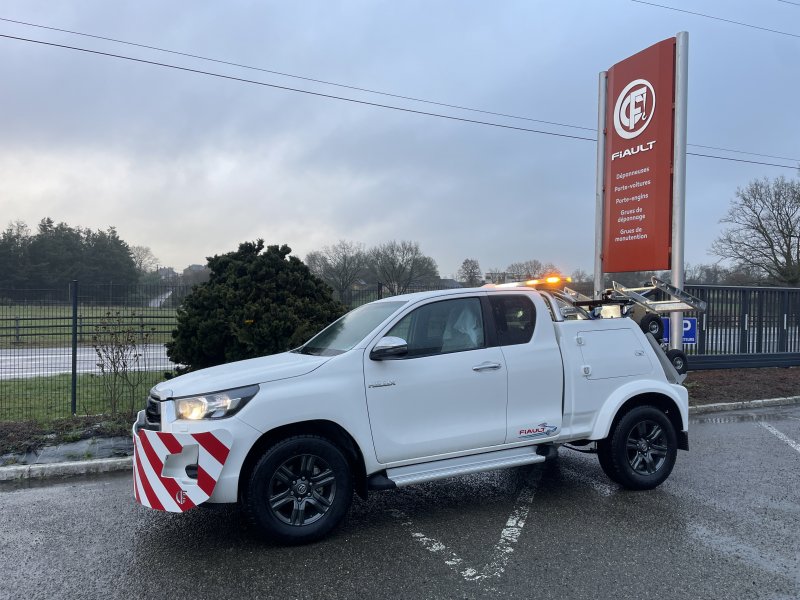

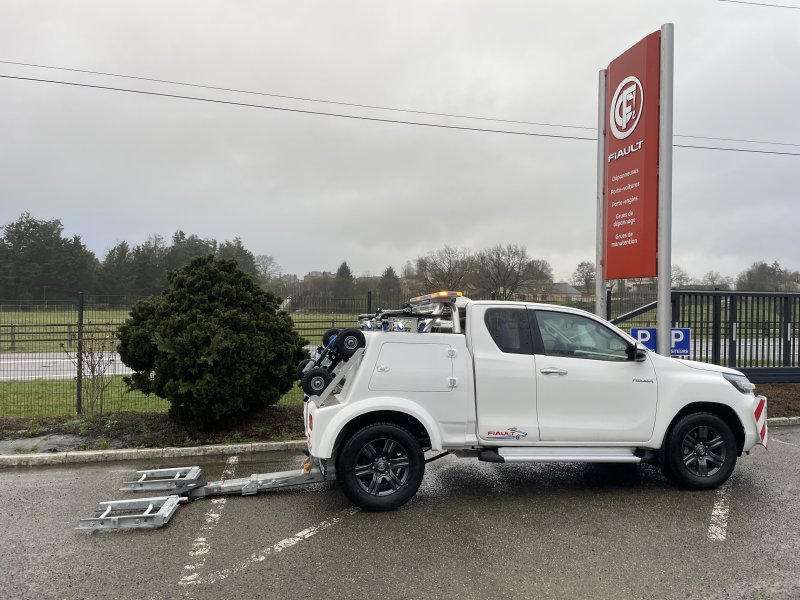

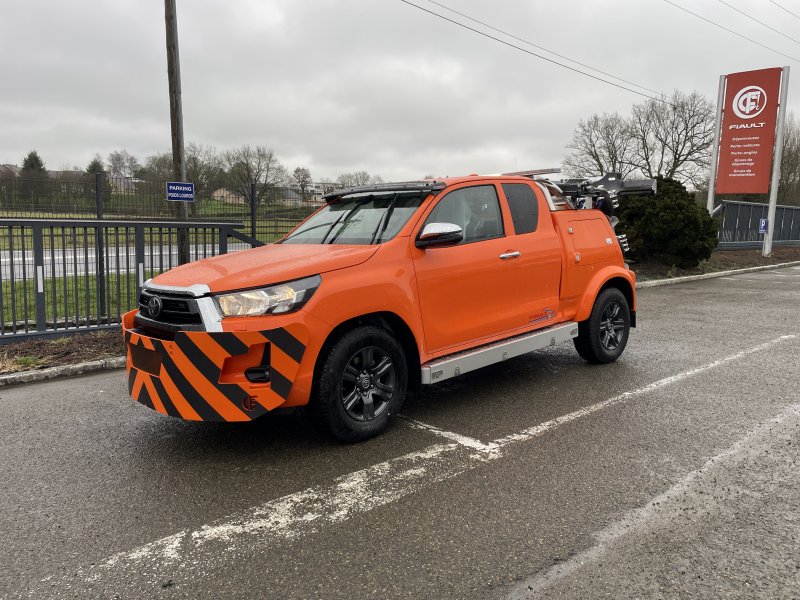

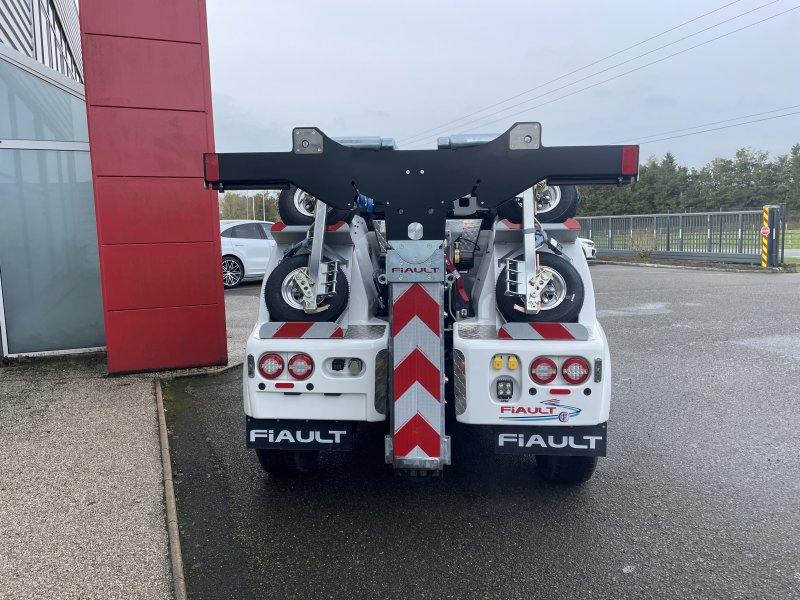

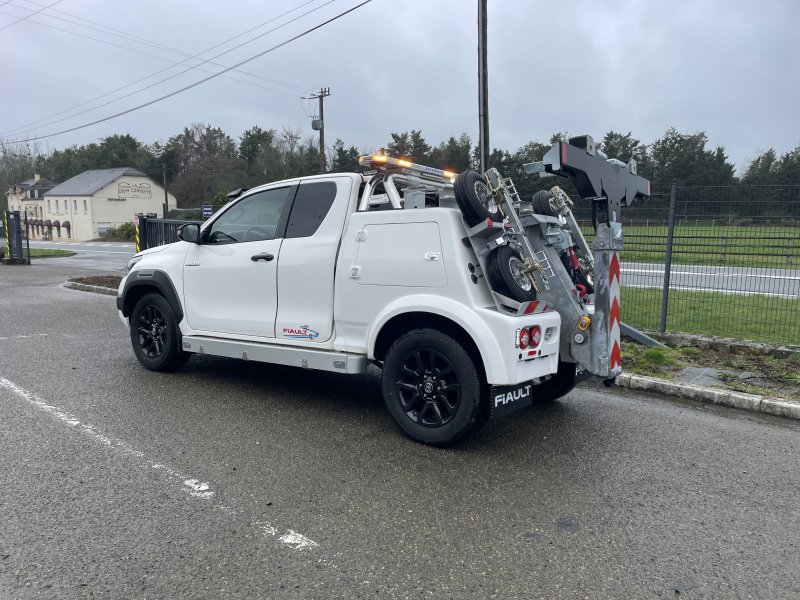

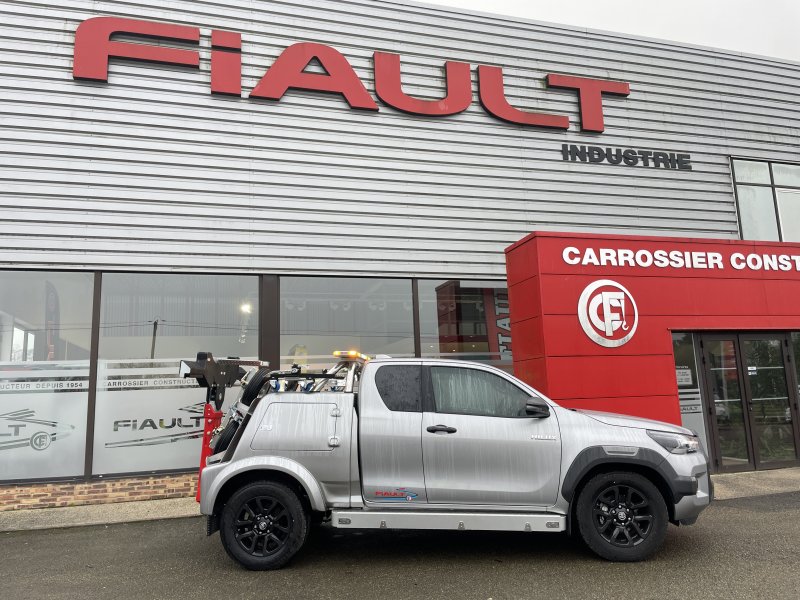

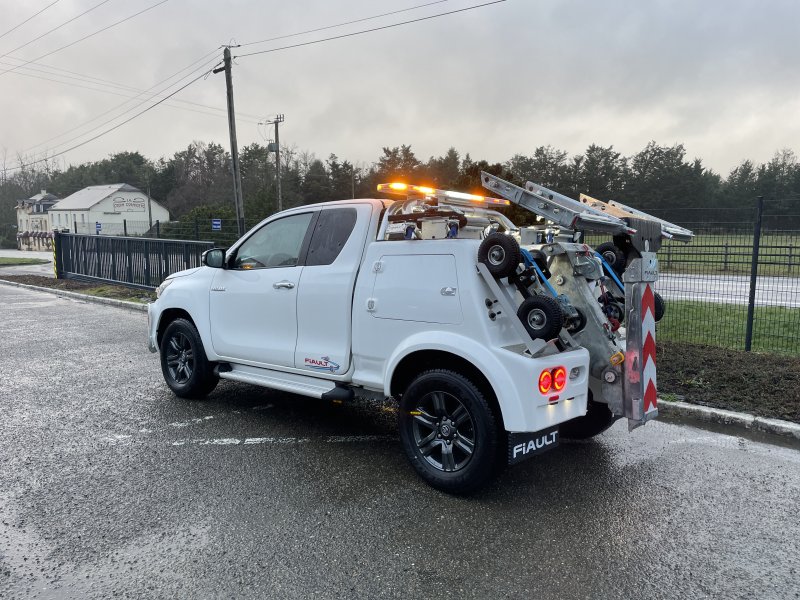

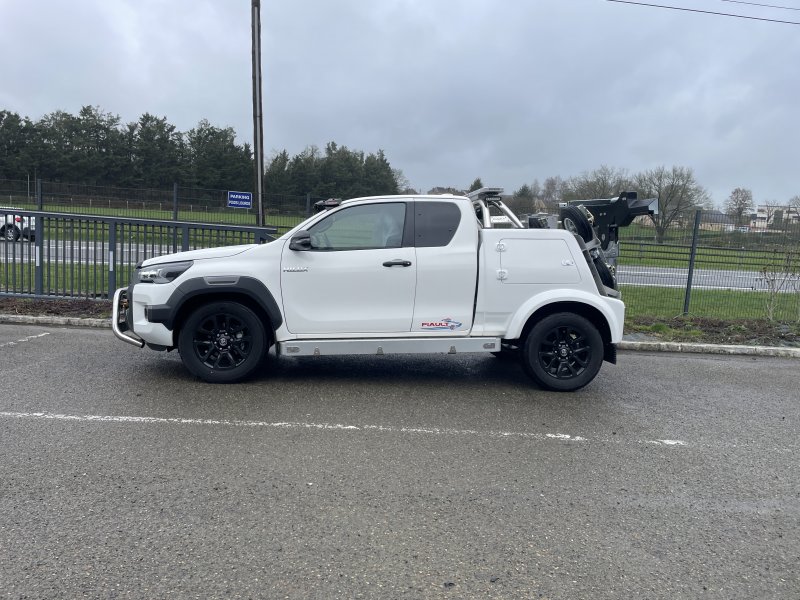

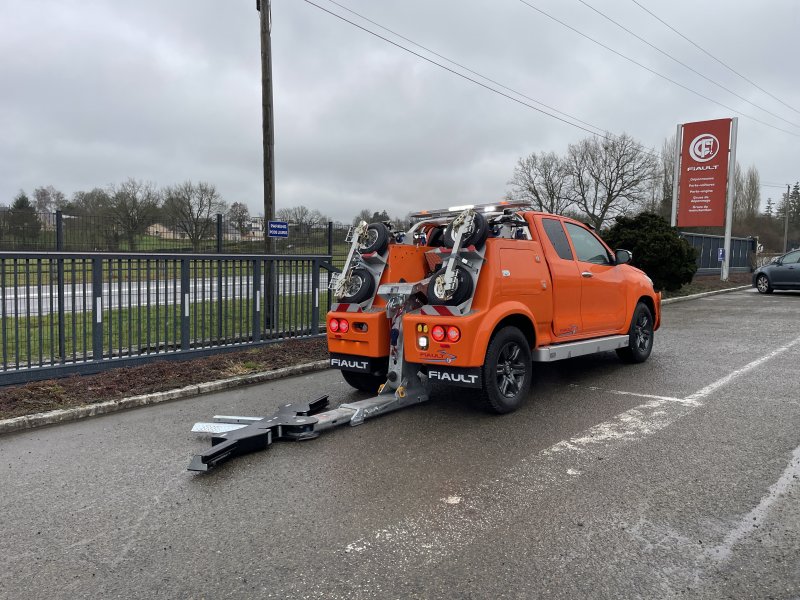

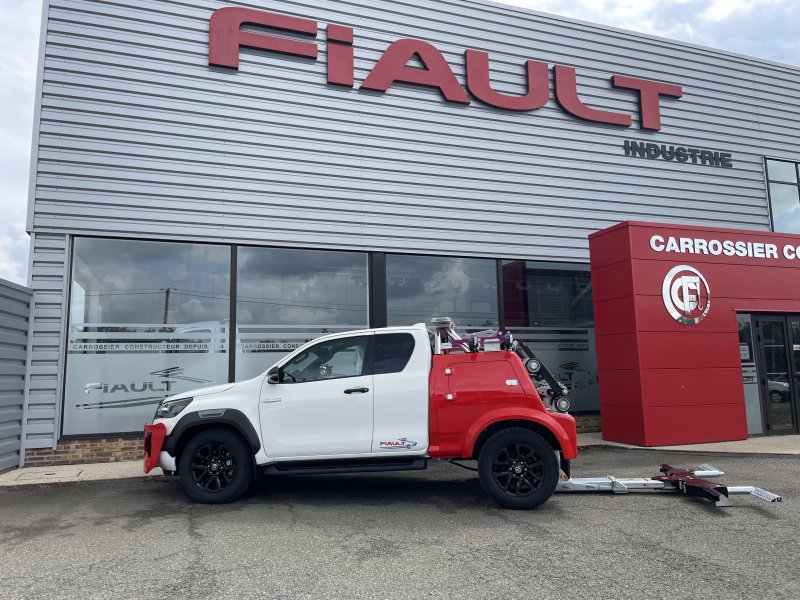

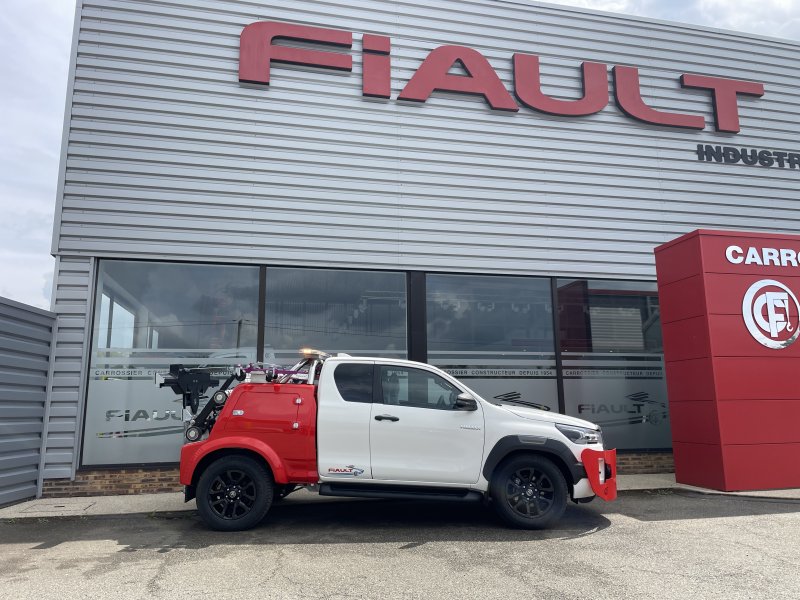

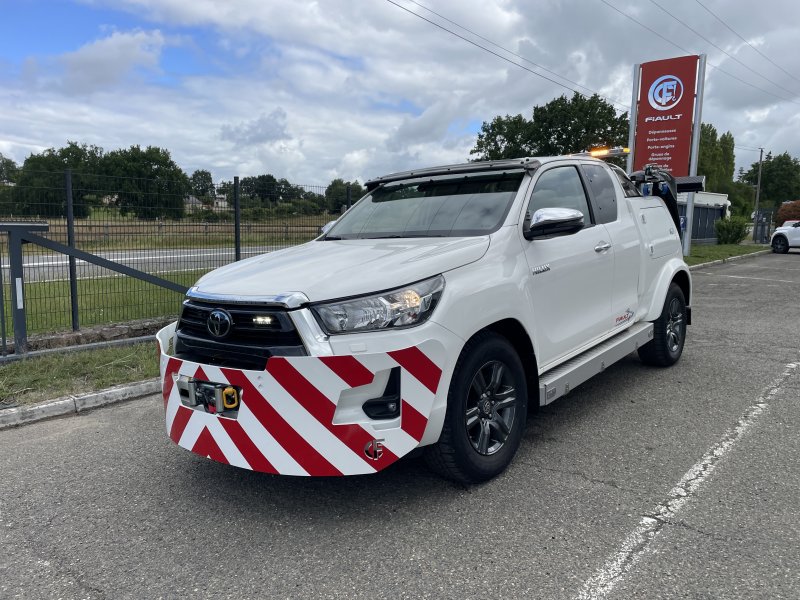

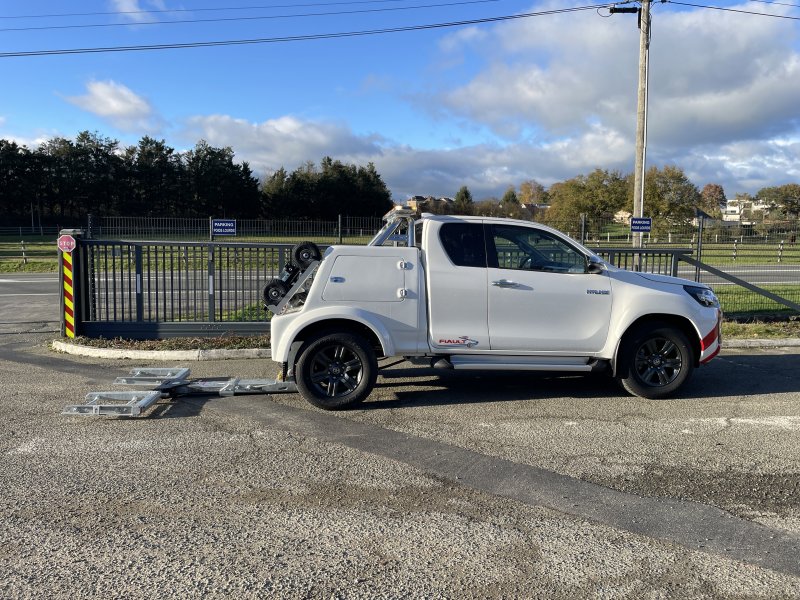

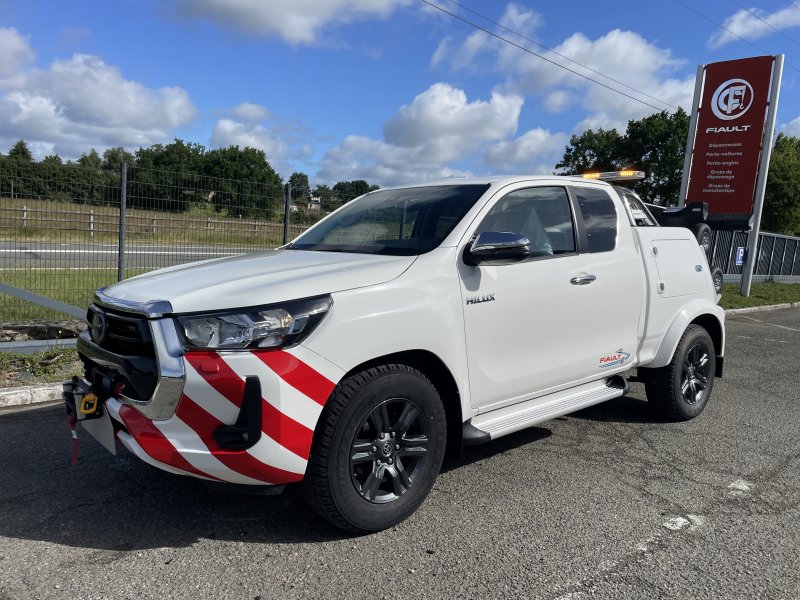

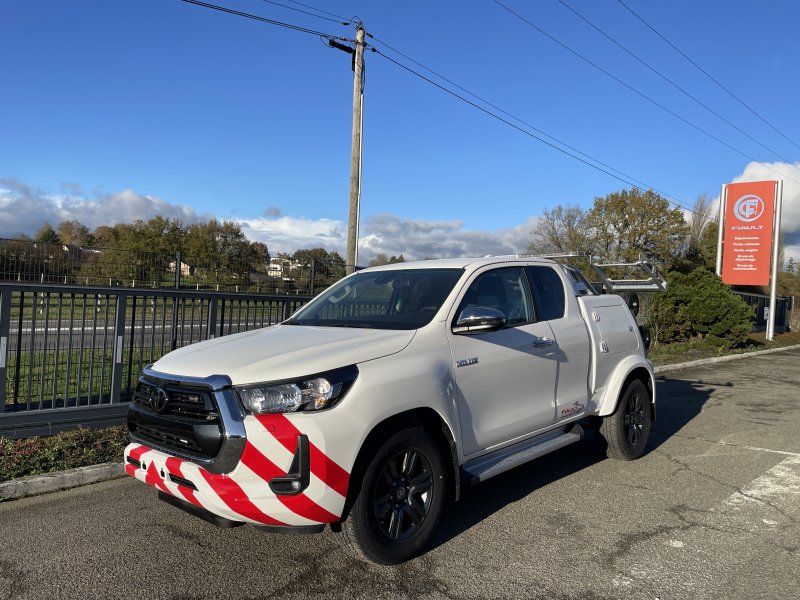

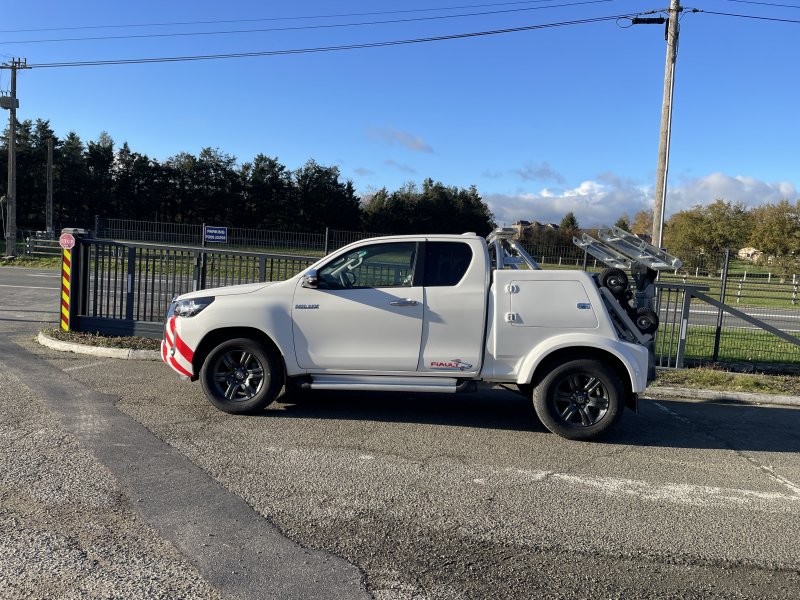

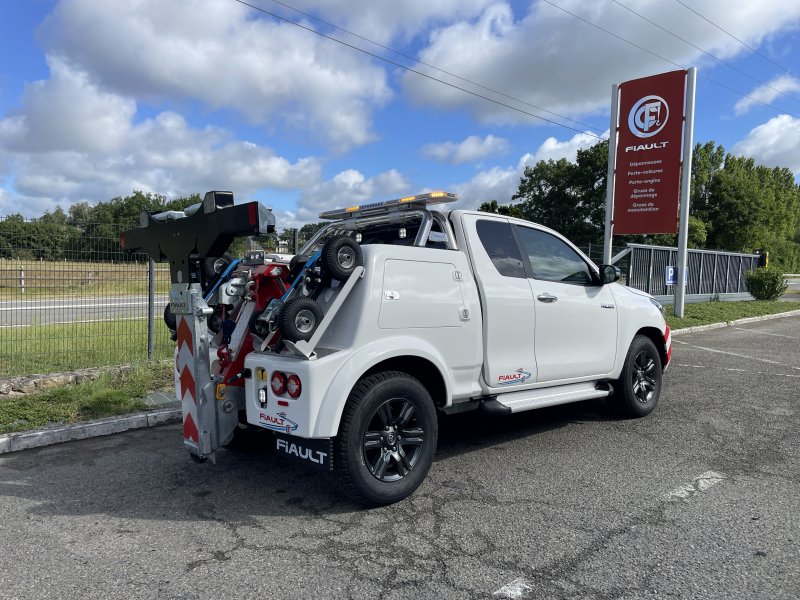

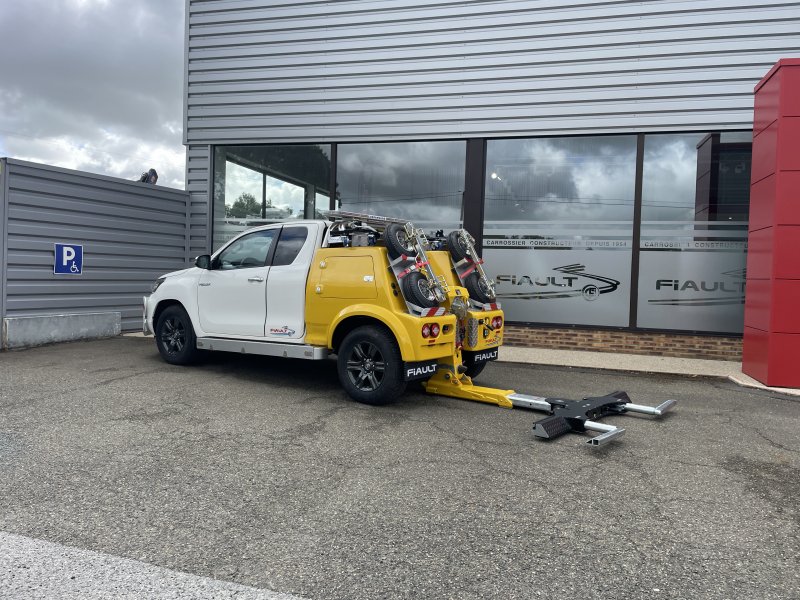

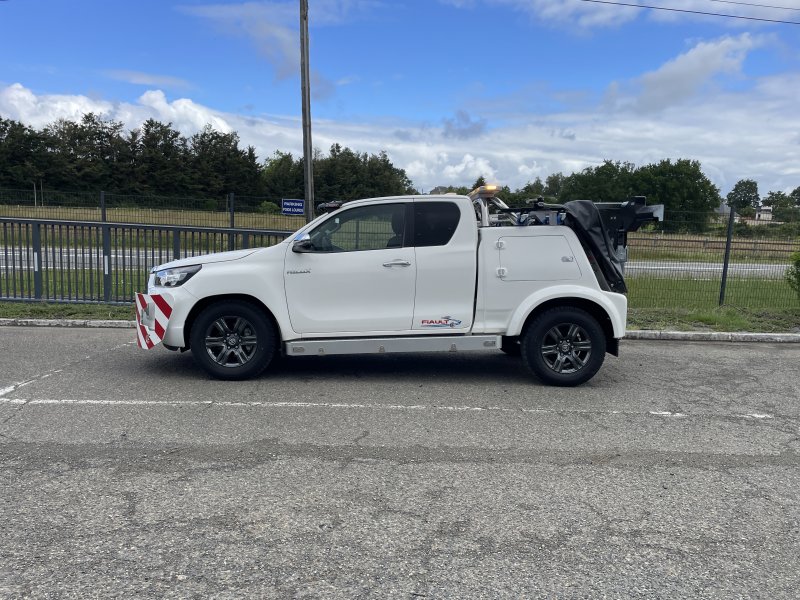

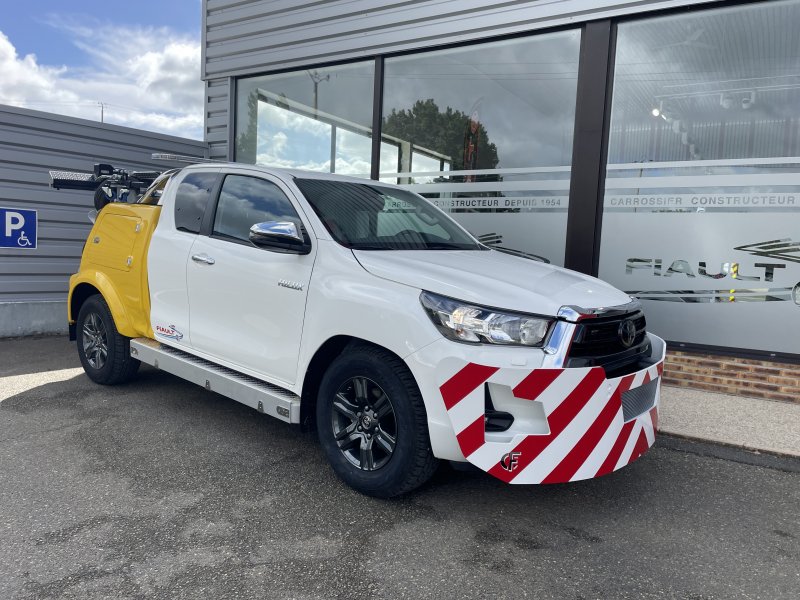

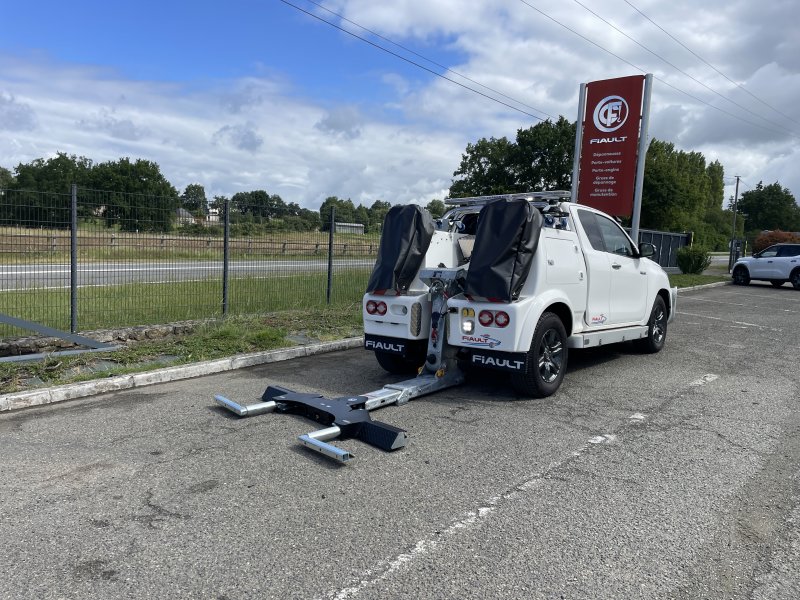

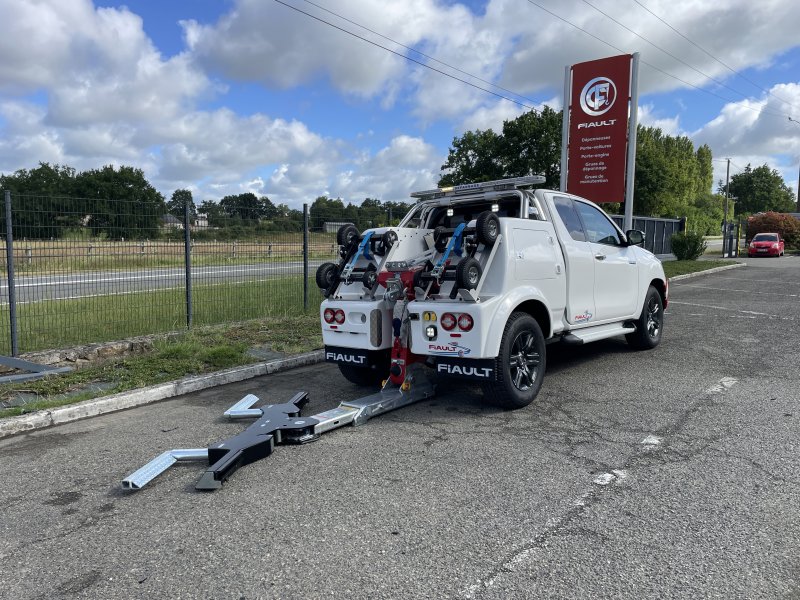

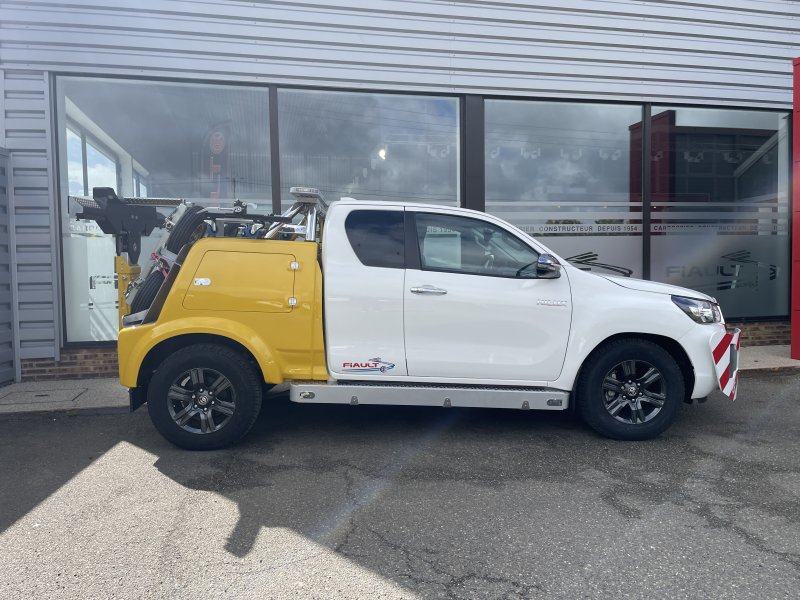

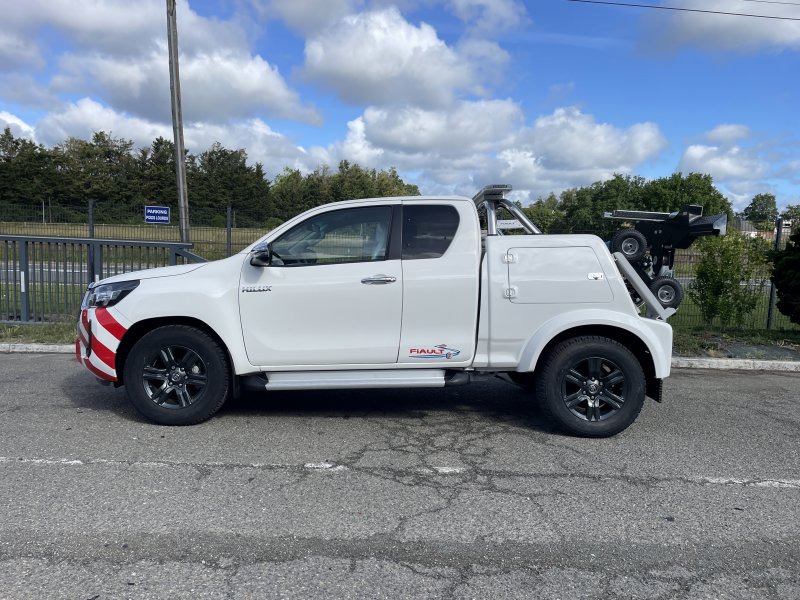

MAXILIFT PF3000 4x4 ON TOYOTA HILUX SPACE CAB

SPECIAL MODIFICATION ON THE VEHICLE
-Rear suspension converted to pneumatic with pump and reservoir
-Two pneumatic cushions with automatic levelling system
-Adaptation of a ballast anti-squat under the front bumper

SPECIAL UNDERGROUND PARKING BREAKDOWN TRUCK WITH SPEC LIFT AND BREAKDOWN STYLE BODYWORK :

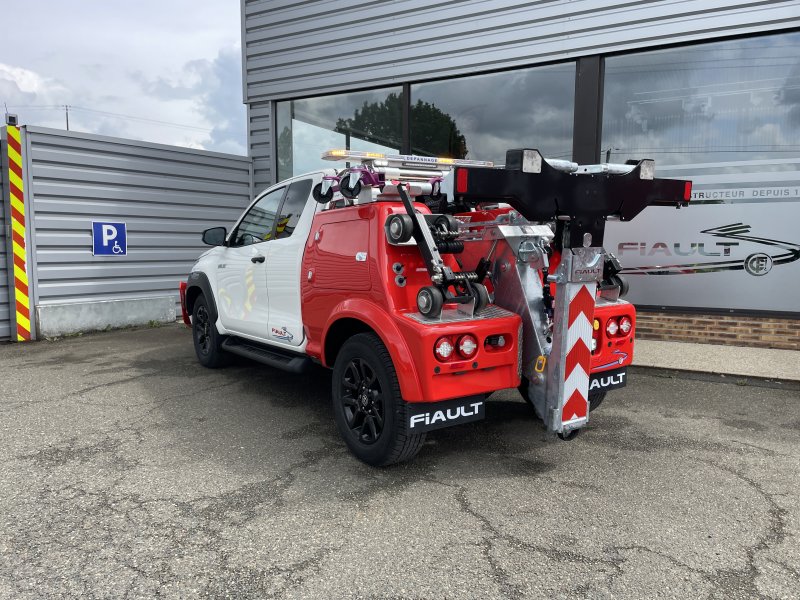

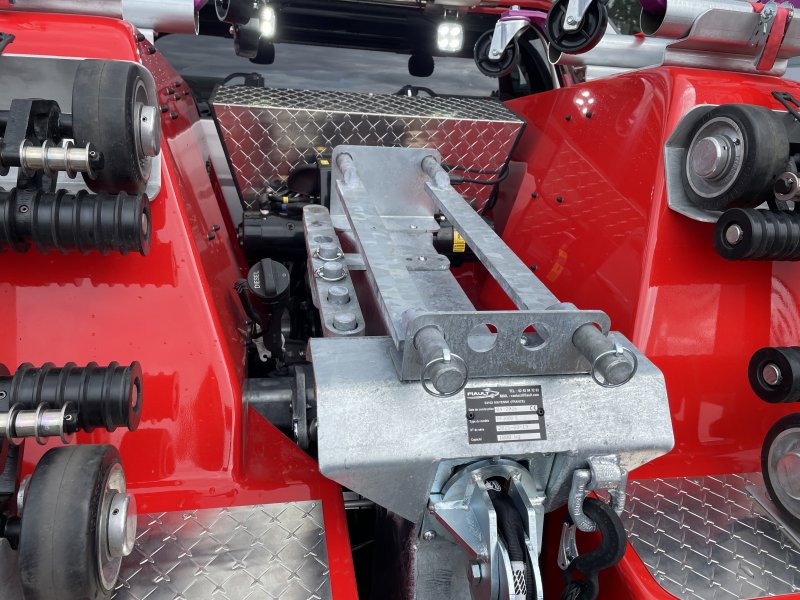

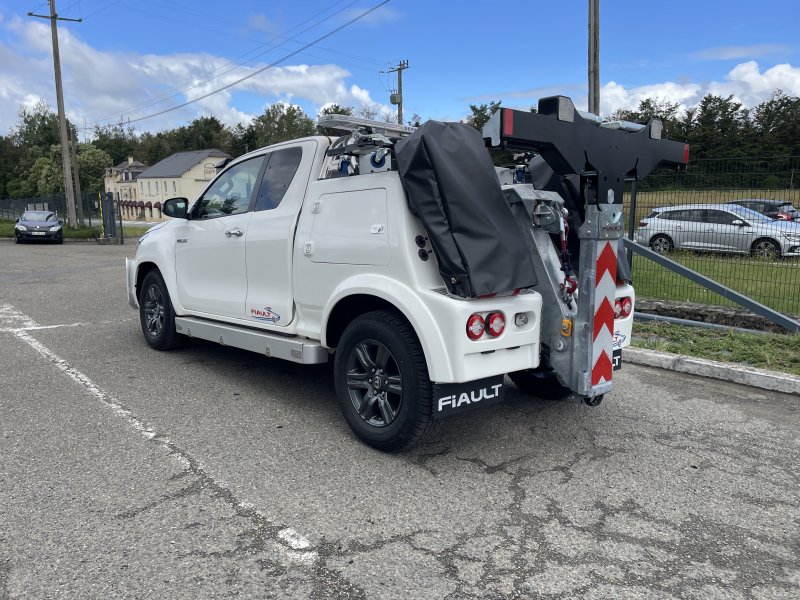

-Maxilift PF3000, Z type spec lift with dual articulation and fold flat
-Two pistons to control lift with security interlock
-A piston to control arm extension with security interlock
-A piston to control arm angle with security interlock

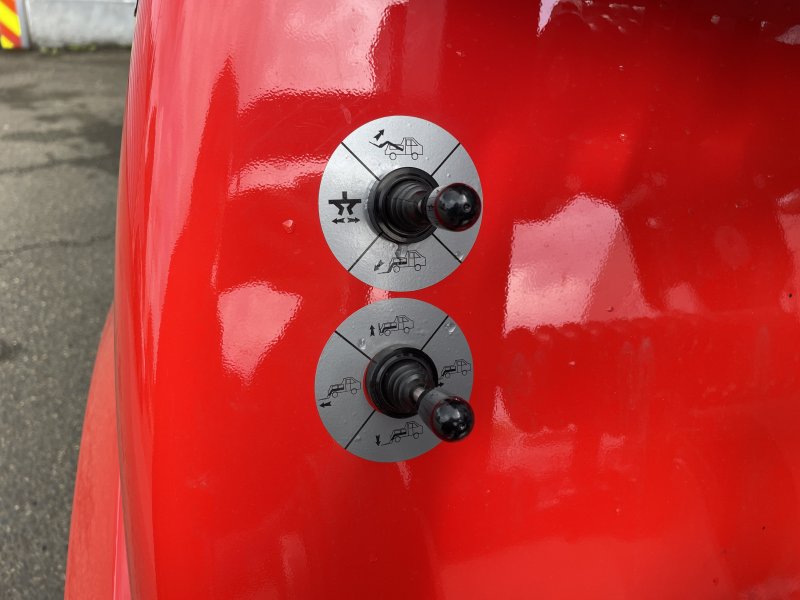

-Electric hydraulic pump with controls in the cab and on the body
-A four ton electric winch with 20m of cable
-A multi function radio control for the winch and for full control of the lift (elevation, extension and angle)
-Spec lift with articulation on horizontal axis and adjustable forks
-Bodywork entirely in polyester with roller cabinets on either side

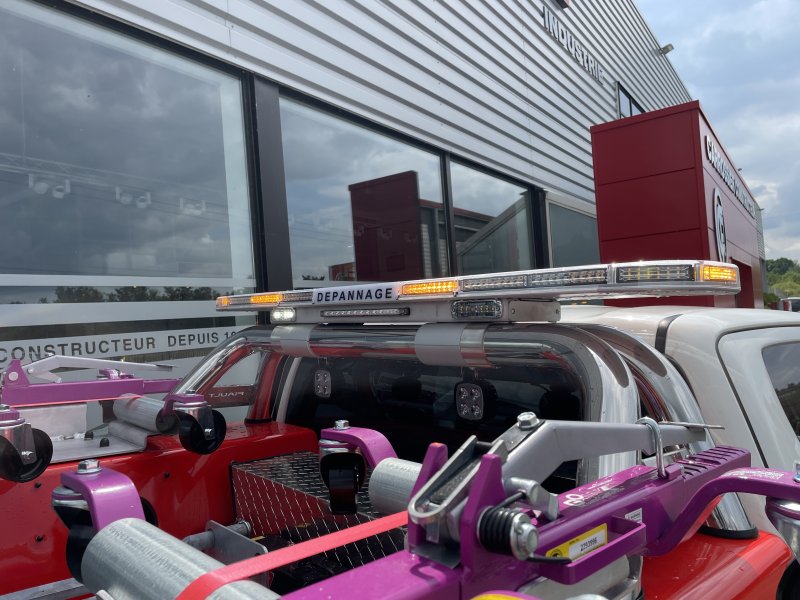

-Roll-bar FLY design in stainless steel with lightbar
-Three florescent vests, three cones and two 2kg fire extinguishers
-A shovel, a broom a sand bucket
-Two adjustable work lights at the front of the bed
-A work light fixed to the lower rear to provide illumination to the lift
-Two jump start cables with a 12v socket at the rear of the 4x4
-Stylized aluminum protective plates on the back of the polyester body
-All the equipment is galvanized
-Rear lighting with 4 LED lights embedded in the body
-Bodywork painted in a single colour to define RAL=
-VEHICLE CONFORMS TO EU REGULATION

0302M070

[ Open for more informations ] [ Fold up ]

Supply a kit for electronic declutching of the front axle with a switch in the cab to obtain 2-wheel drive in slow version (not available as standard) to improve the turning radius in basements or other delicate situations (on Toyota Hilux )

0803M040

[ Open for more informations ] [ Fold up ]

A Touch & Go system with TomTom Traffic Nav Sat, Coyote, Parking, Google Street, etc. with 3 years of updates included (mapping, Coyote) for 4x4 Toyota Hilux

0201M040

[ Open for more informations ] [ Fold up ]

Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign

0201M080

[ Open for more informations ] [ Fold up ]

Reminder of traffic lights in the XPERT lightbar

0204M010

[ Open for more informations ] [ Fold up ]

Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)

0502M140

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)

0502M150

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)

0502M170

[ Open for more informations ] [ Fold up ]

A towing dolly with inflatable fixed wheels type SPEED DOLLY galvanized 1380 Kg (maximum speed: 90 km/h) (without support)

0502M190

[ Open for more informations ] [ Fold up ]

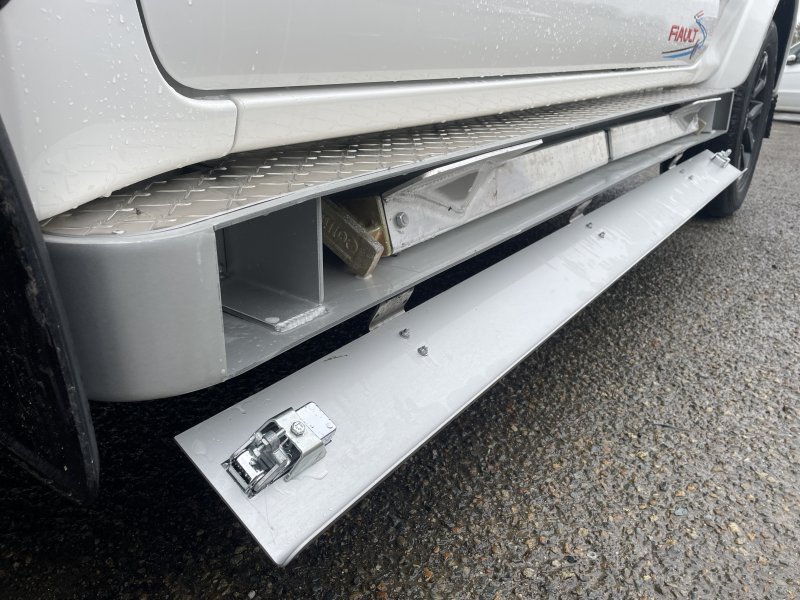

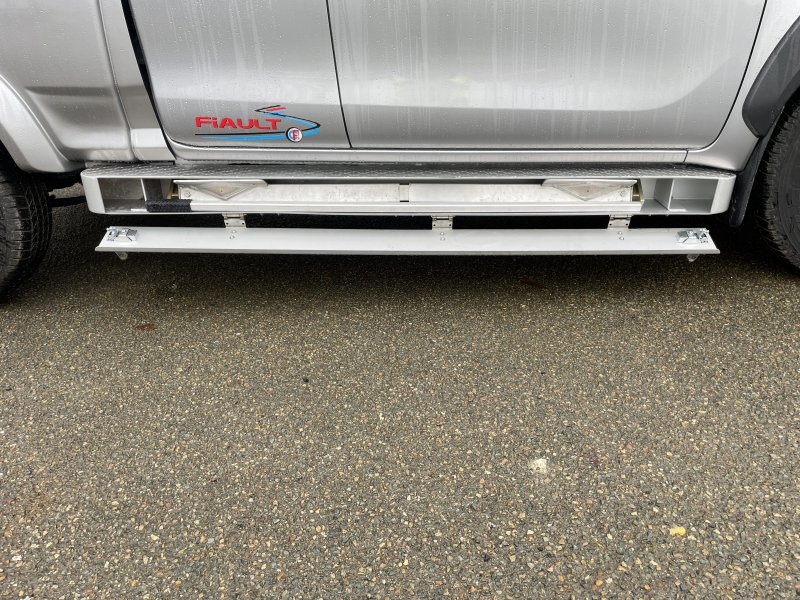

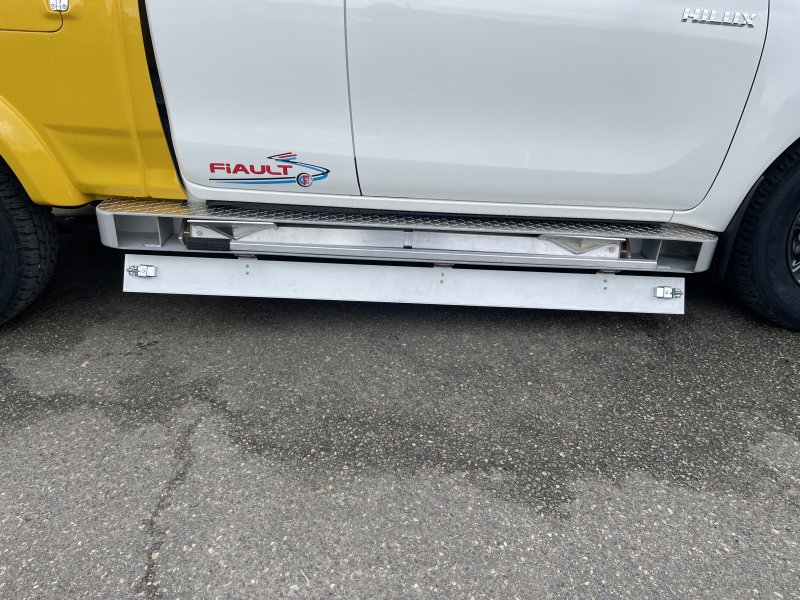

An open support on the equipment for dolly type SPEED DOLLY galvanized 1380 Kg and a closed support with hinged cover on each side of the vehicle to replace the steps for the telescopic bars (without dolly) (on 4x4)

0502M060

[ Open for more informations ] [ Fold up ]

Two wheel dollies type "CHARIOTTE " (without support) (maximum speed: 10 Km/h)

0502M080

[ Open for more informations ] [ Fold up ]

An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)

0302M010

[ Open for more informations ] [ Fold up ]

Four protective covers for wheel dollies type "FOURRIERE" and for wheel dollies type "GO-JACK" in BLACK color

0302M020

[ Open for more informations ] [ Fold up ]

Supply and installation of chrome 4x4 bull bar

0302M025

[ Open for more informations ] [ Fold up ]

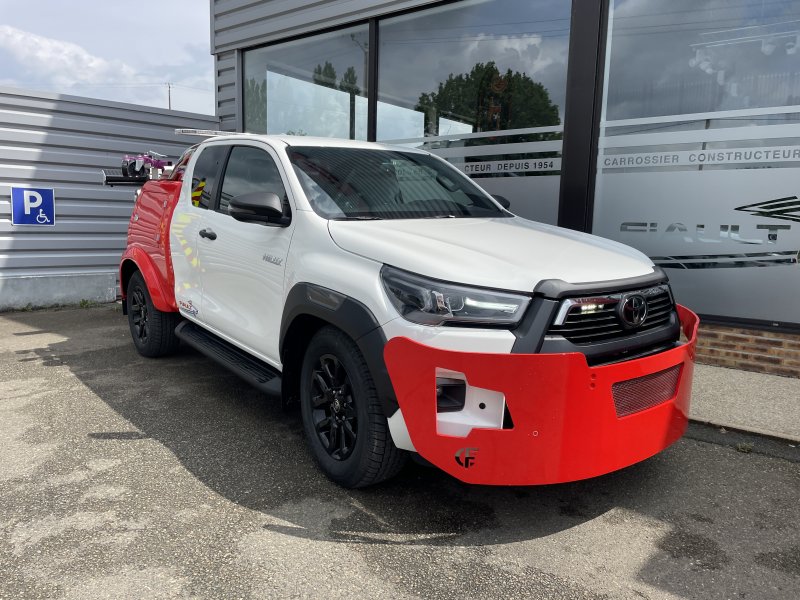

Supply and installation of a sheet steel bull bar with cutting for lights and cooling with rubber protection BLACK or painting or sticker in RED and WHITE for 4x4 (not homologated)

0302M050

[ Open for more informations ] [ Fold up ]

Supply and installation of a sun screen above the windshield

0302M100

[ Open for more informations ] [ Fold up ]

Adaptation of a second battery in the engine compartment for intensive use of the equipment (on Maxilift PF3000)

0510M030

[ Open for more informations ] [ Fold up ]

Replacement of the original 4 wheels by BLACK STEEL wheels reinforced

0510M020

[ Open for more informations ] [ Fold up ]

Replacement of the original 4 wheels with ALUMINUM wheels reinforced in GREY

0313M150

[ Open for more informations ] [ Fold up ]

Painting the back of the cab in a standard non-metallic color (on chassis from 3T to 7T)

0313M160

[ Open for more informations ] [ Fold up ]

Painting the cab of a 4x4 in a standard non-metallic color (on chassis from 3T to 7T)

0313M130

[ Open for more informations ] [ Fold up ]

Painting of the towing arm in a standard color (on MAXILIFT)

0313M135

[ Open for more informations ] [ Fold up ]

Painting of the second part (only) of the towing arm in a standard color RAL (to be indicated) :

0313M120

[ Open for more informations ] [ Fold up ]

Painting of the front bumper in WHITE (same color as the cab) and RED RAL 3002

0503M040

[ Open for more informations ] [ Fold up ]

Motorcycle kit with a wheel shoe, two "MP3" bars and a galvanized motorcycle bar adaptable to the Second Car Carrier SCC, a special strap for handlebars and two stowage straps (on MAXILIFT)

0503M050

[ Open for more informations ] [ Fold up ]

SPECIAL Motorcycle kit with a wheel shoe, two "MP3" bars and a galvanized motorcycle bar adaptable to the Second Car Carrier SCC type US, a special strap for handlebars and two stowage straps (on MAXILIFT)

1205M030

[ Open for more informations ] [ Fold up ]

Installation of an air compressor with hose and pressure gauge

1202M060

[ Open for more informations ] [ Fold up ]

A booster propulstation 12V 800A with charging station installed in a toolbox already provided on the equipment

1202M070

[ Open for more informations ] [ Fold up ]

A booster propulstation 12V 1200A with charging station installed in a toolbox already provided on the equipment

1202M100

[ Open for more informations ] [ Fold up ]

A 220V charging unit with a 12V socket for charging the PROPULSTATION 12V booster in the workshop (charging the booster at least once a week)

0302M060

[ Open for more informations ] [ Fold up ]

An open aluminum tray fitted in the rear part of the cabin and accessible through the side doors (on 4x4 deep cabin)

0302M061

[ Open for more informations ] [ Fold up ]

An half open aluminum tray fitted in the rear part of the cabin and accessible through the side doors (on 4x4 deep cabin)

0205M010

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights with electric cables and flexible yellow plate

0205M020

[ Open for more informations ] [ Fold up ]

Two suction towing lights with electric cables and flexible yellow plate

0205M035

[ Open for more informations ] [ Fold up ]

Two magnetic towing lights 12V with radio control and flexible yellow plate

0205M040

[ Open for more informations ] [ Fold up ]

Two suction towing lights with radio control and flexible yellow plate

0205M070

[ Open for more informations ] [ Fold up ]

A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)

0901M020

[ Open for more informations ] [ Fold up ]

An additional 8-function radio transmitter (without radio receiver)

0901M050

[ Open for more informations ] [ Fold up ]

A protective cover for remote control 8 or 10 functions (without remote control)

0901M040

[ Open for more informations ] [ Fold up ]

Two switches in the cab for raising and correcting the towing arm in addition to the remote control (on MAXILIFT)

0803M015

[ Open for more informations ] [ Fold up ]

Rear view camera in color with original flat screen in cab only works when reverse gear is engaged) (for 4x4)

0803M020

[ Open for more informations ] [ Fold up ]

Rear view camera in color fitted on the roll-bar with flat screen positioned on the central mirror in the cabin (works even in driving) (for 4x4)

0607M013

[ Open for more informations ] [ Fold up ]

Manually extendable lifting boom with pivoting crane head (on MAXILIFT PF3000)

1108M085

[ Open for more informations ] [ Fold up ]

A special MAXILIFT PF 3000 crane head without support

1108M086

[ Open for more informations ] [ Fold up ]

A special MAXILIFT PF 3000 crane head for automatic SCC without support

1102M050

[ Open for more informations ] [ Fold up ]

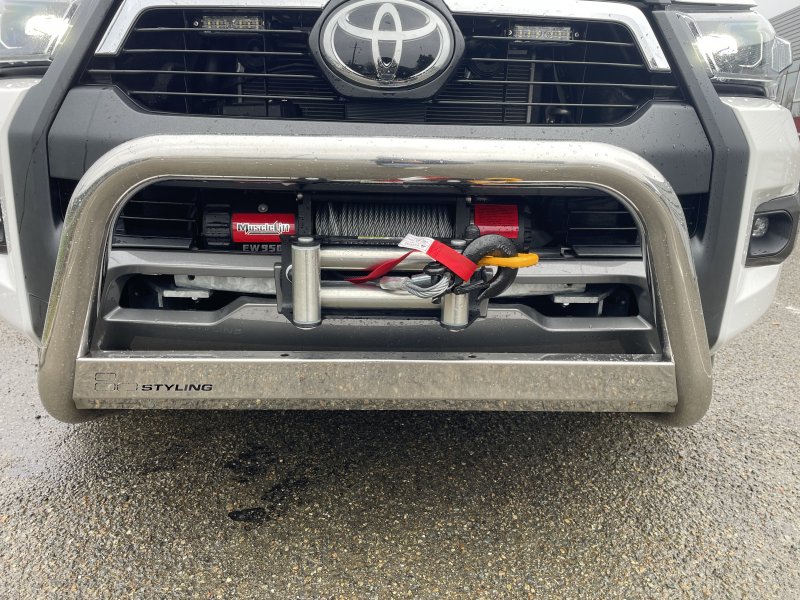

Four ton electric (12v) winch integrated into the front bumper and coupled with the remote control of the main winch

0504M140

[ Open for more informations ] [ Fold up ]

US type basket Second Car Carrier SCC with hydraulically articulated forks and remote control replacing the standard SCC (on MAXILIFT)

0707M010

[ Open for more informations ] [ Fold up ]

"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)
