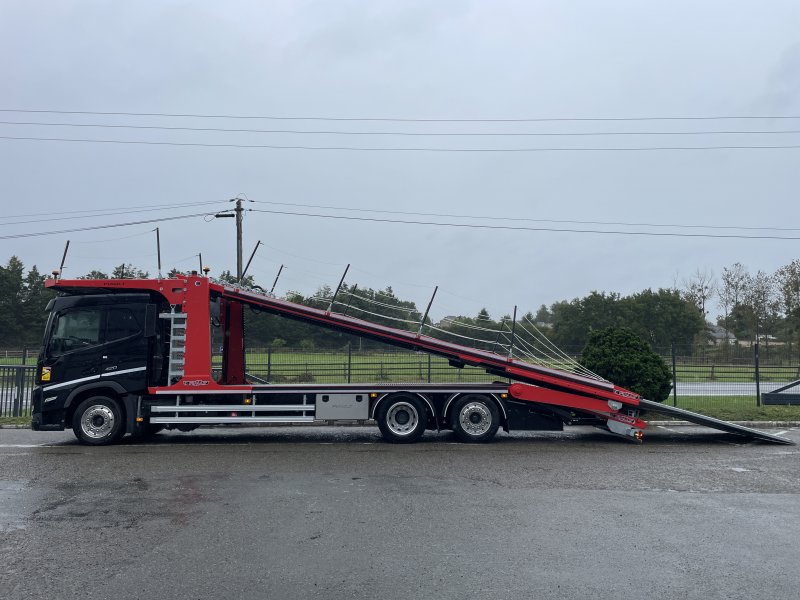

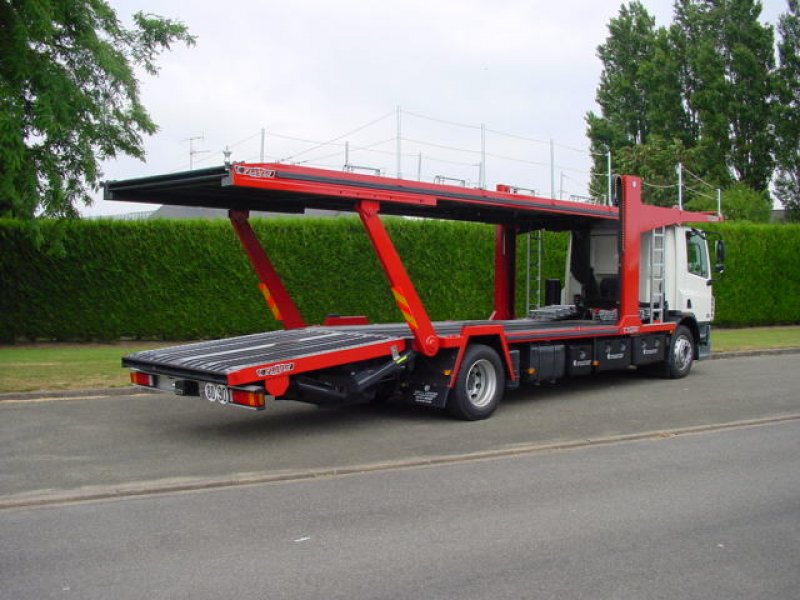

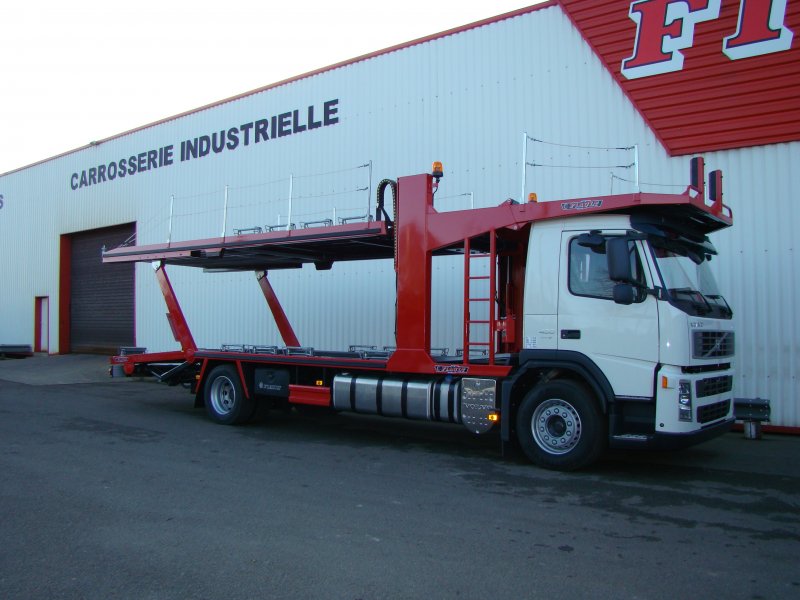

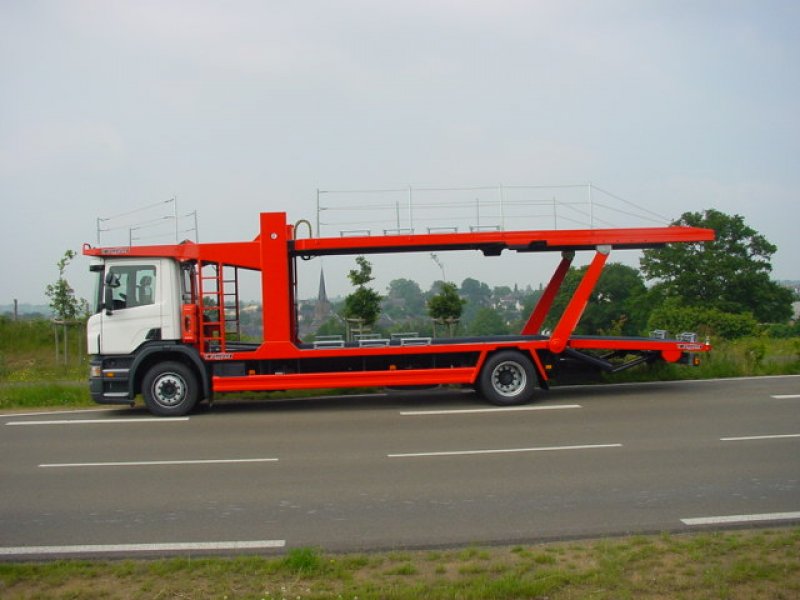

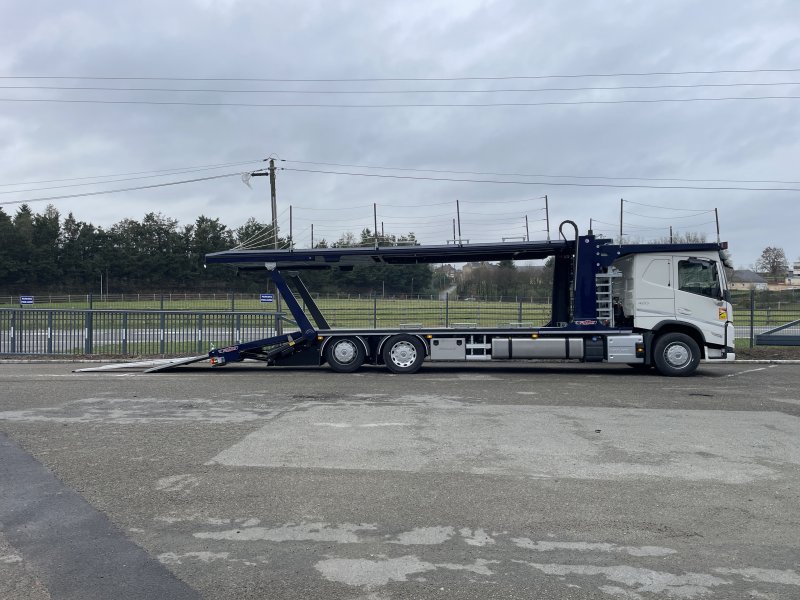

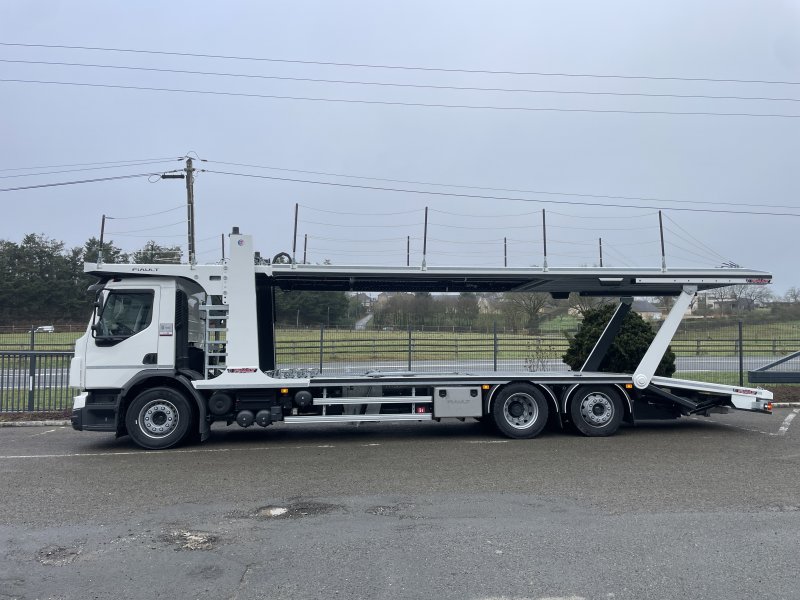

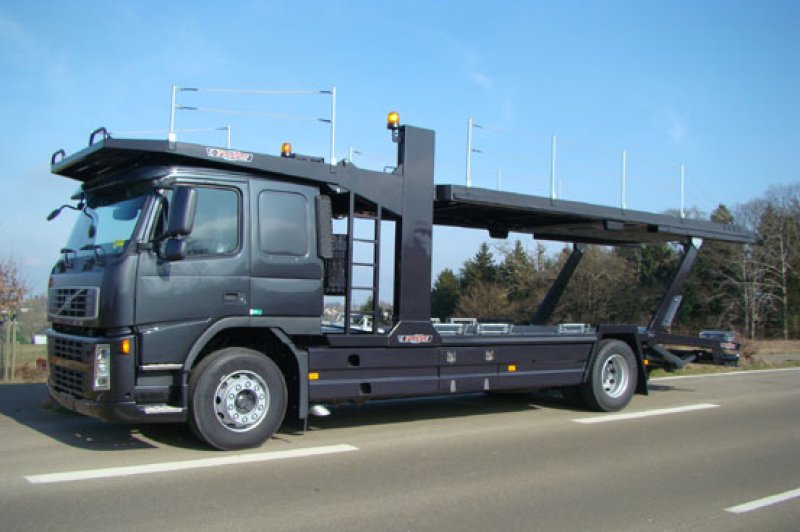

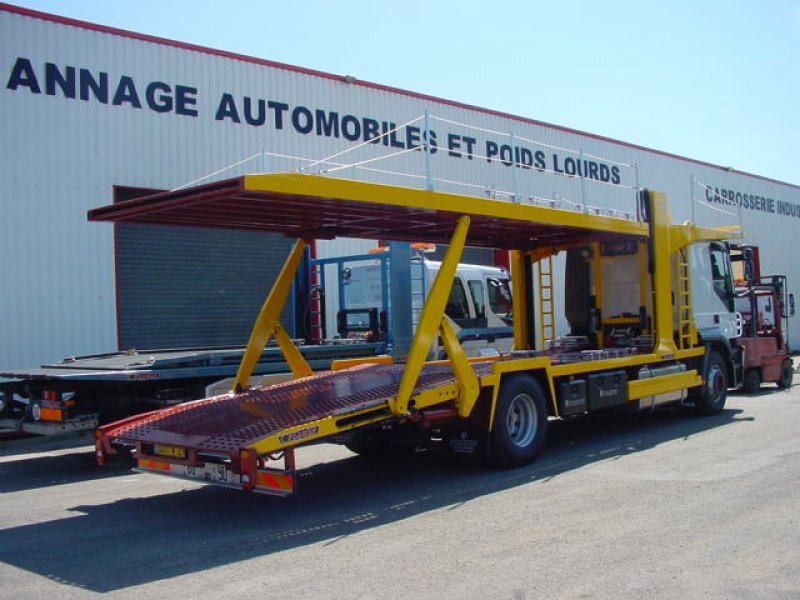

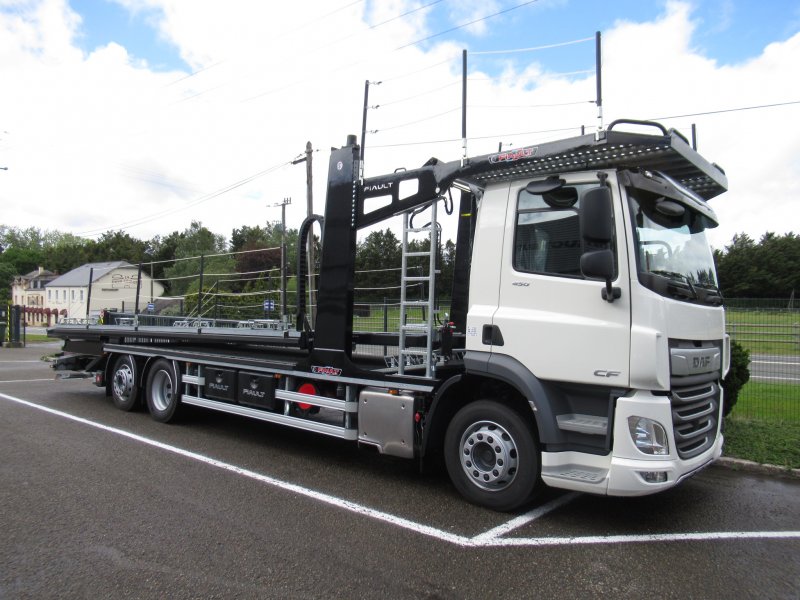

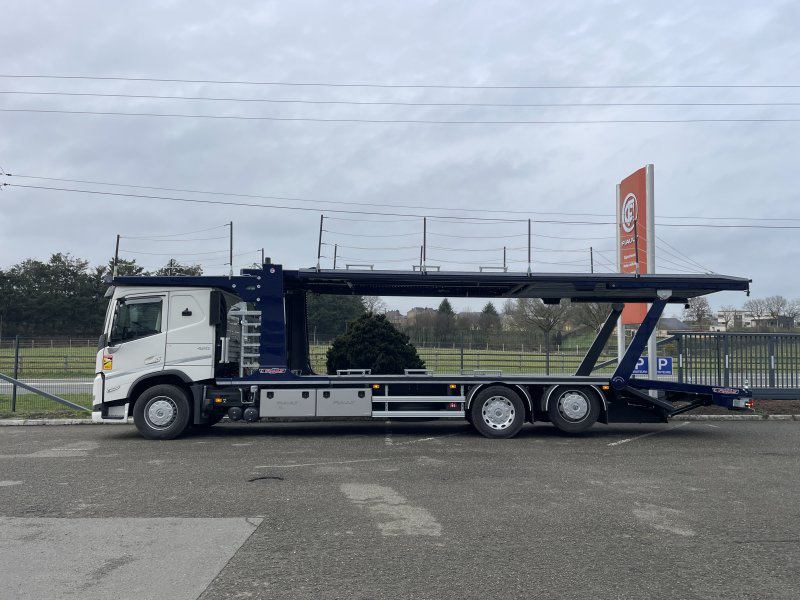

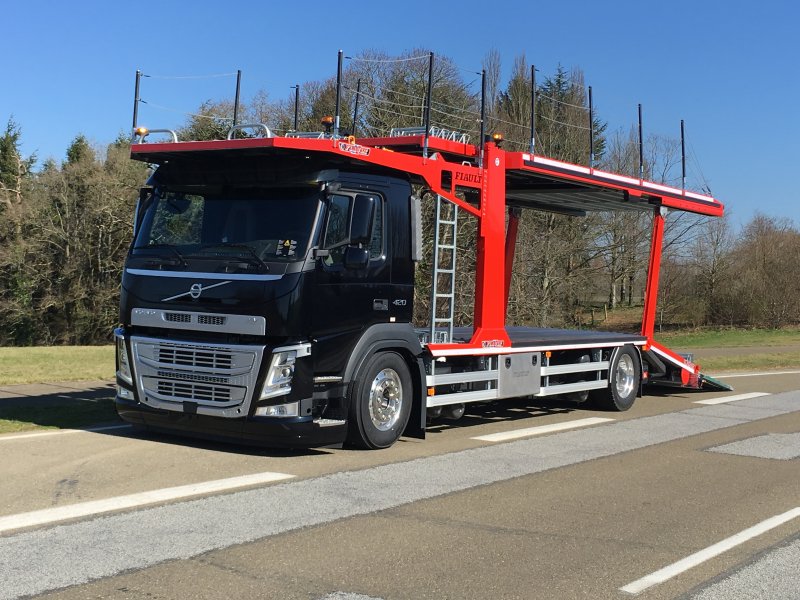

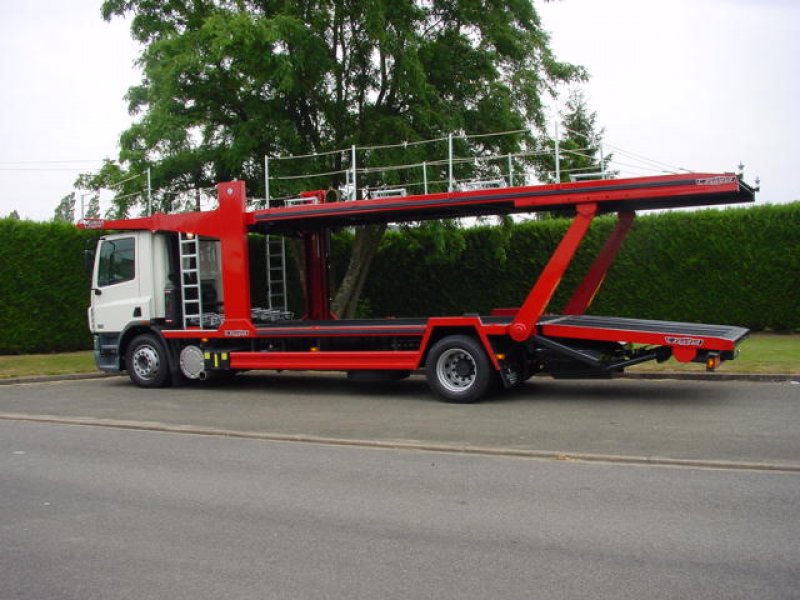

PLAT'FIX 2+3
On chassis cab : 19T or 26T, wheelbase 5500 to 5900mm
(Fitted on a PTO, rear pneumatic suspension, an 13 electric towing pin on the back of the frame, a special low cabin and wheel size low series 60)

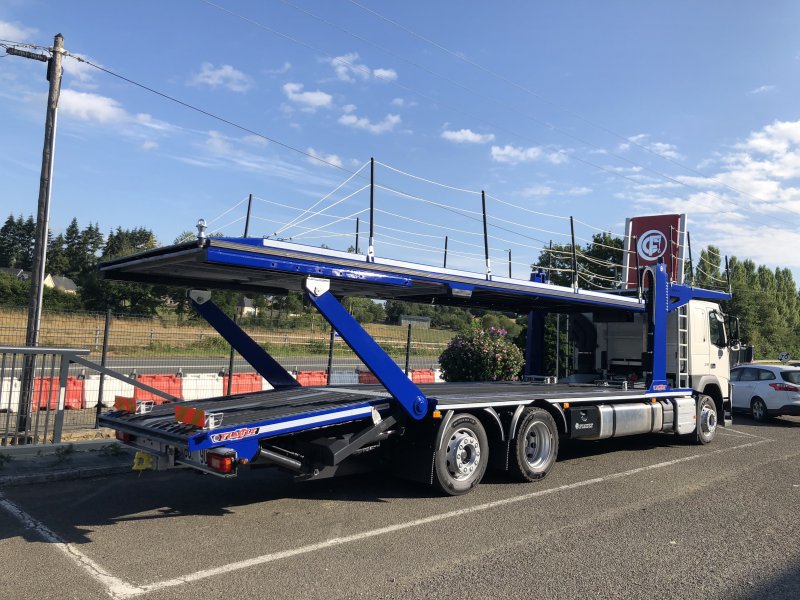

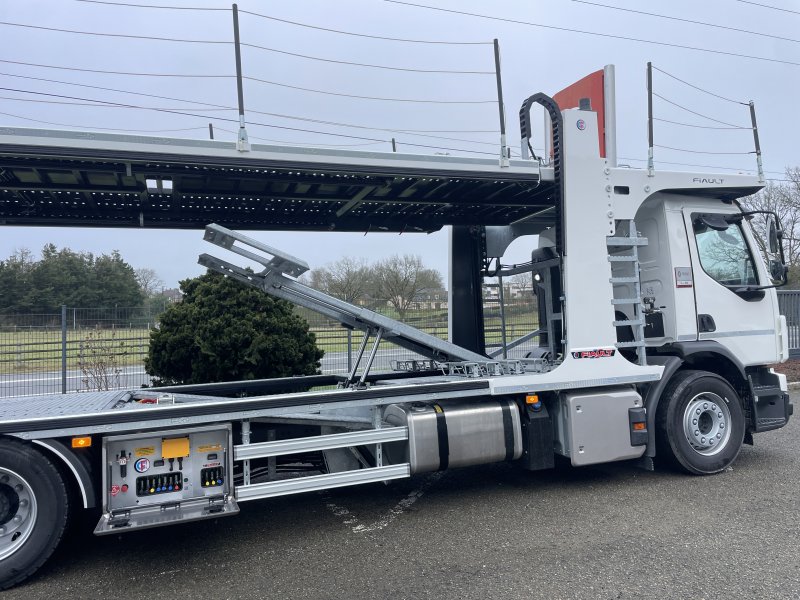

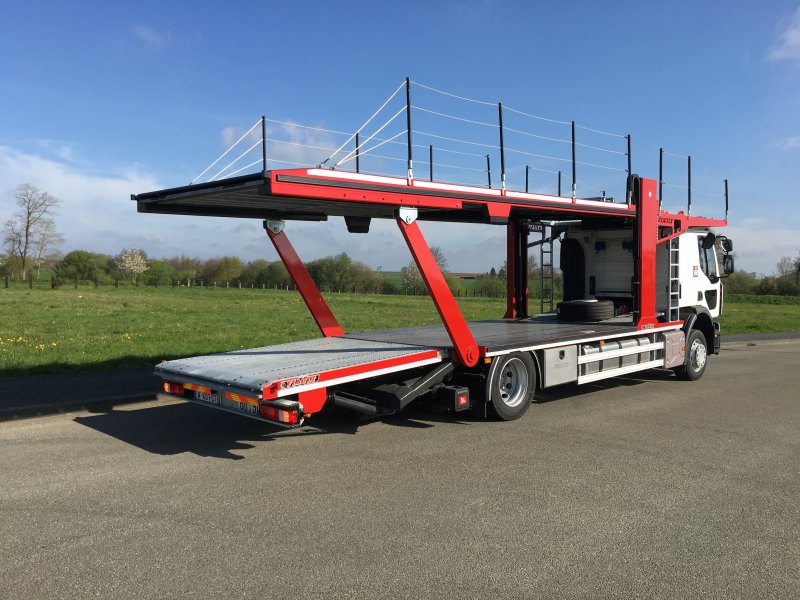

PLAT'FIX 2+3 CAR TRANSPORTER (DAMAGED VEHICLES, HYDRAULIC RAMP, SWIVELLING REAR RAMP
-Hydraulic circuit with high pressure pump, filtered reservoir with indication of level

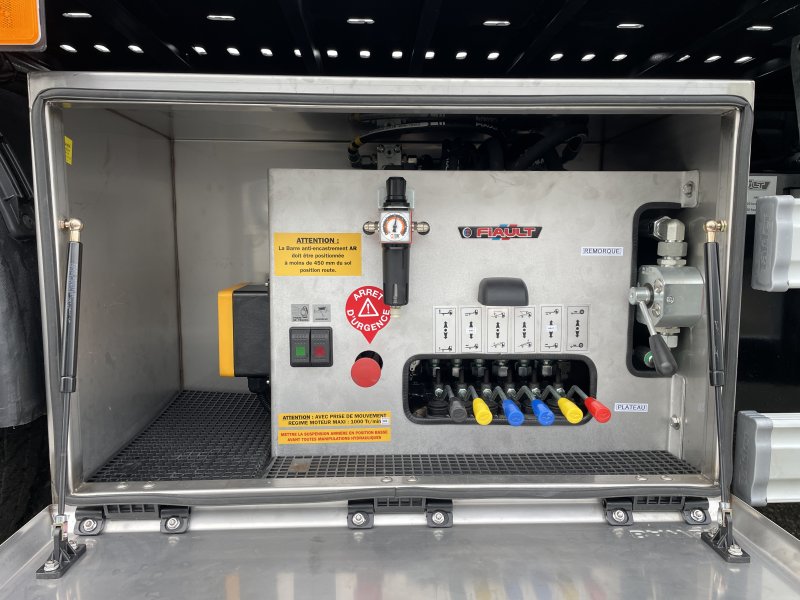

-Multi-function hydraulic distribution housed in a lit security cabinet

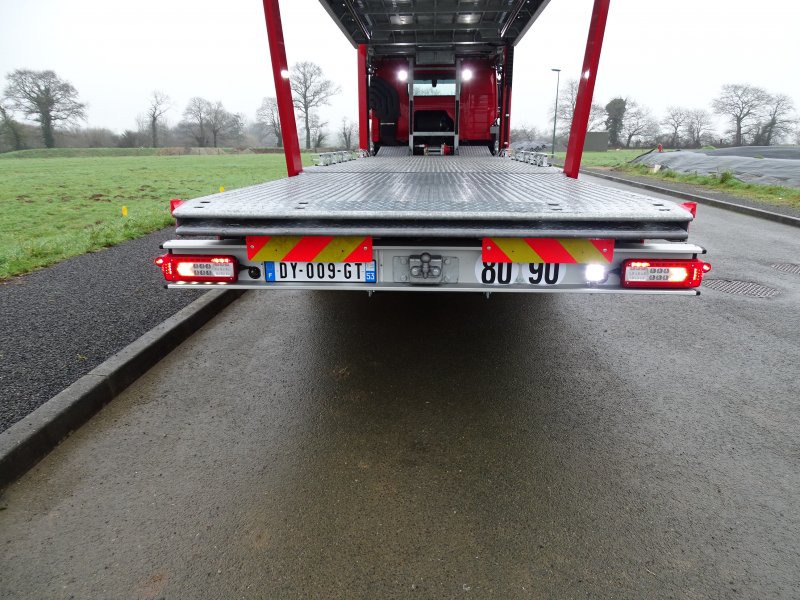

-Lower deck in welded, re-inforced and galvanised 4mm steel with channeled finish

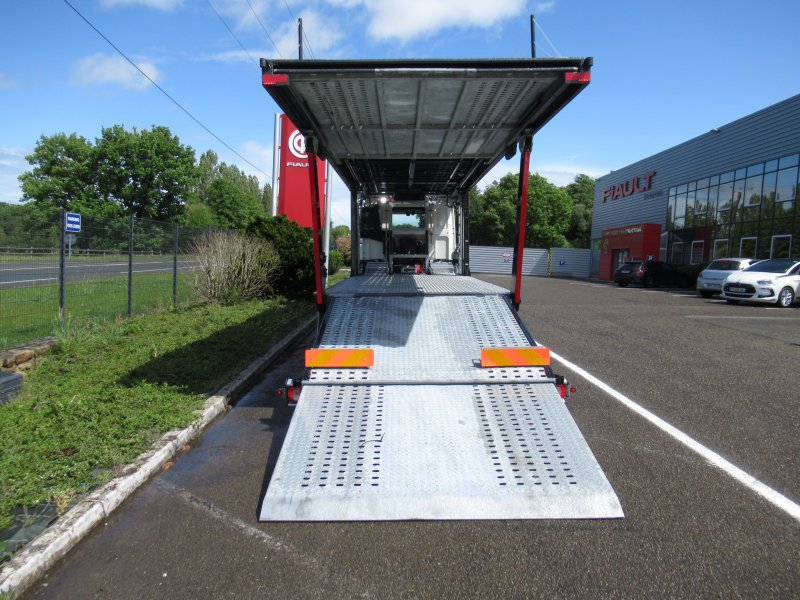

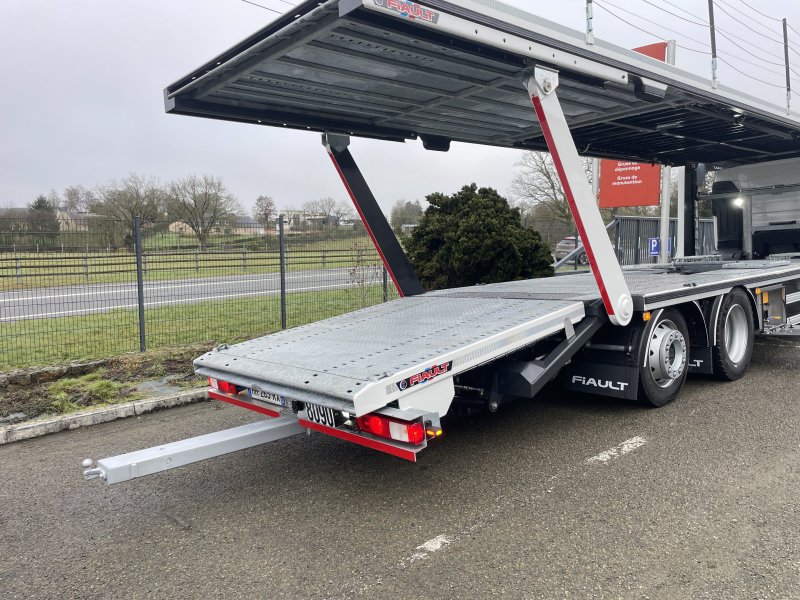

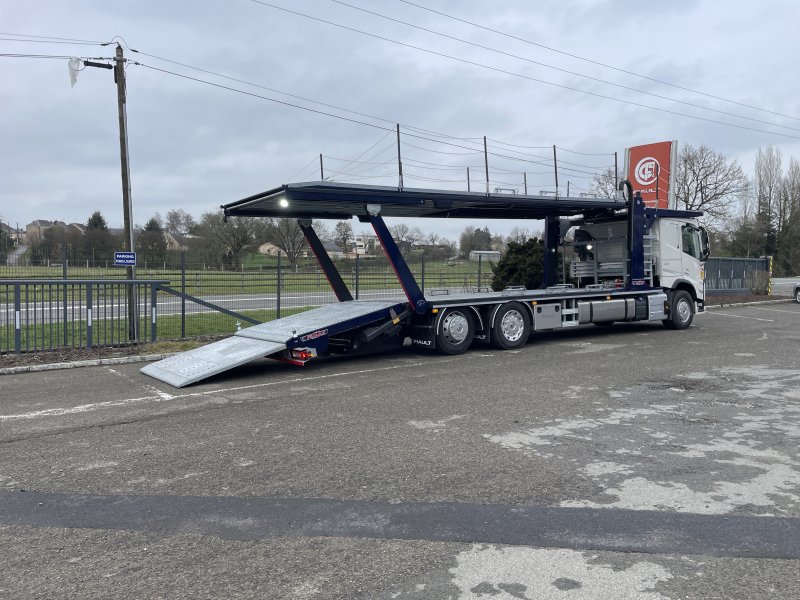

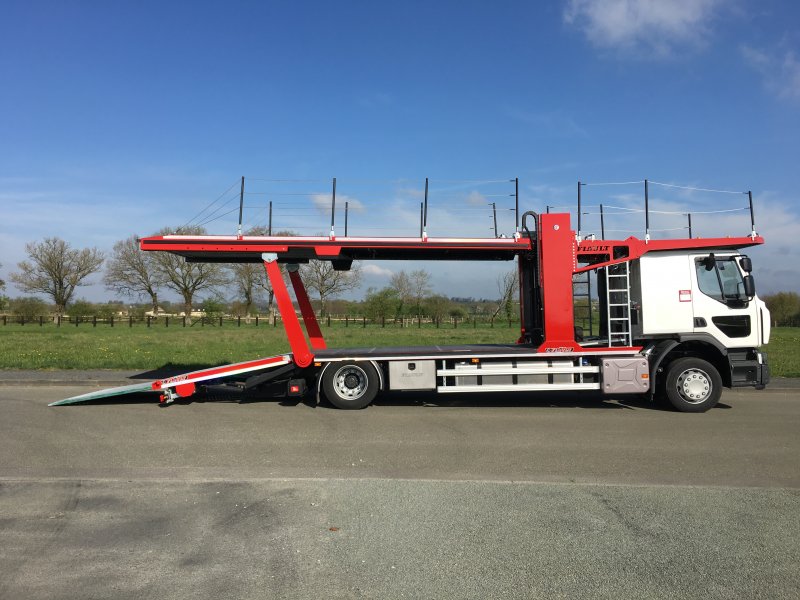

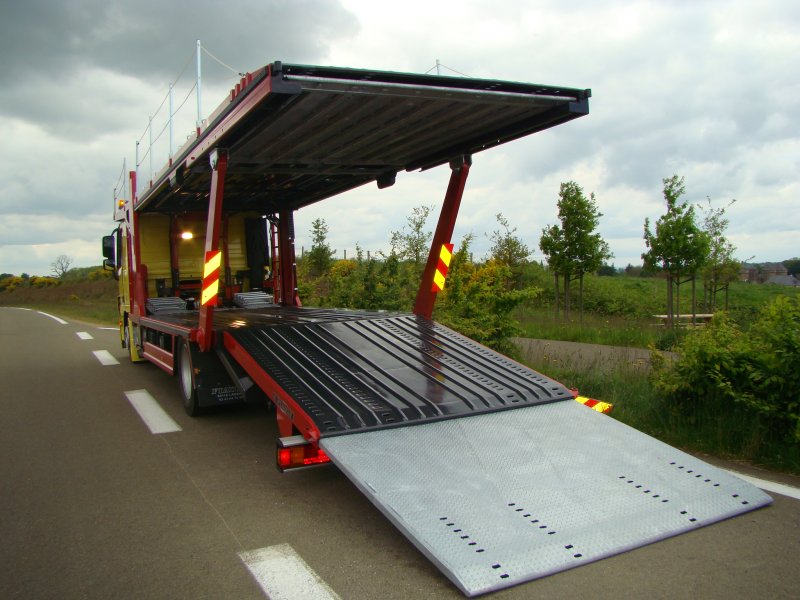

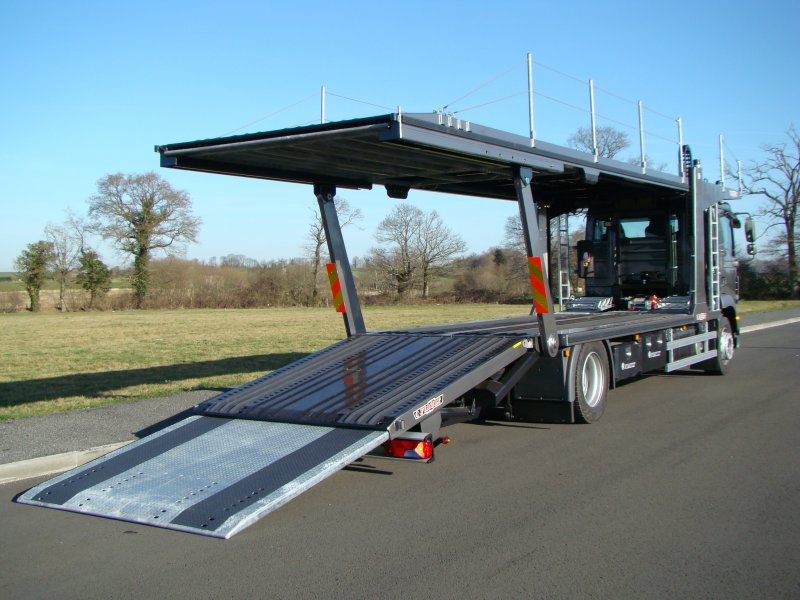

-Lowerable rear ramp via two hydraulic pistons with saftey locks and protected by rubber gators

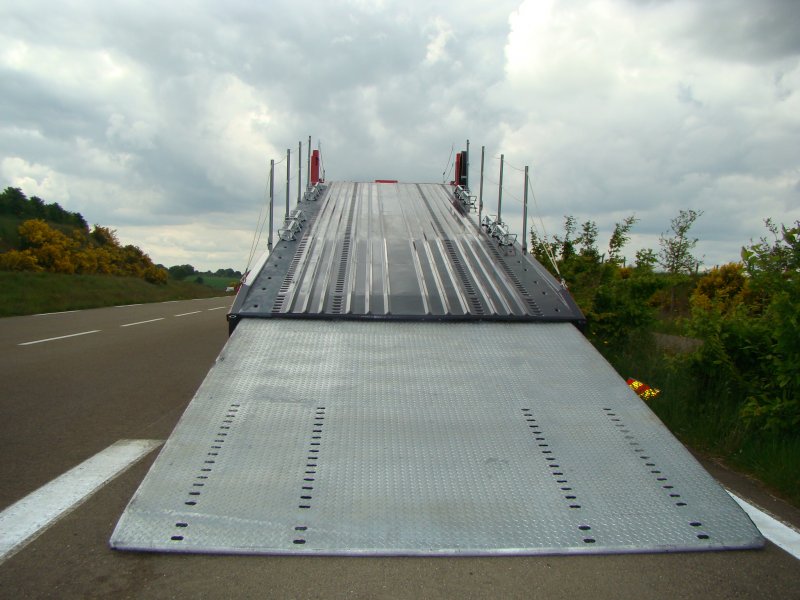

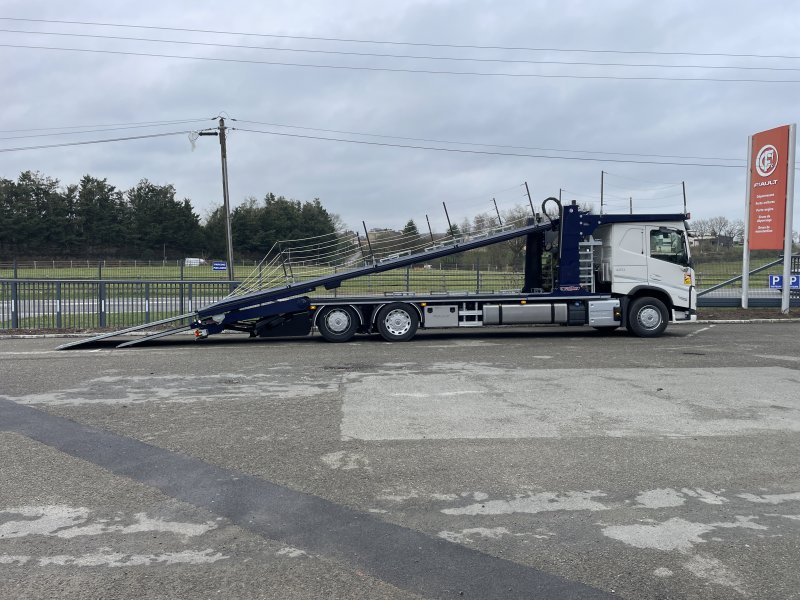

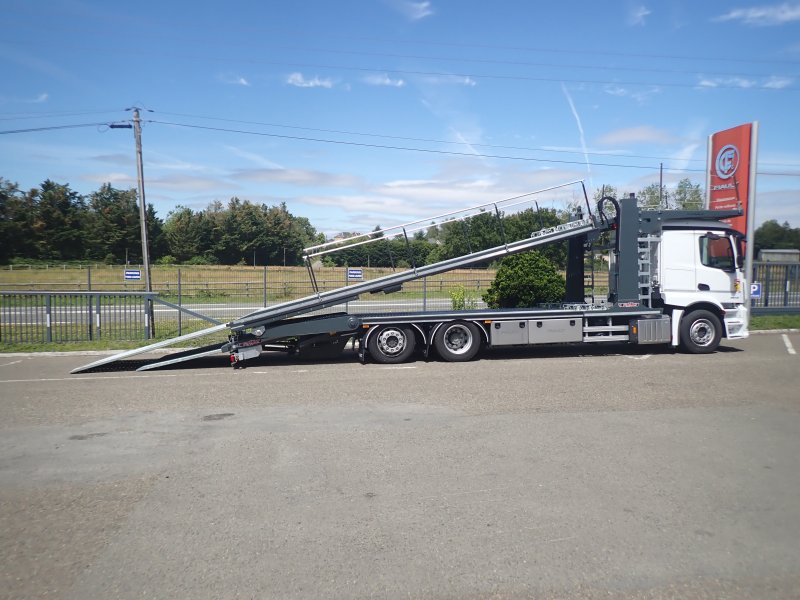

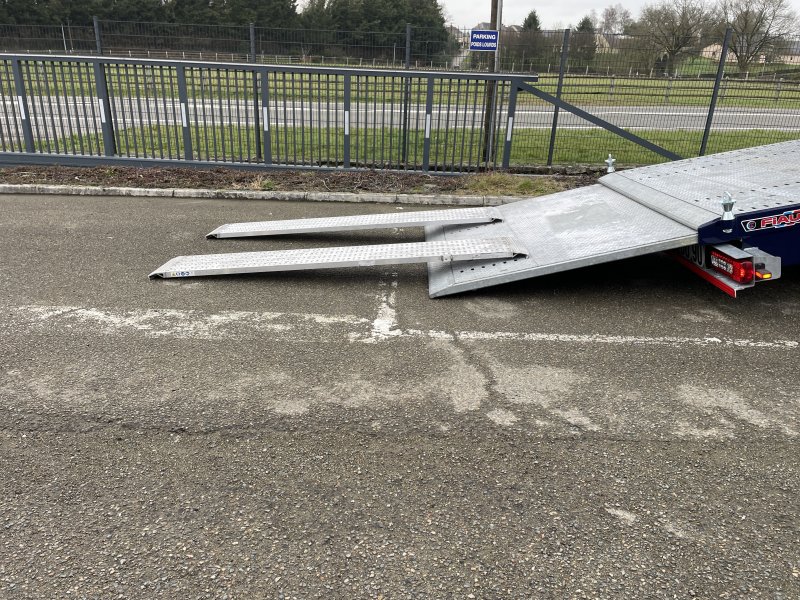

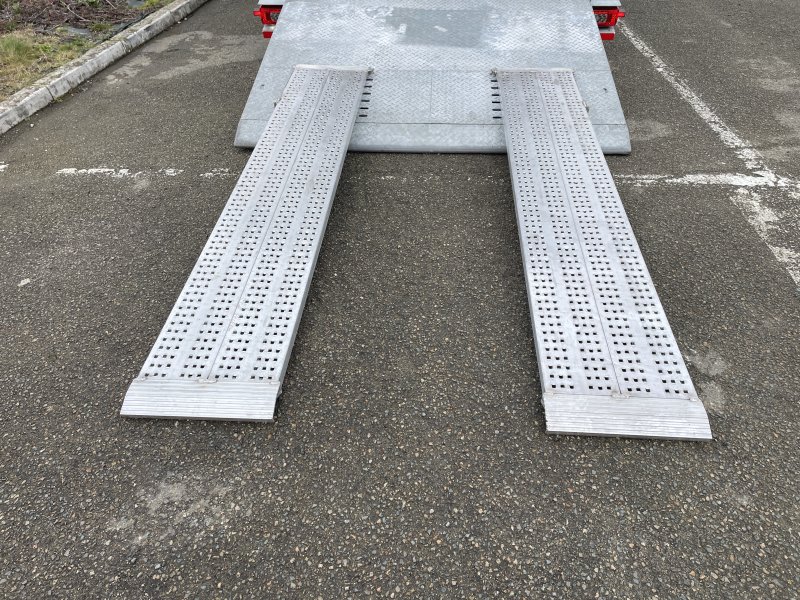

-Integrated full width loading ramp with hydraulic extension via twin pistons permitting direct loading from ground level

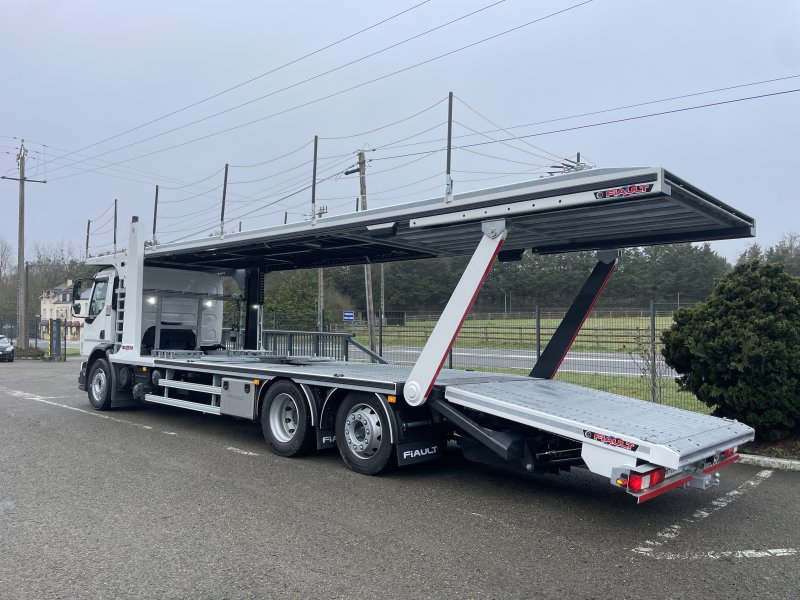

-Upper deck with integrated rise and fall via hydraulic post lifts at the front and rear swing arms with adjustment to various heights with locking pins

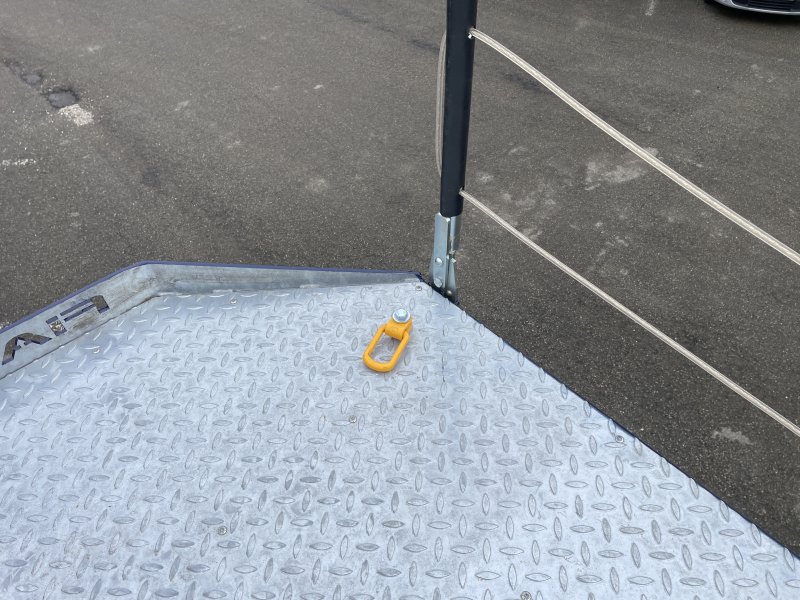

-Upper deck in welded, re-inforced and galvanised 4mm steel with channeled finish

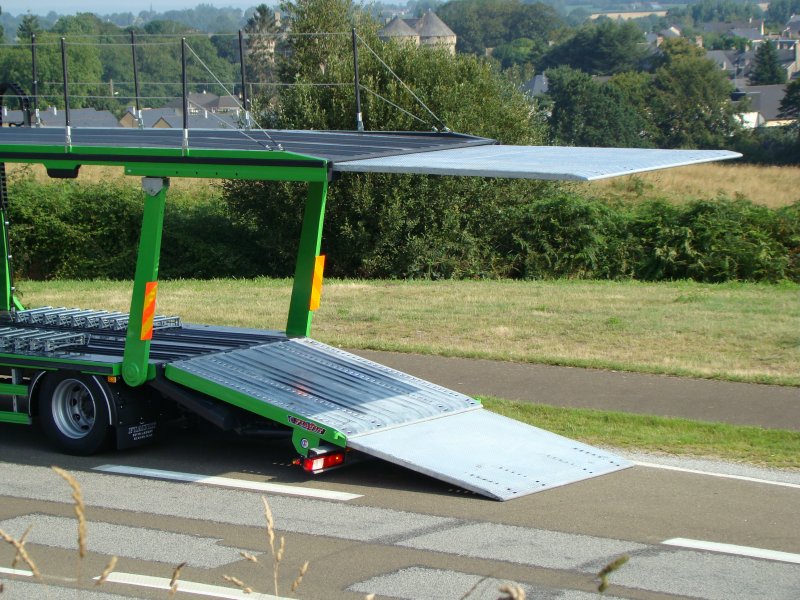

-Upper deck, full width hydraulic (two pistons) flush mounted, 2800 mm extension

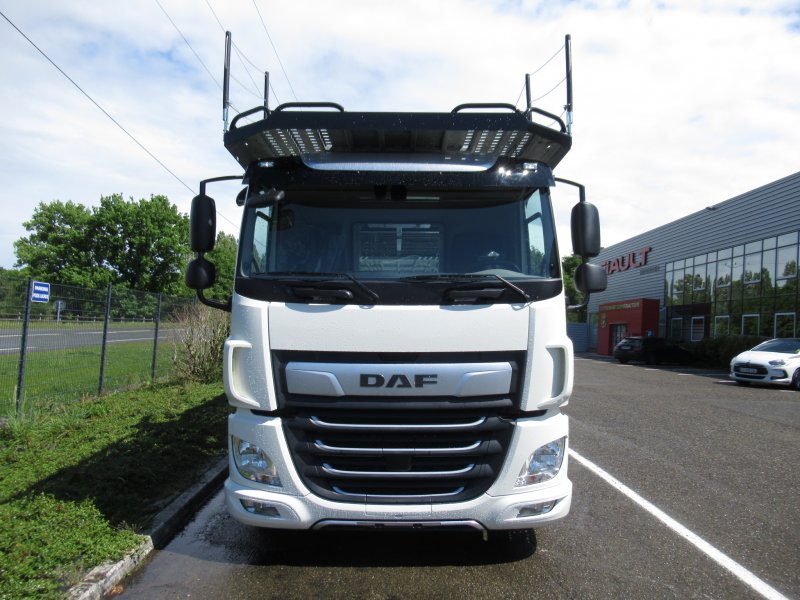

-Over cab articulated platform adjustable via hand pump situated behind the cabin on the right hand side
COMPLEMENTARY ACCESSORIES :

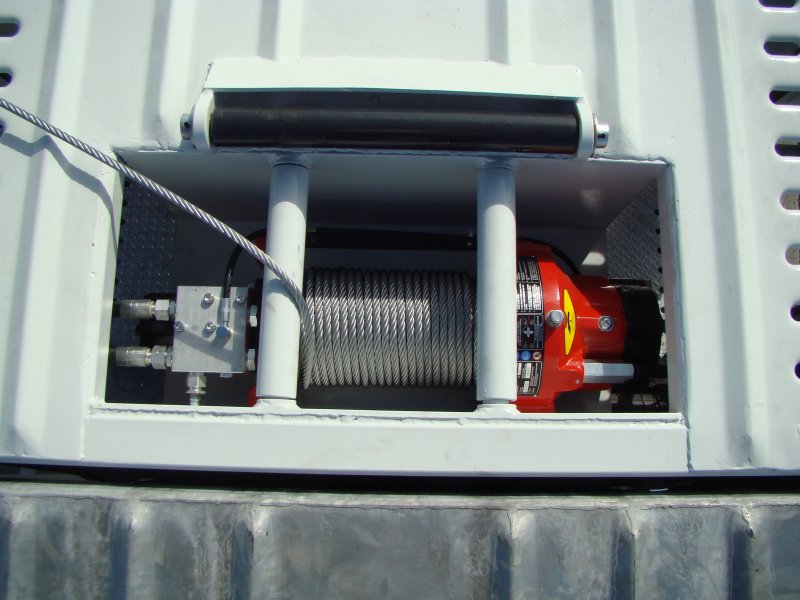

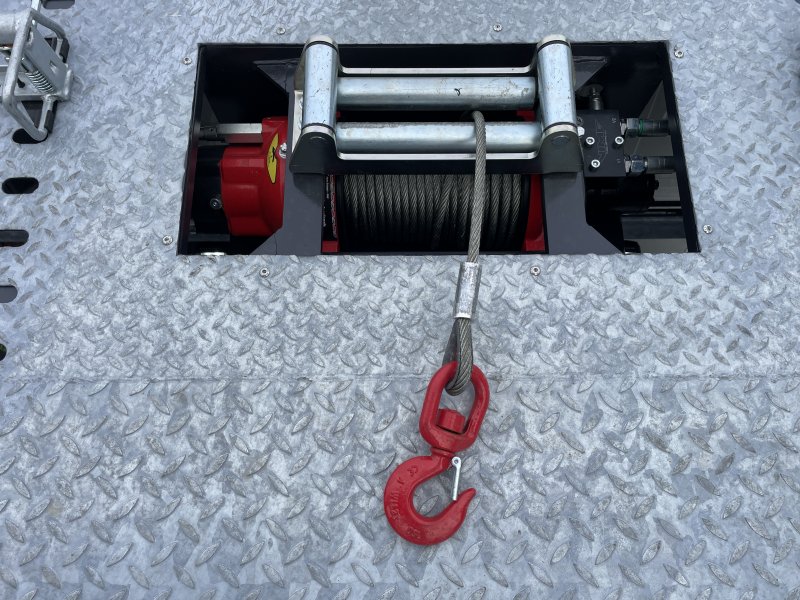

-A 4.5T ton hydraulic winch mounted on the lower platform with manual clutch

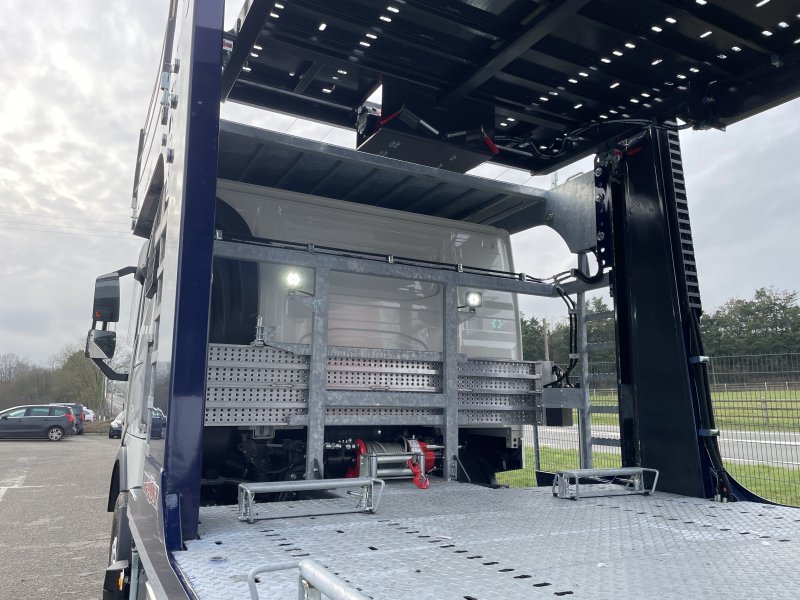

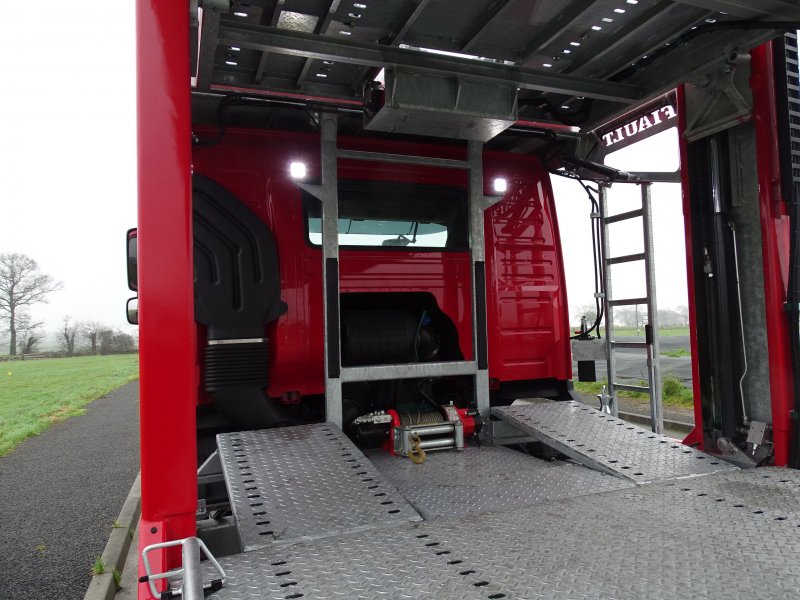

-A 4.5T ton hydraulic winch mounted on the upper platform with manual clutch
-Radio control for the two winches
-16 adjustable wheel clamps on the platform (8 + 8)

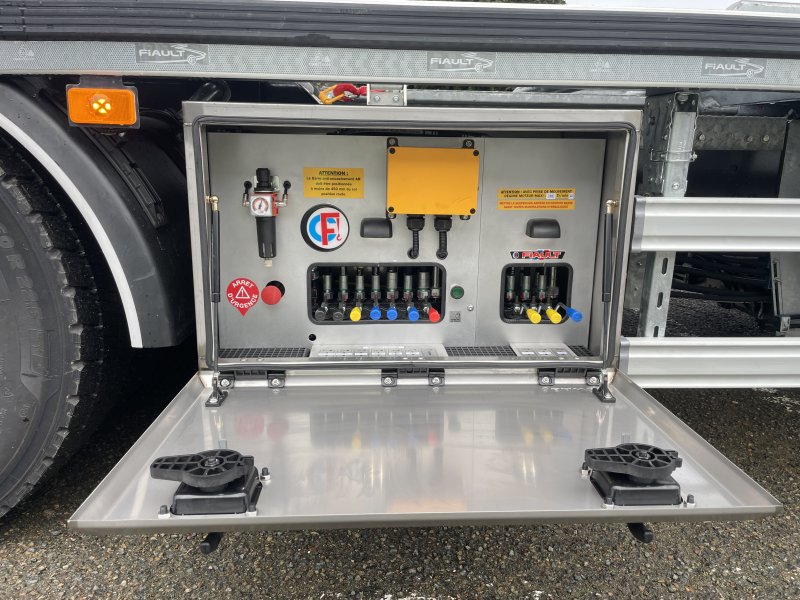

-Hydraulic controls mounted in a secure cabinet with light
-A large polyurethane toolbox 1000 mm
-A work light mounted between the platforms
-Six angled roller cable guides fixed to bed

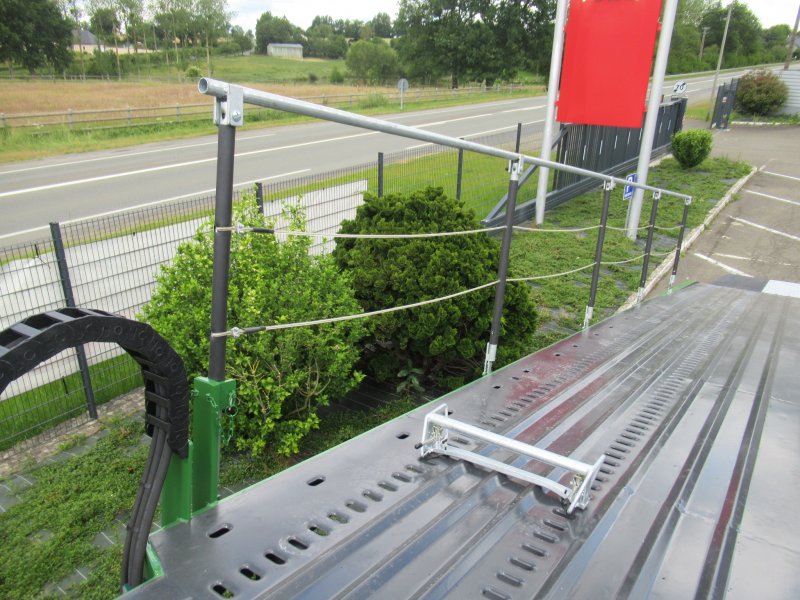

-Removeable saftey rail on upper deck and over cab

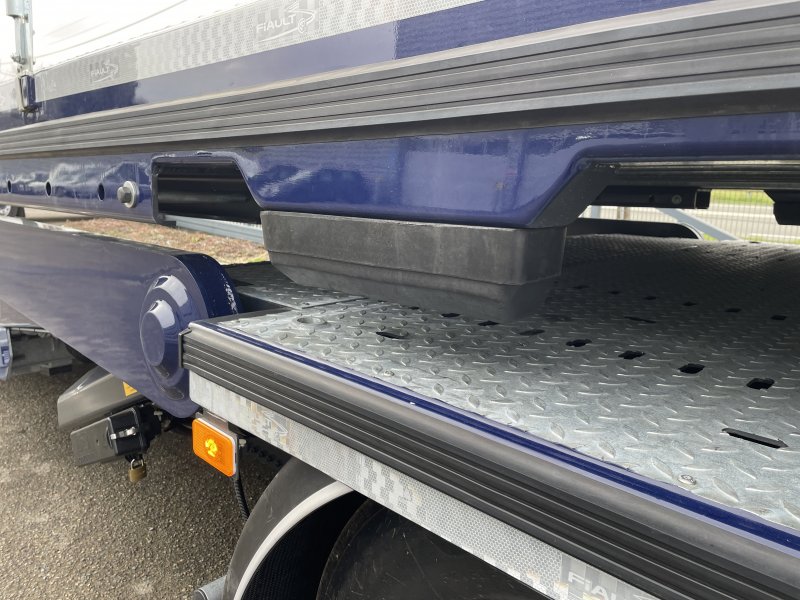

-Rubber protections on the two side of the platform of both levels
-6kg fire extinguisher in a weather proof cabinet
SURFACE TREATMENT :
-Hot phosphate treatment of all equipment
-Double undercoat with two coats of polyurethane laquer finish
-Cadmium treated locking pins, galvanised chocks and galvanised saftey rails
-Rubber gators on pistons
-A white reflective strips on the two side of the platform of both levels
-Front face and sides o fplatform of both levels painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
EXTERIOR DIMENSIONS :
-Lower platform length : between 8500 mm to 9000 mm (to specification depends on chassis cab)
-Upper platform length : 10500 mm (approx) + 2800 mm extension
-Loading capacity : 3 vehicles on top deck and 2 vehicles on lower deck
Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.
PLAT'FIX 2+3
00-PF2+3
[ Open for more informations ] [ Fold up ]
PLAT'FIX 2+3 CAR TRANSPORTER (DAMAGED VEHICLES, HYDRAULIC RAMP, SWIVELLING REAR RAMP
-Hydraulic circuit with high pressure pump, filtered reservoir with indication of level
-Multi-function hydraulic distribution housed in a lit security cabinet
-Lowerable rear ramp via two hydraulic pistons with saftey locks and protected by rubber gators
-Integrated full width loading ramp with hydraulic extension via twin pistons permitting direct loading from ground level
-Upper deck with integrated rise and fall via hydraulic post lifts at the front and rear swing arms with adjustment to various heights with locking pins
-Upper deck in welded, re-inforced and galvanised 4mm steel with channeled finish
-Upper deck, full width hydraulic (two pistons) flush mounted, 2800 mm extension
-Over cab articulated platform adjustable via hand pump situated behind the cabin on the right hand side
COMPLEMENTARY ACCESSORIES :
-A 4.5T ton hydraulic winch mounted on the lower platform with manual clutch
-A 4.5T ton hydraulic winch mounted on the upper platform with manual clutch
-Radio control for the two winches
-16 adjustable wheel clamps on the platform (8 + 8)
-Hydraulic controls mounted in a secure cabinet with light
-A work light mounted between the platforms
-Six angled roller cable guides fixed to bed
-Removeable saftey rail on upper deck and over cab
-Rubber protections on the two side of the platform of both levels
-6kg fire extinguisher in a weather proof cabinet
SURFACE TREATMENT :
-Hot phosphate treatment of all equipment
-Double undercoat with two coats of polyurethane laquer finish
-Cadmium treated locking pins, galvanised chocks and galvanised saftey rails
-Rubber gators on pistons
-A white reflective strips on the two side of the platform of both levels
-Front face and sides o fplatform of both levels painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
EXTERIOR DIMENSIONS :
-Lower platform length : between 8500 mm to 9000 mm (to specification depends on chassis cab)
-Upper platform length : 10500 mm (approx) + 2800 mm extension
-Loading capacity : 3 vehicles on top deck and 2 vehicles on lower deck

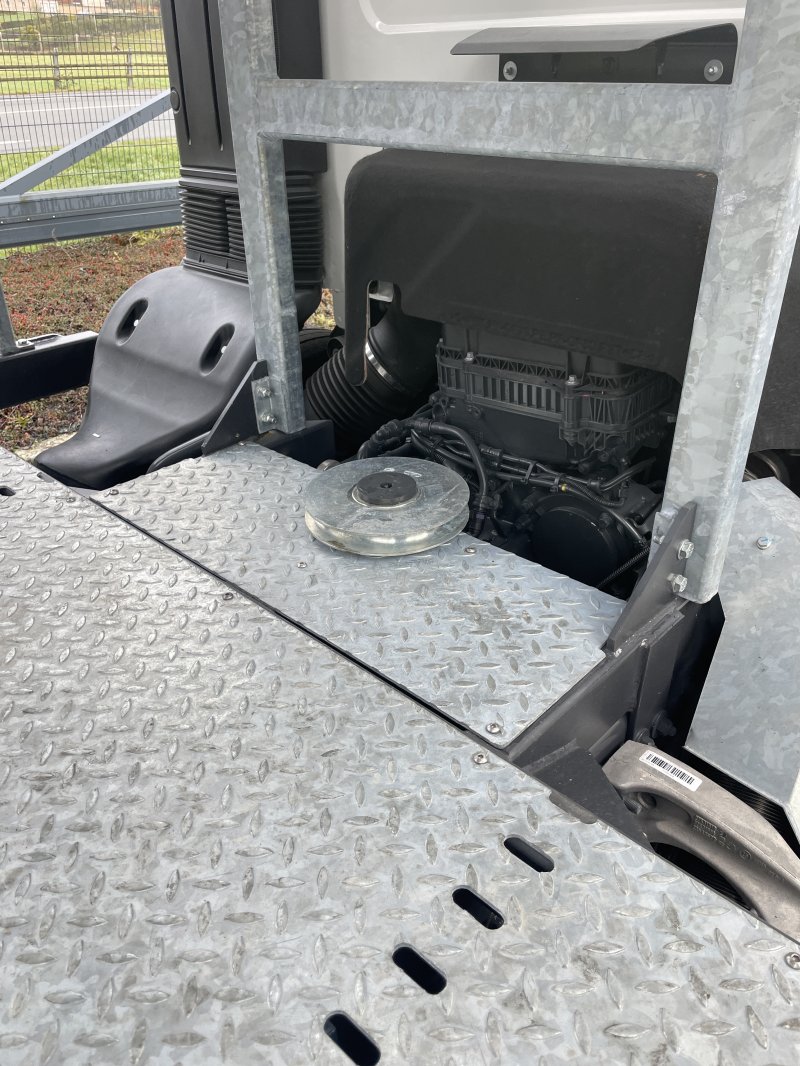

A cabover with deck in sheets metal reinforced LARME 4/6 mm GALVANIZED
0511M010
[ Open for more informations ] [ Fold up ]
A cabover with deck in sheets metal reinforced LARME 4/6 mm GALVANIZED without holes, articulated and hydraulically liftable with 2 hydraulic cylinders and a hand pump positioned at the back of the cabin on the right side
Deck in sheets metal reinforced LARME 4/6 mm PAINTED, without sides
0309M121
[ Open for more informations ] [ Fold up ]
Deck in sheets metal reinforced LARME 4/6 mm PAINTED, without sides and wedging holes over the entire length replacing the sheet steel anti-slip load bed with perforations for fixing blocks and braces (TP80)
A special motorcycle wedge with an articulated and adjustable shoe
0503M010
[ Open for more informations ] [ Fold up ]
A special motorcycle wedge with an articulated and adjustable shoe for fitting the wheel, 2 ratchet straps, 1 short traction sling, 1 special motorcycle handlebar strap and a storage rack on the equipment
A 2 tons SCC type “AUTOLIFT” galvanised with hydraulic elevation and extension 1200 mm
0504M010
[ Open for more informations ] [ Fold up ]
A 2 tons SCC type “AUTOLIFT” galvanised with hydraulic elevation and extension 1200 mm, removeable and adjustable galvanised lift forks, two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck
Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin
0803M030
[ Open for more informations ] [ Fold up ]
Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin
Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane
0301M015
[ Open for more informations ] [ Fold up ]
Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane
tylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T)
0301M030
[ Open for more informations ] [ Fold up ]
Stylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T, with tool box only opening from above behind the aluminum body) painted in a standard color RAL =

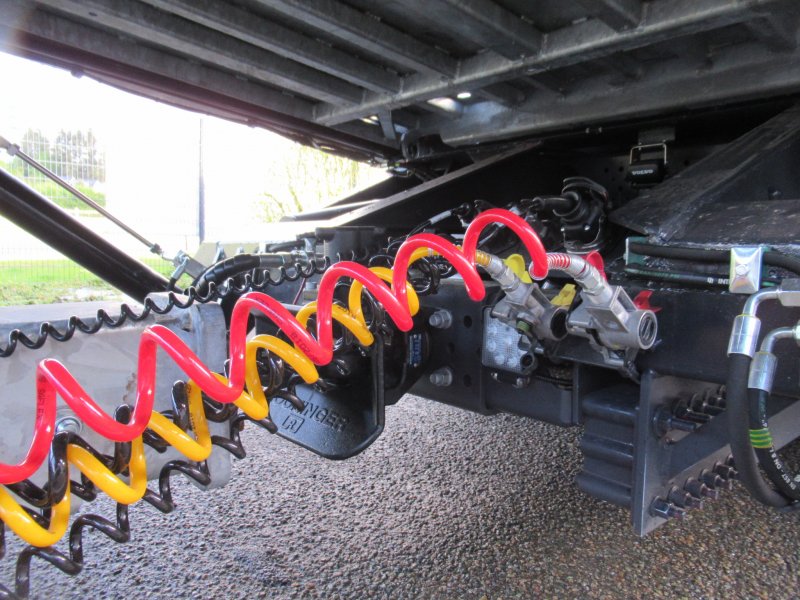

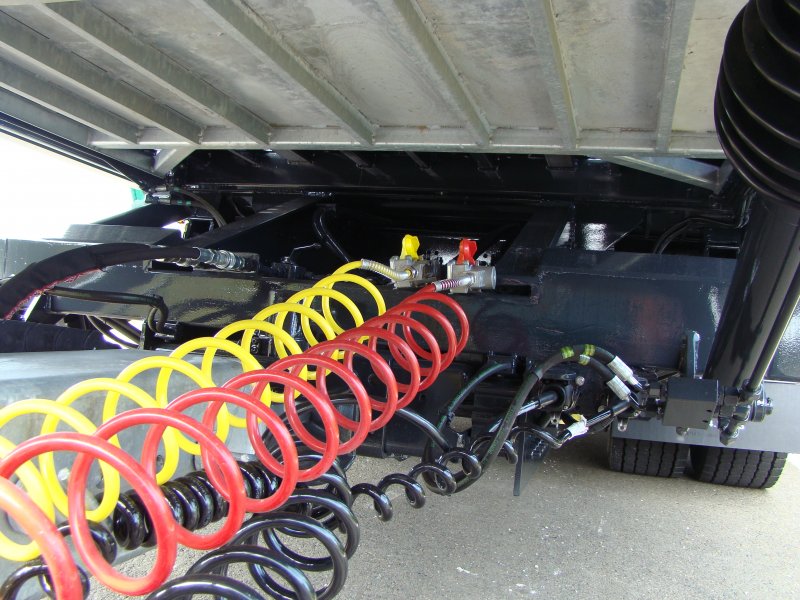

Two PUSH-PULL hydraulic power outlets located at the rear of the chassis with an additional hydraulic distributor and 2 flexible hoses for a trailer power supply
0509M010
[ Open for more informations ] [ Fold up ]
Two PUSH-PULL hydraulic power outlets located at the rear of the chassis with an additional hydraulic distributor and 2 flexible hoses for a trailer power supply
Stacking system for a 6th car with hinge on the back of the cab and rear lift with 2 hydraulics cylinders and an additional adjustment of length following the wheelbase of the vehicle
0511M120
[ Open for more informations ] [ Fold up ]
Stacking system for a 6th car with hinge on the back of the cab and rear lift with 2 hydraulics cylinders and an additional adjustment of length following the wheelbase of the vehicle with a hydraulic central cylinder by remote control and combined with 2 floor pits hinged and lowered with 2 hydraulics cylinders controlled on manual distributors (on 26T chassis cab)
