PLAT'FIX PF 40 STEEL + COVERED BODY



On chassis cab : 5T to 7T5

(Fitted on a 13-pin tow plug and reinforced suspensions)



PLAT'FIX PF 40 galvanised steel, fixed bed, car transporter + COVERED BODY

-Welded steel construction throughout

-Two sliding aluminium load ramps stored under the bed

-Rear bumper with built in signals

-Integrated shock proof wheel arches with mud guards

-Deck with GALVANIZED modular elements (unpainted), 50mm tubular edge and rigging holes along the entire length

-Bar to protect the cabin with two rubber stops

-Four ton electric (24v) winch with wired remote control and twenty metres of cable

-Four adjustable wheel clamps on bed

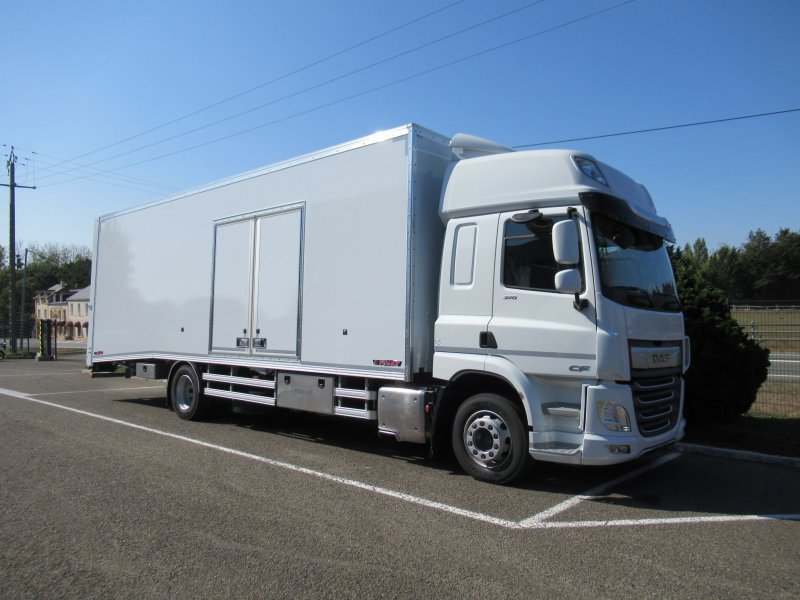

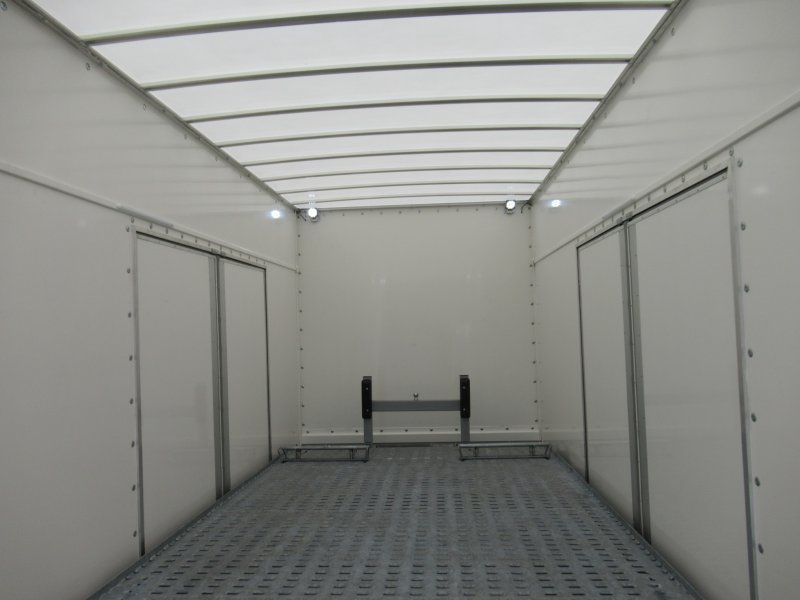

-Wagon style closed body comprising polyester covered ply (both sides) bolted to an aluminium frame

-Covered body with rigid panels "CPR" in white (length 5000 to 6500 mm x width 2550 mm x height 2800 mm)

-Two full width rear load doors

-Aerodynamic spoiller fixed to cab roof

-Panels painted white

-Front face and sides of deck painted, color to define RAL :

-VEHICLE CONFORMS TO REGULATIONS



Dimensions :

Exterior bed length = 5000 mm to 6500 mm (to define)

Exterior bed width = 2550 mm
