On chassis cab : 16T to 19T
(Fitted on a PTO on gearbox, a rear pneumatic suspension and an electric towing socket on the rear of the chassis)

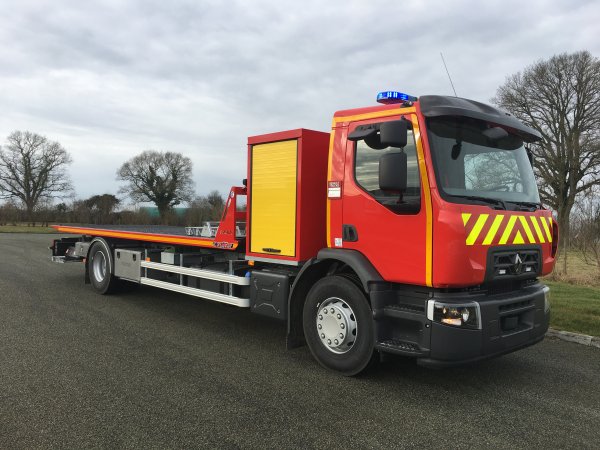

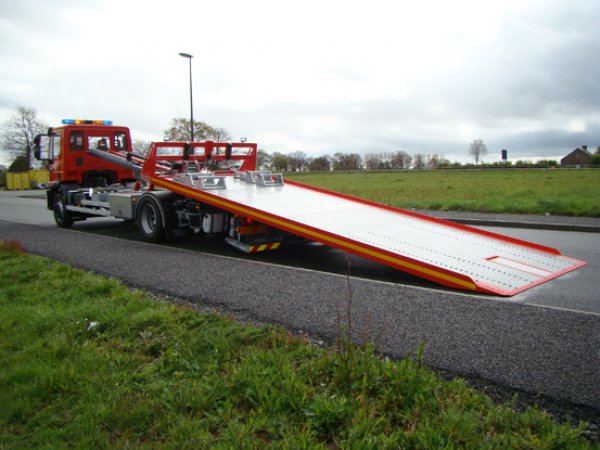

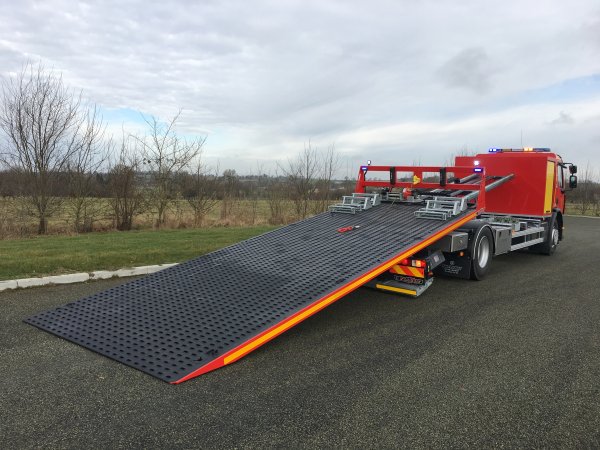

PLAT’TRANS TP 80 : TILT AND SLIDE PLANT TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Deck slides on reinforced steel rails with nylon slides

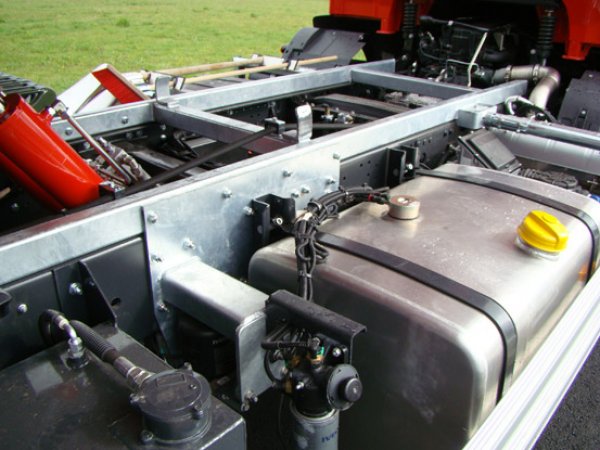

-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide
-Hydraulic controls in a stainless steel box on the right rear with lighting (or left to define)
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers

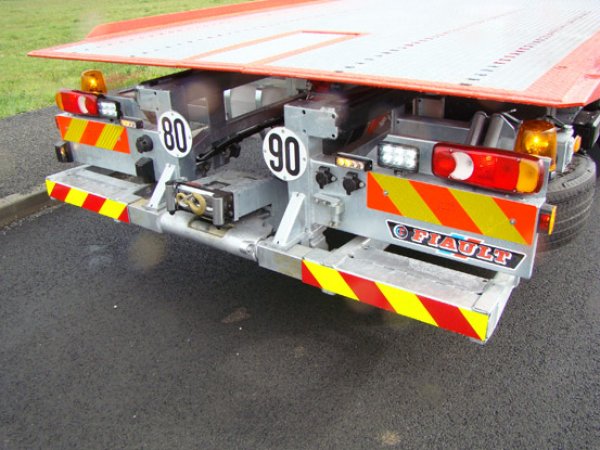

-Integrated bumper with signals and additional protection

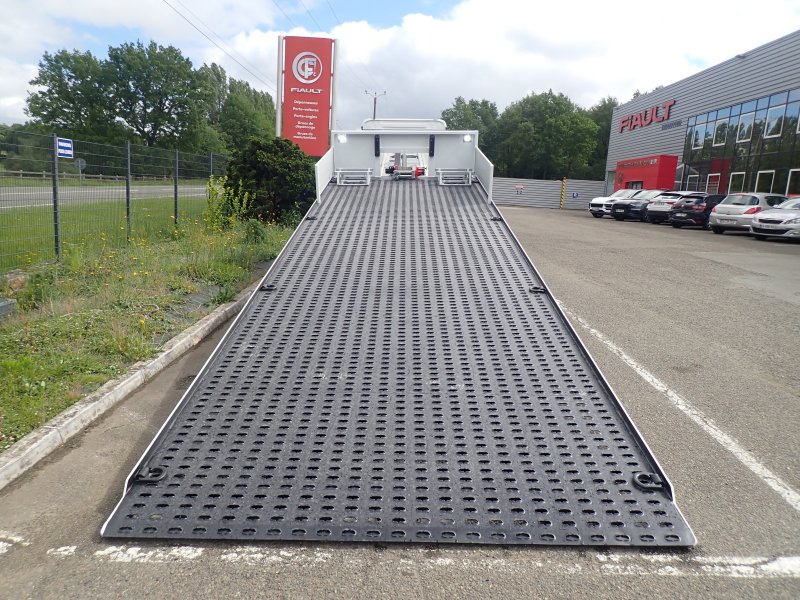

-Sheet steel anti-slip load bed with perforations for fixing blocks, braces etc.
-Bar to protect the cabin with two rubber stops
-A hook-mixed screed diam. 50 + ball hitch at the front of the equipment

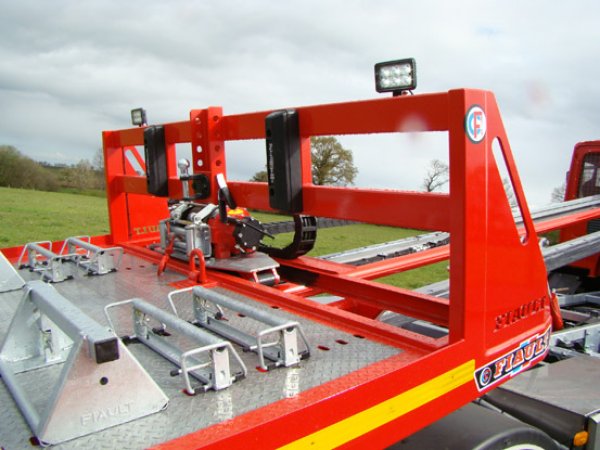

-7.1 tonne hydraulic winch. 30m cable with guide
-A remote control for winch, tilt and slide of the platform and working light (optional)
-Eight adjustable wheel blocks on bed (4x public works & 4x light vehicle)
-A polyurethane shock proof toolbox 1000 mm
-Hanging systems straps welded under the top of the two sides for securing with straps
-Ten-heads stowage embedded in the floor for your chains (5 per side)
-Eight hitch hooks 7T welded on the floor of platform (4 per side)
-Two adjustable, shock proof work light at the head of the platform
-A 6kg fire extinguisher mounted in a secure locker
-A winched spare wheel storage under the chassis
-A hook-mixed screed diam. 50 + ball hitch at the rear of the equipment
-Undercoat and standard colour paint
-Deck finished in a single standard RAL colour =
-Reflective WHITE stickers on the sides of the equipment (conform to French regulation)
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
-Exterior bed length = 7000 mm à 8500 mm (to define)
-Exterior bed width = 2550 mm
-Technical capacity = 8000 Kg
-Payload = to calculate according to chassis and options
Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.
PLAT'TRANS TP80
00-TP80
[ Open for more informations ] [ Fold up ]
PLAT’TRANS TP 80 : TILT AND SLIDE PLANT TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide
-Hydraulic controls in a stainless steel box on the right rear with lighting (or left to define)
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers
-Integrated bumper with signals and additional protection
-VEHICLE CONFORMS TO EU REGULATIONS
Dimensions :
-Exterior bed length = 7000 mm à 8500 mm (to define)
-Exterior bed width = 2550 mm
-Technical capacity = 8000 Kg
-Payload = to calculate according to chassis and options

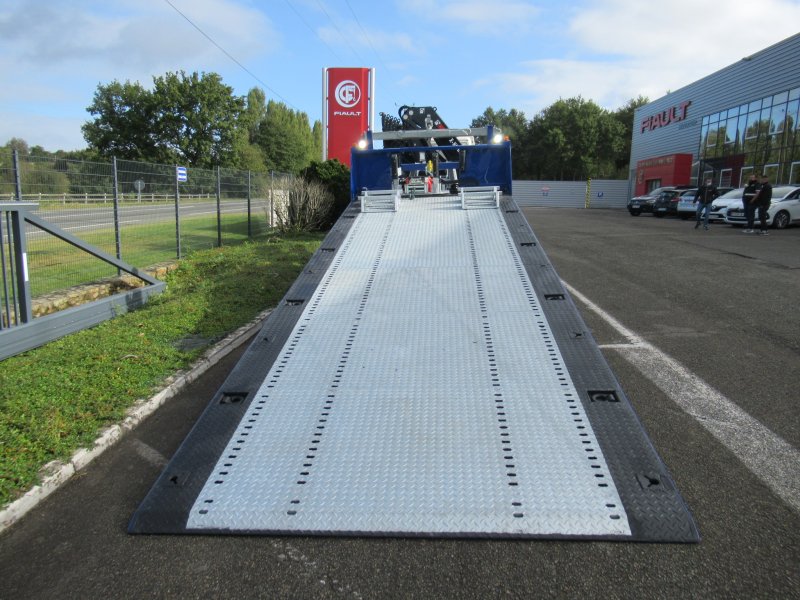

Sheet steel anti-slip load bed with perforations for fixing blocks, braces
0309M120
[ Open for more informations ] [ Fold up ]
Sheet steel anti-slip load bed with perforations for fixing blocks, braces etc.
Deck in sheets metal reinforced LARME 4/6 mm PAINTED, without sides
0309M121
[ Open for more informations ] [ Fold up ]
Deck in sheets metal reinforced LARME 4/6 mm PAINTED, without sides and wedging holes over the entire length replacing the sheet steel anti-slip load bed with perforations for fixing blocks and braces (TP80)
Deck in sheets metal reinforced LARME 5/7 mm PAINTED, without sides
0309M122
[ Open for more informations ] [ Fold up ]
Deck in sheets metal reinforced LARME 5/7 mm PAINTED, without sides and wedging holes over the entire length replacing the sheet steel anti-slip load bed with perforations for fixing blocks and braces (TP80-TP120)
Hot dip galvanizing of the entire sheet metal floor (platform 7 to 9 m)
0312M045
[ Open for more informations ] [ Fold up ]
Hot dip galvanizing of the entire sheet metal floor (platform 7 to 9 m)
Installation of an electric sensor to prevent the tilting of the plaform when it is present in the mechanical lock at the front
0803M070
[ Open for more informations ] [ Fold up ]
Installation of an electric sensor to prevent the tilting of the plaform when it is present in the mechanical lock at the front (only with remote control)
Hot dip galvanization of the tilting part with sleeper and stand (platform 7 to 9 m)
0312M055
[ Open for more informations ] [ Fold up ]
Hot dip galvanization of the tilting part with sleeper and stand (platform 7 to 9 m)

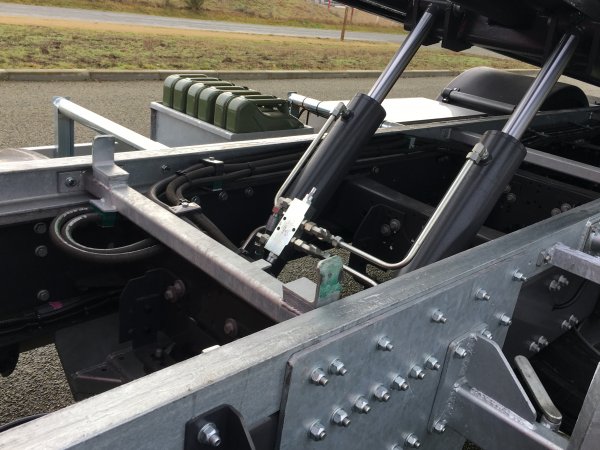

Positioning the two hydraulic cylinders for tilting the platform on the outside of the chassis
0309M160
[ Open for more informations ] [ Fold up ]
Positioning the two hydraulic cylinders for tilting the platform on the outside of the chassis
Four support rollers at the rear of the equipment under the platform
0309M200
[ Open for more informations ] [ Fold up ]
Four support rollers at the rear of the equipment under the platform
A 7T1 hydraulic winch with 30 m cable and cable guide
1103M012
[ Open for more informations ] [ Fold up ]
A 7T1 hydraulic winch with 30 m cable and cable guide
Replacing the fixed winch cable hook with a rotating hook
1104M040
[ Open for more informations ] [ Fold up ]
Replacing the fixed winch cable hook with a rotating hook
A rubber end stop for winch cable
1104M050
[ Open for more informations ] [ Fold up ]
A rubber end stop for winch cable
Rope tensioner for 4T5 - 5T2 - 7T1 hydraulic winch
1106M020
[ Open for more informations ] [ Fold up ]
Rope tensioner for 4T5 - 5T2 - 7T1 hydraulic winch
Pneumatic remote clutch for 4T5 - 7T2 hydraulic winch in hydraulic control box
1110M040
[ Open for more informations ] [ Fold up ]
Pneumatic remote clutch for 4T5 - 7T2 hydraulic winch in hydraulic control box
A hook type 2 with shackle on winch cable
1109M010
[ Open for more informations ] [ Fold up ]
A hook type 2 with shackle on winch cable
Hydraulic system allowing for lateral displacement of the winch with radio control
1110M020
[ Open for more informations ] [ Fold up ]
Hydraulic system allowing for lateral displacement of the winch with radio control
Bar to protect the cabin with two rubber stops
0303M015
[ Open for more informations ] [ Fold up ]
Bar to protect the cabin with two rubber stops
Roll-bar raised to protect the cabine type FLY and stainless steel handles
0303M030
[ Open for more informations ] [ Fold up ]
Roll-bar raised to protect the cabine type FLY and stainless steel handles
Stylized interior lining of the FLY with sheets of aluminum checkered
0303M035
[ Open for more informations ] [ Fold up ]
Stylized interior lining of the FLY with sheets of aluminum checkered
A panoramic mirror to aid the approach of the vehicle on the platform fitted under the front of the front face
0803M050
[ Open for more informations ] [ Fold up ]
A panoramic mirror to aid the approach of the vehicle on the platform fitted under the front of the front face
High front bar special Public Works with steel plate in lower part
0303M055
[ Open for more informations ] [ Fold up ]
High front bar special Public Works with steel plate in lower part and protective grating of cabin in high part, 2 tool boxes on each side of the winch and 2 protective wooden board
A hook-mixed screed diam. 50 + ball hitch at the front of the equipment
0508M020
[ Open for more informations ] [ Fold up ]
A hook-mixed screed diam. 50 + ball hitch at the front of the equipment
A hook-mixed screed diam. 50 + ball hitch at the rear of the equipment
0508M050
[ Open for more informations ] [ Fold up ]
A hook-mixed screed diam. 50 + ball hitch at the rear of the equipment
Eight red LED lights on the perimeter of the FLY
0207M010
[ Open for more informations ] [ Fold up ]
Eight red LED lights on the perimeter of the FLY
Ten red LED lights on the perimeter of the FLY
0207M015
[ Open for more informations ] [ Fold up ]
Ten red LED lights on the perimeter of the FLY
Four adjustable wheel clamps on bed
0501M010
[ Open for more informations ] [ Fold up ]
Four adjustable wheel clamps on bed
Four adjustable wheel clamps on bed (2 with flat and 2 standard)
0501M011
[ Open for more informations ] [ Fold up ]
Four adjustable wheel clamps on bed (2 with flat and 2 standard)
Four adjustable wheel clamps on bed (2 extra large with flat and 2 standard)
0501M012
[ Open for more informations ] [ Fold up ]
Four adjustable wheel clamps on bed (2 extra large with flat and 2 standard)
Eight adjustable wheel blocks on bed (4x public works & 4x light vehicle)
0501M020
[ Open for more informations ] [ Fold up ]
Eight adjustable wheel blocks on bed (4x public works & 4x light vehicle)
A remote control for winch, tilt and slide of the platform and working light (optional)
0902M045
[ Open for more informations ] [ Fold up ]
A remote control for winch, tilt and slide of the platform and working light (optional)
An additional 8 function radio transmitter (without radio receiver)
0901M020
[ Open for more informations ] [ Fold up ]
An additional 8-function radio transmitter (without radio receiver)
A protective cover for remote control 8 or 10 functions
0901M050
[ Open for more informations ] [ Fold up ]
A protective cover for remote control 8 or 10 functions (without remote control)
A remote control for raising and extending the Second Car Carrier SCC
0902M050
[ Open for more informations ] [ Fold up ]
A remote control for raising and extending the Second Car Carrier SCC
A remote control for hydraulic loading ramps
0902M100
[ Open for more informations ] [ Fold up ]
A remote control for hydraulic loading ramps
An additional 15-function radio transmitter (without radio receiver)
0901M030
[ Open for more informations ] [ Fold up ]
An additional 15-function radio transmitter (without radio receiver)
Two beacons fitted on the top of the cabin
0203M020
[ Open for more informations ] [ Fold up ]
Two beacons fitted on the top of the cabin
Two LED beacons fitted on dismountable gallows at the front of the platform
0203M040
[ Open for more informations ] [ Fold up ]
Two LED beacons fitted on dismountable gallows at the front of the platform
Two LED beacons installed on swinging stems at the rear of the equipment
0203M070
[ Open for more informations ] [ Fold up ]
Two LED beacons installed on swinging stems at the rear of the equipment
Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER
0201M020
[ Open for more informations ] [ Fold up ]
Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER
Lightbar 1750mm type XPERT with 4 beacons, a central light and sign WRECKER
0201M030
[ Open for more informations ] [ Fold up ]
Lightbar 1750mm type XPERT with 4 beacons, a central light and sign WRECKER
Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign
0201M040
[ Open for more informations ] [ Fold up ]
Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign
Delux SKY AIR 1780 flasher bar with 22 LEDS and BREAKDOWN sign
0201M050
[ Open for more informations ] [ Fold up ]
Delux SKY AIR 1780 flasher bar with 22 LEDS and BREAKDOWN sign
Reminder of traffic lights in the XPERT lightbar
0201M080
[ Open for more informations ] [ Fold up ]
Reminder of traffic lights in the XPERT lightbar
A work light fitted to the front of the equipment
0101M010
[ Open for more informations ] [ Fold up ]
A work light fitted to the front of the equipment
Two integrated work lights at the head of the platform
0101M020
[ Open for more informations ] [ Fold up ]
Two integrated work lights at the head of the platform
Four work lights fitted to the front of the equipment
0101M030
[ Open for more informations ] [ Fold up ]
Four work lights fitted to the front of the equipment
LED work lamps in a bar form 19200 lm luminosity 12/24 V length 1000mm located under the FLY with support
0101M070
[ Open for more informations ] [ Fold up ]
LED work lamps in a bar form 19200 lm luminosity 12/24 V length 1000mm located under the FLY with support
A work light fitted at the rear of the equipment
0101M040
[ Open for more informations ] [ Fold up ]
A work light fitted at the rear of the equipment
Two work lights fitted at the rear of the equipment
0101M050
[ Open for more informations ] [ Fold up ]
Two work lights fitted at the rear of the equipment
A telescopic lighting tower 12V / 24V height 1,58m to 3,65m with 5 LED projectors
0101M060
[ Open for more informations ] [ Fold up ]
A telescopic lighting tower 12V / 24V height 1,58m to 3,65m with 5 LED projectors and a pneumatic height controller
Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)
0106M010
[ Open for more informations ] [ Fold up ]
Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)
Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)
0106M020
[ Open for more informations ] [ Fold up ]
Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)
Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)
0106M050
[ Open for more informations ] [ Fold up ]
Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)
Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)
0204M010
[ Open for more informations ] [ Fold up ]
Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)
Three vests, three cones, shovel and broom with mounts
0706M010
[ Open for more informations ] [ Fold up ]
Three vests, three cones, shovel and broom with mounts
A sandbox for absorbent product with support
0704M010
[ Open for more informations ] [ Fold up ]
A sandbox for absorbent product with support
Two sandbox for absorbent product with support
0704M020
[ Open for more informations ] [ Fold up ]
Two sandbox for absorbent product with support
Two fire extinguishers mounted in a secure locker
0705M010
[ Open for more informations ] [ Fold up ]
Two fire extinguishers mounted in a secure locker
A 6 Kg fire extinguisher mounted in a secure locker
0705M020
[ Open for more informations ] [ Fold up ]
A 6 Kg fire extinguisher mounted in a secure locker
Two 6 Kg fire extinguisher mounted in a secure locker
0705M030
[ Open for more informations ] [ Fold up ]
Two 6 Kg fire extinguisher mounted in a secure locker
A plastic toolbox 750mm
0401M020
[ Open for more informations ] [ Fold up ]
A plastic toolbox 750mm
A plastic toolbox 1000mm
0401M030
[ Open for more informations ] [ Fold up ]
A plastic toolbox 1000mm
A plastic toolbox with opening from above 600mm
0401M040
[ Open for more informations ] [ Fold up ]
A plastic toolbox with opening from above 600mm
A plastic toolbox with opening from above 850mm
0401M050
[ Open for more informations ] [ Fold up ]
A plastic toolbox with opening from above 850mm
An inox toolbox 800mm
0402M030
[ Open for more informations ] [ Fold up ]
An inox toolbox 800mm
An inox toolbox 1000mm
0402M040
[ Open for more informations ] [ Fold up ]
An inox toolbox 1000mm
A stainless steel toolbox with top opening over the entire width fitted on the front of equipment
0402M120
[ Open for more informations ] [ Fold up ]
A stainless steel toolbox with top opening over the entire width fitted on the front of equipment
LED ceiling lighting in a toolbox
0107M010
[ Open for more informations ] [ Fold up ]
LED ceiling lighting in a toolbox
An open box with 3 plastic 10 liter jerricans with support
0404M010
[ Open for more informations ] [ Fold up ]
An open box with 3 plastic 10 liter jerricans with support
An open box with 3 steel 10 liter jerricans with support
0404M020
[ Open for more informations ] [ Fold up ]
An open box with 3 steel 10 liter jerricans with support
A closed box with 3 steel 10 liter jerricans with support
0404M030
[ Open for more informations ] [ Fold up ]
A closed box with 3 steel 10 liter jerricans with support
A washstand tank with faucet on a support
0404M060
[ Open for more informations ] [ Fold up ]
A washstand tank with faucet on a support
A 100 liter tank for polluted fuel recovery
0404M040
[ Open for more informations ] [ Fold up ]
A 100 liter tank for polluted fuel recovery with a pneumatic pump and a suction hose
An open galvanized mesh tray for chains with support
0405M010
[ Open for more informations ] [ Fold up ]
An open galvanized mesh tray for chains with support
An open mesh tray for chains with sliding support
0405M020
[ Open for more informations ] [ Fold up ]
An open mesh tray for chains with sliding support
Two tool boxes on each side of the winch
0405M060
[ Open for more informations ] [ Fold up ]
Two tool boxes on each side of the winch
Two wheel dollies type "GO-JACK 5211" (without support) (maximum speed: 10 Km/h)
0502M011
[ Open for more informations ] [ Fold up ]
Two wheel dollies type "GO-JACK 5211" (without support) (maximum speed: 10 Km/h)
Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 5211" (without dollies)
0502M021
[ Open for more informations ] [ Fold up ]
Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 5211" (without dollies)
An open support on the equipment for two wheel dollies type "GO-JACK 5211" (without dollies)
0502M031
[ Open for more informations ] [ Fold up ]
An open support on the equipment for two wheel dollies type "GO-JACK 5211" (without dollies)

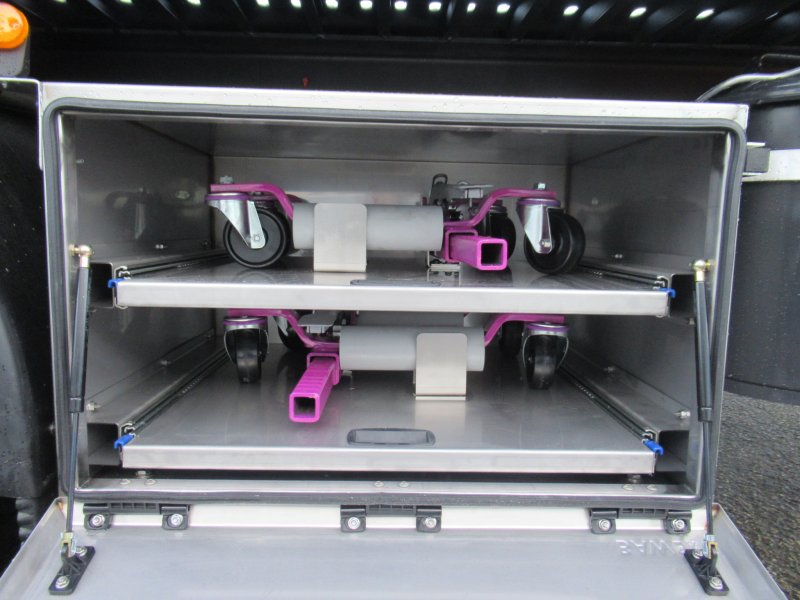

A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 5211" (without dollies)
0502M041
[ Open for more informations ] [ Fold up ]
A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 5211" (without dollies)
Two wheel dollies type "CHARIOTTE " (without support)
0502M060
[ Open for more informations ] [ Fold up ]
Two wheel dollies type "CHARIOTTE " (without support) (maximum speed: 10 Km/h)
Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)
0502M070
[ Open for more informations ] [ Fold up ]
Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)
An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)
0502M080
[ Open for more informations ] [ Fold up ]
An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)
A closed stainless steel storage box with a fixed shelf for two wheel dollies type "CHARIOTTE" (without dollies)
0502M090
[ Open for more informations ] [ Fold up ]
A closed stainless steel storage box with a fixed shelf for two wheel dollies type "CHARIOTTE" (without dollies)
Two wheel dollies type "GO-JACK 6313" (without support)
0502M100
[ Open for more informations ] [ Fold up ]
Two wheel dollies type "GO-JACK 6313" (without support) (maximum speed: 10 Km/h)
Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 6313" (without dollies)
0502M110
[ Open for more informations ] [ Fold up ]
Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 6313" (without dollies)
An open support on the equipment for two wheel dollies type "GO-JACK 6313" (without dollies)
0502M120
[ Open for more informations ] [ Fold up ]
An open support on the equipment for two wheel dollies type "GO-JACK 6313" (without dollies)
A closed steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 6313"
0502M130
[ Open for more informations ] [ Fold up ]
A closed steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 6313" (without dollies)
A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 6313"
0502M135
[ Open for more informations ] [ Fold up ]
A closed stainless steel storage box with a fixed shelf for two wheel dollies type "GO-JACK 6313" (without dollies)
Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)
0502M140
[ Open for more informations ] [ Fold up ]
Two wheel dollies type "FOURRIERE" (without support) (maximum speed: 50 Km/h)
An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)
0502M150
[ Open for more informations ] [ Fold up ]
An open support on the equipment for two wheel dollies type "FOURRIERE" (without dollies)
A closed steel storage box with a fixed shelf for two wheel dollies type "FOURRIERE" (without dollies)
0502M160
[ Open for more informations ] [ Fold up ]
A closed steel storage box with a fixed shelf for two wheel dollies type "FOURRIERE" (without dollies)
A towing dolly with inflatable fixed wheels type SPEED DOLLY galvanized 1380 Kg
0502M170
[ Open for more informations ] [ Fold up ]
A towing dolly with inflatable fixed wheels type SPEED DOLLY galvanized 1380 Kg (maximum speed: 90 km/h) (without support)
An open support on the equipment for dollies type "SPEED DOLLY " zinc-coated 1380 Kg and for telescopic bars
0502M180
[ Open for more informations ] [ Fold up ]
An open support on the equipment for dollies type "SPEED DOLLY " zinc-coated 1380 Kg and for telescopic bars (without trolley) (on equipment excluding 4x4)
Two jumper cables with two 12V and 24V plugs on the front right of the equipment
1202M020
[ Open for more informations ] [ Fold up ]
Two jumper cables with two 12V and 24V plugs on the front right of the equipment
Two jumper cables with two 12V and 24V plugs in the right rear overhang of the equipment
1202M040
[ Open for more informations ] [ Fold up ]
Two jumper cables with two 12V and 24V plugs in the right rear overhang of the equipment
Two jumper cables with two 12V and 24V plugs on the front left and right of the equipment (on each side)
1202M050
[ Open for more informations ] [ Fold up ]
Two jumper cables with two 12V and 24V plugs on the front left and right of the equipment (on each side)
A special motorcycle wedge with an articulated and adjustable shoe
0503M010
[ Open for more informations ] [ Fold up ]
A special motorcycle wedge with an articulated and adjustable shoe for fitting the wheel, 2 ratchet straps, 1 short traction sling, 1 special motorcycle handlebar strap and a storage rack on the equipment
A return pulley type DIABOLO with 6 sockets in the floor and support
1108M020
[ Open for more informations ] [ Fold up ]
A return pulley type DIABOLO with 6 sockets in the floor and support
Eight angled roller cable guides fixed to bed
1108M030
[ Open for more informations ] [ Fold up ]
Eight angled roller cable guides fixed to bed
A 3 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm
0504M020
[ Open for more informations ] [ Fold up ]
A 3 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm, removeable and adjustable galvanised lift forks, two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck
A 3 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm
0504M080
[ Open for more informations ] [ Fold up ]
A 3 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm, removeable and adjustable galvanised lift forks, crane head with pulley and two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck
A 4 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation
0504M040
[ Open for more informations ] [ Fold up ]
A 4 tons SCC type “HYDROLIFT” galvanised with hydraulic elevation and extension 1200 mm, removeable and adjustable galvanised lift forks, two rollers mounted under the deck, 4 chassis and axle lift forks, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck (weight = 450 Kg)
A 4 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation
0504M100
[ Open for more informations ] [ Fold up ]
A 4 tons SCC type “Combilift” galvanised combination lift with hydraulic elevation and extension 1200mm, removeable and adjustable galvanised lift forks, 4 chassis and axle lift forks, crane head with pulley and two rollers mounted under the deck, hitch ball diam. 50, two ratchet type straps to secure wheels to the deck
A removable part adaptable to the Second Car Carrier with 2 pins and vertical spades for planting in the ground by lowering the Second Car Carrier
0504M150
[ Open for more informations ] [ Fold up ]
A removable part adaptable to the Second Car Carrier SCC with 2 pins and vertical spades for planting in the ground by lowering the Second Car Carrier with a support on the equipment and replacing the single-acting valve with a double-acting valve for the lifting cylinders of the SCC
Double hydraulic extension of the SCC to 1800 mm to allow the use of the manual or hydraulic ramps (PF60-PF65)
0504M130
[ Open for more informations ] [ Fold up ]
Double hydraulic extension of the SCC to 1800 mm to allow the use of the manual or hydraulic ramps (PF60-PF65)
Two magnetic towing lights with electric cables and flexible yellow plate
0205M010
[ Open for more informations ] [ Fold up ]
Two magnetic towing lights with electric cables and flexible yellow plate
Two suction towing lights with electric cables and flexible yellow plate
0205M020
[ Open for more informations ] [ Fold up ]
Two suction towing lights with electric cables and flexible yellow plate
Two magnetic towing lights 24V with radio control and flexible yellow plate
0205M030
[ Open for more informations ] [ Fold up ]
Two magnetic towing lights 24V with radio control and flexible yellow plate
Two suction towing lights with radio control and flexible yellow plate
0205M040
[ Open for more informations ] [ Fold up ]
Two suction towing lights with radio control and flexible yellow plate
A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)
0205M070
[ Open for more informations ] [ Fold up ]
A yellow aluminum rigid towing plate with rubber protection and traffic lights (without support)
Winching on the Second Car Carrier (SCC) using the deck winch
1103M170
[ Open for more informations ] [ Fold up ]
Winching on the Second Car Carrier (SCC) using the deck winch and a hauling pulley on the Second Car Carrier (SCC)
A 3T6 hydraulic winch with 20 m cable diam. 10, cable guide, fitted on the second car carrier
1103M090
[ Open for more informations ] [ Fold up ]
A 3T6 hydraulic winch with 20 m cable diam. 10, cable guide, fitted on the second car carrier SCC with a remote control coupled with the winch of the plateform. An adaptable towing hook on the Second Car Carrier SCC with 2 pins
A 4T5 hydraulic winch with 30 m cable diam. 10, cable guide, fitted on the second car carrier SCC
1103M100
[ Open for more informations ] [ Fold up ]
A 4T5 hydraulic winch with 30 m cable diam. 10, cable guide, fitted on the second car carrier SCC with a remote control coupled with the winch of the plateform. An adaptable towing hook on the Second Car Carrier SCC with 2 pins
Two small aluminium ramps 700x250 mm with support on equipment for loading vehicles on the platform with trolleys
0506M010
[ Open for more informations ] [ Fold up ]
Two small aluminium ramps 700x250 mm with support on equipment for loading vehicles on the platform with trolleys
Two aluminum ramps 1000x270 mm to improve the loading angle
0506M020
[ Open for more informations ] [ Fold up ]
Two aluminum ramps 1000x270 mm to improve the loading angle with a storage tray under the equipment
Two aluminum ramps 1250x500 mm adaptable at the end of the platform to allow the overflow of the wheels of the transported vehicle with a support under the equipment
0506M030
[ Open for more informations ] [ Fold up ]
Two aluminum ramps 1250x500 mm adaptable at the end of the platform to allow the overflow of the wheels of the transported vehicle with a support under the equipment
Two hydraulic rear ramps in galvanized steel without holes
0506M080
[ Open for more informations ] [ Fold up ]
Two hydraulic rear ramps in galvanized steel without holes, hydraulically sliding in separate drawers on the left and right under the floor (weight = 300 kg)
Anti-slip aluminium protectors on top of the two sides of the platform
0301M110
[ Open for more informations ] [ Fold up ]
Anti-slip aluminium protectors on top of the two sides of the platform
Stainless steel protections on the side of the platform with flat 10mm border
0301M111
[ Open for more informations ] [ Fold up ]
Stainless steel protections on the side of the platform with flat 10mm border
Rear, side mounted two hydraulic stabilisers with separate controls and manual distribution
0308M040
[ Open for more informations ] [ Fold up ]
Rear, side mounted two hydraulic stabilisers with separate controls and manual distribution (bearing width 2500 mm)
A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm
0601M055
[ Open for more informations ] [ Fold up ]
A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm
A 3 points lashing strap for light vehicle
0601M050
[ Open for more informations ] [ Fold up ]
A 3 points lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 3000x50mm
A 6T ring of hauling welded front of the winch
0604M070
[ Open for more informations ] [ Fold up ]
A 6T ring of hauling welded front of the winch
Six 7T lashing rings articulated and welded on the floor (3 per side)
0604M106
[ Open for more informations ] [ Fold up ]
Six 7T lashing rings articulated and welded on the floor (3 per side)
Eight hitch hooks 7T welded on the floor of platform (4 per side)
0604M116
[ Open for more informations ] [ Fold up ]
Eight hitch hooks 7T welded on the floor of platform (4 per side)
Ten 7T lashing rings articulated and welded on the floor (5 per side)
0604M126
[ Open for more informations ] [ Fold up ]
Ten 7T lashing rings articulated and welded on the floor (5 per side)
Ten-heads stowage embedded in the floor for your chains (5 per side)
0604M050
[ Open for more informations ] [ Fold up ]
Ten-heads stowage embedded in the floor for your chains (5 per side)
Hanging systems straps welded under the top of the two sides for securing with straps
0604M140
[ Open for more informations ] [ Fold up ]
Hanging systems straps welded under the top of the two sides for securing with straps
Rear view camera in color with flat screen in the cabin
0803M010
[ Open for more informations ] [ Fold up ]
Rear view camera in color with flat screen in the cabin
Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin
0803M030
[ Open for more informations ] [ Fold up ]
Dual camera in color for rear and platform view installed under the FLY and at the rear of the vehicule with color flat screen in the cabin
Installation of an air intake in the hydraulic controls toolbox
1205M020
[ Open for more informations ] [ Fold up ]
Installation of an air intake in the hydraulic controls toolbox
Pneumatic reel (connected to the circuit) with 10m hose
1204M010
[ Open for more informations ] [ Fold up ]
Pneumatic reel (connected to the circuit) with 10m hose, pressure gauge in a toolbox already provided on the equipment
Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane
0301M015
[ Open for more informations ] [ Fold up ]
Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane
Painting of the stylized aluminum profiles in the wheelbase in a standard color
0313M220
[ Open for more informations ] [ Fold up ]
Painting of the stylized aluminum profiles in the wheelbase (painting of toolbox doors not included) in a standard color RAL=
Painting of a tool box door or the control box (unit price)
0313M230
[ Open for more informations ] [ Fold up ]
Painting of a tool box door or the control box (unit price) (multiply by the number of boxes to be painted) in a standard color same as the body
Stylized polyester body in the wheelbase (for chassis cab from 10T to 19T)
0301M020
[ Open for more informations ] [ Fold up ]
Stylized polyester body in the wheelbase with rear fenders in polyurethane (for chassis cab from 10T to 19T) painted in a RAL color standard =
tylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T)
0301M030
[ Open for more informations ] [ Fold up ]
Stylized aluminum body in the wheelbase height 600mm with rear fenders in polyurethane (for chassis from 12T to 32T, with tool box only opening from above behind the aluminum body) painted in a standard color RAL =
Full stylized polyester fenders painted in a standard color same as body (not included)
0301M040
[ Open for more informations ] [ Fold up ]
Full stylized polyester fenders painted in a standard color same as body (not included)
Polyester rear overhang (without wings) with a box for the hydraulic controls at the right rear and a tool box at the left rear
0301M050
[ Open for more informations ] [ Fold up ]
Polyester rear overhang (without wings) with a box for the hydraulic controls at the right rear and a tool box at the left rear with hinged doors (for chassis from 10T to 32T), painted in a standard color (not metallic) same as body
A winch spare wheel
0308M010
[ Open for more informations ] [ Fold up ]
A winch spare wheel holder secured to the side of the chassis
Body with sliding full sliding tarpaulin type LIB, a closed front face of the platform over the entire height
0301M185
[ Open for more informations ] [ Fold up ]
Body with sliding full sliding tarpaulin type LIB, a closed front face of the platform over the entire height, steel arch type tarpaulin hooves sliding on carrier rollers in a rail fixed side of the lateral banks. Standard color nylon tarpaulin with integrated webbing and tensioner system. Sliding of the roof and accordion type with stacking on the front and manual deployment.
Useful height = 2750 mm (to be specified)
Effective width = 2450 mm (for outdoor use 2550 mm)
Effective length = 6000 to 7500 mm (according to chassis)

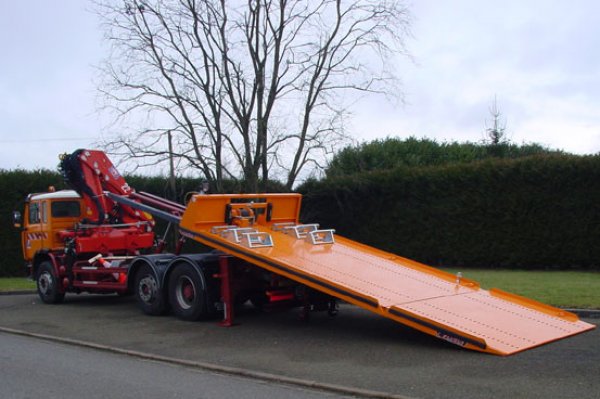

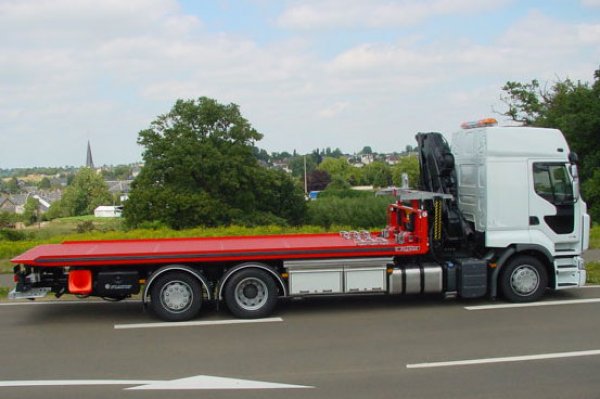

Supply and installation of a hydraulic crane behind the cabin
0607M130
[ Open for more informations ] [ Fold up ]
Supply and installation of a hydraulic crane behind the cabin (capacity of the crane to define) with manufacture of a special subframe with side fixing plates and connection to the hydraulic circuit of the equipment without valve using a special variable hydraulic distributor, electrical connections, set-up, adjustments and acceptance of conformity by us
White reflective tape on the edge of the platform
0801M010
[ Open for more informations ] [ Fold up ]
White reflective tape on the edge of the platform
Orange reflective tape on the edge of the platform
0801M020
[ Open for more informations ] [ Fold up ]
Orange reflective tape on the edge of the platform
PTO for heavy vehicle not original fitted
1003M030
[ Open for more informations ] [ Fold up ]
PTO for heavy vehicle not original fitted
"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)
0707M010
[ Open for more informations ] [ Fold up ]
"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)
In order to generate your summary sheet, please fill in this contact form. We will contact you as soon as possible.
