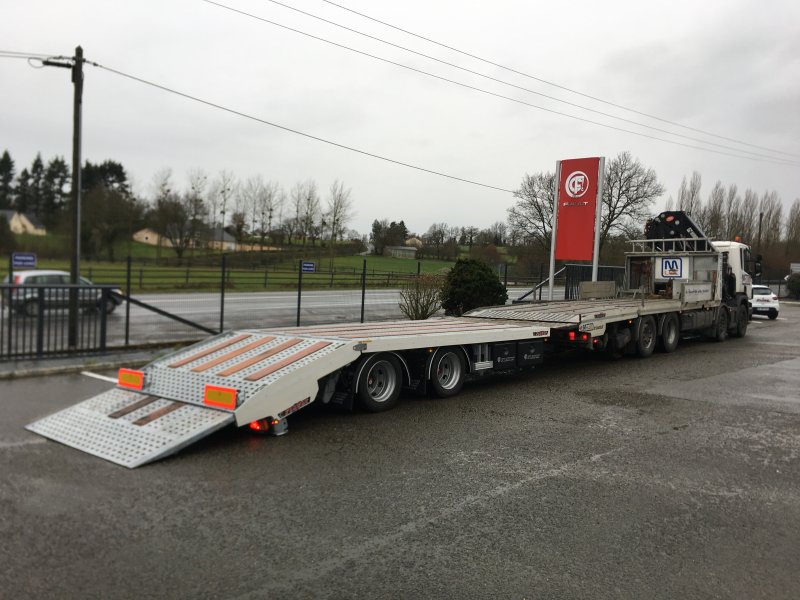

TRAILER 19000F WITH REAR HYDRAULIC OVERHANGS AND HYDRAULIC RAMP

-An integral chassis in H mechanically welded steel with high mechanical resistance
-A manually adjustable drawbar with mechanical locking
-Two central axles unit load 8000 kg with 375 mm disc brakes
-Air suspension lowerable with valve rising and falling on the side
-An air brake system approved by C.E.E. with A.B.S.
-Eight wheels under floor diameter 255 / 60R19.5
-A spare wheel with wheel carrier under chassis
-A manually adjustable stabilizing stand
-An integral floor made of 4mm galvanized and ribbed sheet steel with setting holes
-Rear overhang articulated on axes and hydraulically lowerable by means of 2 cylinders
-Full width loading ramp with hydraulic outlet to the ground
-A reinforced bumper with built-in signaling and support legs
-Two integral wings with anti-projection flaps
-A hydraulic distributor in a protective box with lighting on the right side
-A tool box, positioned between the wheels on the left side
-Eight tie-down heads embedded in the floor
-Eight adjustable shims on the floor over the entire length
-Hydraulic hoses for connection to the truck circuit
-Electricity compliant with the highway code
-Painting in a standard solid color in RAL: (to be specified)
-TRAILER CONFORMS TO FRENCH REGULATION

Dimensions:
-Useful length of the floor: 6000mm to 8500mm (to be defined)
-Useful width of the floor = 2550 mm
-Gross vehicle weight rating GVWR= 15990 Kg or 19000 Kg
-Unloaded weight (without option) = 5500 Kg
-Payload (without options) = 10490 Kg or 13500 Kg
