On chassis cab : 3T5 to 5T
(Fitted on a 13 pin tow plug and reinforced suspensions)

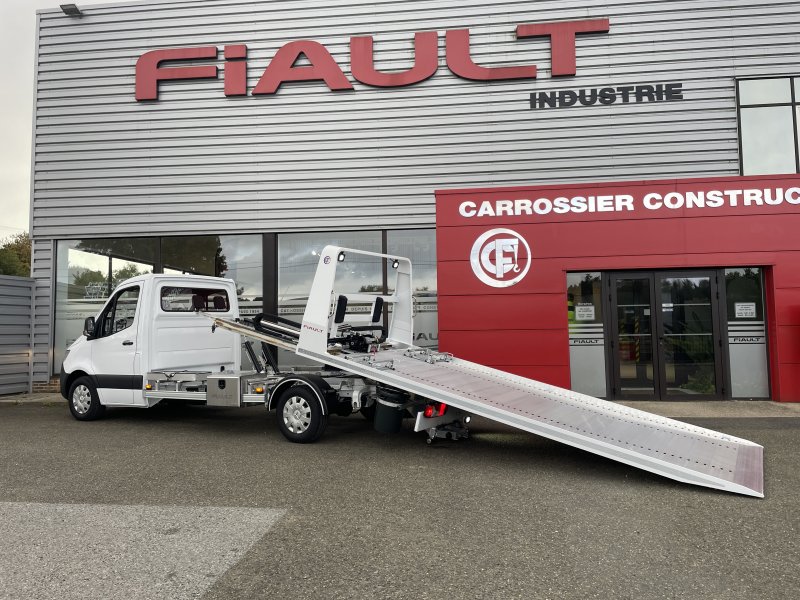

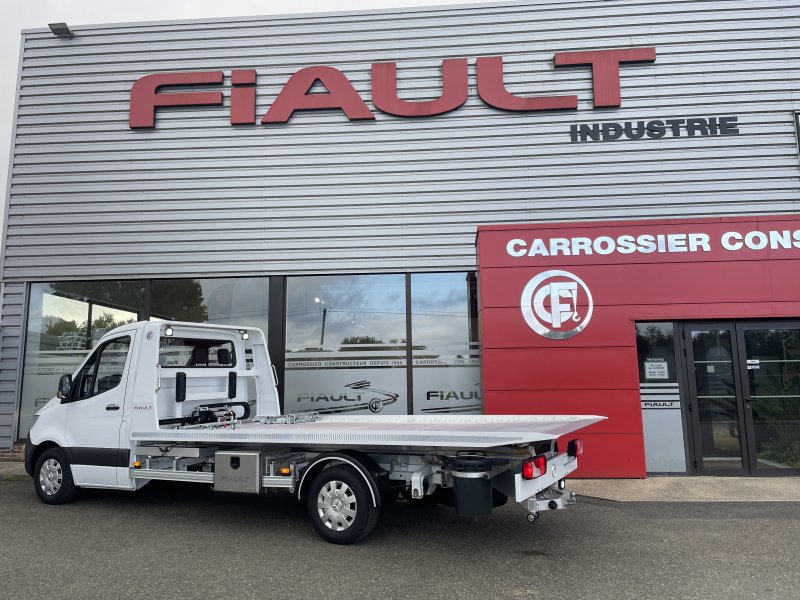

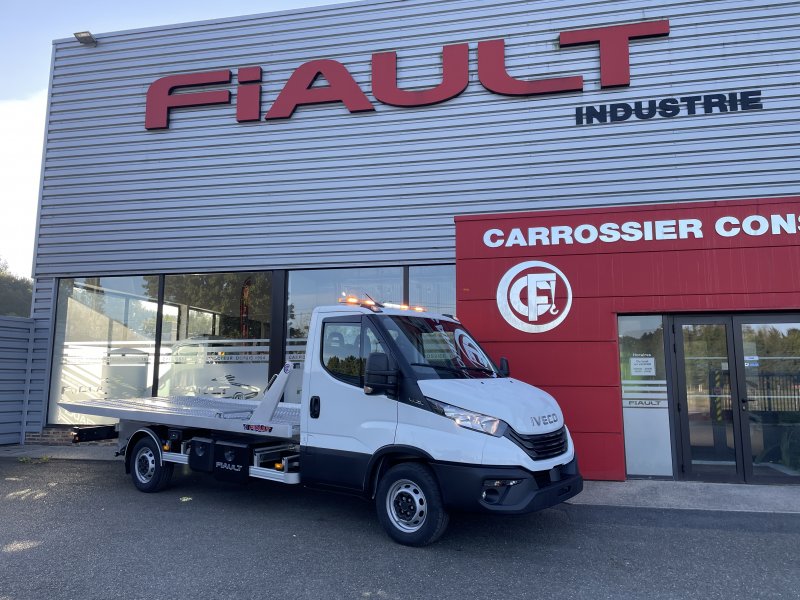

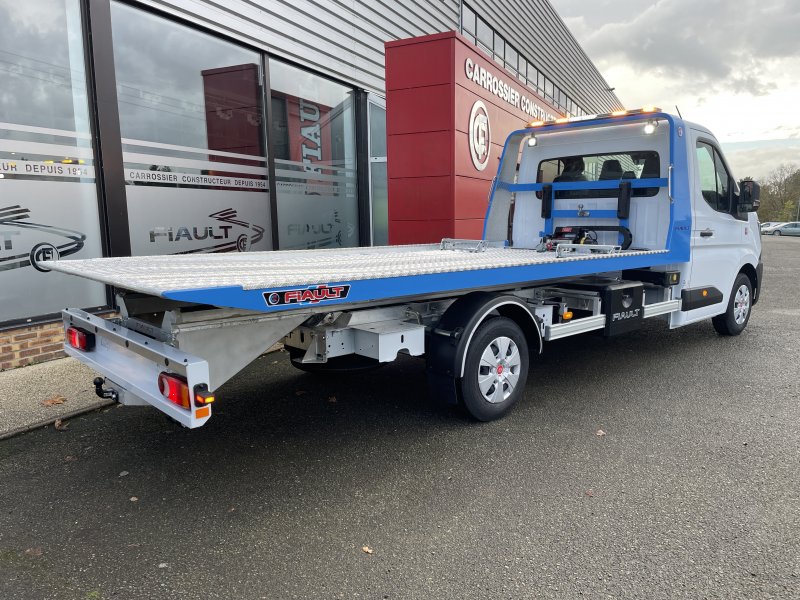

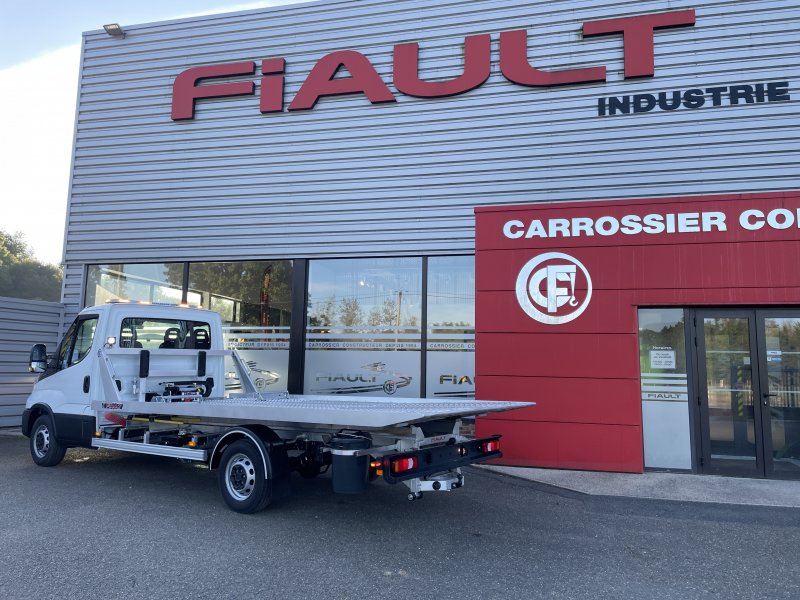

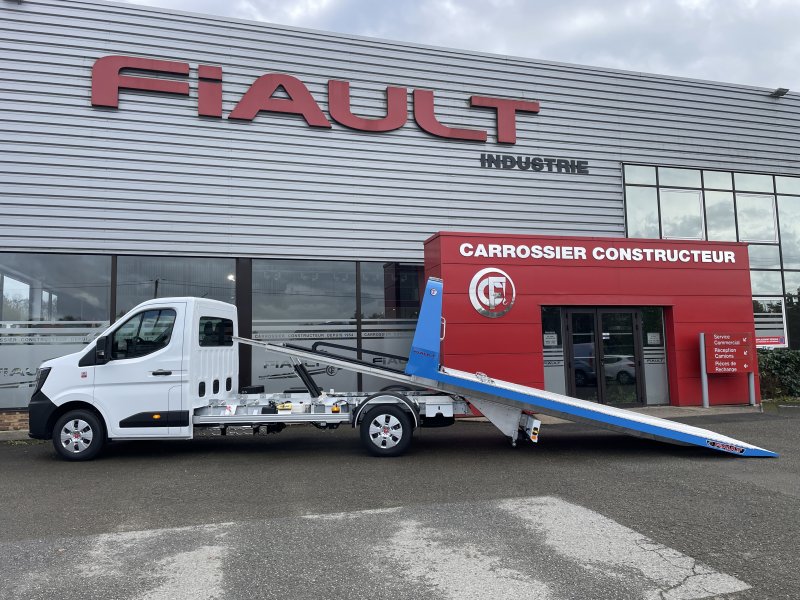

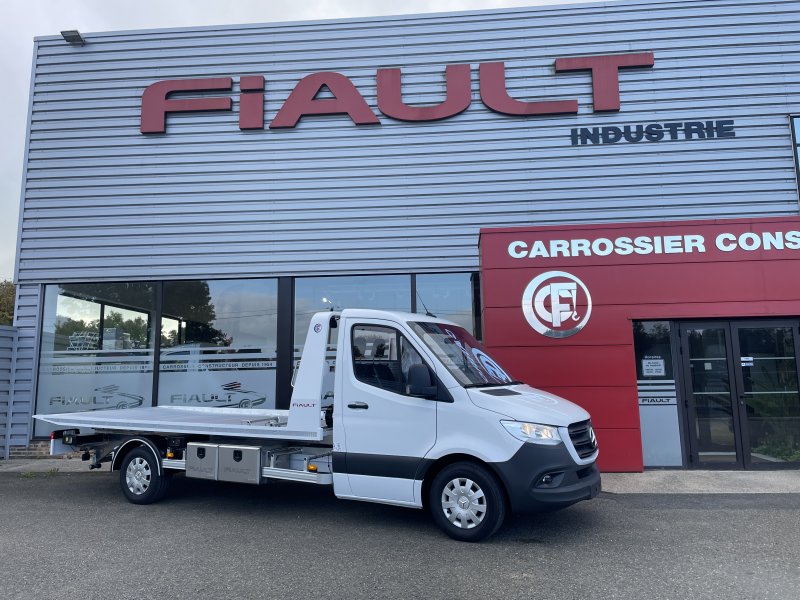

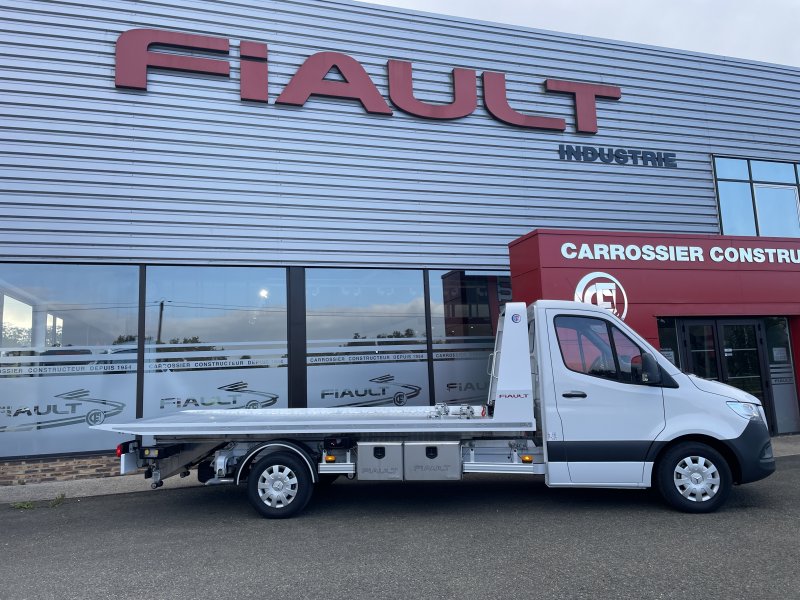

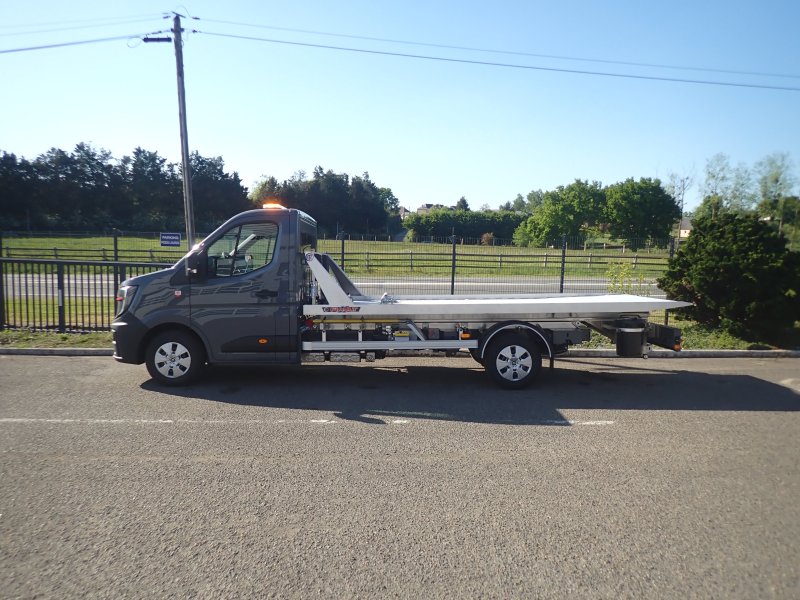

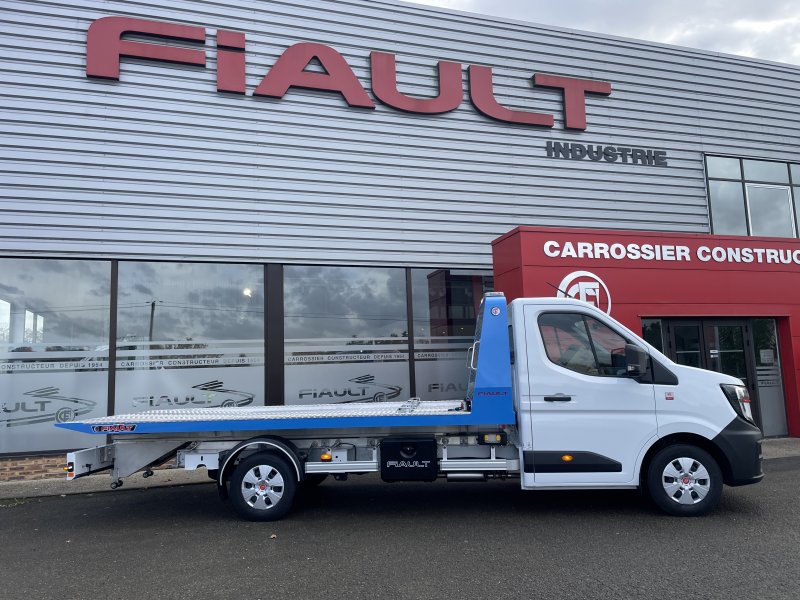

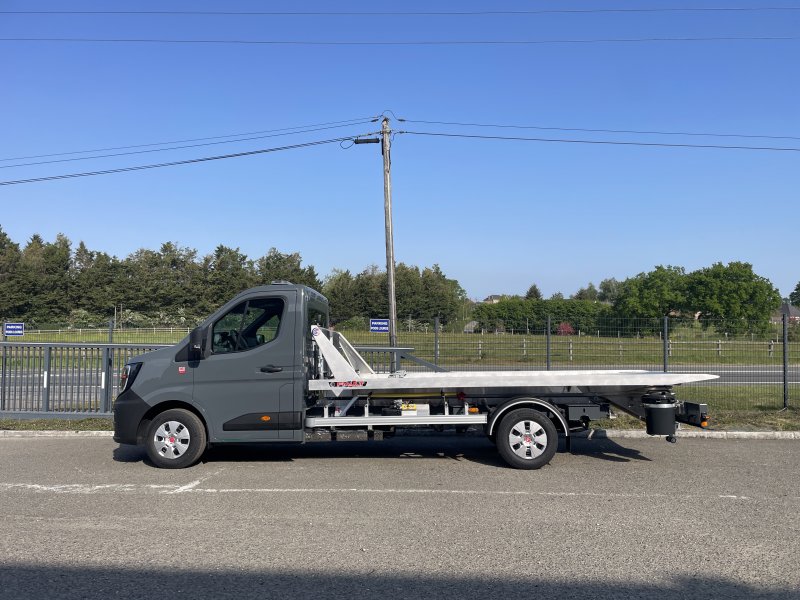

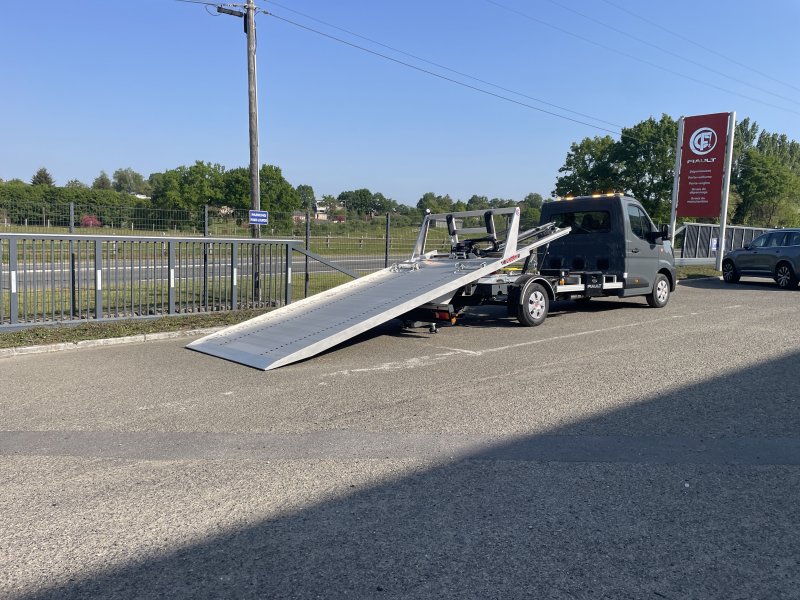

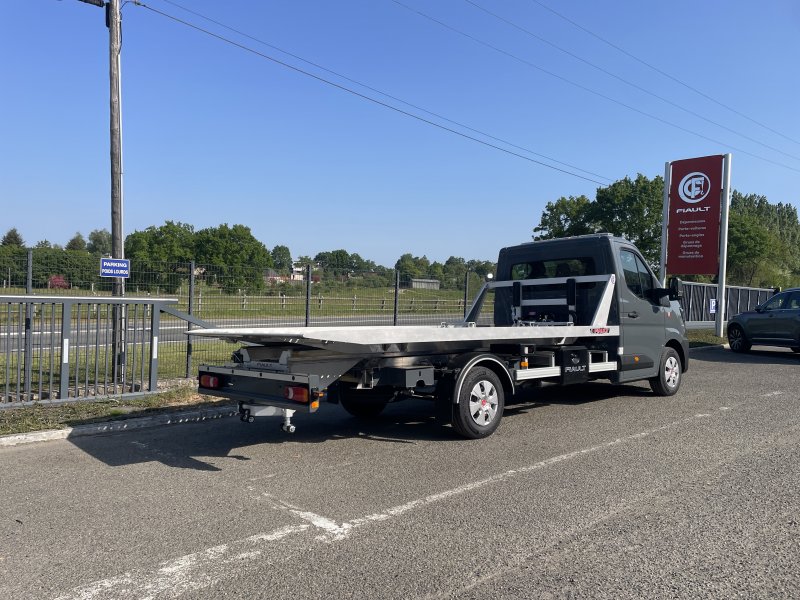

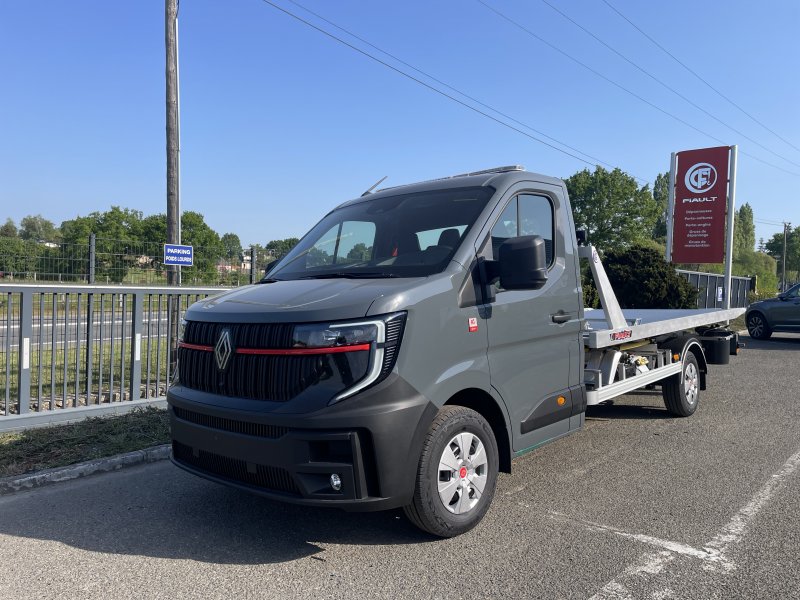

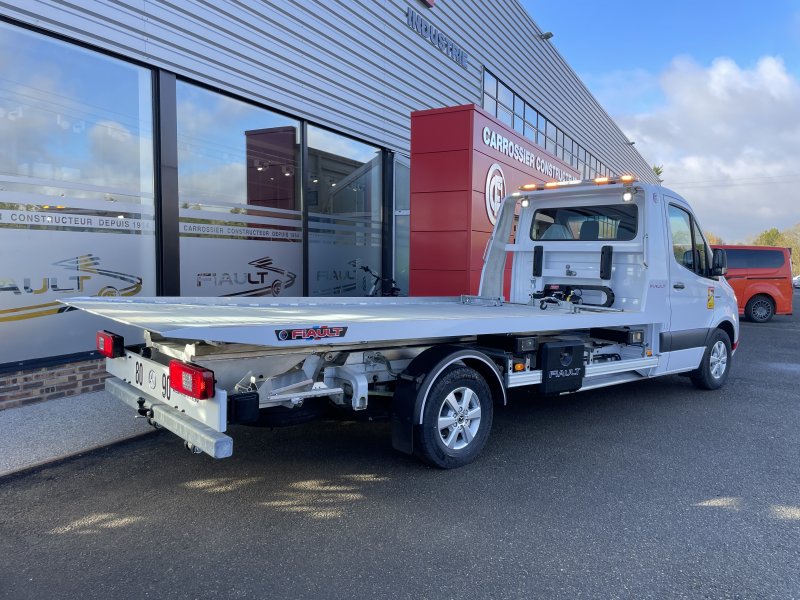

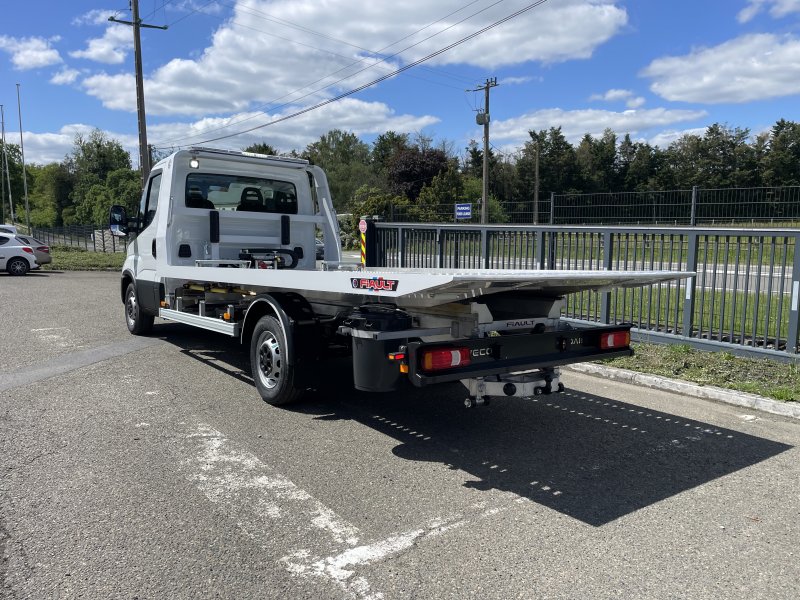

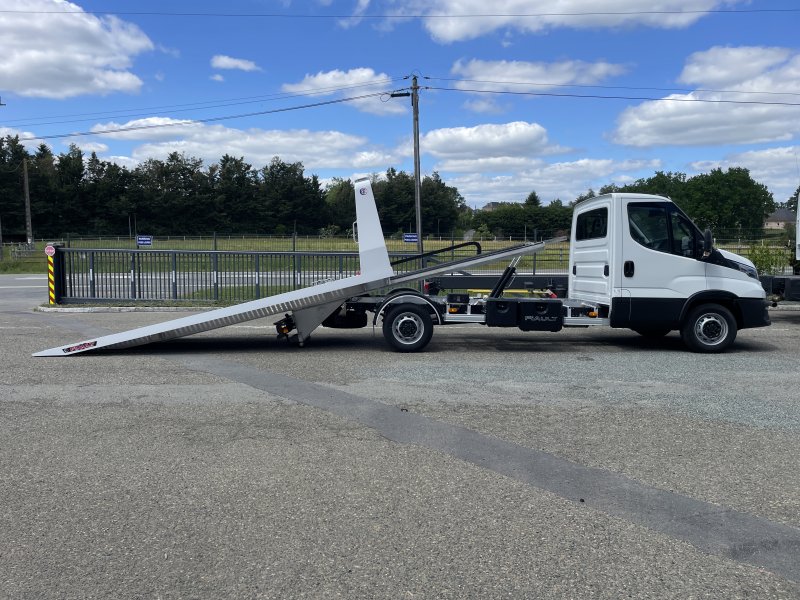

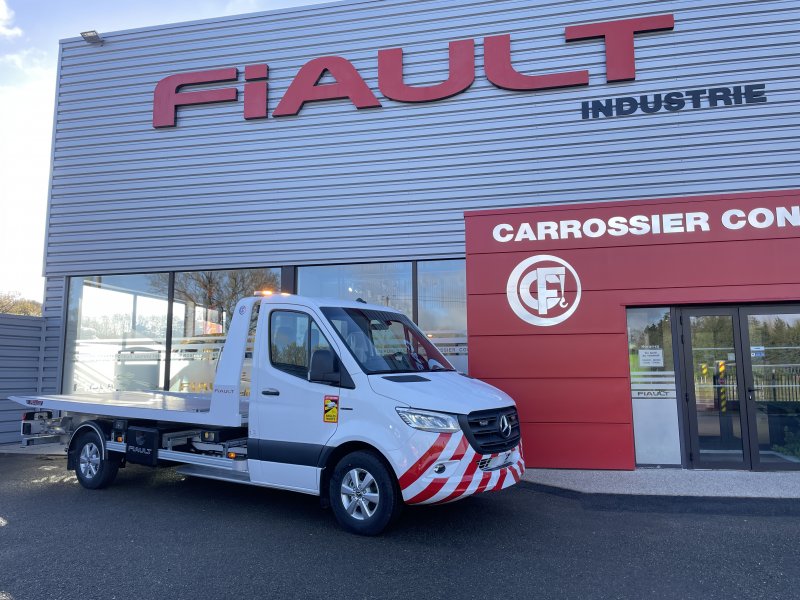

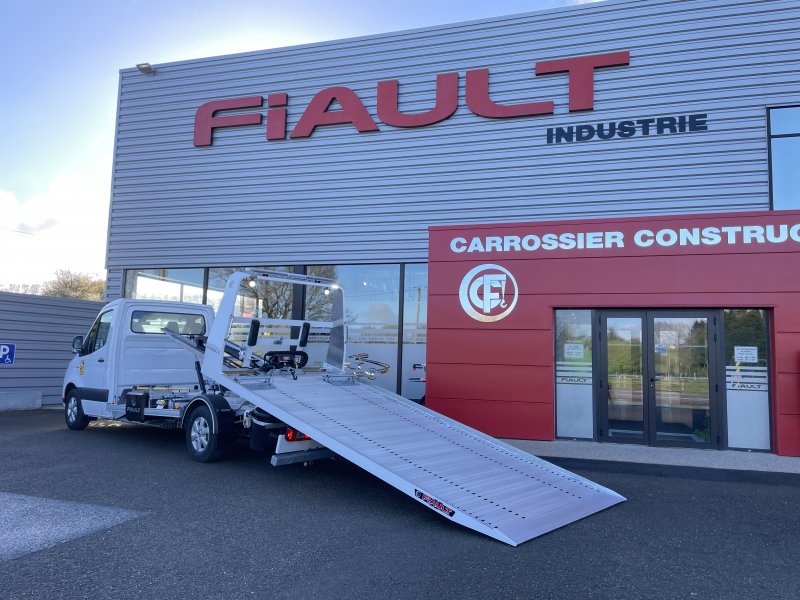

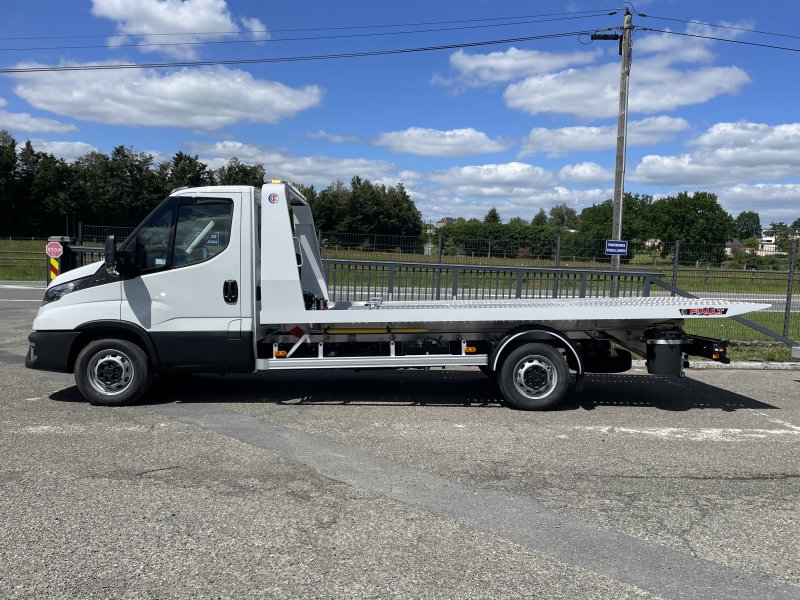

PLAT'TRANS PF20 ALU : SLIDING AND TILTING ALU DECK CAR TRANSPORTER (Electric or Hydraulic version optional)

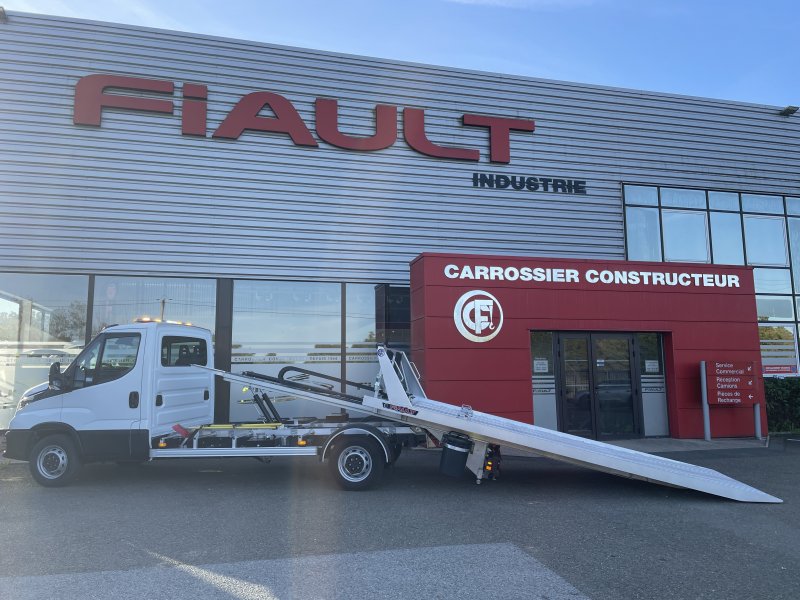

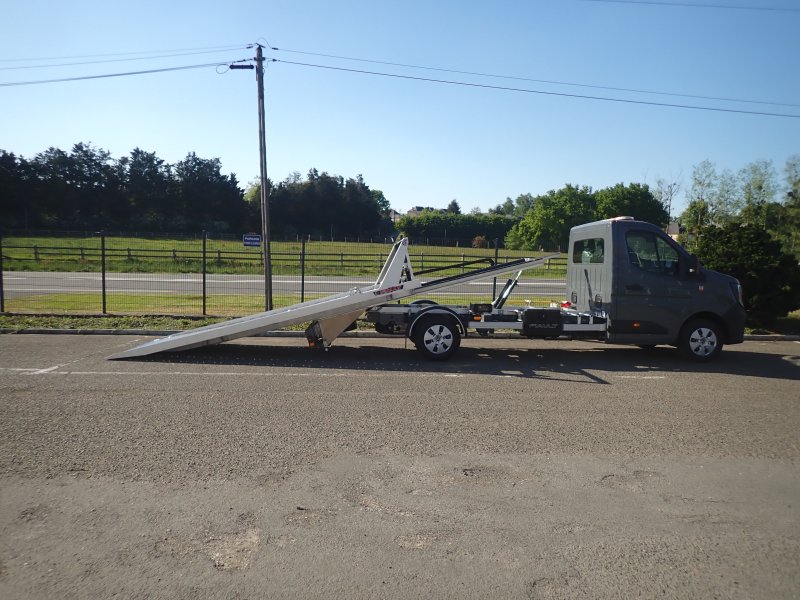

-Slide and tilt welded aluminium load deck
-Deck slides on reinforced aluminium rails with nylon slides
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide

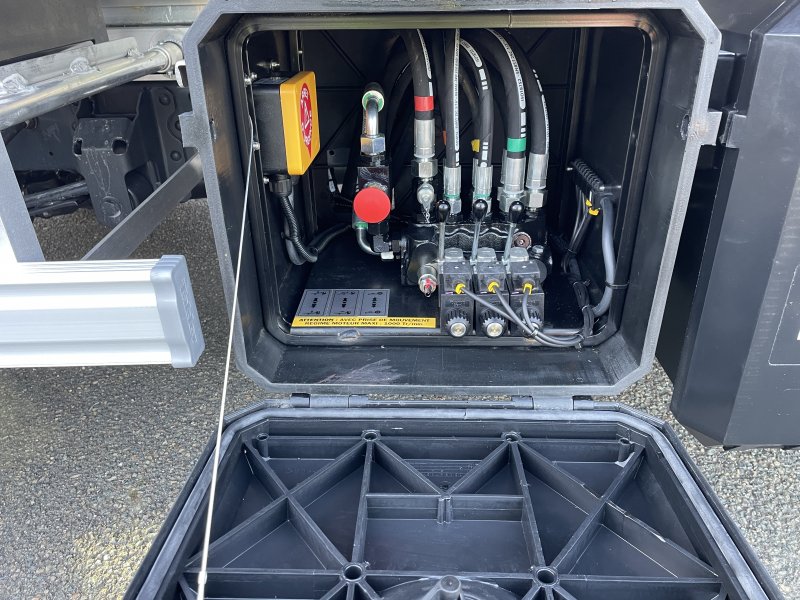

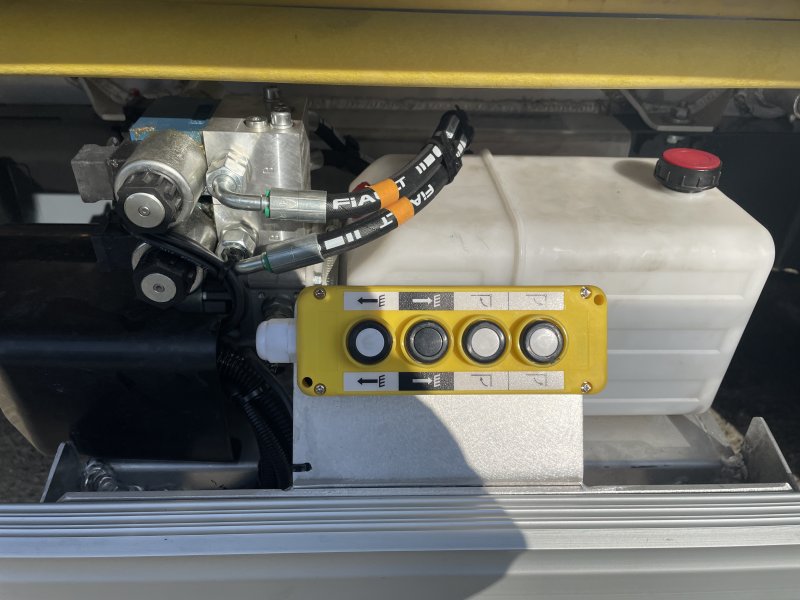

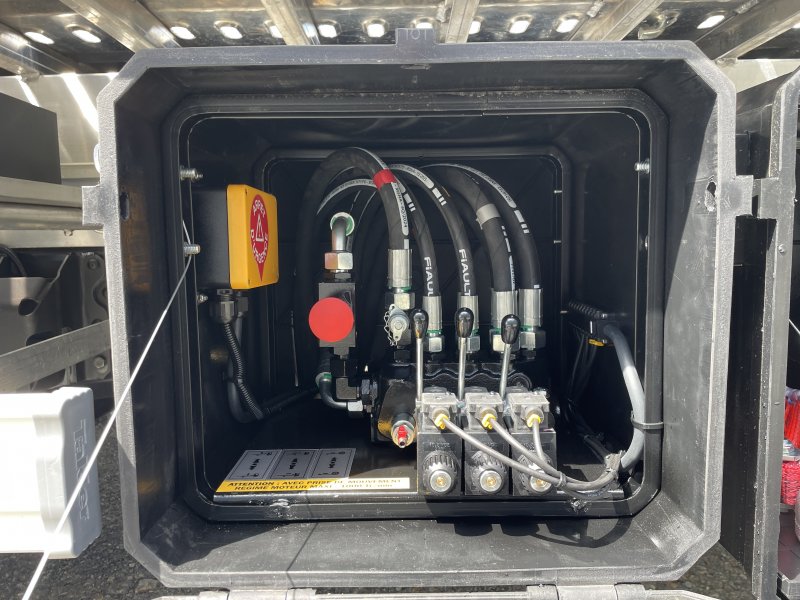

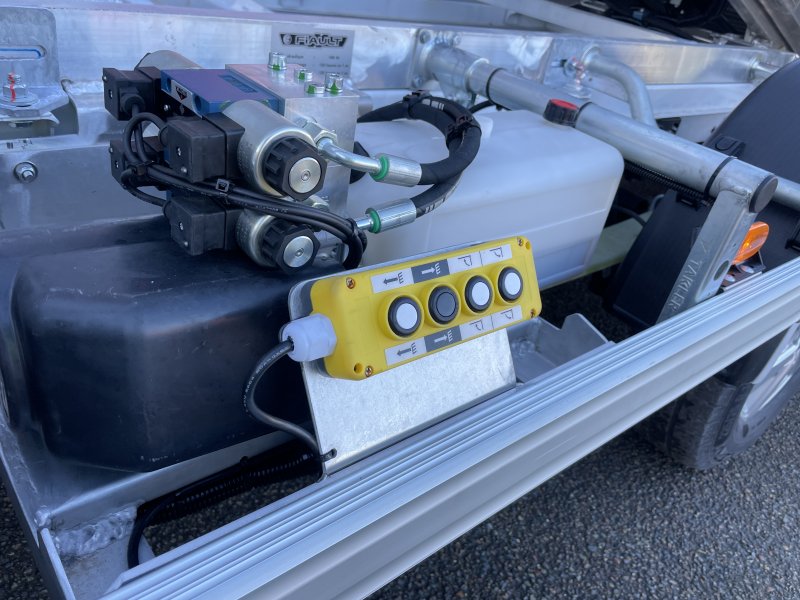

-Hydraulic system with electro hydraulic group
-Integrated wheel arches with mud guards
-Two rear stabilisers
-Reinforced aluminium sheet bed with nonslip finish (RIB/NERVURE) and full length holes (working width 2000mm)
-Bar to protect the cabin with two rubber stops
-Four ton electric (12v) winch with wired remote control and twenty metres of cable
-Manual translation of the winch
-Four adjustable wheel clamps on bed
-A remote control for winch, tilt and slide of the platform and working light (if option)
-Fixed ball coupling hook diam. 50 at the rear of the equipment
-Deck entirely aluminium, no paint
-VEHICLE CONFORMS TO FRENCH REGULATIONS
Dimensions :
Exterior bed length = 4900 mm
Exterior bed width = 2100 mm
Technical capacity = 2000 Kg
Payload = to calculate according to the chassis cab
Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.
PLAT'TRANS PF20 ALU (electric or hydraulic version following the winch)
00-PF20ALU
[ Open for more informations ] [ Fold up ]
PLAT'TRANS PF20 ALU : SLIDING AND TILTING ALU DECK CAR TRANSPORTER (Electric or Hydraulic version optional)
-Slide and tilt welded aluminium load deck
-Deck slides on reinforced aluminium rails with nylon slides
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide
-Hydraulic system with electro hydraulic group
-Integrated wheel arches with mud guards
-Two rear stabilisers
-Deck entirely aluminium, no paint
-VEHICLE CONFORMS TO FRENCH REGULATIONS
Dimensions :
Exterior bed length = 4900 mm
Exterior bed width = 2100 mm
Technical capacity = 2000 Kg
Payload = to calculate according to the chassis cab
Reinforced aluminium sheet bed with nonslip finish (RIB/NERVURE)
0309M090
[ Open for more informations ] [ Fold up ]
Reinforced aluminium sheet bed with nonslip finish (RIB/NERVURE) and full length holes (working width 2000mm)
Extruded aluminium floor type AUTOPORTANT
0309M095
[ Open for more informations ] [ Fold up ]
Extruded aluminium floor type AUTOPORTANT (edges with a flat, useful width 2080mm instead of 2000mm) replacing the floor with aluminium tear plates with rib
Two fastening rings in the aluminium floor (2 at the rear)
0604M081
[ Open for more informations ] [ Fold up ]
Two fastening rings in the aluminium floor (2 at the rear)
Four fastening rings in the aluminium floor (2 in the middle + 2 at the rear)
0604M091
[ Open for more informations ] [ Fold up ]
Four fastening rings in the aluminium floor (2 in the middle + 2 at the rear)
Two support rollers at the rear of the equipment under the platform
0309M190
[ Open for more informations ] [ Fold up ]
Two support rollers at the rear of the equipment under the platform
Four ton electric (12v) winch
1102M010
[ Open for more informations ] [ Fold up ]
Four ton electric (12v) winch with wired remote control and twenty metres of cable
A 3T6 hydraulic winch with 20 m cable diam. 10, cable guide, hydraulic circuit with pump, tank, distributors in replacement of the electric winch and the electric group (on equipment fitted on a PTO)
1103M015
[ Open for more informations ] [ Fold up ]
A 3T6 hydraulic winch with 20 m cable diam. 10, cable guide, hydraulic circuit with pump, tank, distributors in replacement of the electric winch and the electric group (on equipment fitted on a PTO)
A 4T5 hydraulic winch with 30 m cable diam. 10 and cable guide replacing the 3T6 hydraulic winch
1103M019
[ Open for more informations ] [ Fold up ]
A 4T5 hydraulic winch with 30 m cable diam. 10 and cable guide replacing the 3T6 hydraulic winch
Replacing the fixed winch cable hook with a rotating hook
1104M040
[ Open for more informations ] [ Fold up ]
Replacing the fixed winch cable hook with a rotating hook
A rubber end stop for winch cable
1104M050
[ Open for more informations ] [ Fold up ]
A rubber end stop for winch cable
A hook type 2 with shackle on winch cable
1109M010
[ Open for more informations ] [ Fold up ]
A hook type 2 with shackle on winch cable
Manual translation of the winch
1110M010
[ Open for more informations ] [ Fold up ]
Manual translation of the winch
Hydraulic translation of the winch with remote control
1110M016
[ Open for more informations ] [ Fold up ]
Hydraulic translation of the winch with remote control

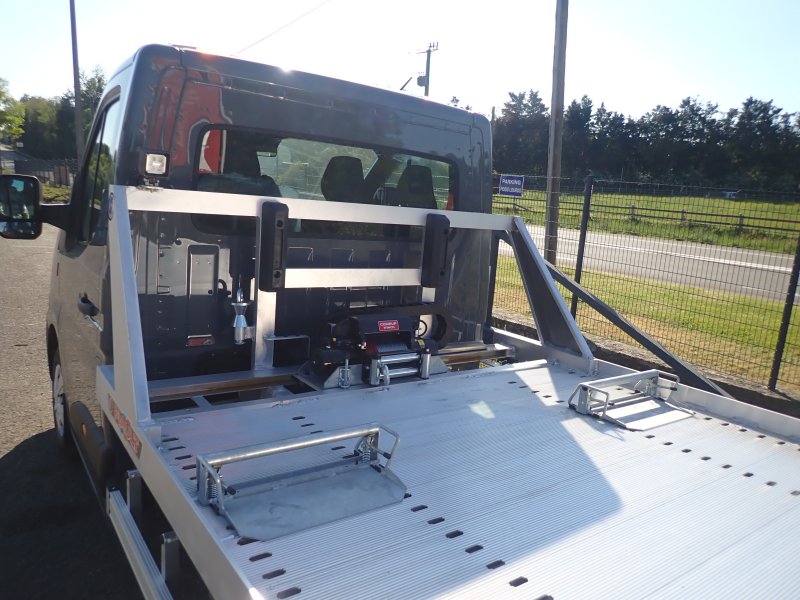

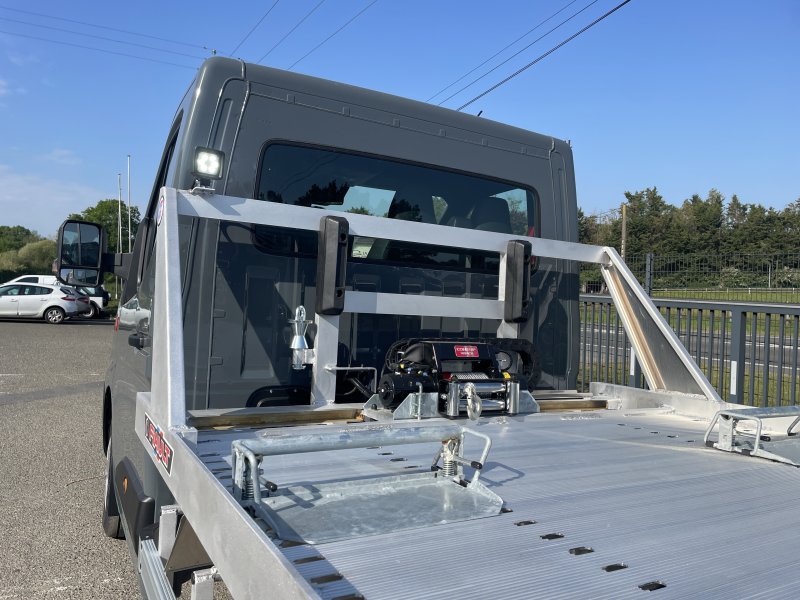

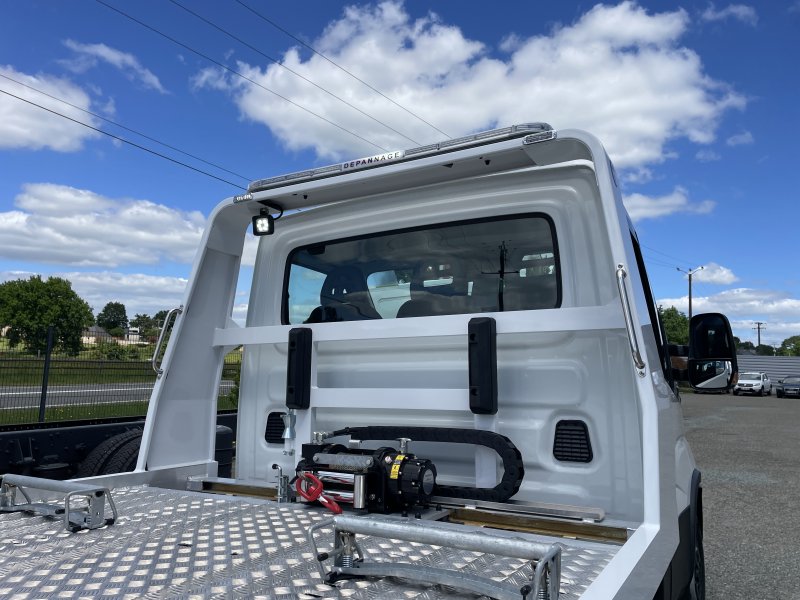

Bar to protect the cabin with two rubber stops
0303M015
[ Open for more informations ] [ Fold up ]
Bar to protect the cabin with two rubber stops
High bar to protect the cabin type FLY with two rubber stops
0303M025
[ Open for more informations ] [ Fold up ]
-High bar to protect the cabin type FLY with two rubber stops
High bar to protect the cabin type FLY luxury model with rounded corners and two rubber stops
0303M026
[ Open for more informations ] [ Fold up ]
High bar to protect the cabin type FLY luxury model with rounded corners and two rubber stops
A panoramic mirror to aid the approach of the vehicle on the platform fitted under the front of the front face
0803M050
[ Open for more informations ] [ Fold up ]
A panoramic mirror to aid the approach of the vehicle on the platform fitted under the front of the front face
A fixed ball hook diam. 50 on the front of the platform
0508M010
[ Open for more informations ] [ Fold up ]
A fixed ball hook diam. 50 on the front of the platform
A fixed ball hook diam. 50 on the rear of the equipment
0508M040
[ Open for more informations ] [ Fold up ]
A fixed ball hook diam. 50 on the rear of the equipment
Eight red LED lights on the perimeter of the FLY
0207M010
[ Open for more informations ] [ Fold up ]
Eight red LED lights on the perimeter of the FLY
Ten red LED lights on the perimeter of the FLY
0207M015
[ Open for more informations ] [ Fold up ]
Ten red LED lights on the perimeter of the FLY
Four adjustable wheel clamps on bed
0501M010
[ Open for more informations ] [ Fold up ]
Four adjustable wheel clamps on bed
A remote control for winch, tilt and slide of the platform and working light (optional)
0902M045
[ Open for more informations ] [ Fold up ]
A remote control for winch, tilt and slide of the platform and working light (optional)
A protective cover for remote control 8 or 10 functions
0901M050
[ Open for more informations ] [ Fold up ]
A protective cover for remote control 8 or 10 functions (without remote control)
An additional 8 function radio transmitter (without radio receiver)
0901M020
[ Open for more informations ] [ Fold up ]
An additional 8-function radio transmitter (without radio receiver)
One beacon fitted on the top of the cabin
0203M010
[ Open for more informations ] [ Fold up ]
One beacon fitted on the top of the cabin
Two beacons fitted on the top of the cabin
0203M020
[ Open for more informations ] [ Fold up ]
Two beacons fitted on the top of the cabin
Lightbar 1200mm type XPERT with 2 beacons, a central light and sign WRECKER
0201M010
[ Open for more informations ] [ Fold up ]
Lightbar 1200mm type XPERT with 2 beacons, a central light and sign WRECKER
Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER
0201M020
[ Open for more informations ] [ Fold up ]
Lightbar 1450mm type XPERT with 4 beacons, a central light and sign WRECKER
Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign
0201M040
[ Open for more informations ] [ Fold up ]
Delux SKY AIR 1420 flasher bar with 18 LEDS and BREAKDOWN sign
Reminder of traffic lights in the XPERT lightbar
0201M080
[ Open for more informations ] [ Fold up ]
Reminder of traffic lights in the XPERT lightbar
A work light fitted to the front of the equipment
0101M010
[ Open for more informations ] [ Fold up ]
A work light fitted to the front of the equipment
Two integrated work lights at the head of the platform
0101M020
[ Open for more informations ] [ Fold up ]
Two integrated work lights at the head of the platform
Four work lights fitted to the front of the equipment
0101M030
[ Open for more informations ] [ Fold up ]
Four work lights fitted to the front of the equipment
A work light fitted at the rear of the equipment
0101M040
[ Open for more informations ] [ Fold up ]
A work light fitted at the rear of the equipment
Two work lights fitted at the rear of the equipment
0101M050
[ Open for more informations ] [ Fold up ]
Two work lights fitted at the rear of the equipment
Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)
0106M010
[ Open for more informations ] [ Fold up ]
Two peripheral LED lighting working lights installed at the bottom of the equipment (1 per side)
Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)
0106M020
[ Open for more informations ] [ Fold up ]
Four peripheral LED lighting working lights installed at the bottom of the equipment (2 per side)
Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)
0106M050
[ Open for more informations ] [ Fold up ]
Two peripheral LED lighting working lights installed at the top of the FLY(1 per side)
Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)
0204M010
[ Open for more informations ] [ Fold up ]
Four white lighting leds flash : 2 on the front + 2 on the rear (not homologated)
Three vests, three cones, shovel and broom with mounts
0706M010
[ Open for more informations ] [ Fold up ]
Three vests, three cones, shovel and broom with mounts
A sandbox for absorbent product with support
0704M010
[ Open for more informations ] [ Fold up ]
A sandbox for absorbent product with support
Two fire extinguishers mounted in a secure locker
0705M010
[ Open for more informations ] [ Fold up ]
Two fire extinguishers mounted in a secure locker
A plastic toolbox 600mm
0401M010
[ Open for more informations ] [ Fold up ]
A plastic toolbox 600mm
An open box with 3 plastic 10 liter jerricans with support
0404M010
[ Open for more informations ] [ Fold up ]
An open box with 3 plastic 10 liter jerricans with support
An open box with 3 steel 10 liter jerricans with support
0404M020
[ Open for more informations ] [ Fold up ]
An open box with 3 steel 10 liter jerricans with support
A washstand tank with faucet on a support
0404M060
[ Open for more informations ] [ Fold up ]
A washstand tank with faucet on a support
Two wheel dollies type "GO-JACK 5211" (without support) (maximum speed: 10 Km/h)
0502M011
[ Open for more informations ] [ Fold up ]
Two wheel dollies type "GO-JACK 5211" (without support) (maximum speed: 10 Km/h)
Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 5211" (without dollies)
0502M021
[ Open for more informations ] [ Fold up ]
Two aluminum support on the bar to protect the cabin for two wheel dollies type "GO-JACK 5211" (without dollies)
Two wheel dollies type "CHARIOTTE " (without support)
0502M060
[ Open for more informations ] [ Fold up ]
Two wheel dollies type "CHARIOTTE " (without support) (maximum speed: 10 Km/h)
Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)
0502M070
[ Open for more informations ] [ Fold up ]
Two aluminum support on the bar to protect the cabin for two wheel dollies type "CHARIOTTE" (without dollies)
An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)
0502M080
[ Open for more informations ] [ Fold up ]
An open support on the equipment for two wheel dollies type "CHARIOTTE" (without dollies)
Two jumper cables with a 12V plug on the front right of the equipment
1202M010
[ Open for more informations ] [ Fold up ]
Two jumper cables with a 12V plug on the front right of the equipment
Two jumper cables with a 12V plug in the right rear overhang of the equipment
1202M030
[ Open for more informations ] [ Fold up ]
Two jumper cables with a 12V plug in the right rear overhang of the equipment
A special motorcycle wedge with an articulated and adjustable shoe
0503M010
[ Open for more informations ] [ Fold up ]
A special motorcycle wedge with an articulated and adjustable shoe for fitting the wheel, 2 ratchet straps, 1 short traction sling, 1 special motorcycle handlebar strap and a storage rack on the equipment
A return pulley type DIABOLO with 4 sockets in the floor and support
1108M015
[ Open for more informations ] [ Fold up ]
A return pulley type DIABOLO with 4 sockets in the floor and support
Two small aluminium ramps 700x250 mm with support on equipment for loading vehicles on the platform with trolleys
0506M010
[ Open for more informations ] [ Fold up ]
Two small aluminium ramps 700x250 mm with support on equipment for loading vehicles on the platform with trolleys
Two aluminum ramps 1000x270 mm to improve the loading angle
0506M020
[ Open for more informations ] [ Fold up ]
Two aluminum ramps 1000x270 mm to improve the loading angle with a storage tray under the equipment
Stainless steel protections on the side of the platform with flat 10mm border
0301M111
[ Open for more informations ] [ Fold up ]
Stainless steel protections on the side of the platform with flat 10mm border
Anti-slip aluminium protectors on top of the two sides of the platform
0301M110
[ Open for more informations ] [ Fold up ]
Anti-slip aluminium protectors on top of the two sides of the platform
A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm
0601M055
[ Open for more informations ] [ Fold up ]
A special lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 1200x35mm
A 3 points lashing strap for light vehicle
0601M050
[ Open for more informations ] [ Fold up ]
A 3 points lashing strap for light vehicle with 1 buckle, 1 hook and 1 ratchet 3000x50mm
A winch spare wheel
0308M010
[ Open for more informations ] [ Fold up ]
A winch spare wheel holder secured to the side of the chassis
Rear view camera in color with flat screen in the cabin
0803M010
[ Open for more informations ] [ Fold up ]
Rear view camera in color with flat screen in the cabin
Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane
0301M015
[ Open for more informations ] [ Fold up ]
Stylized aluminum body in the wheelbase in anodized aluminum profiles (unpainted) height 500mm with rear fenders in polyurethane
Painting of the stylized aluminum profiles in the wheelbase in a standard color
0313M220
[ Open for more informations ] [ Fold up ]
Painting of the stylized aluminum profiles in the wheelbase (painting of toolbox doors not included) in a standard color RAL=
Painting of a tool box door or the control box (unit price)
0313M230
[ Open for more informations ] [ Fold up ]
Painting of a tool box door or the control box (unit price) (multiply by the number of boxes to be painted) in a standard color same as the body
Stylized plastic ABS body in the wheelbase and rear overhang
0301M010
[ Open for more informations ] [ Fold up ]
Stylized plastic ABS body in the wheelbase and rear overhang (for light vehicle 3T5) painted in a standard RAL color (to define) :
Painting of platform side
0313M015
[ Open for more informations ] [ Fold up ]
Painting of platform side in standard colour finish RAL
Automatic engine speed accelerator for PTO (CABSTAR / MAXITY)
1011M010
[ Open for more informations ] [ Fold up ]
Automatic engine speed accelerator for PTO (CABSTAR / MAXITY)
Side and rear underride bars for compliance with the GVWR> 3T5
0707M030
[ Open for more informations ] [ Fold up ]
Side and rear underride bars for compliance with the GVWR> 3T5
White reflective tape on the edge of the platform
0801M010
[ Open for more informations ] [ Fold up ]
White reflective tape on the edge of the platform
Orange reflective tape on the edge of the platform
0801M020
[ Open for more informations ] [ Fold up ]
Orange reflective tape on the edge of the platform
PTO for light vehicle not original fitted
1003M010
[ Open for more informations ] [ Fold up ]
PTO for light vehicle not original fitted
"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)
0707M010
[ Open for more informations ] [ Fold up ]
"CARTE BLANCHE" FOR FRENCH REGULATION (ONLY COMPULSORY FOR RECOVERY IN FRANCE)
PLAT'TRANS PF20 ALU (electric or hydraulic version following the winch)
00-PF20ALU
PLAT'TRANS PF20 ALU (electric or hydraulic version following the winch)
00-PF20ALU
In order to generate your summary sheet, please fill in this contact form. We will contact you as soon as possible.
