On chassis cab : 10T to 16T
(Fitted on a PTO, a pin tow plug, a spare wheel and pneumatic rear suspension)

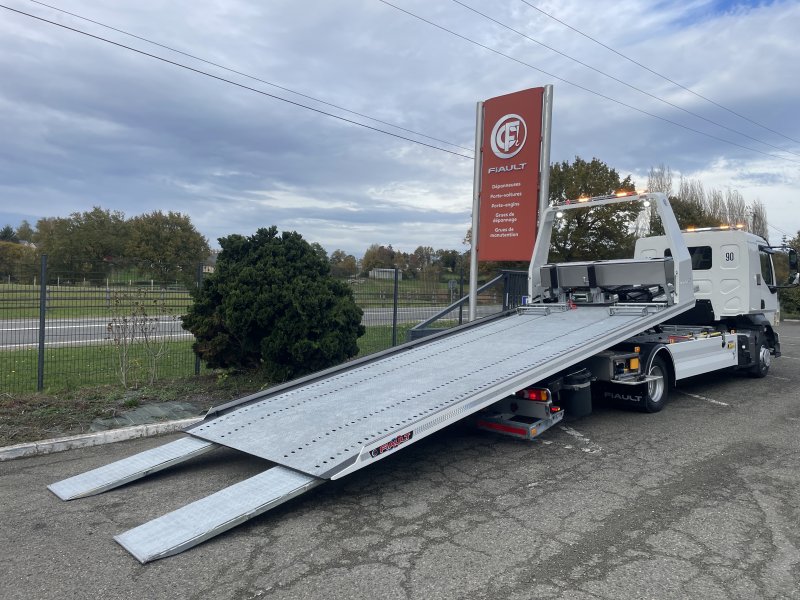

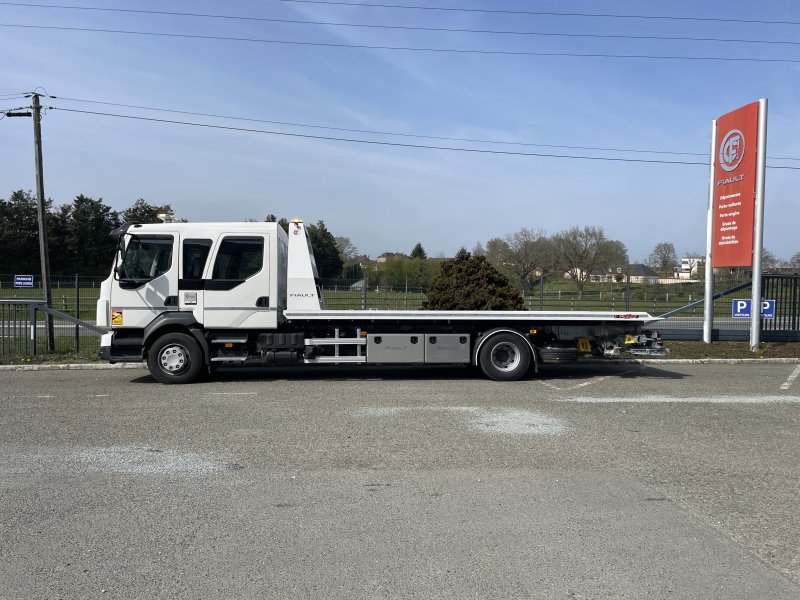

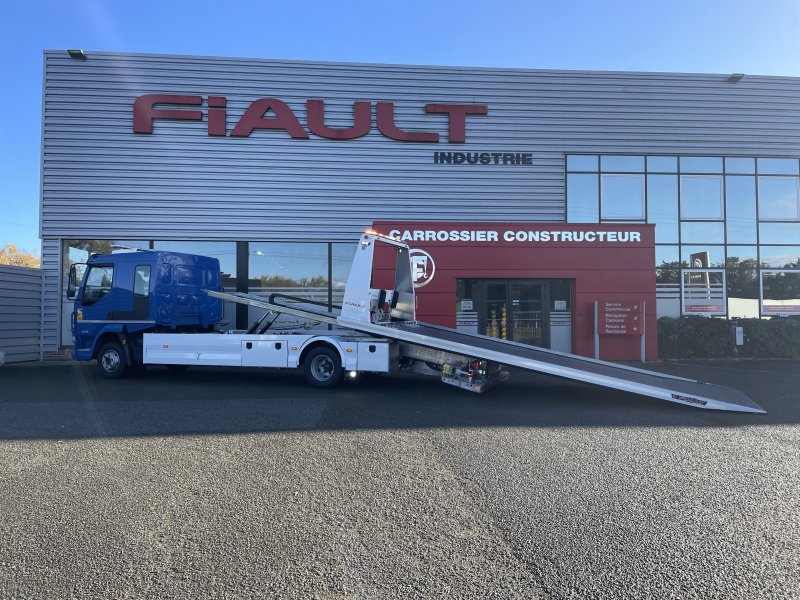

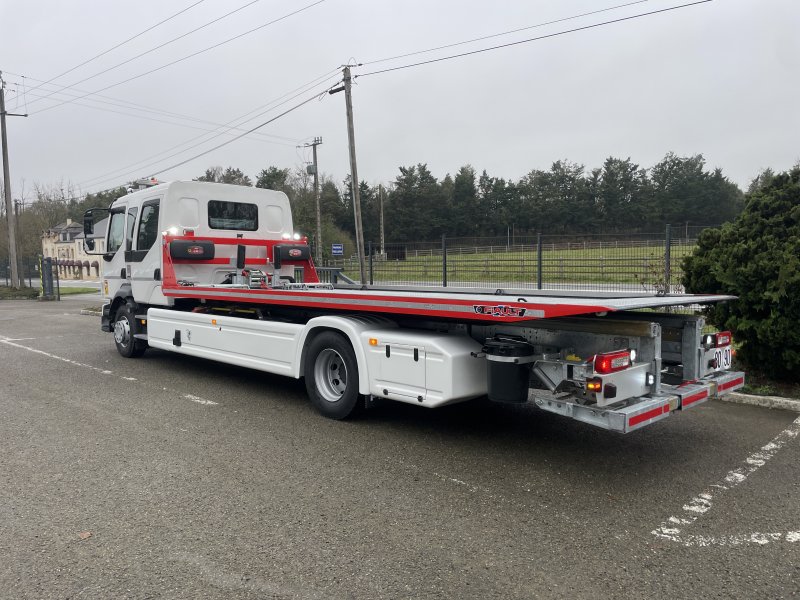

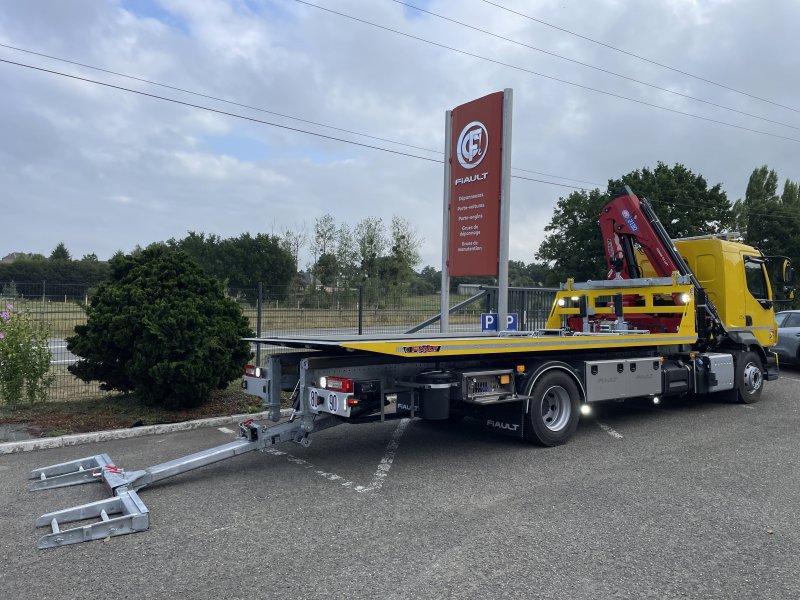

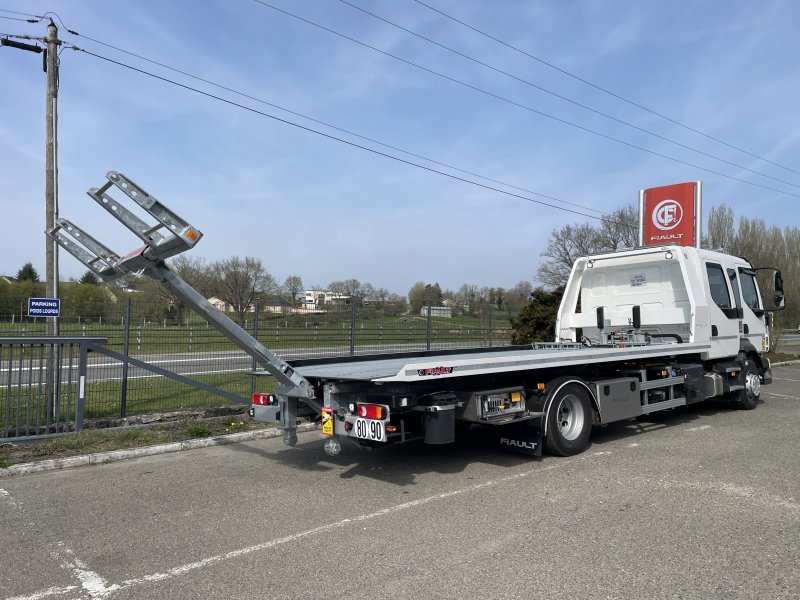

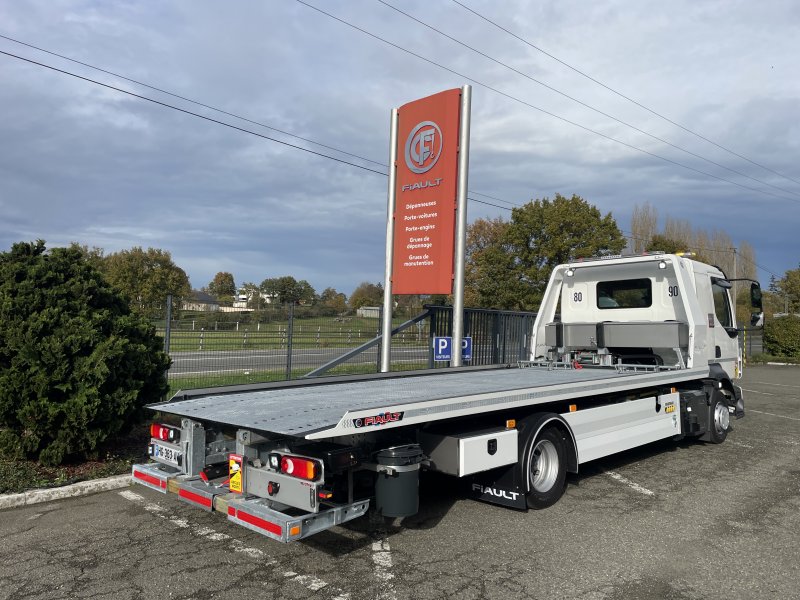

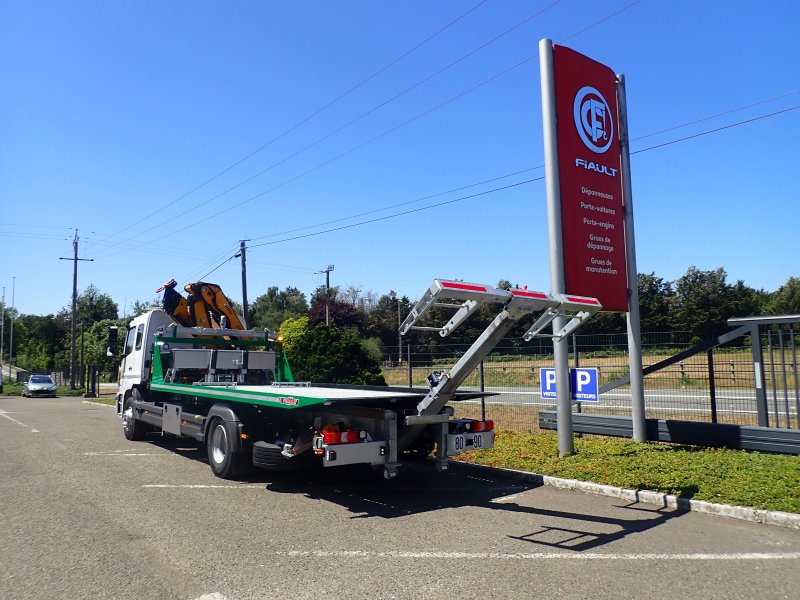

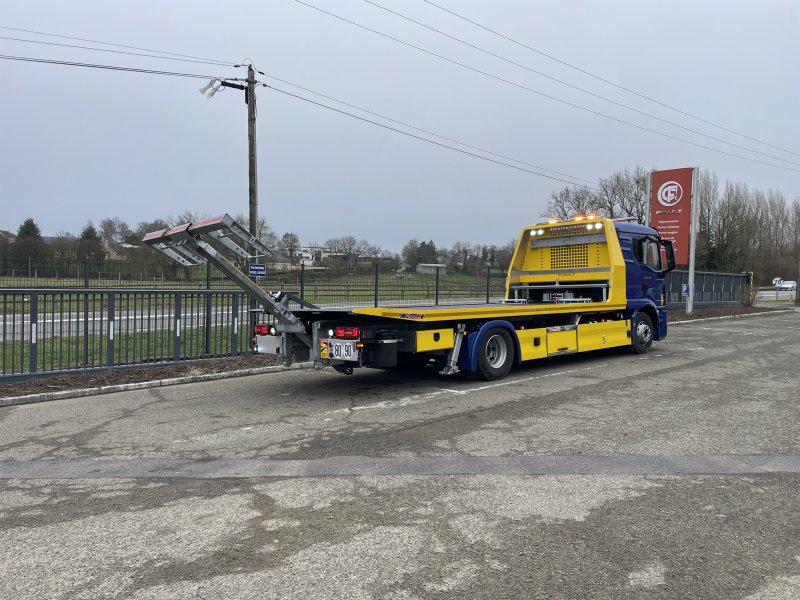

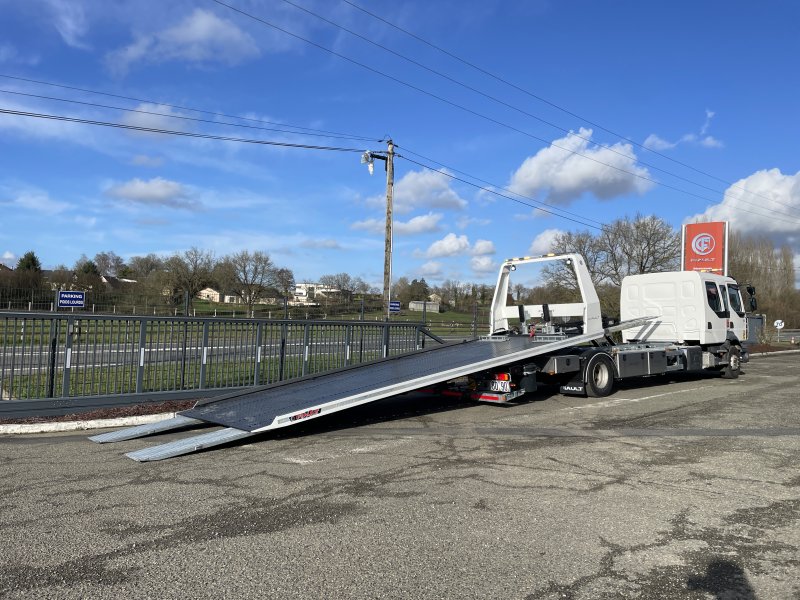

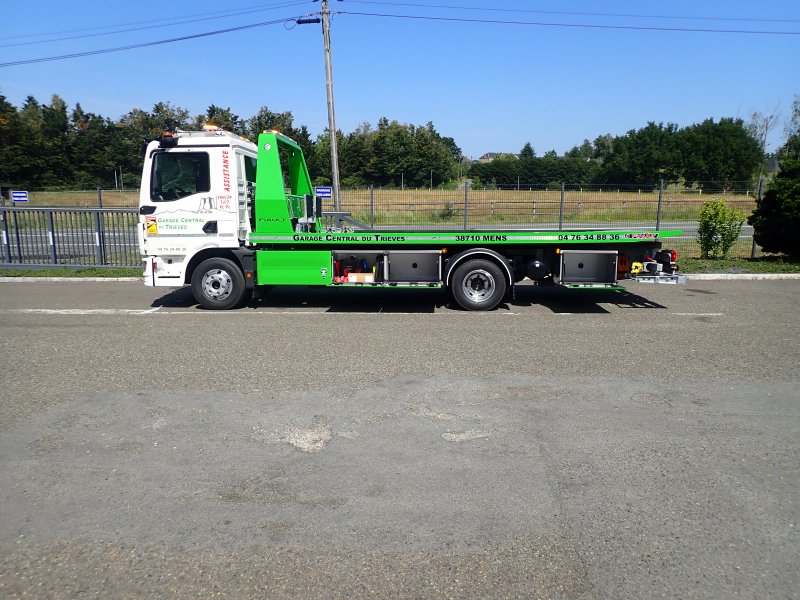

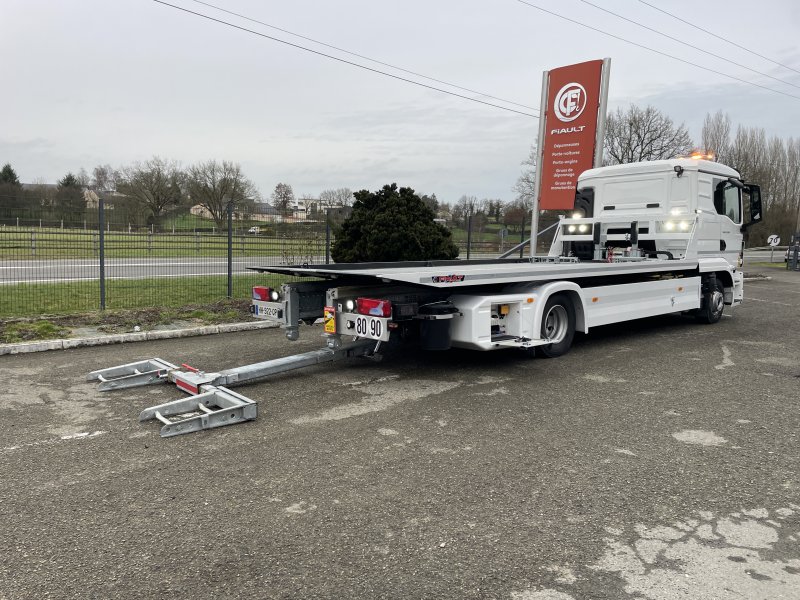

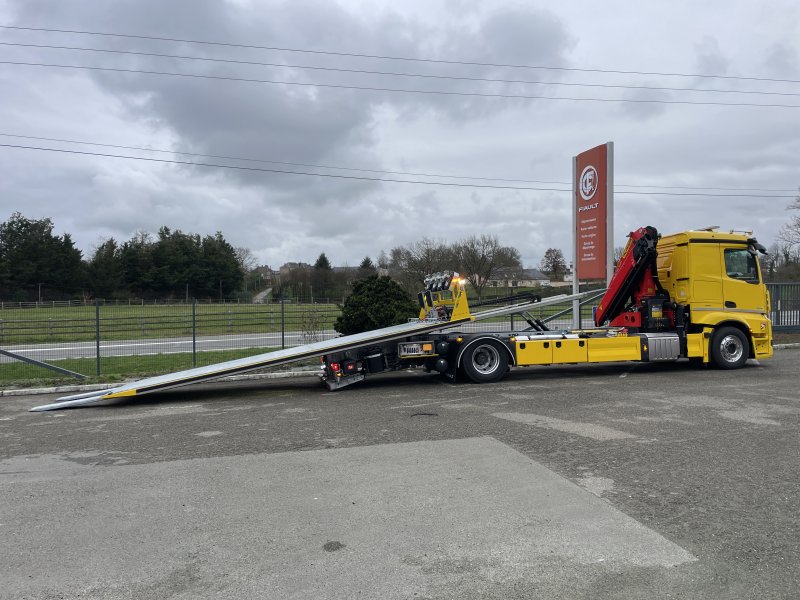

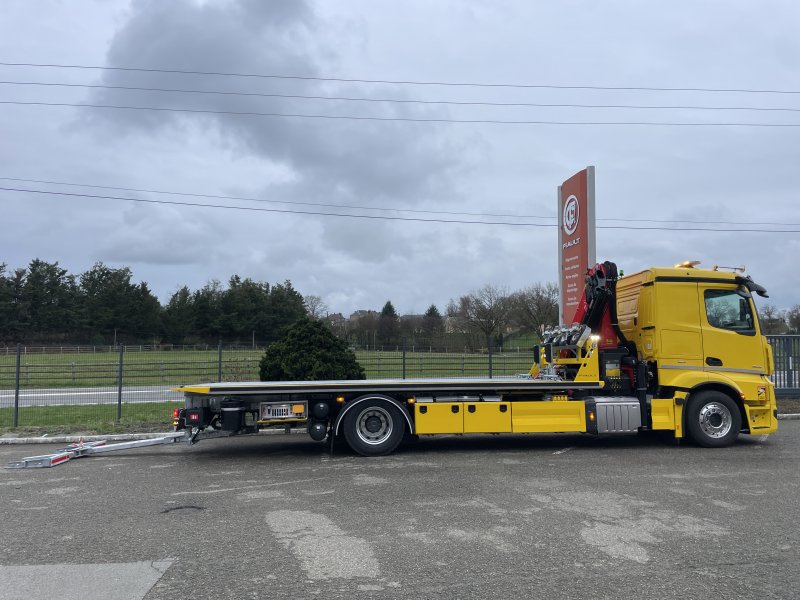

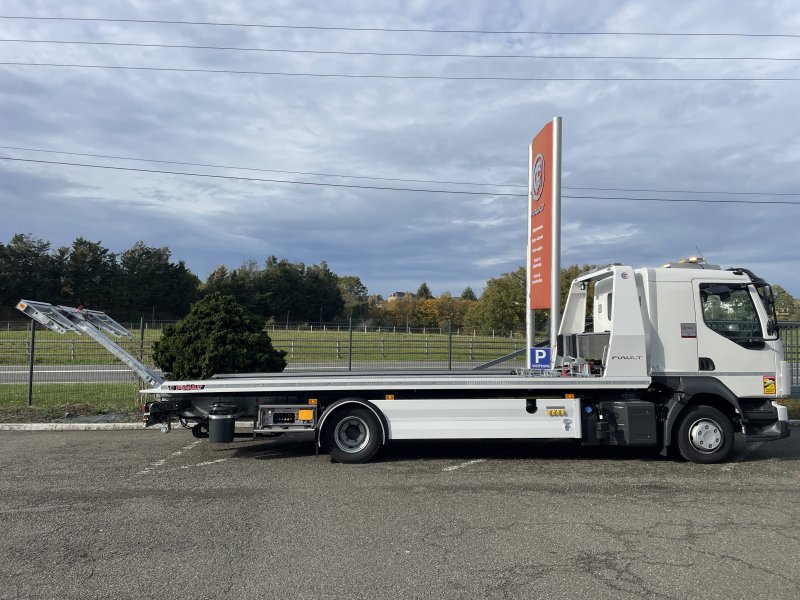

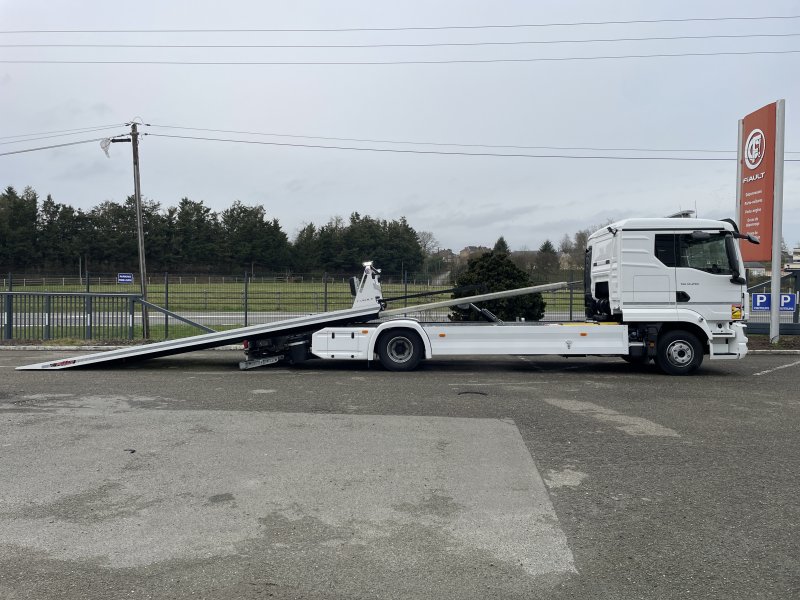

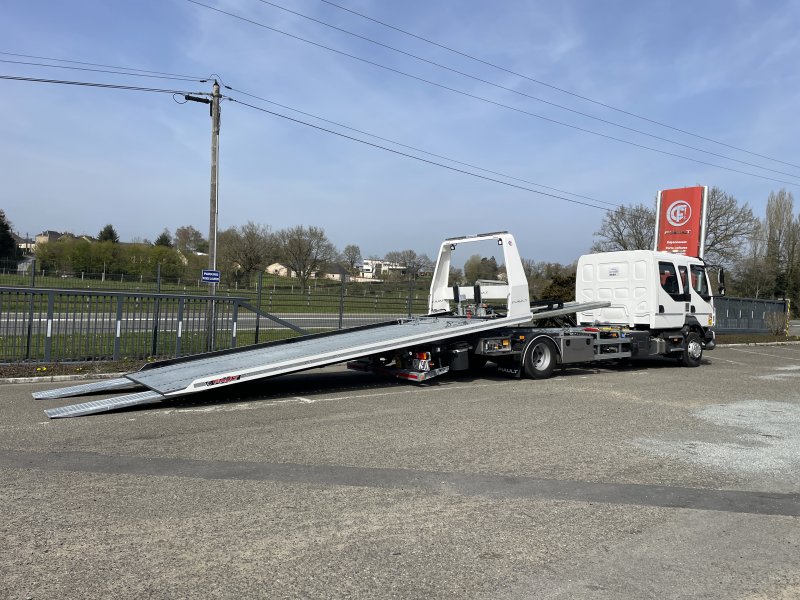

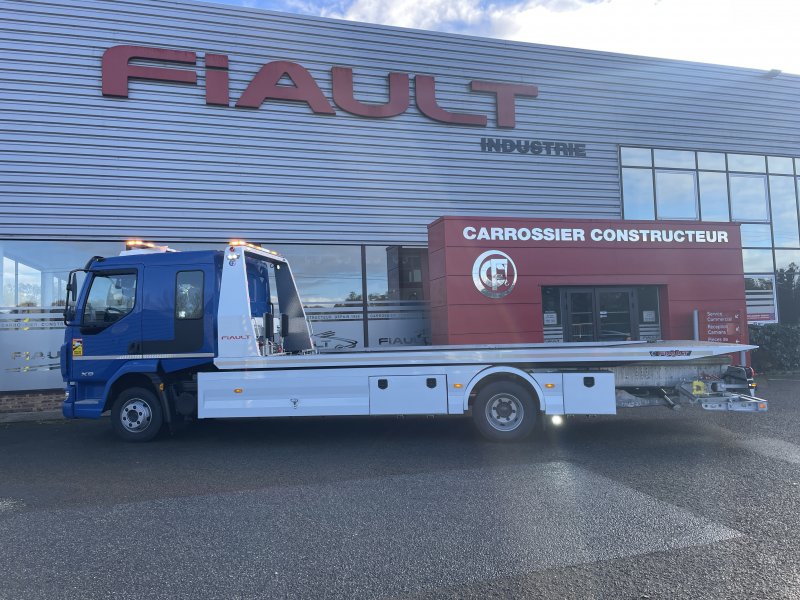

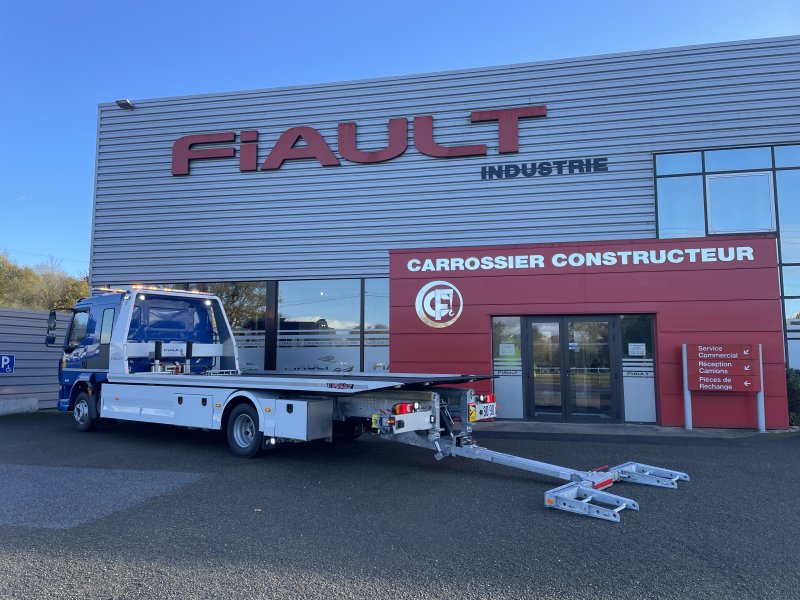

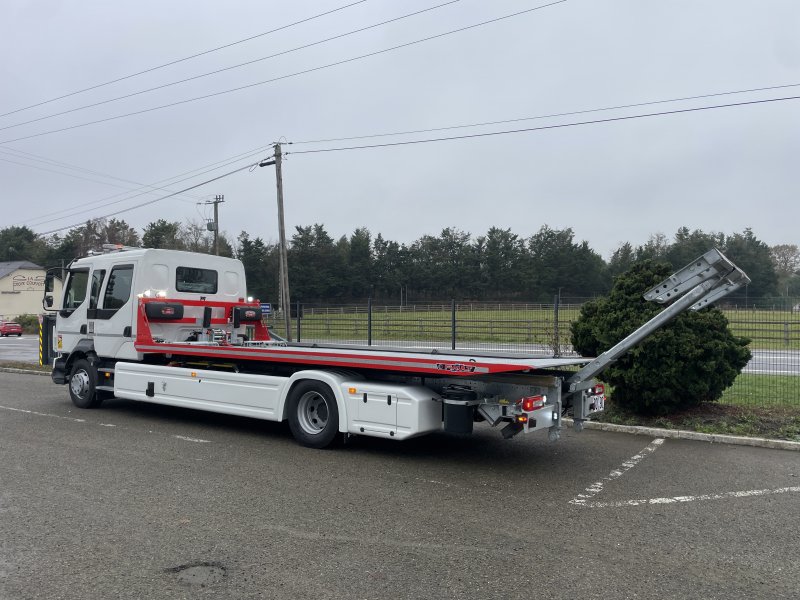

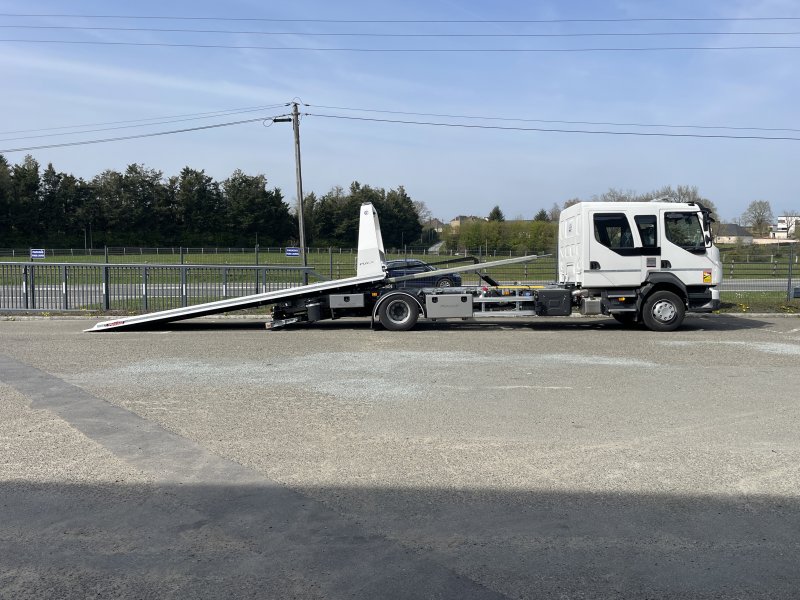

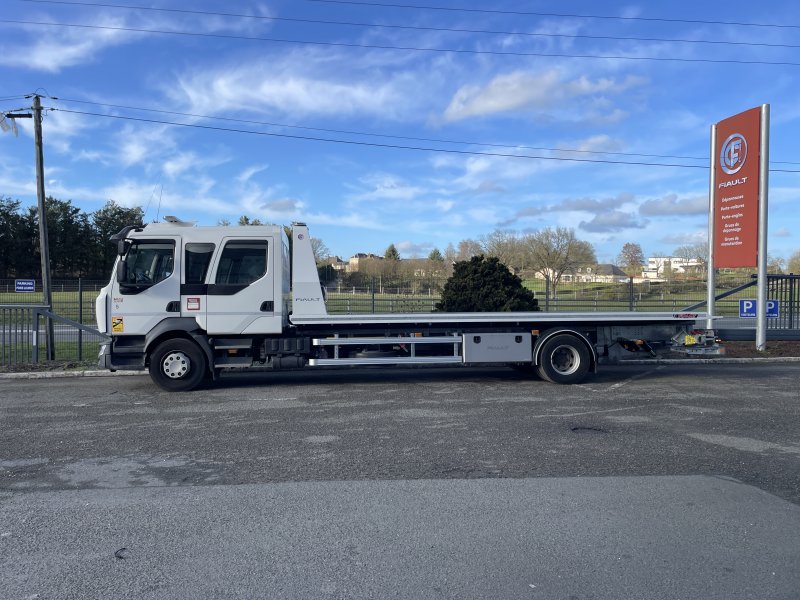

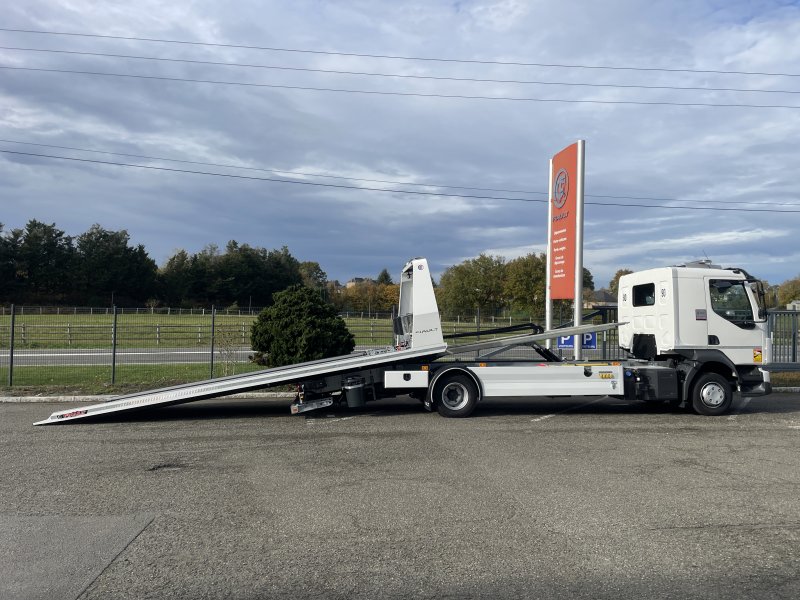

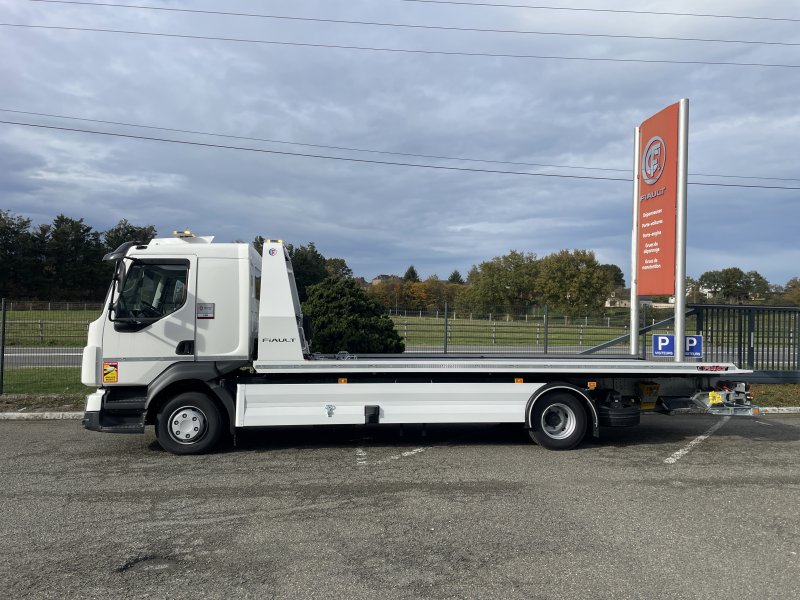

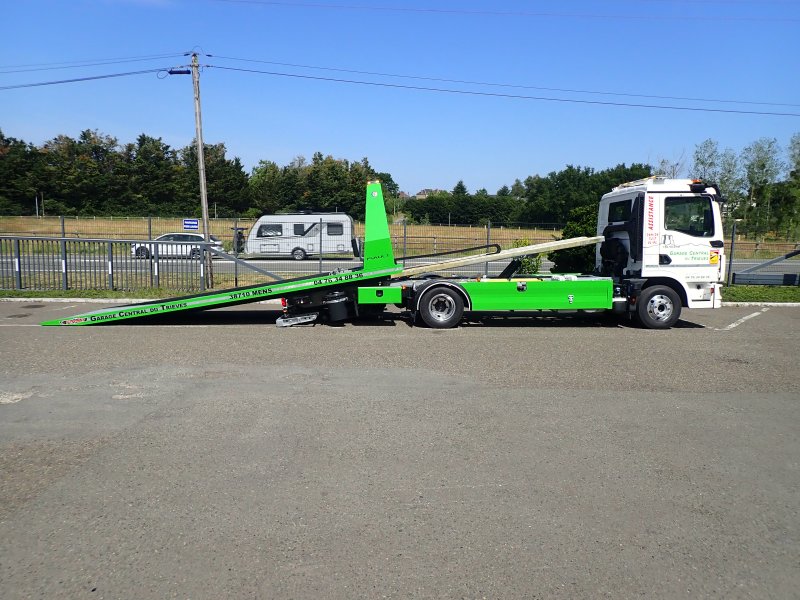

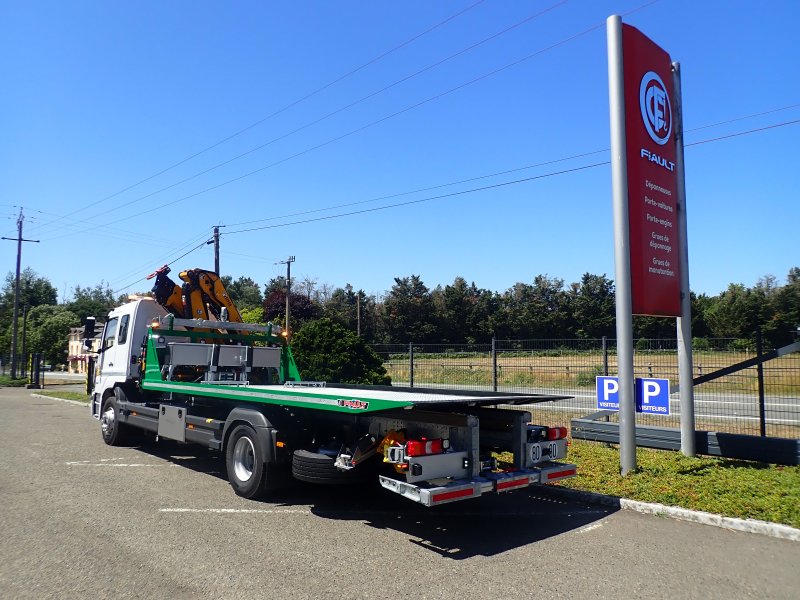

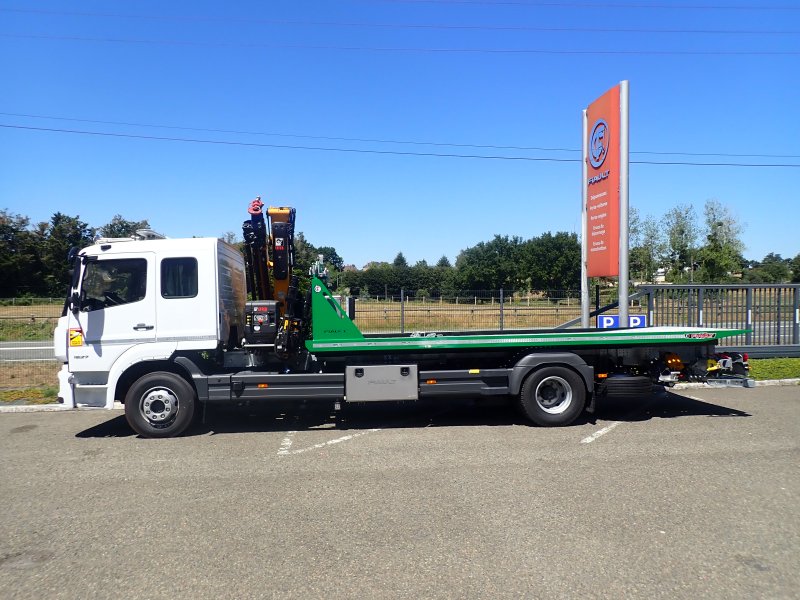

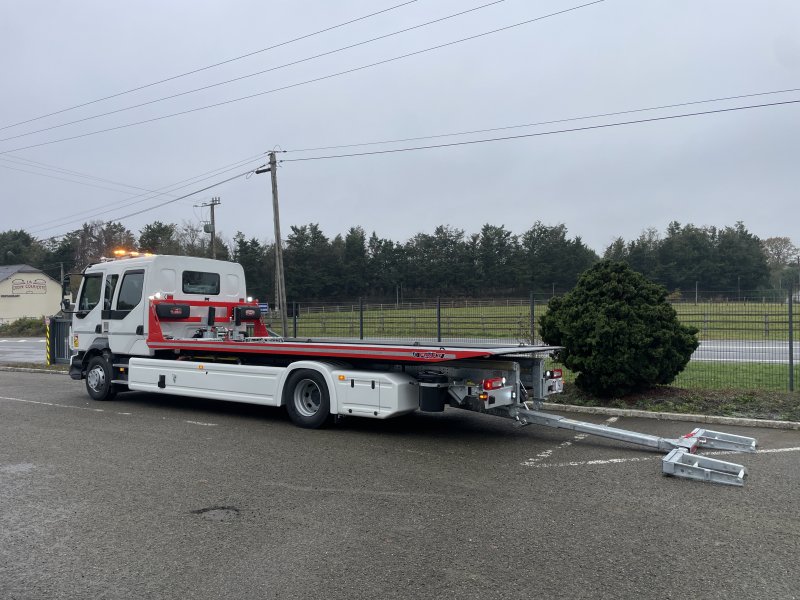

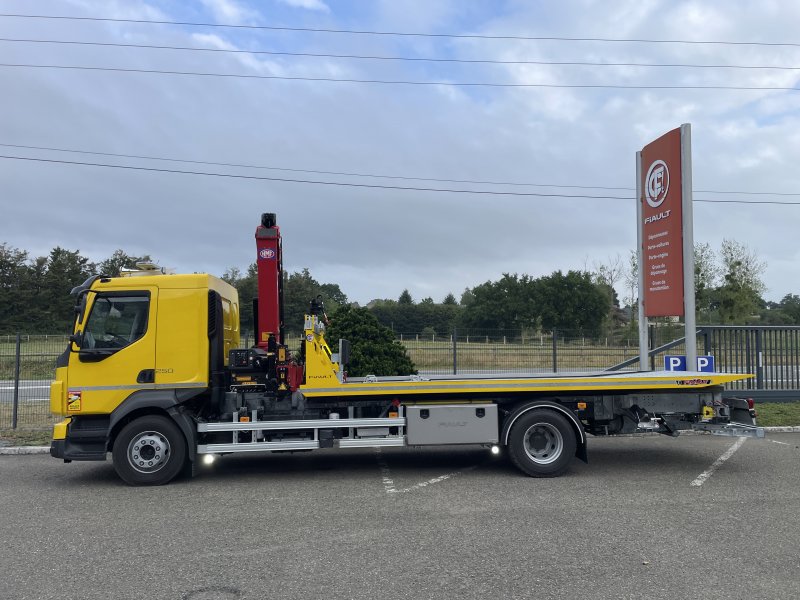

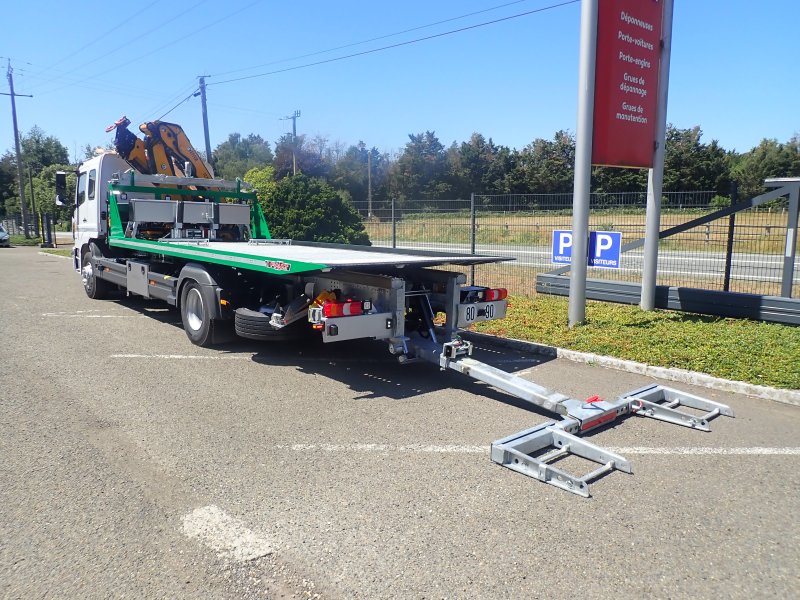

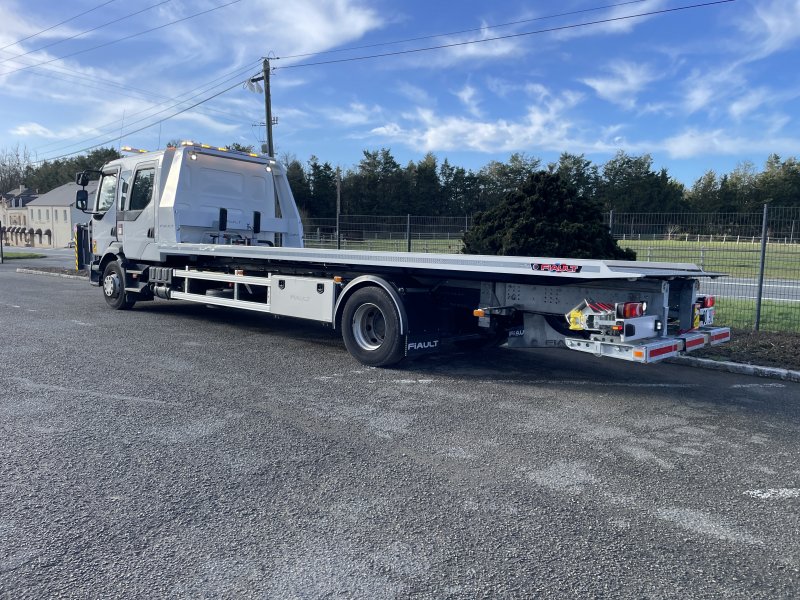

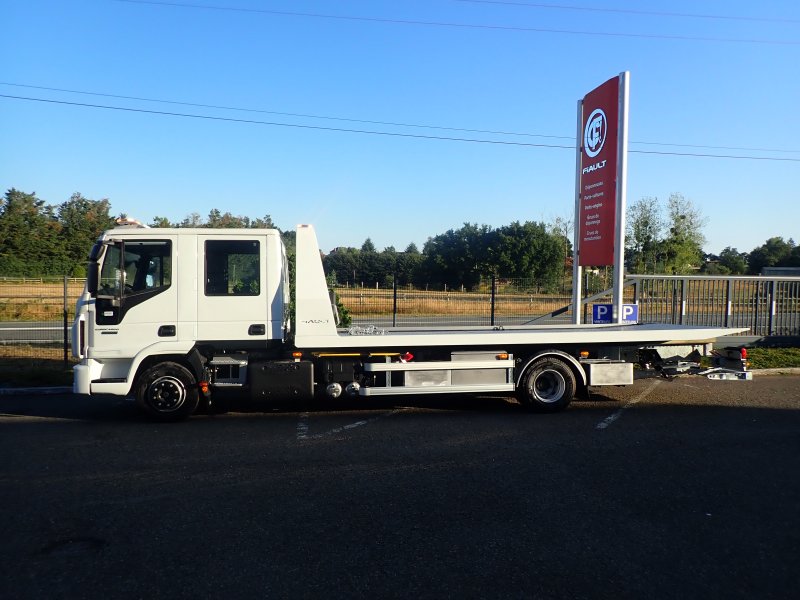

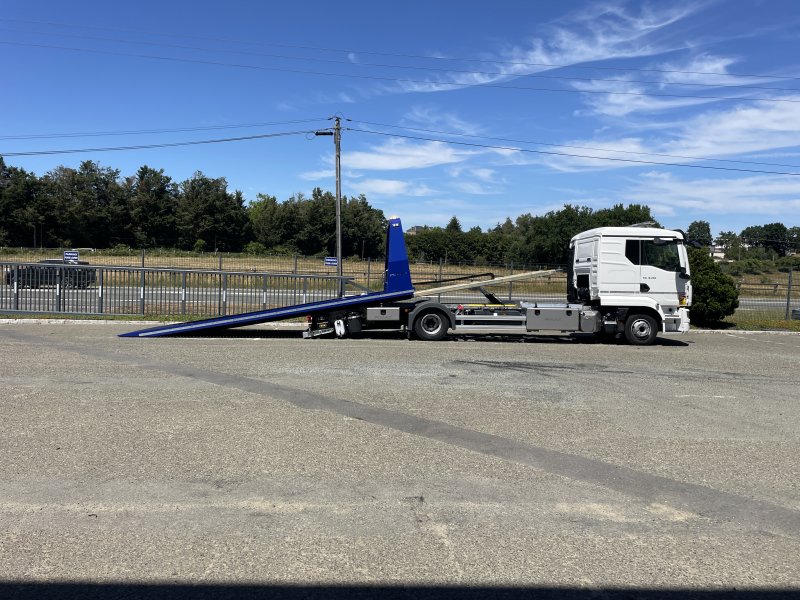

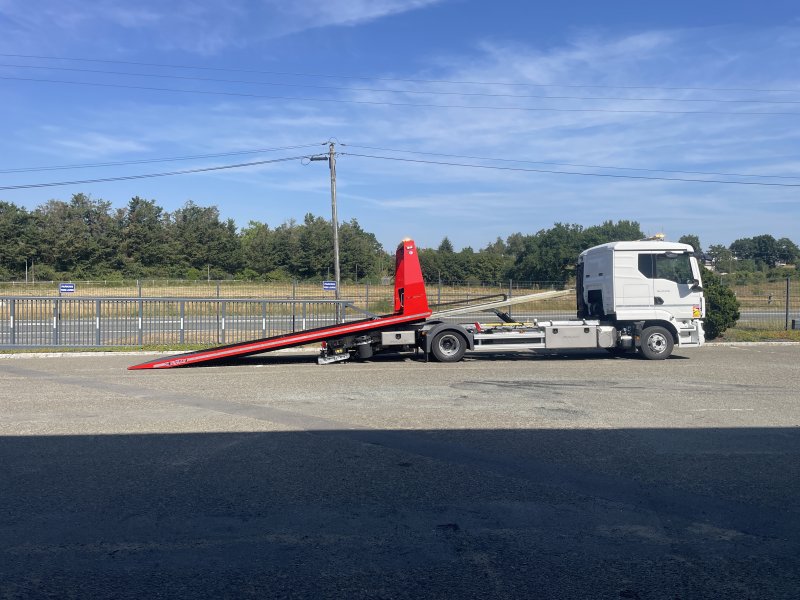

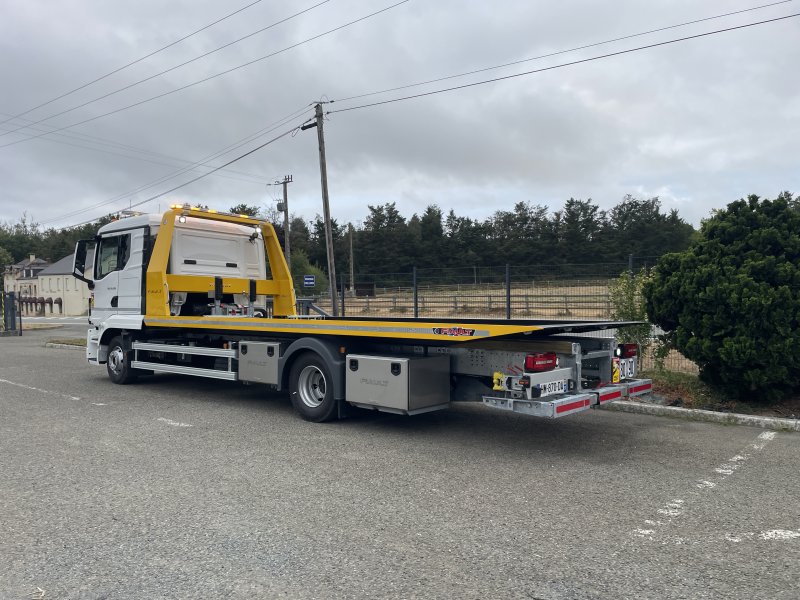

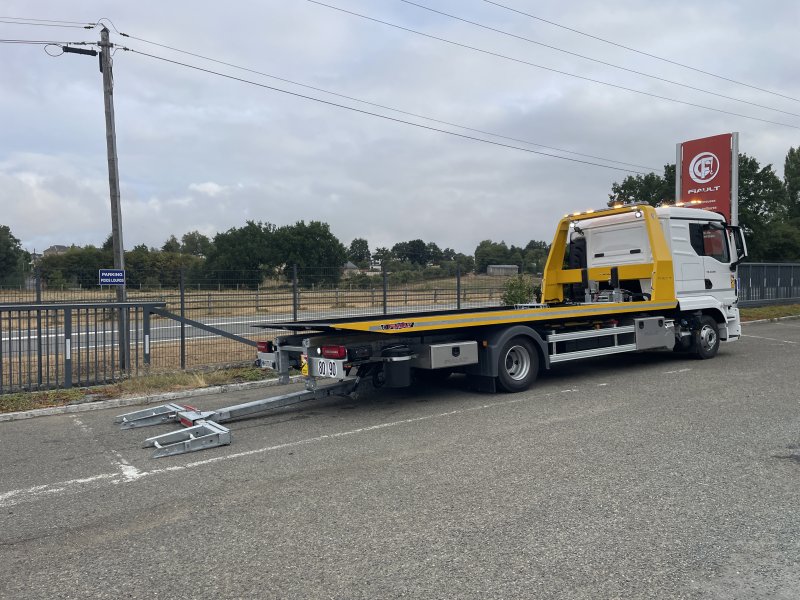

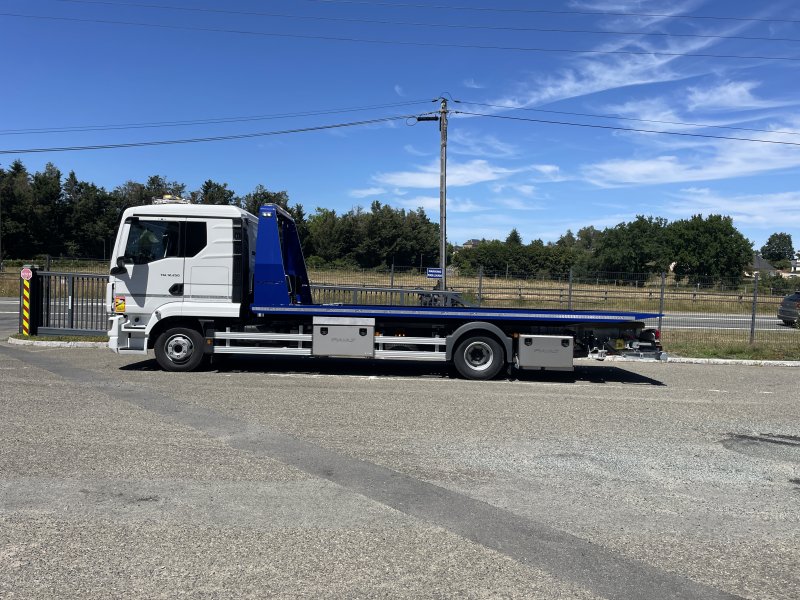

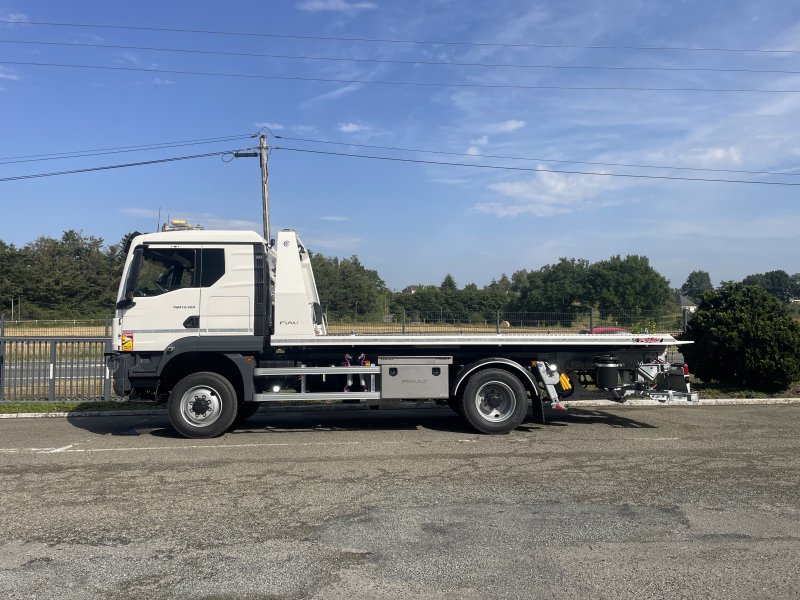

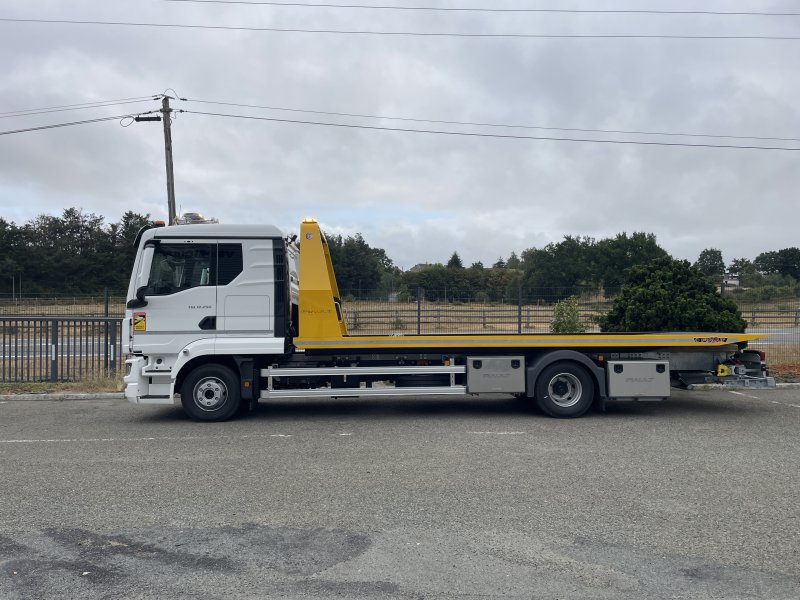

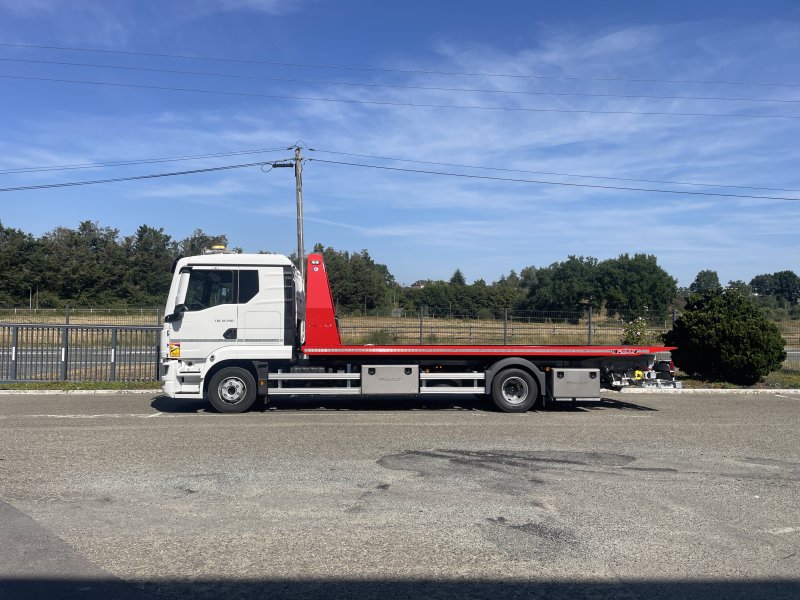

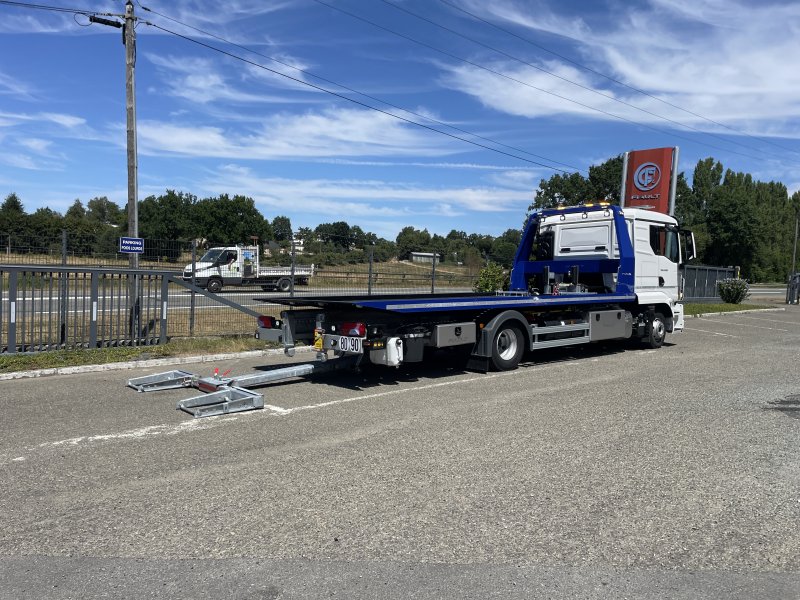

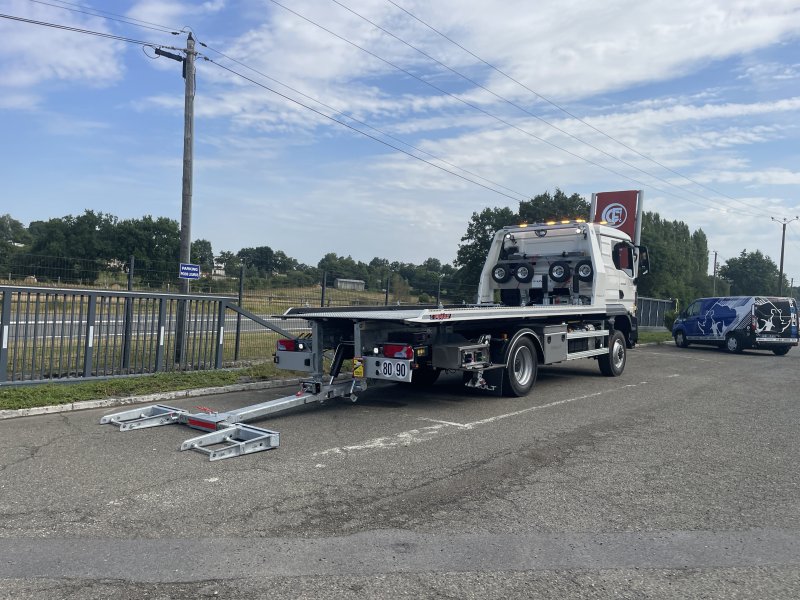

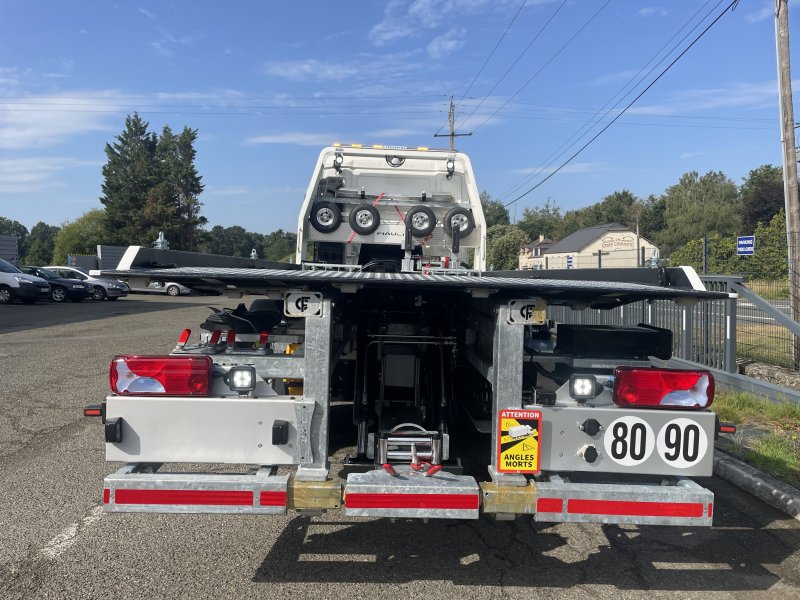

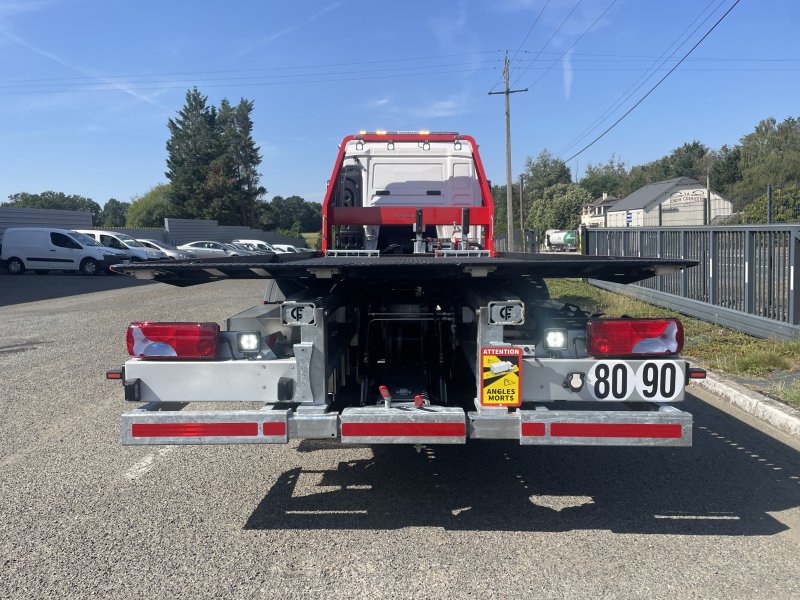

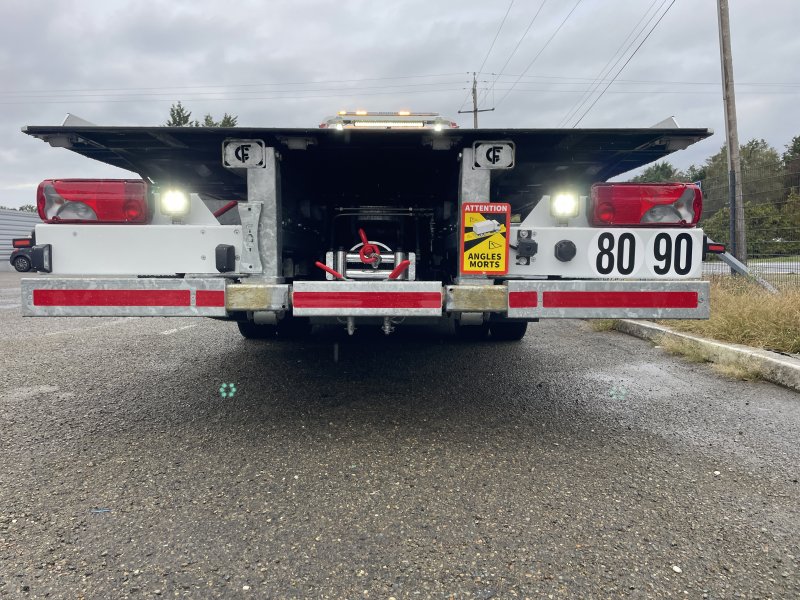

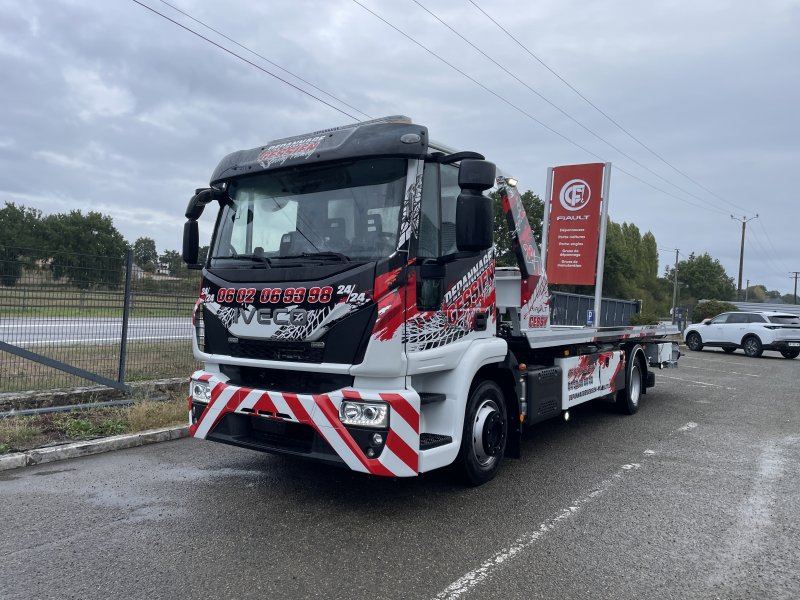

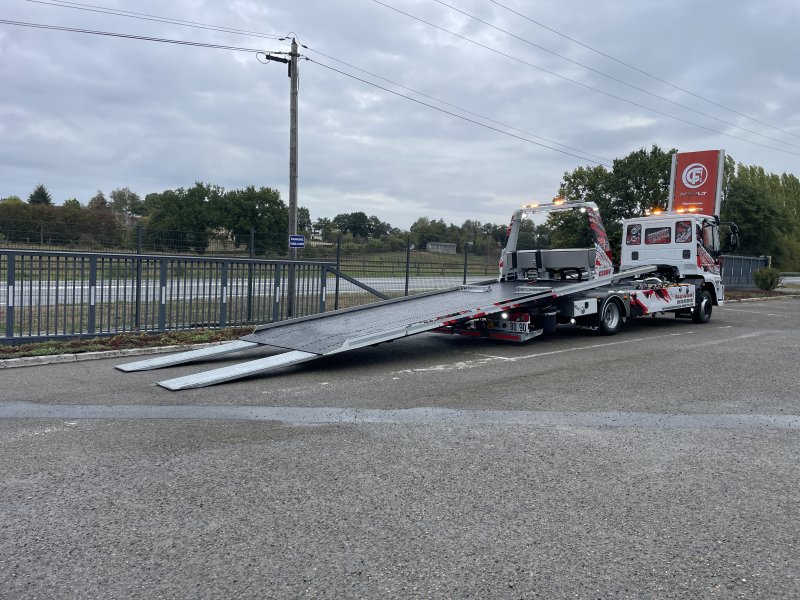

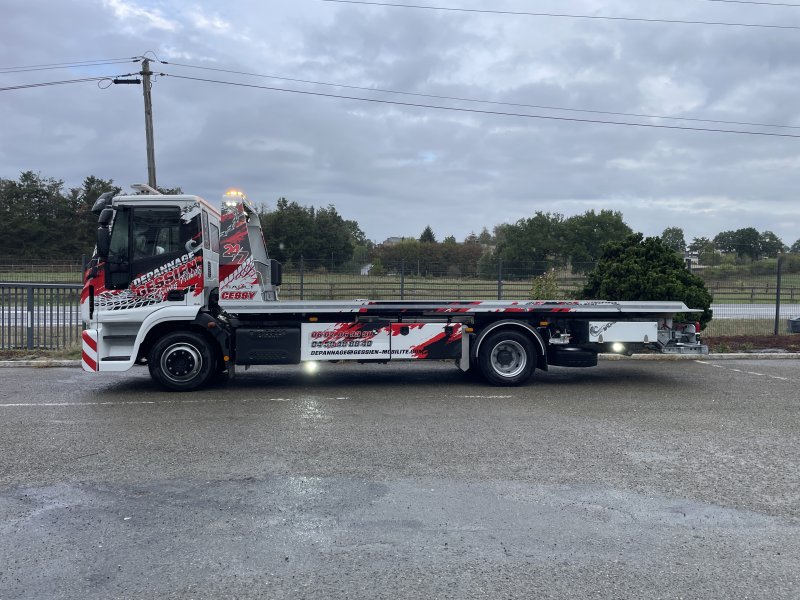

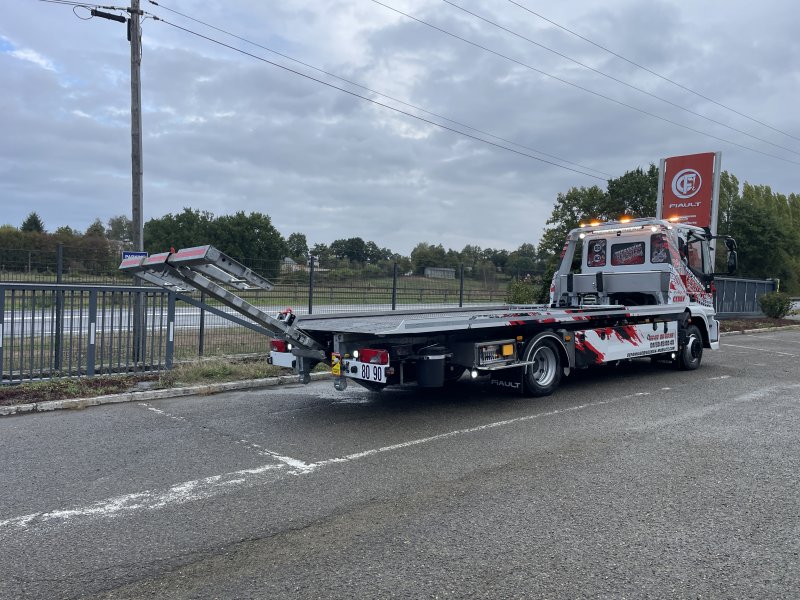

PLAT’TRANS PF 60 : SLIDING DECK CAR TRANSPORTER

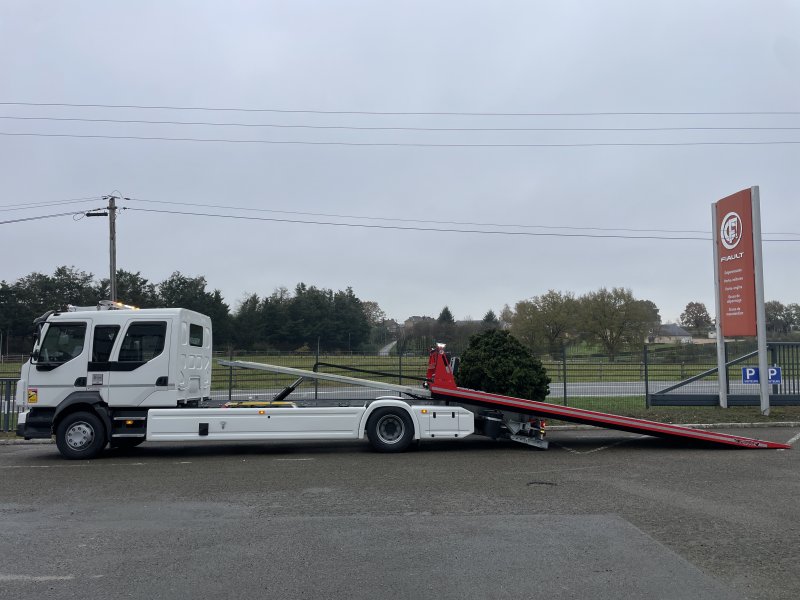

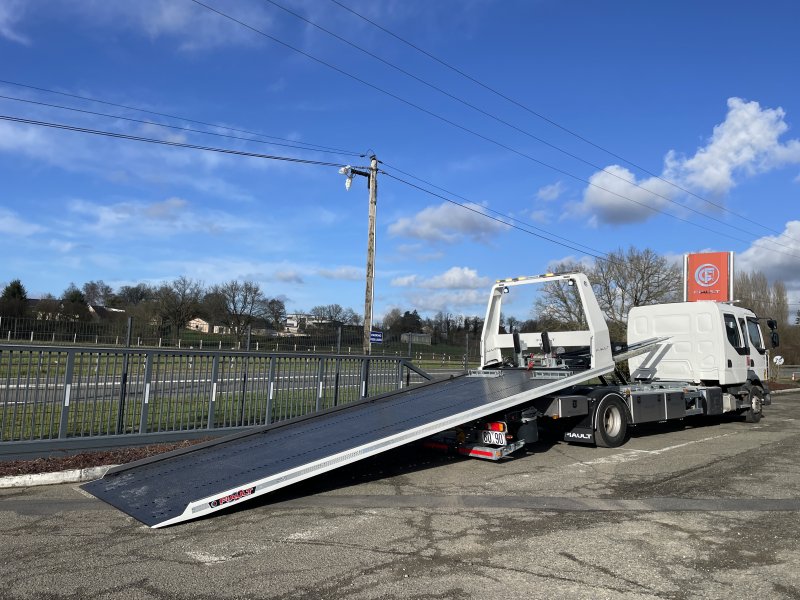

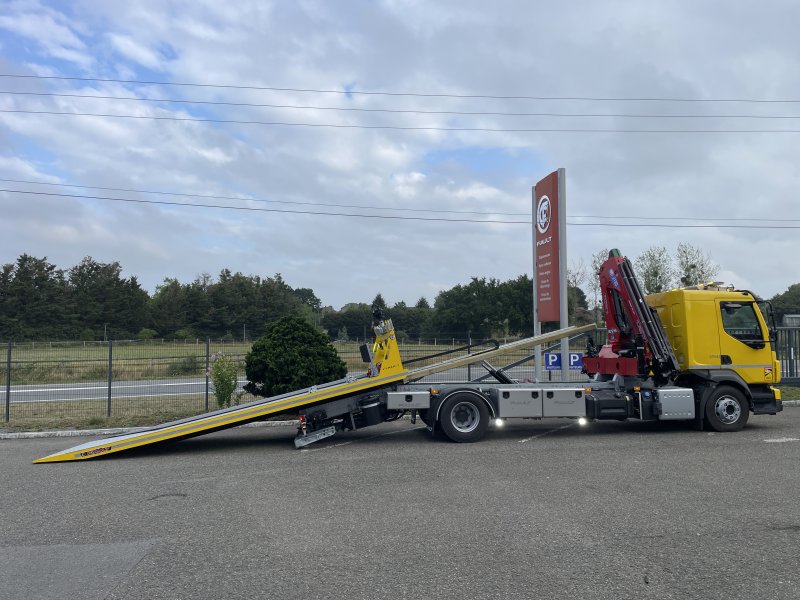

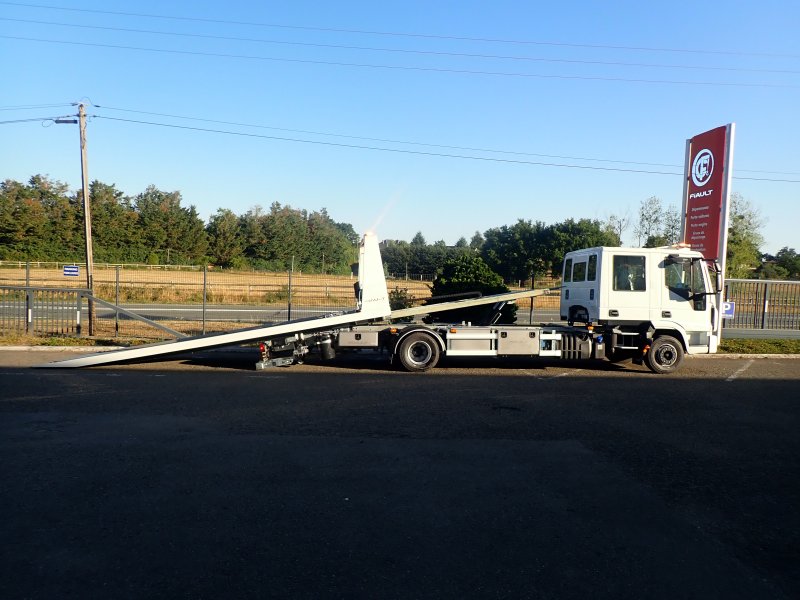

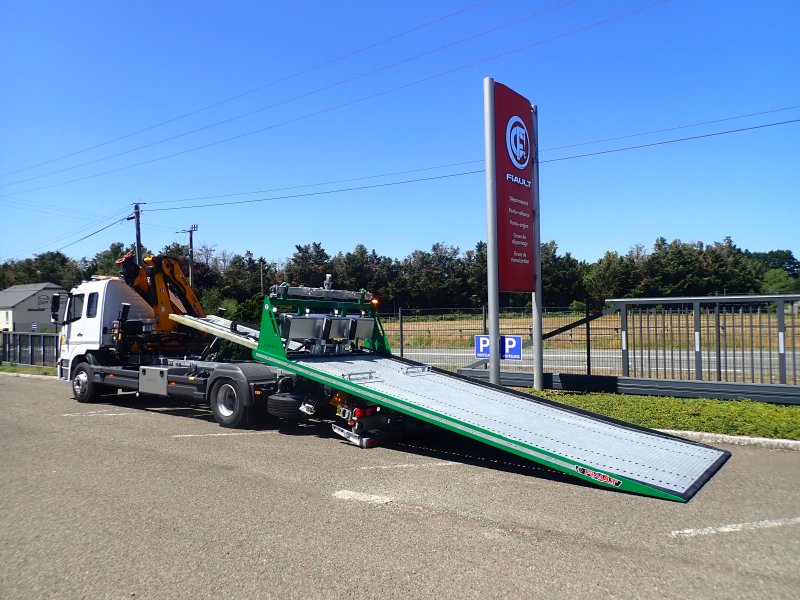

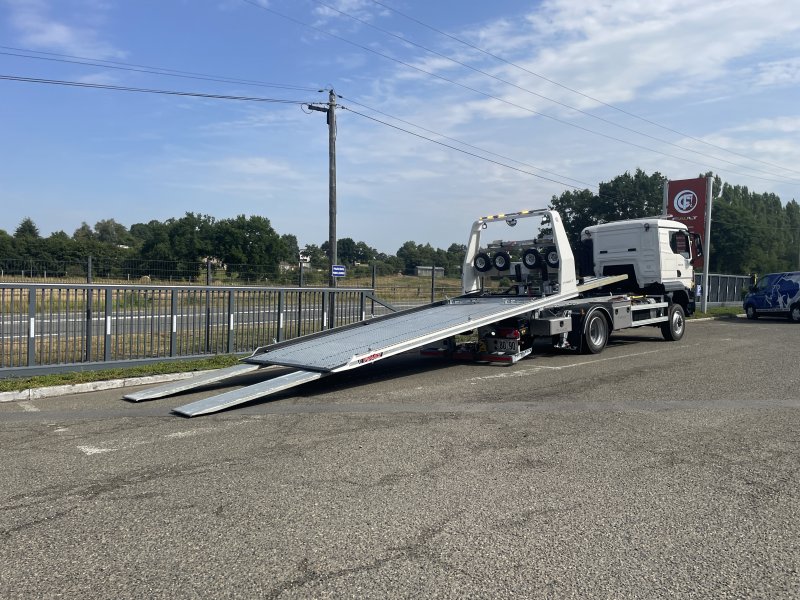

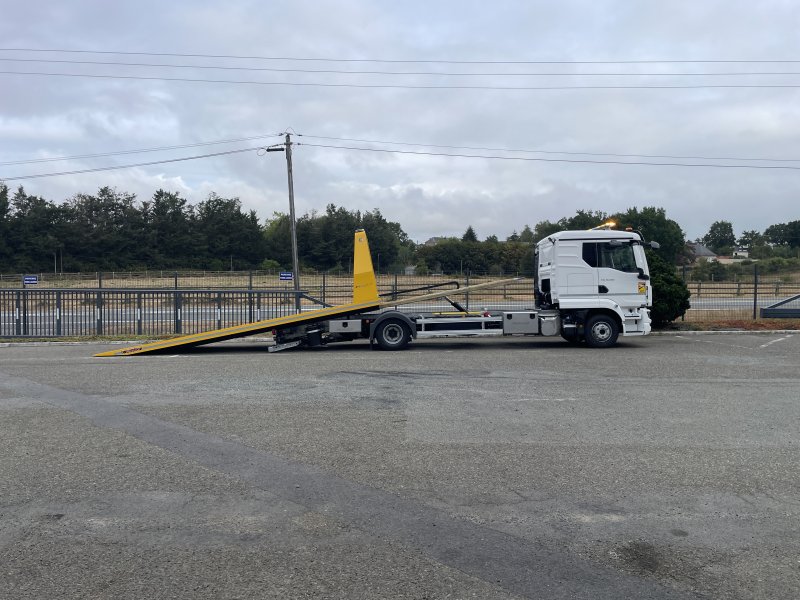

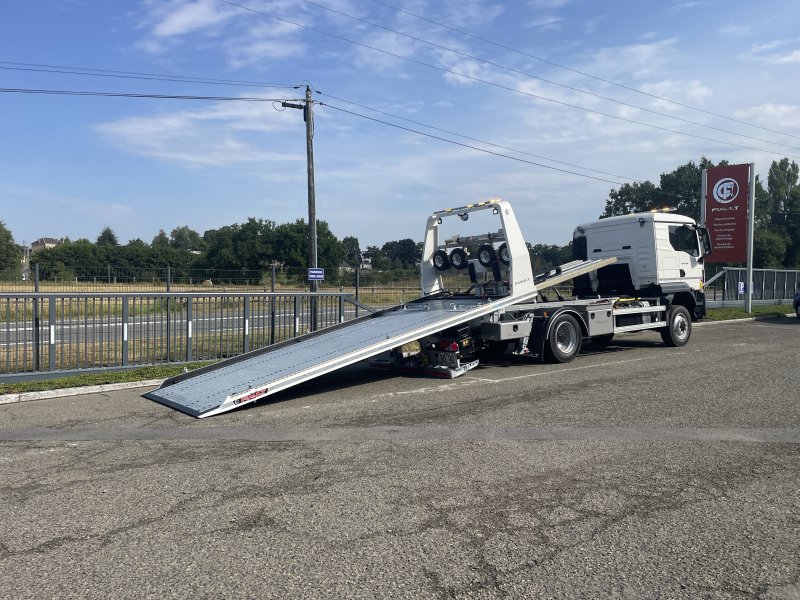

-Tilt and slide load platform, paint steel with anti-slip finish
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide

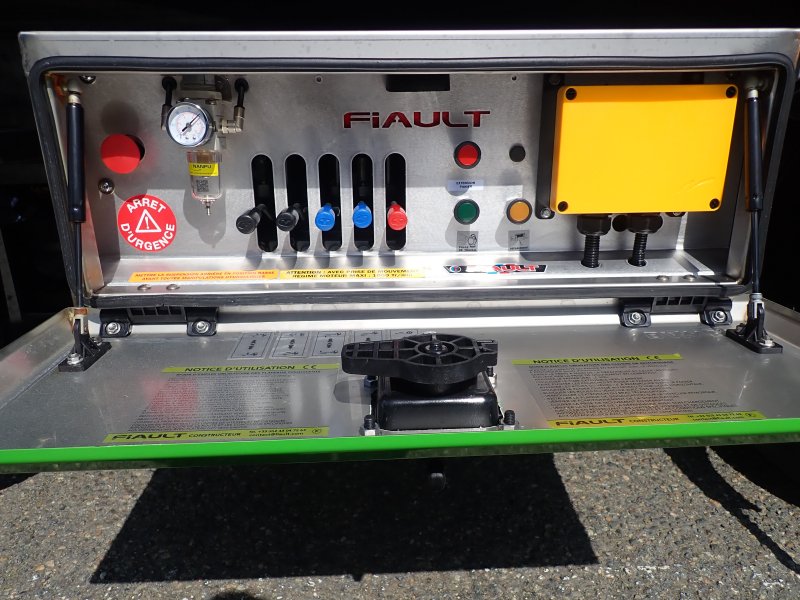

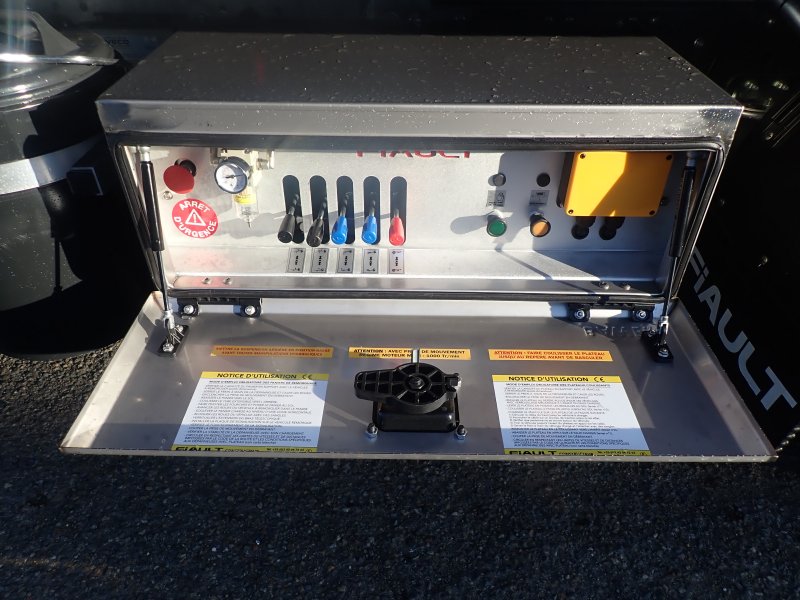

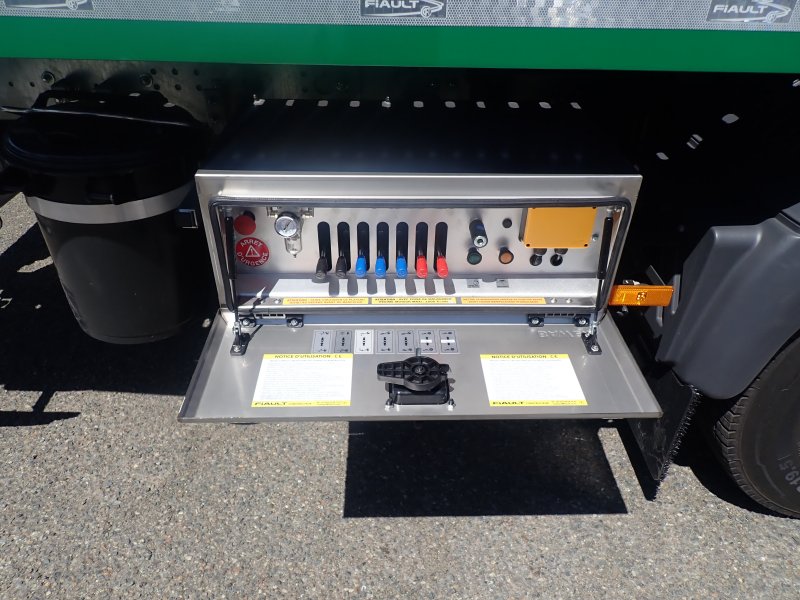

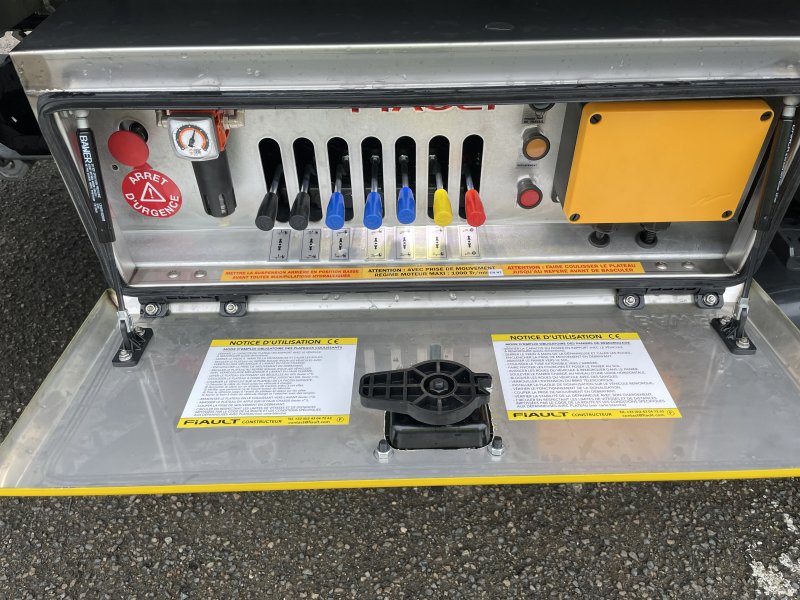

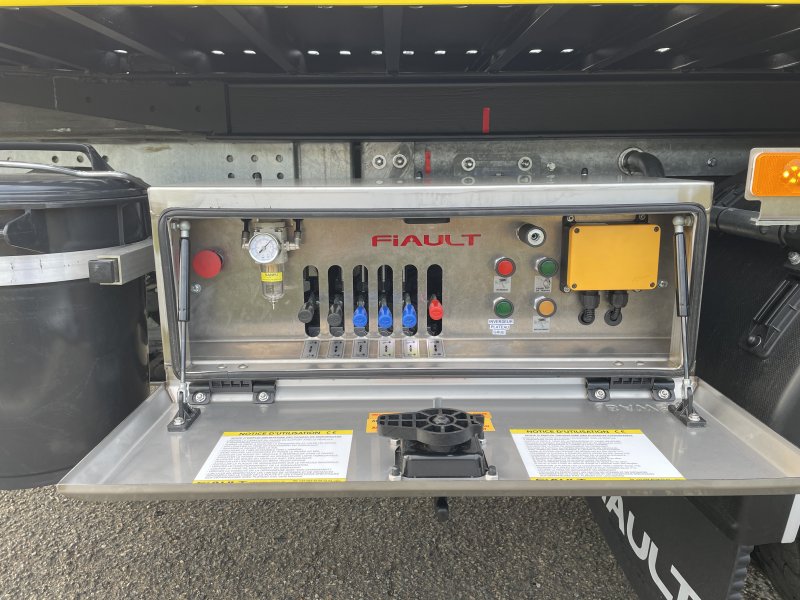

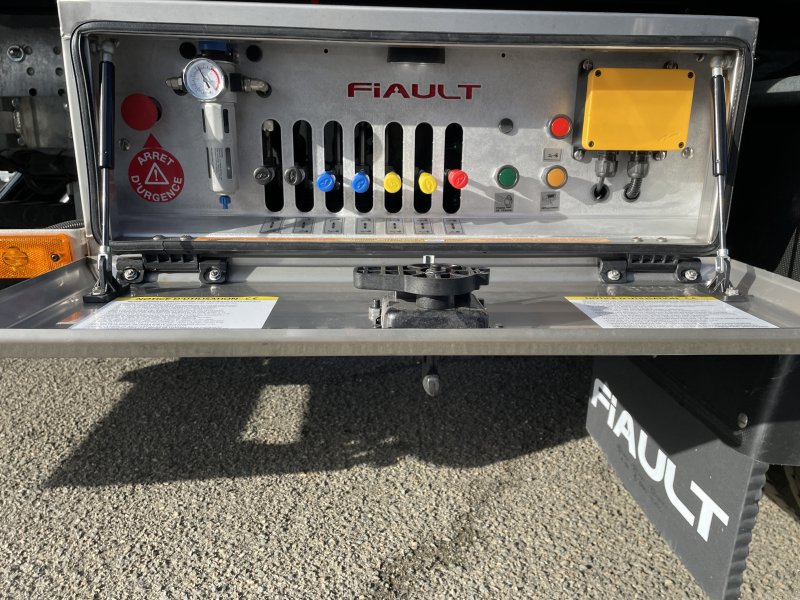

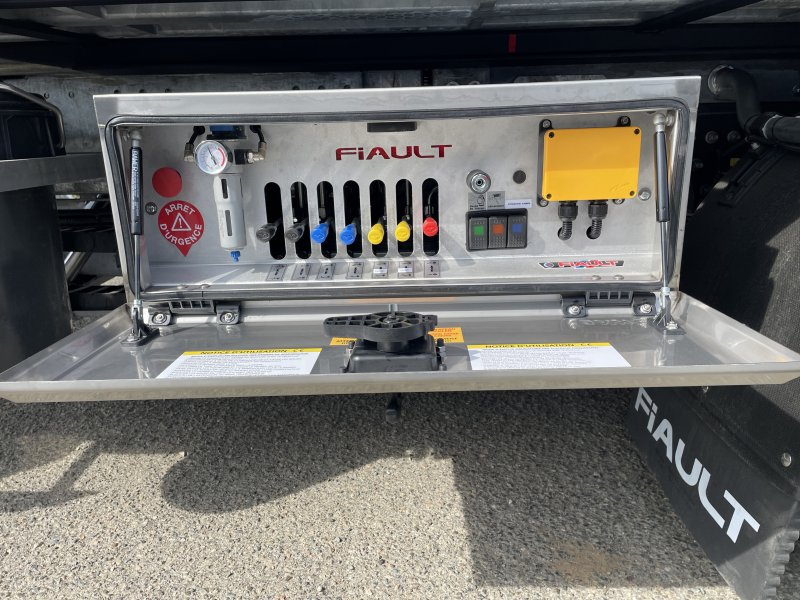

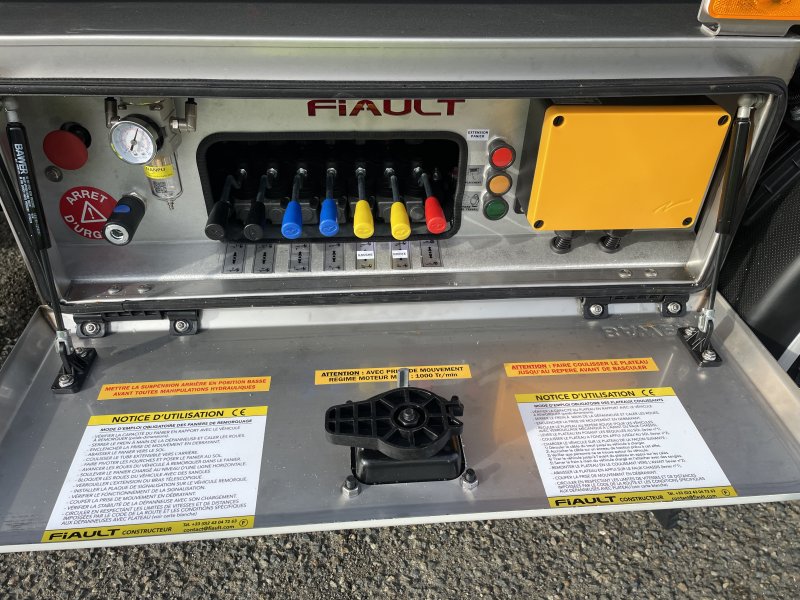

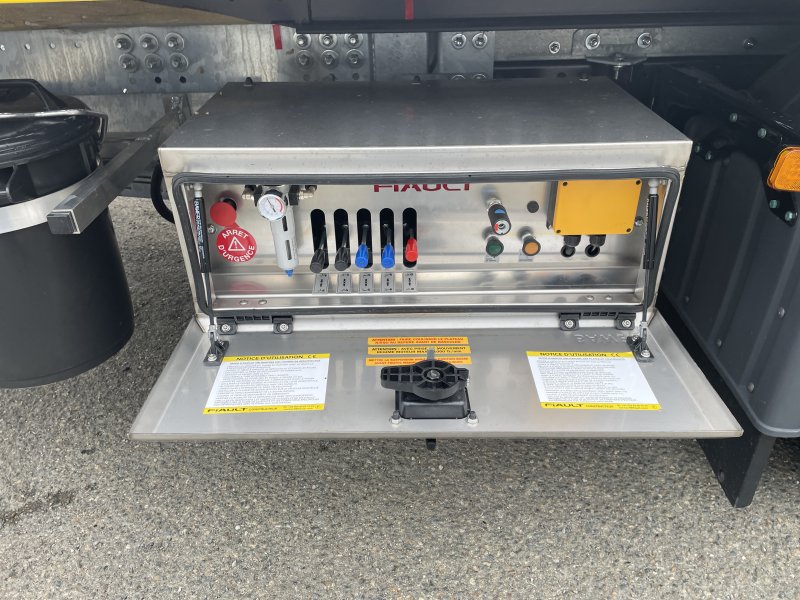

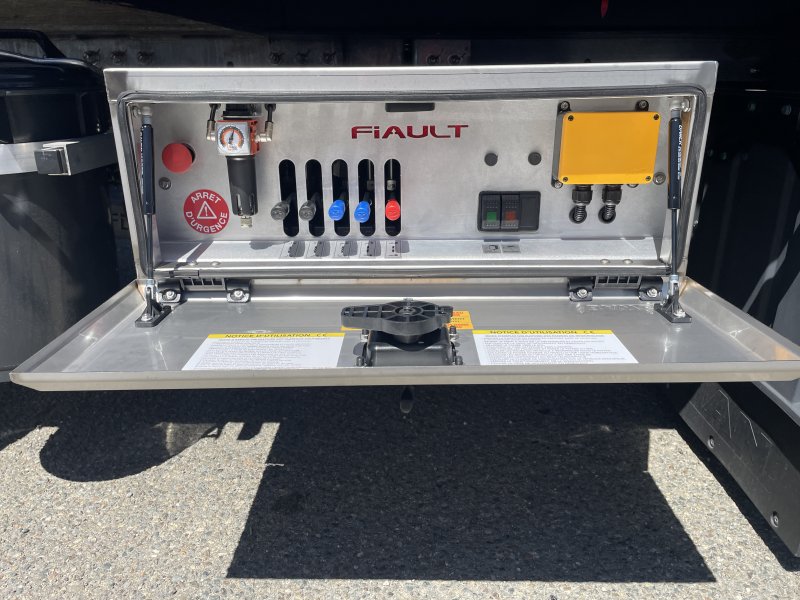

-Hydraulic controls in a stainless steel box on the right rear with lighting (or left to define)
-Integrated shock proof wheel arches with mud guards

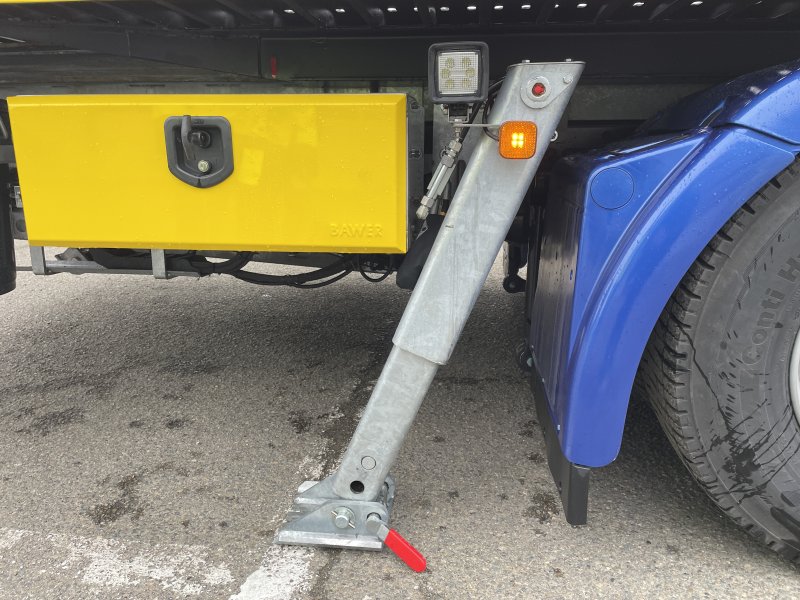

-Two rear roller type stabilisers

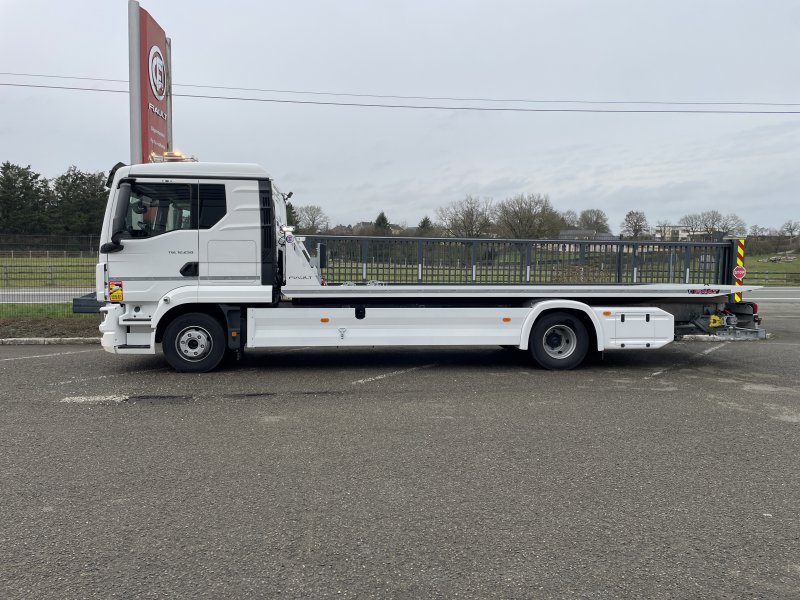

-Modular galvanised, anti slip 4mm bed type "CAILLEBOTIS", 50mm tubular sides and wedging holes over the entire length (no paint on deck)

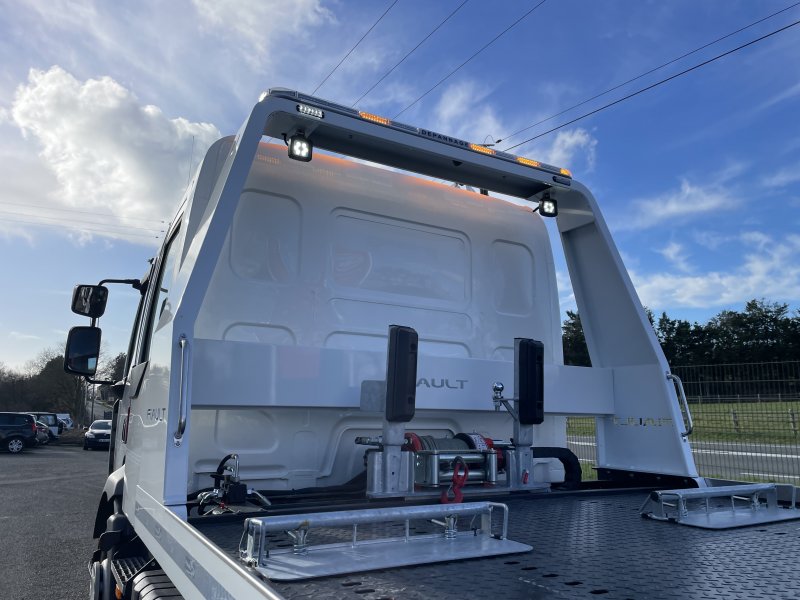

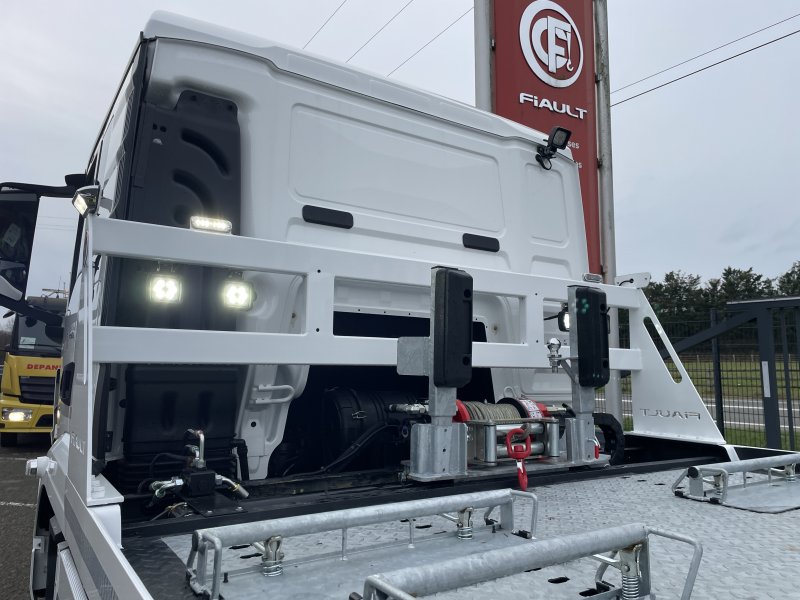

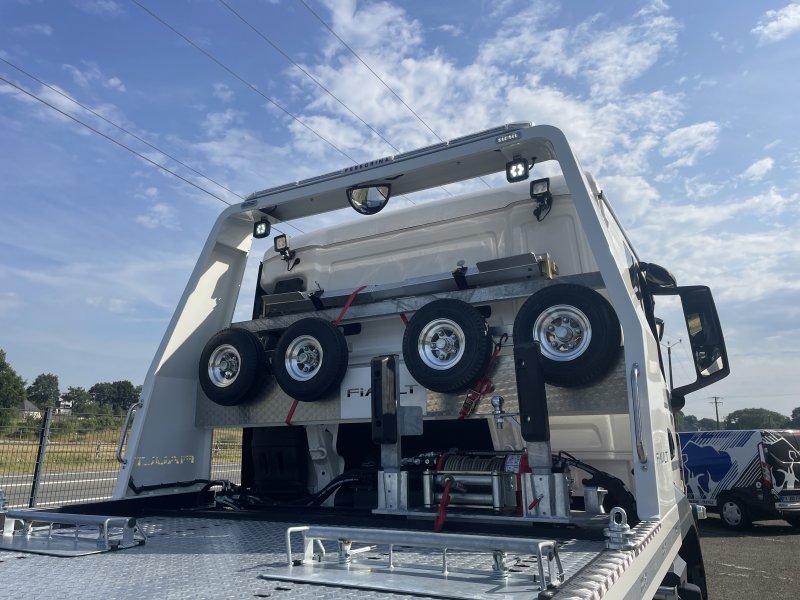

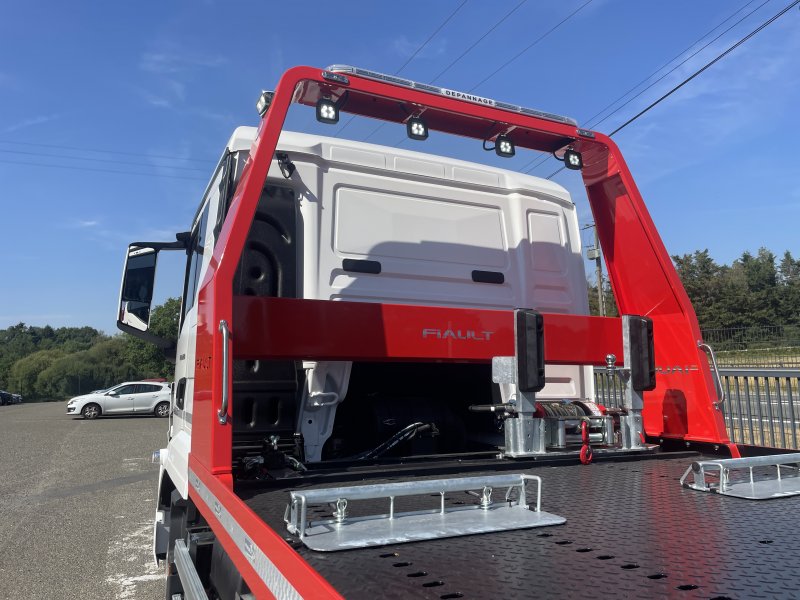

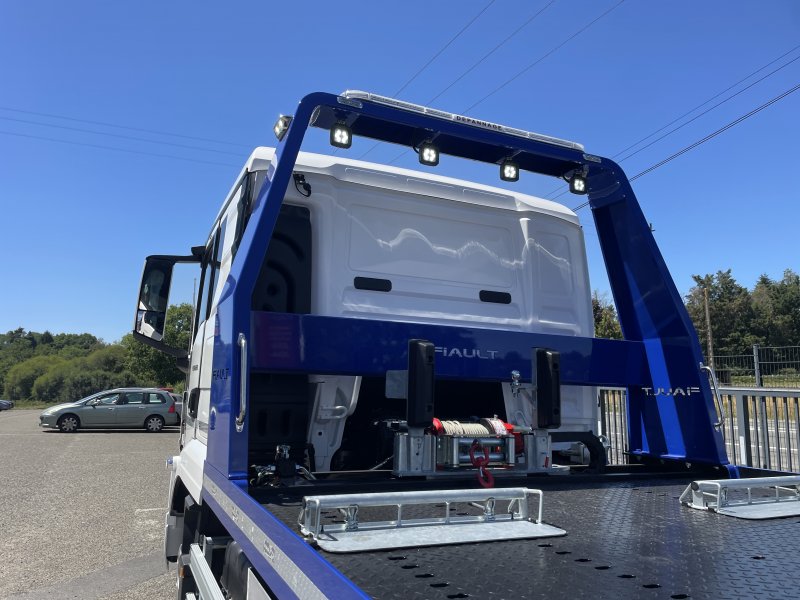

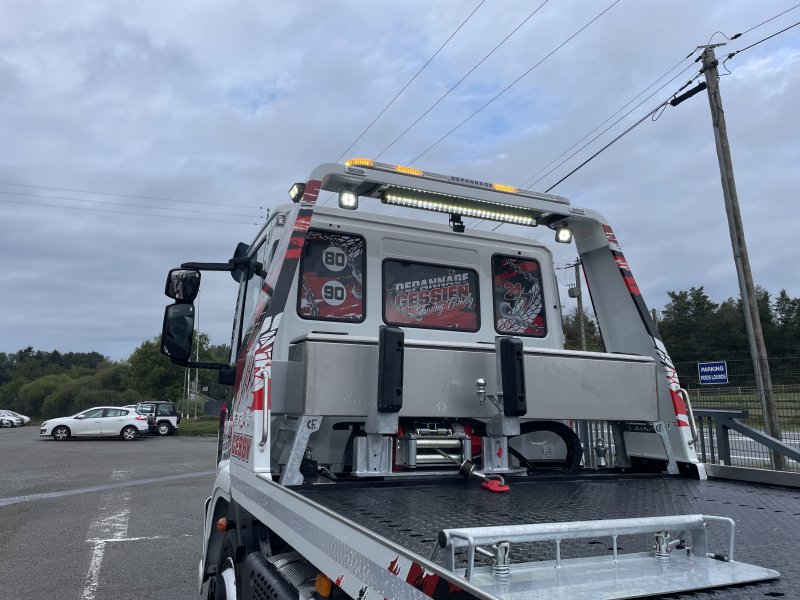

-Bar to protect the cabin with two rubber stops

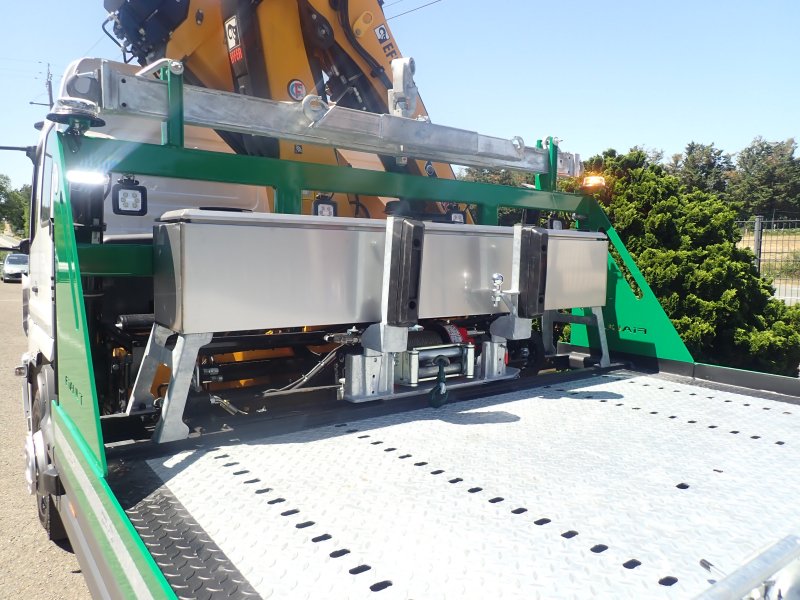

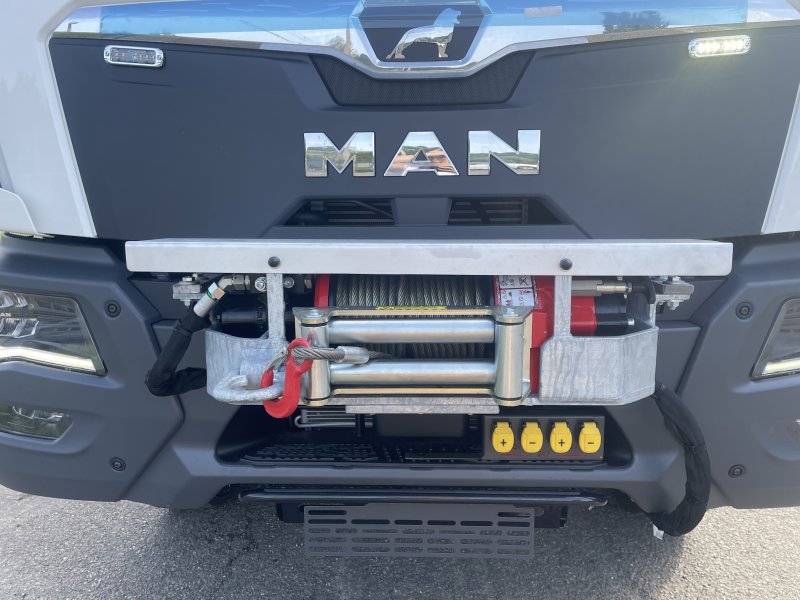

-A 4.5 tons hydraulic winch with 30m Ø10 cable with guide
-Four adjustable wheel clamps on bed
-Front face and sides of deck painted, color to define RAL :
-White reflective tape on the edge of the platform
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 5500 mm to 6500 mm
Exterior bed width = 2400 mm
Technical capacity = 6500 Kg
Payload = to calculate according to the chassis cab
Non-contractual pictures. They can differ depending on the equipment, chassis and location of accessories.
PLAT’TRANS PF 60 : SLIDING DECK CAR TRANSPORTER
00-PF60
[ Open for more informations ] [ Fold up ]
PLAT’TRANS PF 60 : SLIDING DECK CAR TRANSPORTER
-Tilt and slide load platform, paint steel with anti-slip finish
-Hot galvanizing of the subframe and the tilting part
-Deck slides on reinforced steel rails with nylon slides
-Hydraulic circuit with high capacity pump, filtered reservoir and level
-Two hydraulic cylinders with security locks for lift
-A hydraulic cylinder with security locks for the slide

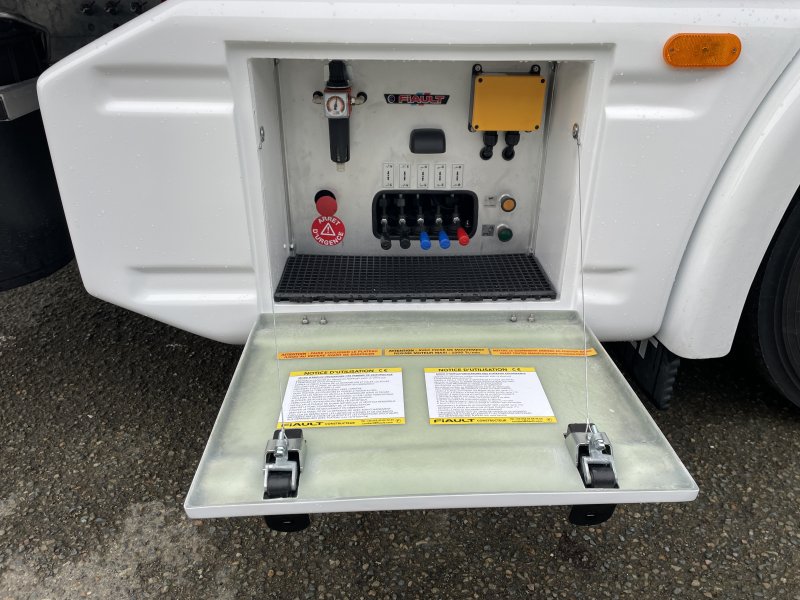

-Hydraulic controls in a stainless steel box on the right rear with lighting (or left to define)
-Integrated shock proof wheel arches with mud guards
-Two rear roller type stabilisers
-Front face and sides of deck painted, color to define RAL :
-VEHICLE CONFORMS TO REGULATIONS
Dimensions :
Exterior bed length = 5500 mm to 6500 mm
Exterior bed width = 2400 mm
Technical capacity = 6500 Kg
Payload = to calculate according to the chassis cab

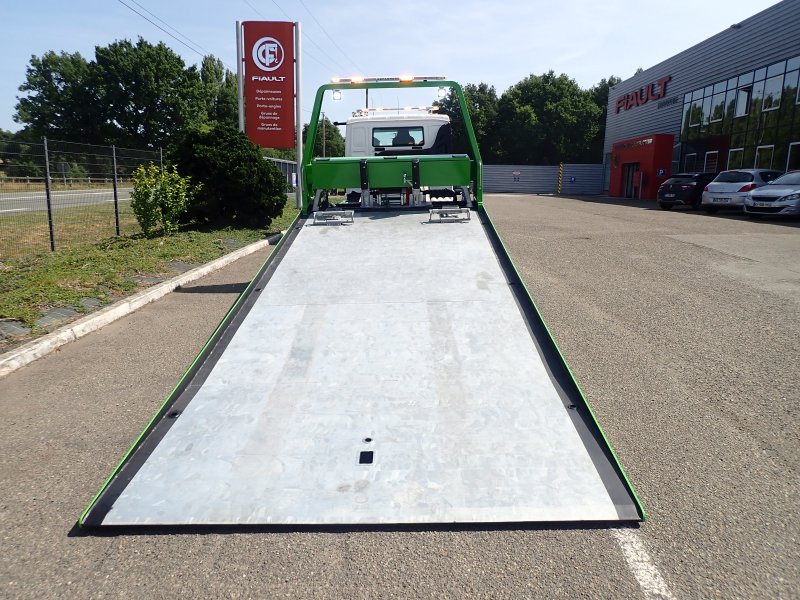

Deck in sheets metal reinforced LARME 4/6 mm GALVANIZED, 50mm tubular sides
0309M111
[ Open for more informations ] [ Fold up ]
Deck in sheets metal reinforced LARME 4/6 mm GALVANIZED, 50mm tubular sides and wedging holes over the entire length replacing the deck modular galvanised, 4mm bed type CAILLEBOTIS

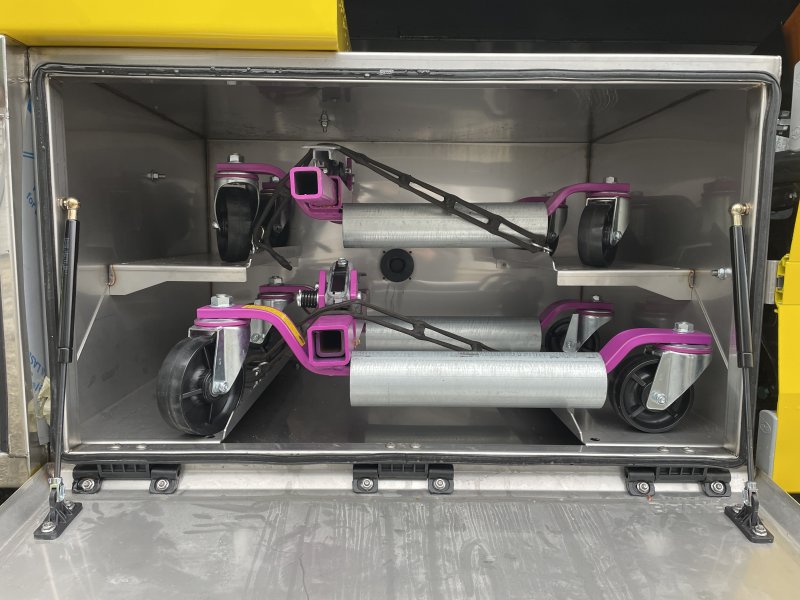

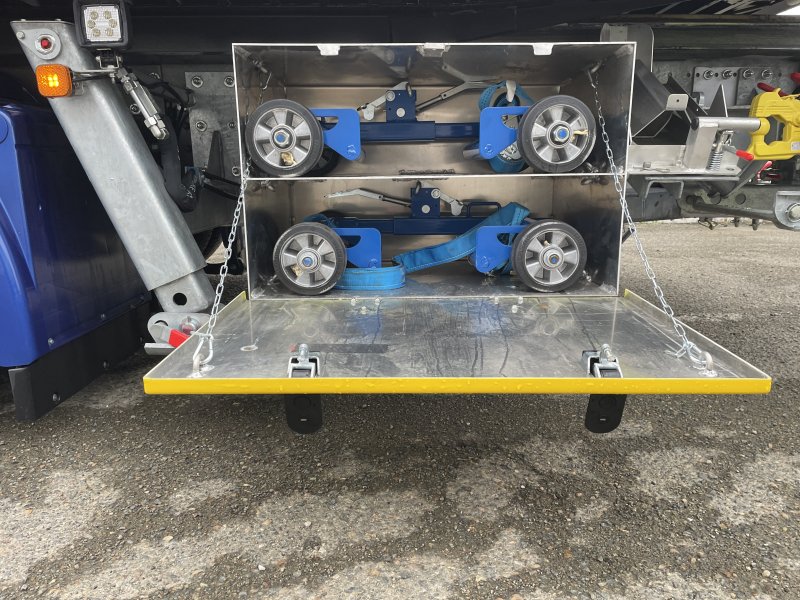

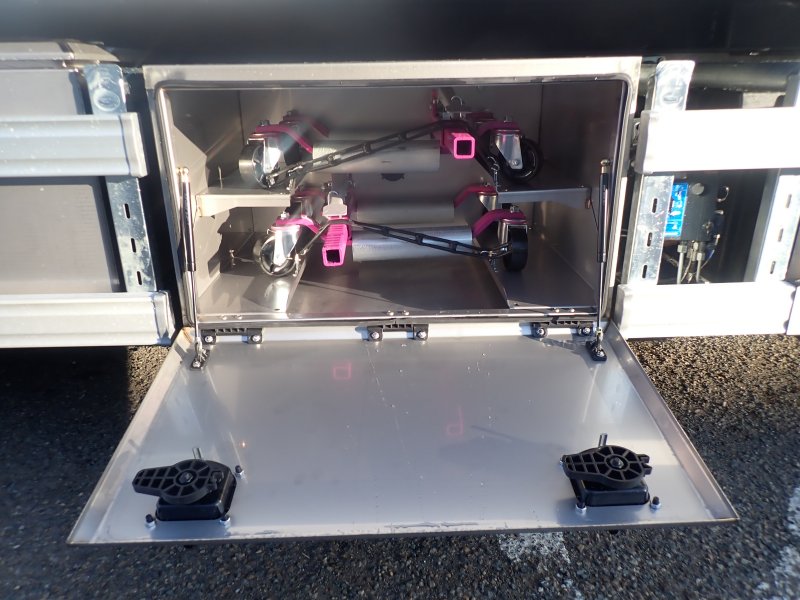

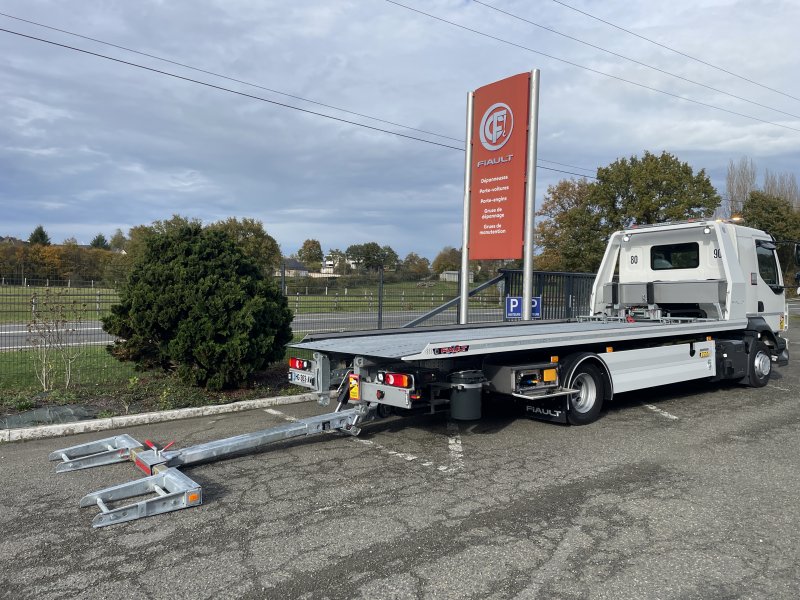

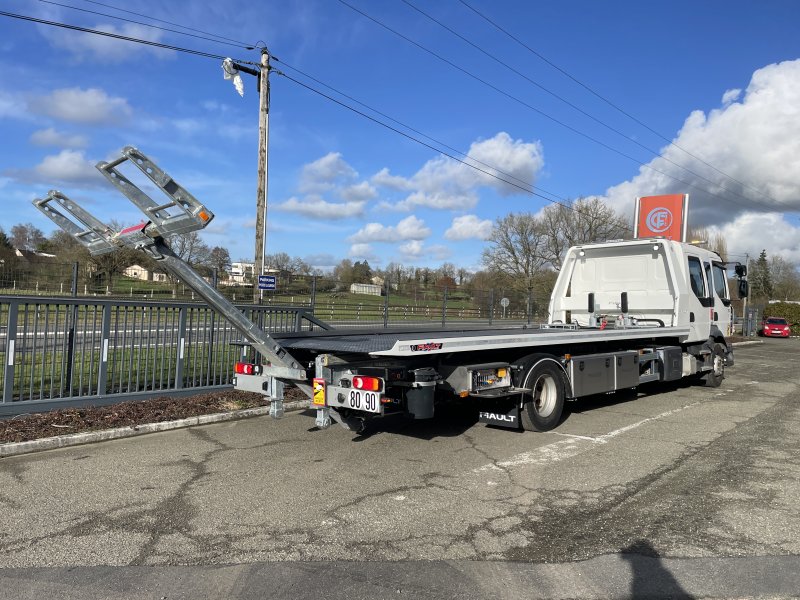

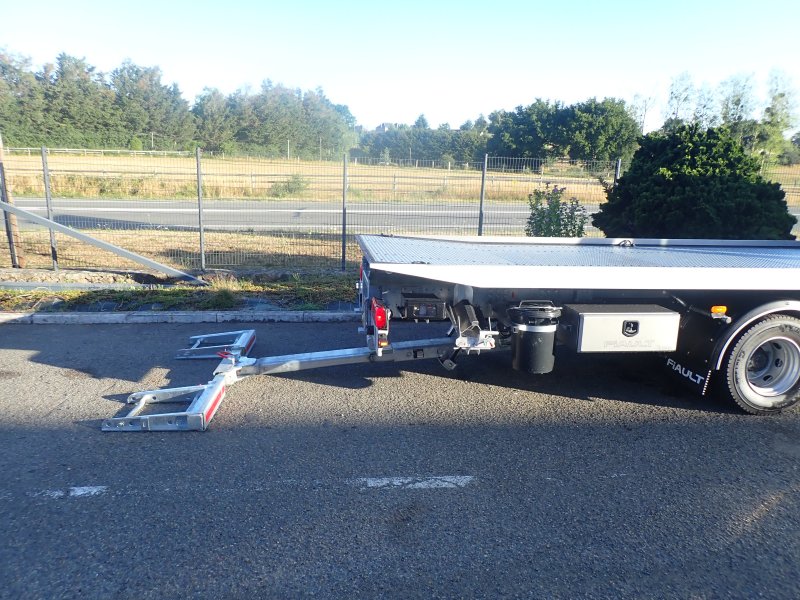

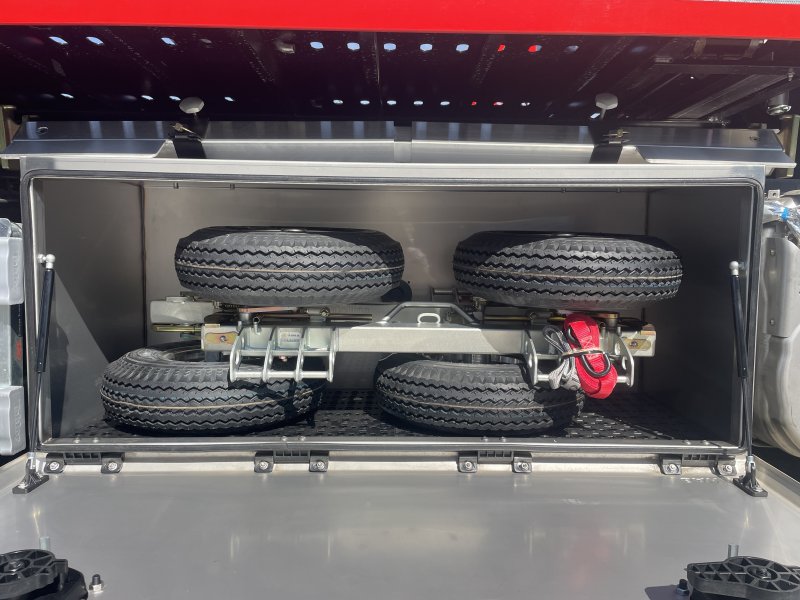

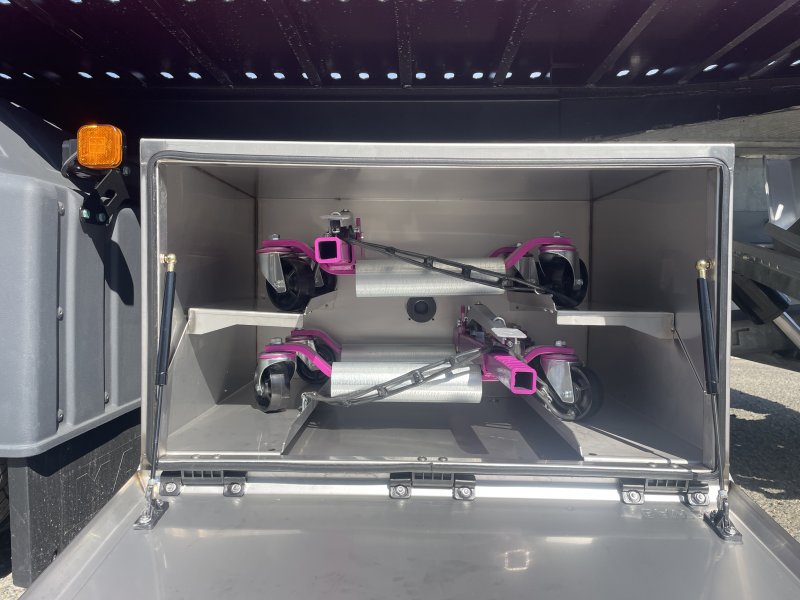

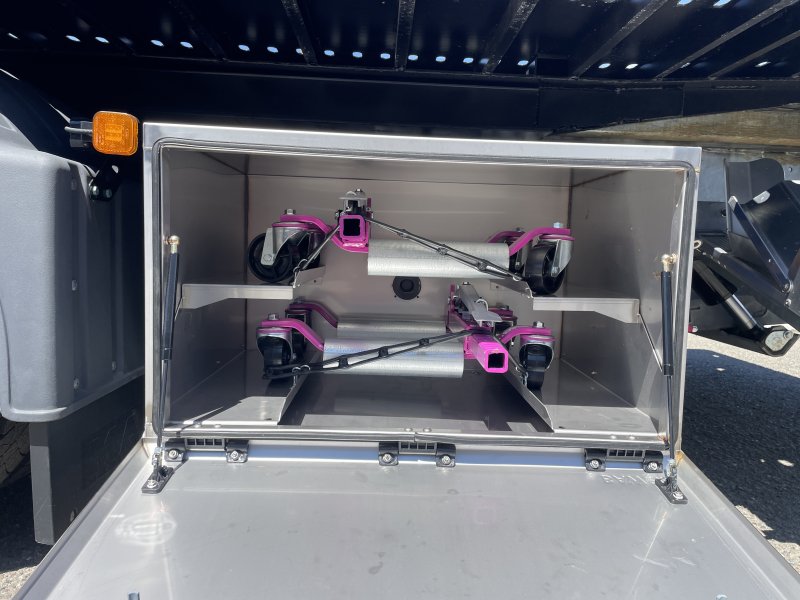

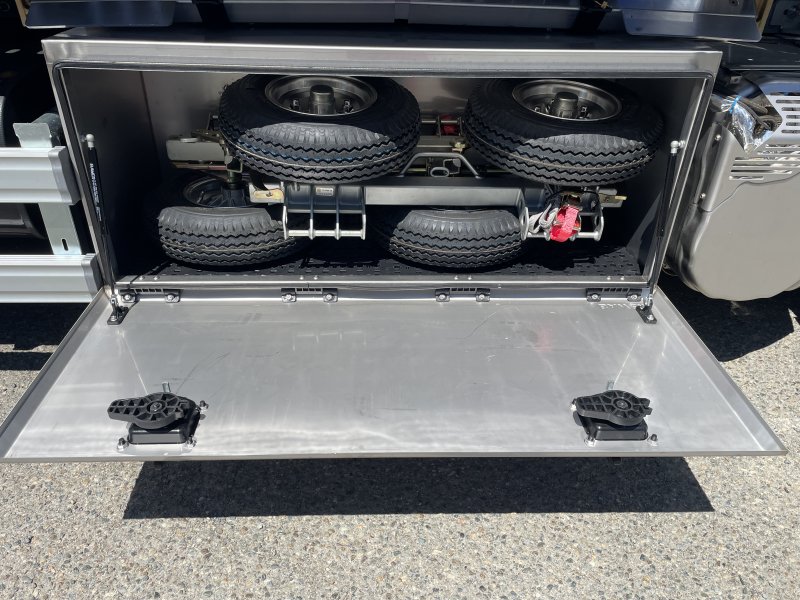

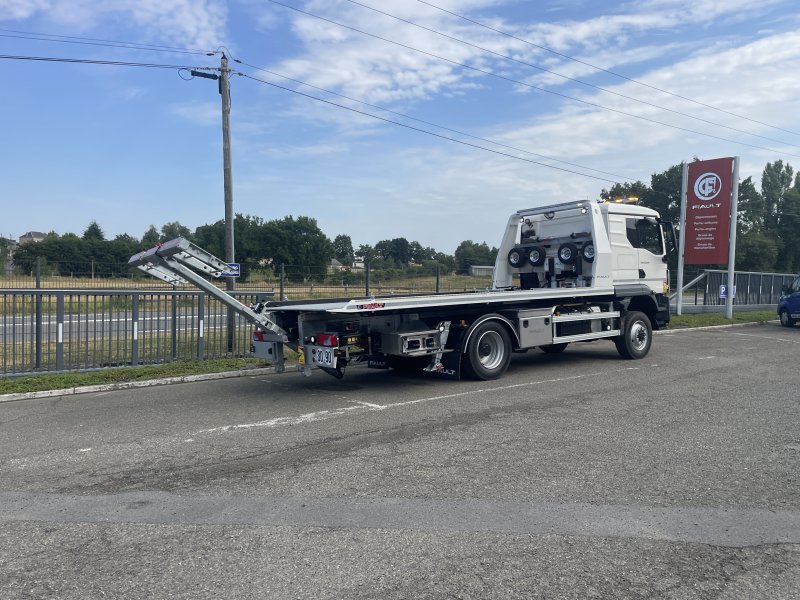

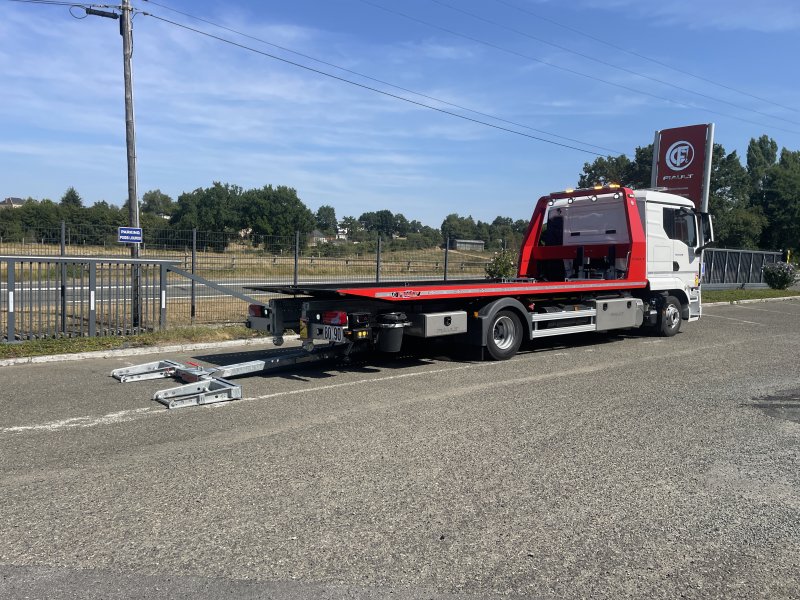

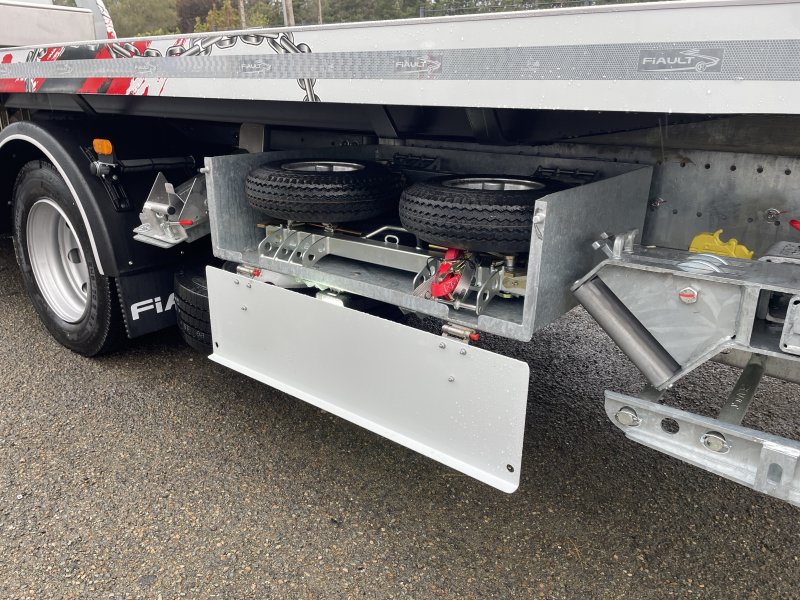

An open support on the equipment for dollies type "SPEED DOLLY " zinc-coated 1380 Kg and for telescopic bars
0502M180
[ Open for more informations ] [ Fold up ]
An open support on the equipment for dollies type "SPEED DOLLY " zinc-coated 1380 Kg and for telescopic bars (without trolley) (on equipment excluding 4x4)
